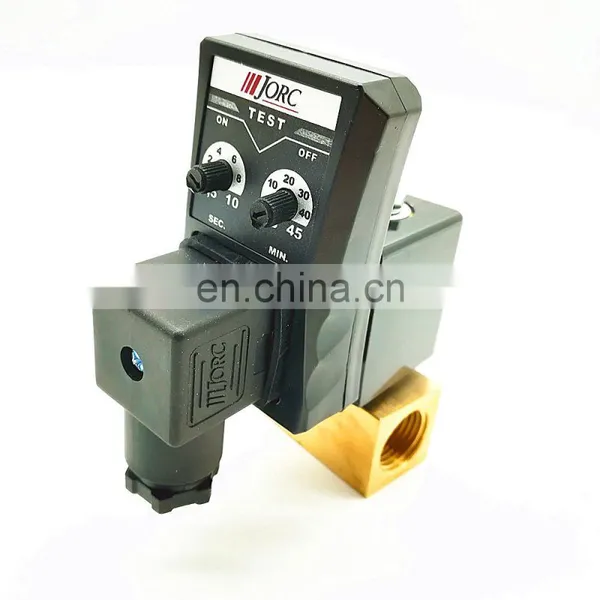

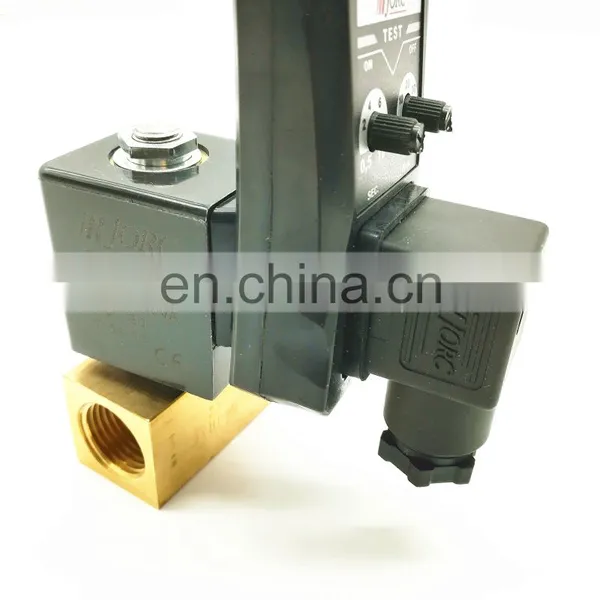

Auto Drain Solenoid Valve
·What is the Drain Valve?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Parameters | ||
Timer | MICDRAIN | |
Interval timer (off) | 0.5-45 minutes | |
Discharge time (on) | 0.5-10 minutes | |
Power supply | 24-240V AC/DC 50/60Hz | |
Current consumption | Max. 4A | |
Ambient temperature | -40℃-+60℃ | |
IP Grade | IP65 | |
Case material | ABS plastics FR grade | |
Electrical connections | DIN43650A | |

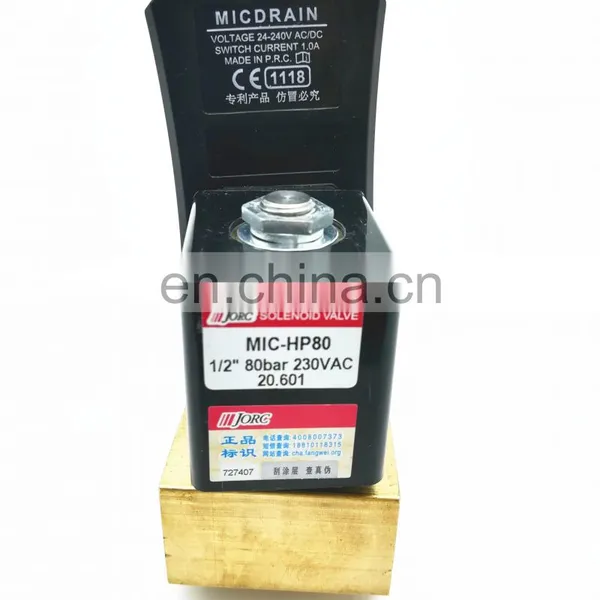

Valve | MIC-HP80 | |
Type | Two way straight acting valve | |
Inlet&outlet port size | RC1/2" OR RC1/4" female thread | |
Max working pressure | 80bar | |
Min.&max.ambient temp. | 2℃/55℃ | |
Max. medium temp. | 90℃ | |
The valve body | brass | |
Insulation | Thermal group H Grade | |
Protection grade | IP65 | |
Voltage | 24-230V AC/DC | |
Voltage range | ±10% | |
micro heat adsorption air dryer
Compressed air tank
Compressed air filter
Air filter
Auto drain Valve
float ball type drain valve
Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 15years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.
We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, welcome to contact our customer service center about your sourcing requirements.
