Factory direct customization PSA oxygen generator system for sale

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

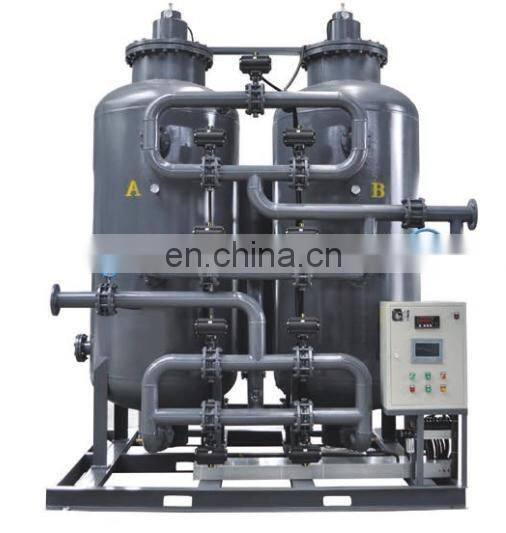

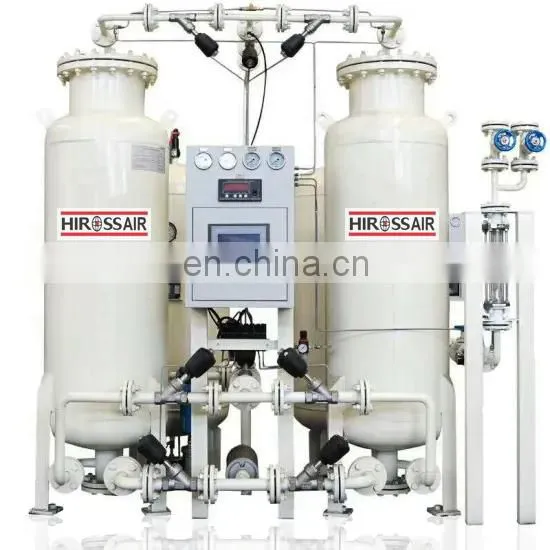

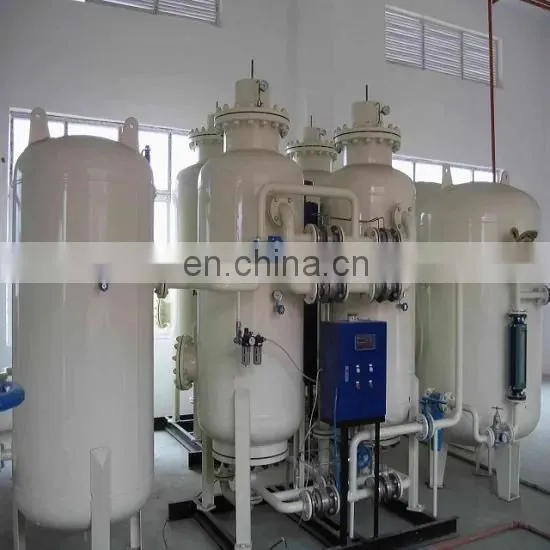

Factory direct customization PSA oxygen generator system for sale

Working principle After removing impurities such as oil, water and dust in the air purification system,compressed air enters the adsorption tower containing zeolite molecular sieve. Nitrogen,carbon dioxide, water vapor and so on in the air are adsorbed by molecular sieve in large quantities, while oxygen passes through the adsorbent due to the large diffusion rate, and oxygen and nitrogen separation is realized. When the nitrogen and other impurities in the adsorption tower reach saturation, the pressure is reduced to desorption and regeneration of zeolite molecular sieve, which can be reused. Using two adsorption tower under the control of PLC cycle work, continuous production of high quality oxygen.

Technical characteristics ●Low energy consumption, Low cost, strong awareness, fast gas production, easy to adjust the purity, ●Perfect Process Design, Optimaluse Effect Modular Structure Design, Saving Floor space; ●Simple operation, stable performance, high degree of automation, can achieve unmanned operation; Low Reasonable intemal components, uniform airflow distibution, reduce the impact of high -speed arflow, ●Unique protection measures of carbon Molecular Sieve, extend the Service Life of carbon Molecular Sieve; ●The use of famous brand key components is an effective guarantee of equipment quality; ●The National patent technology of automatic Air Vent device, to ensure The quality of finished nitrogen; ●With a variety of fault diagnosis, alarm and automatic processing functions; Optional Touch Screen Display, Dew Point Detection, Energy Saving Control, DCS Communication, etc.

Product name	Psa Oxygen Generator
Oxygen Output	5~200Nm3/h(At Standard State)
Oxygen Purity	90%~95%(Gauge Pressure)
Oxygen Pressore	0.1~0.4Mpa(Stable and Adjustable)
Oxygen Dew Point	-40℃~-60℃(Normal Pressure Dew Point)

Specification

Model	Gas production (Nm3/min)	Air consumption (Nm3/min)	Imported nominal diameter DN(mm)	Export nominal diameter DN(mm）	Overall dimensions （mm）
HR-3	2	0.64	25	25	130012002000
HR-5	5	1.10	25	25	140013002000
HR-10	10	2.15	32	25	150013002300
HR-15	15	3.23	40	25	160014002500
HR-20	20	4.30	40	25	31008002500
HR-25	25	5.38	50	25	34009002800
HR-30	30	6.45	50	25	380010003100
HR-40	40	8.60	50	25	430012003000
HR-50	50	10.75	65	25	460012003200
HR-60	60	12.9	65	25	520014003400
HR-80	80	17.2	80	25	570016003300
HR-100	100	21.5	80	25	610016003800
HR-120	120	25.8	100	32	650016004800
HR-150	150	32.25	100	32	740022003500
HR-200	200	43.0	125	40	950022004100
