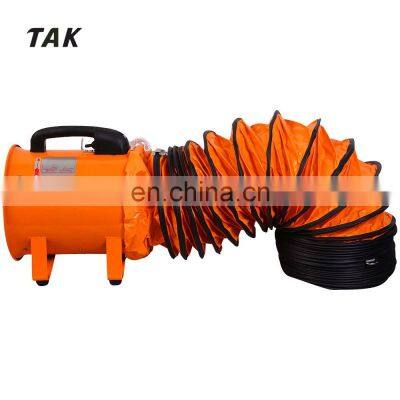

Custom Fire Resistance Flexible Yellow Polyester Reinforced PVC Vinyl Fabric Mining Tunnel Ventilation Air Duct photo-4

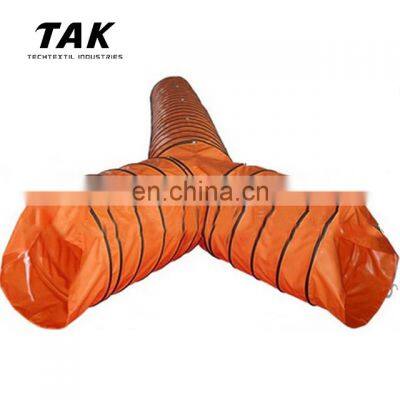

Custom Fire Resistance Flexible Yellow Polyester Reinforced PVC Vinyl Fabric Mining Tunnel Ventilation Air Duct photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Product Name
Flexible Duct
Material
Vinyl Coated Polyester VCP - High Tenacity Strength, 0.28mm - 0.6mm
Color
Orange, Yellow, Gray, White, Blue, Red, Black, Green,etc.(Customized)
Standard
Fire Retardant - B1, NFPA 701 certified
Shape
Cylinder Tube - Single, Twin, Tripple, Y-TYPE, T-TYPE, Braches-TYPE
Diameter
Ø4'',Ø6'',Ø8'',Ø10'',Ø12'',Ø14'',Ø16'',Ø18'',Ø20'',Ø22'',Ø26'',Ø28'',Ø30'',Ø60'',  etc. (Customized)
Length
5m / 7.6M/ 10m / 20m/ 30m (Customized)
LAB
Self-Laboratory in house to test strength, water tightness, water pressure, etc
Temperature
-30℃ to+ 120℃
Compression Ratio
10:1
Accessories
 D-Ring, Rope & Loop, Belted Cuff, Screw/ Bridge Clamps, Hanging Hook,
Used
Air / Gas Ventilations
Certification
ISO9001, ISO 14001, SGS, CTI, ROHS, CE
HS Code
39232900

Flexible Duct
Ideal use for permanent and mobile air conditioning units.
3-layer yellow polyester reinforced PVC vinyl fabric hose construction with an external wearstrip reinforced with a spring
steel wire helix • Lightweight duct for blower applications • Highly compressible • Retractability allows for convenient storage
and easy transport in a fraction of its fully extended length • Low friction loss • Wearstrip offers external abrasion resistance
• Listed as UL 94 V-0 flame retardant
Article
Diameter
(Inch/cm)
Lengths
(ft/m)
G.W.
(lbs/kg)
Packing Size
(Inch/mm)
DGFD-0805
8" / 20
16.4ft / 5m
7.7 lbs / 3.5kg
9.8x9.8x8.7/25x25x22
DGFD-0810
8" / 20
32.8ft / 10m
14.2 lbs / 6.5kg
9.8x9.8x14.9/25x25x38
DGFD-1005
10" / 25
16.4ft / 5m
9.9 lbs / 4.5kg
11.8x11.8x9.0/30x30x23
DGFD-1010
10" / 25
32.8ft / 10m
17.6 lbs / 8.0kg
11.8x11.8x14.1/30x30x36
DGFD-1205
12" / 30
16.4ft / 5m
11 lbs / 5.0kg
13.7x13.7x8.7/35x35x22
DGFD-1210
12" / 30
32.8ft / 10m
19.36 lbs / 8.8kg
13.7x13.7x13.7/35x35x35
DGFD-1405
14" / 35
16.4ft / 5m
13.2lbs / 6.0kg
15.7x15.7x8.7/40x40x22
DGFD-1410
14" / 35
32.8ft / 10m
27.06 lbs / 12.3kg
15.7x15.7x14.9/40x40x38
DGFD-1605
16" / 40
16.4ft / 5m
16.5 lbs / 7.5kg
17.7x17.7x8.7/45x45x22
DGFD-1610
16" / 40
32.8ft / 10m
31.9 lbs / 14.5kg
17.7x17.7x12.9/45x45x33
DGFD-1805
18" / 45
16.4ft / 5m
19.8lbs / 9.0kg
19.6x19.6x8.7/50x50x22
DGFD-1810
18" / 45
32.8ft / 10m
36.3 lbs / 16.5kg
19.6x19.6x13.7/50x50x35
DGFD-2005
20" / 50
16.4ft / 5m
23.1lbs / 10.5kg
21.6x21.6x8.7/55x55x22
DGFD-2010
20" / 50
32.8ft / 10m
37.84 lbs / 17.2kg
21.6x21.6x13.3/55x55x34
DGFD-2405
24" / 60
16.4ft / 5m
24.64 lbs / 11.2kg
25.9x25.9x7.87/66x66x20
DGFD-2410
24" / 60
32.8ft / 10m
27.5 lbs / 12.5kg
25.9x25.9x12.5/66x66x32
