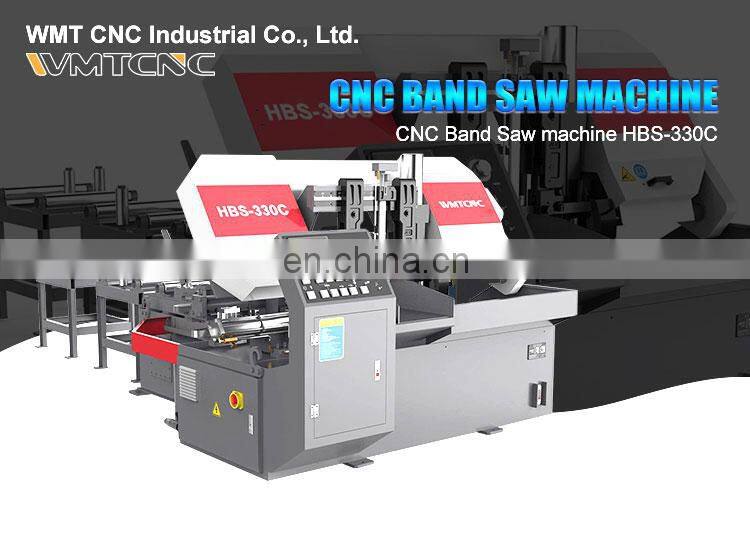

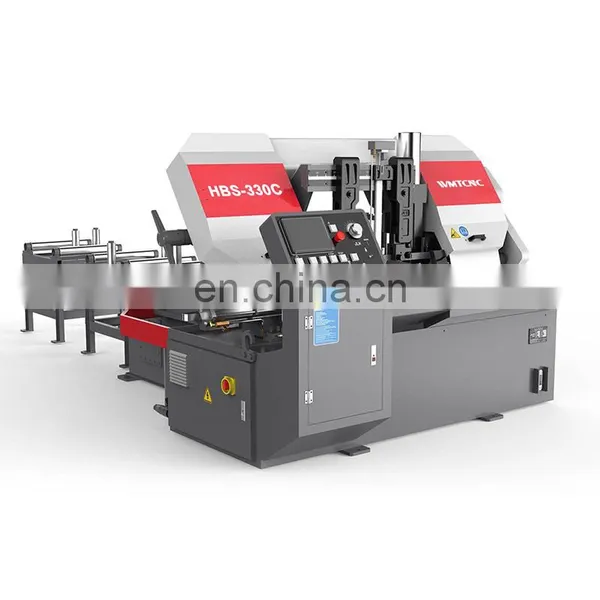

HBS-330C Economical Metal Cutting Band Saw Machine With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BS115 Metal Cutting Band Saw Machine for Household UseNegotiableMOQ: 1 -
BS712N Cut off Machinery Metal Cutting Band Saw Machine With CENegotiableMOQ: 1
-
GH4220A Precision Horizontal Band Saw Machine for Metal CuttingNegotiableMOQ: 1
-
BS-712R Rotary 7\" Band Saw Machine for Metal CuttingNegotiableMOQ: 1
-
HS7125 Small Hydraulic Hack Saw Machine Blade for Metal CuttingNegotiableMOQ: 1
Features:
The value base use aviation aluminum alloy, better heat dissipation and easier for maintenance.Screw type chip conveyor will convey chips automatically to the chip stock box when machine is in operation. It has highly consistent stability, weld joint is smooth, no lack of weld and false weld. Special fast drop rod water outlet design with improved water exit points; improves coolant effect and prolongs blade life.
Cutting capacity(mm) |
Square: 330×330 Round: 330 |
||
Blade speed(m/min) |
25/40/58/80 |
||
Blade size(mm) |
4115mm(L)*34mm(W)*1.1mm(T) |
||
Blade tension |
Manual tension |
||
Total power |
5kw |
||
Blade main motor |
4kw |
||
Hydraulic motor |
0.75KW |
||
Coolant motor |
90W |
||
Single feeding distance |
500mm |
||
Oil tank volume |
Hydraulic oil(L) |
70 |
|
Hutting oil(L) |
100 |
||
Machine size(mm) |

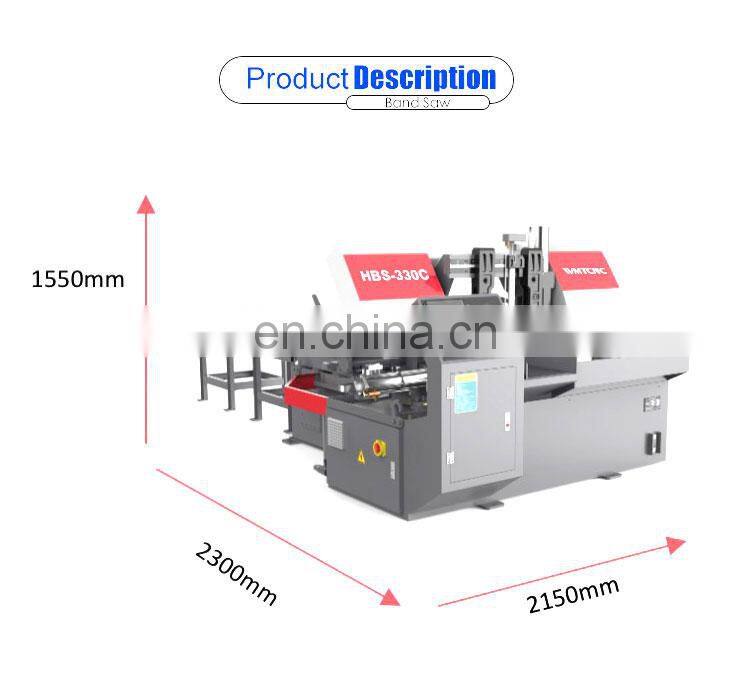

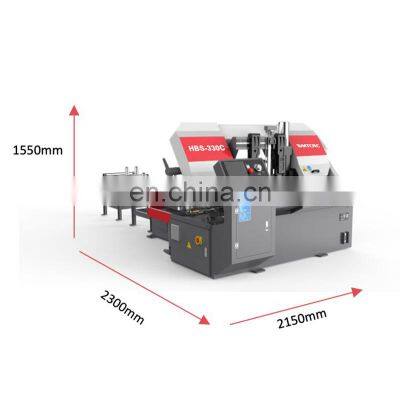

2150(W)*2300(L)*1550(H) |
||
Machine weight(kg) |
≈1750 |
||
Main transmission structure |
Gear reducer |
||
Saw blade tension mode |
Hydraulic |
||
Clamping method |
Hydraulic vise |
||
Sawdust cleaning method |
Wire brush and cutting coolant |
||
