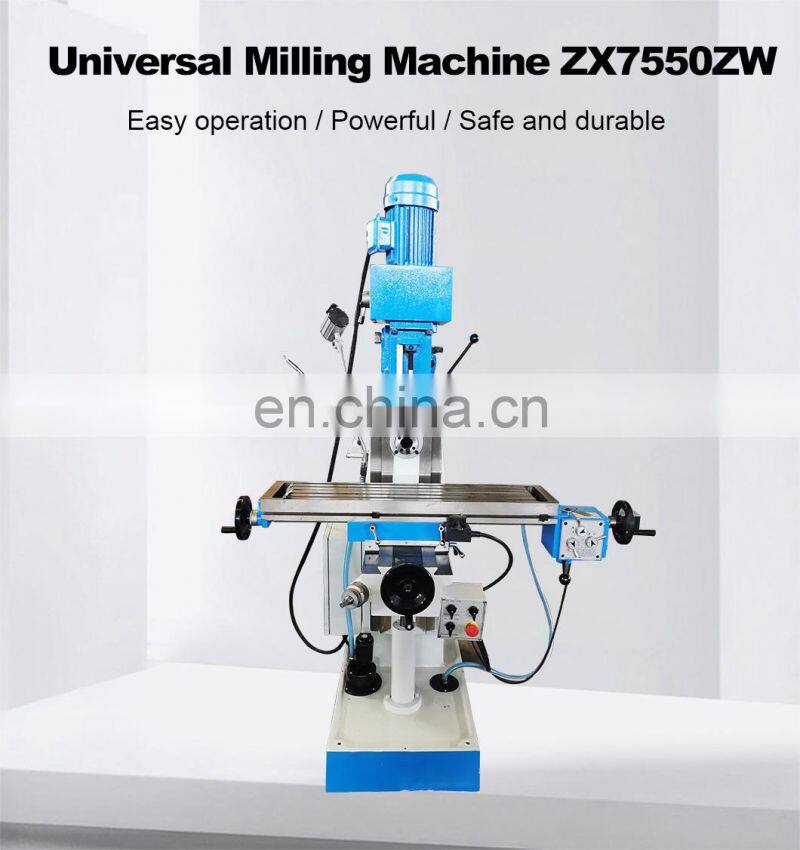

Bench Top Milling Machine Portable Milling Machine ZX7550ZW With Vertical Spindle Auto-feeding
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
TX68 China Horizontal Portable Milling Boring Machine With CE
-
TK6411C Horizontal Fanuc Cnc Milling Boring Machine for Precise Machining
-
TPK611C Heavy Type Horizontal Milling Boring Machine With CE
-
Boring Milling Machine TK611C/4 China Heavy Horizontal Milling Boring Machine With CE
-
Boring Milling Machine TK611B/1 China Heavy Horizontal Milling Boring Machine With CE
-
TPK6111B/3 Heavy Duty Horizontal Milling Boring Machine for Metalworking Cnc Boring and Milling Machine
Product Description
Product Description
Main Features:
1. Rectanger guide way, better stbility;2. Headstocck swivels ±90º;
3. Worktable turns ±45º;
4. Easily changing from vertical milling to horizontal milling;
5. Worktable can be automatically feed in X axis, and equipped with "quick-reverse" unit to realize high efficiency in working.
Specification | ZX7550ZW |
Max.drilling dia | Φ50mm |
Max.horizontal milling dia. | Φ100 |
Max.vertical milling dia. | Φ25mm |
Max.boring dia. | Φ120mm |
Spindle taper | ISO30, R8, MT4 |
Spindle speeds range | V: 60-1500rpm(8) |
H: 60-1350rpm(8) | |
Spindle travel | 120mm |
Table size | 240×1000mm |
Table travel | 400×230×350mm |
Main motor power (V/H) | V:1.5kw, H:1.5kw |
Packing size | 1140×1120×2220mm 1140×1220×2220mm |
N.W/G.W | 900kg/1050kg |

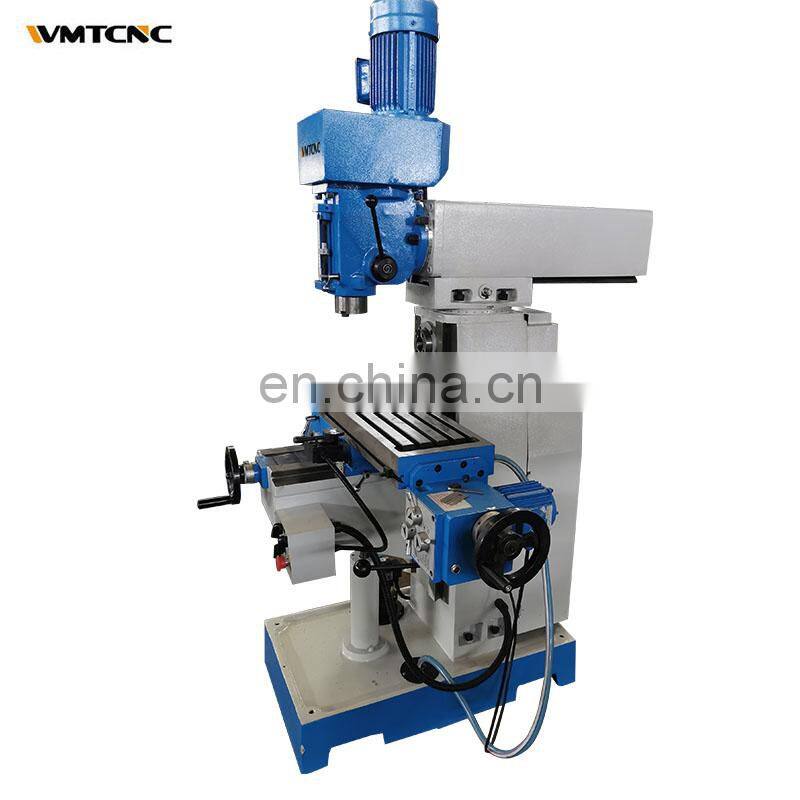

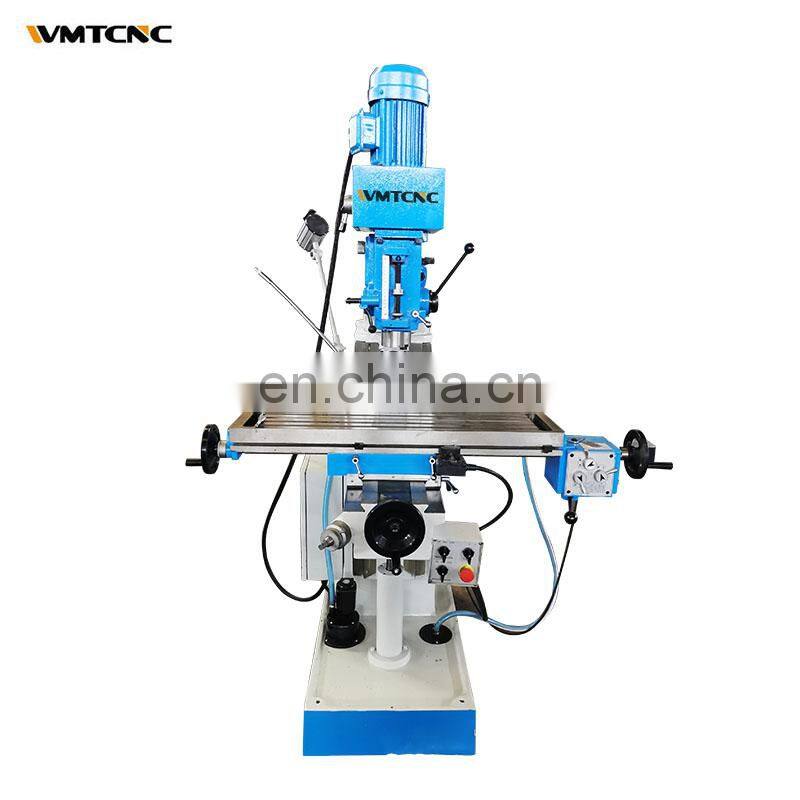

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
