CD6250B precision horizontal gap manual lathe machine for metal turning

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

CD6250B precision horizontal gap lathe machine for metal turning

Features:

Super voice frequency heated bedways Hardened and grounded gears in the headstock With 2 precision D degree taper roller bearings on the spindle Integrated deluxe cast iron floor stand Tolerance test certificate, test flow chart included

Machine Specification

Model	CD6240B	CD6250B	CD6260B
Max. swing over bed (mm)	400	500	600
Max. swing over cross slide(mm)	225	325	360
Center distance (mm)	1000, 1500, 2000,3000 mm	1000, 1500, 2000,3000 mm	1000, 1500, 2000,3000 mm
Max swing in gap (mm)	530	630	730
Valid length of gap	260mm	260mm	260mm
Bed width	330mm	330mm	330mm
Spindle hole	65mm	65mm	65mm
Spindle nose	ISO-C6 or ISO-D6	ISO-C6 or ISO-D6	ISO-C6 or ISO-D6
Spindle taper	Metric 70mm	Metric 70mm	Metric 70mm
Spindle speeds (Number)	22-1800rpm (15 steps)	22-1800rpm (15 steps)	22-1800rpm (15 steps)
Metric threads range (Kinds)	0.5-28mm (66kinds)	0.5-28mm (66kinds)	0.5-28mm (66kinds)
Inch Threads range (Kinds)	1-56 /inch(66kinds)	1-56 /inch(66kinds)	1-56 /inch(66kinds)
Module threads range (Kinds)	0.5-3.5mm (33kinds)	0.5-3.5mm (33kinds)	0.5-3.5mm (33kinds)
Diametral threads range (Kinds)	8-56 DP(33kinds)	8-56 DP(33kinds)	8-56 DP(33kinds)
Longitudinal fees range (Kinds)	0.072-4.038mm/rev(66kinds)	0.072-4.038mm/rev(66kinds)	0.072-4.038mm/rev(66kinds)
Cross feeds range (Kinds)	0.036-2.019mm/rev(66kinds)	0.036-2.019mm/rev(66kinds)	0.036-2.019mm/rev(66kinds)
Cross slide travel	300mm	300mm	300mm
Compound rest travel	130mm	130mm	130mm
Cross-section size of toolshank	25*20mm	*2520mm**	25*25mm
Taper of tailstock sleeve	Morse No.5	Morse No.5	Morse No.5
Diameter of tailstock sleeve	65mm	65mm	65mm
Travel of tailstock sleeve	120mm	120mm	120mm
Motor	5.5kw	5.5kw	7.5kw

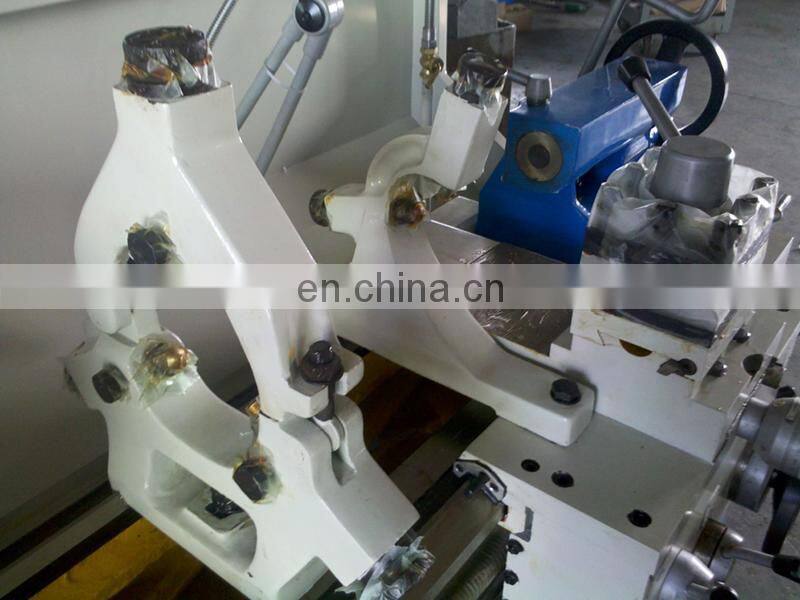

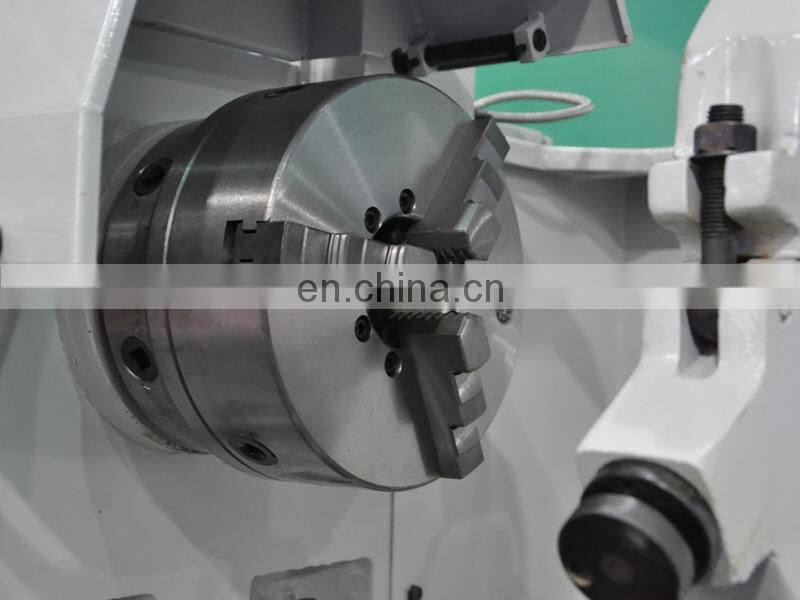

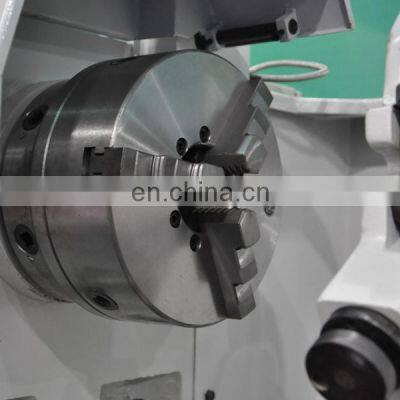

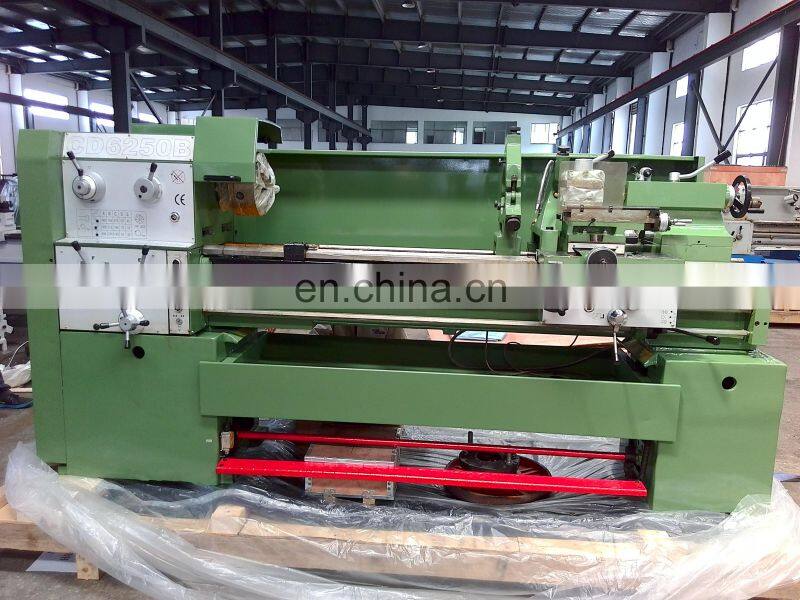

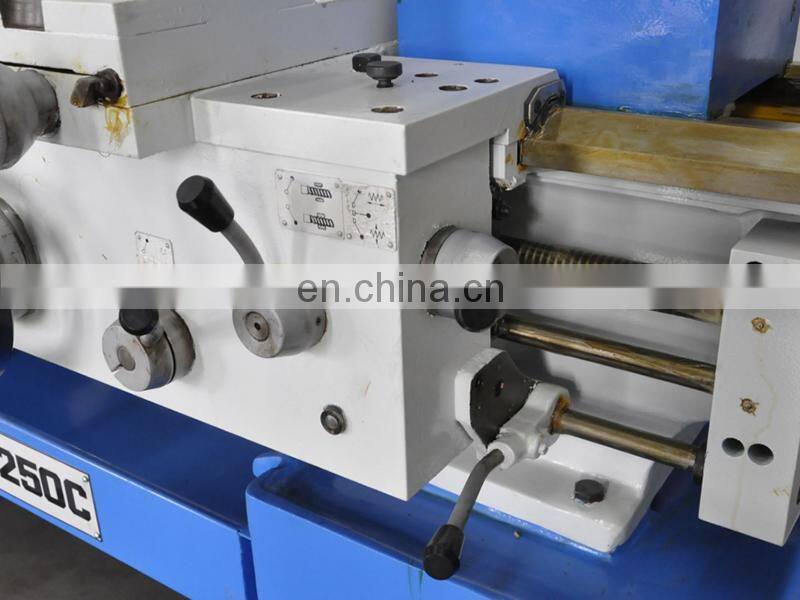

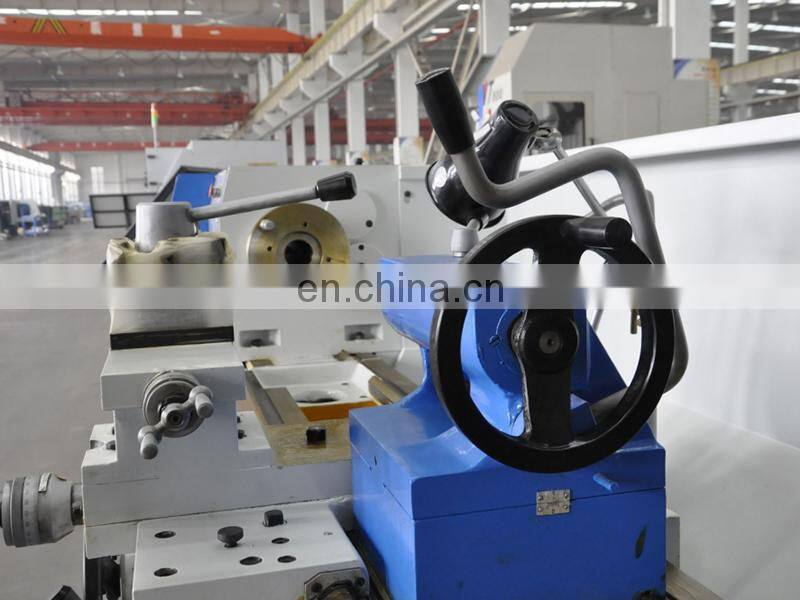

Detailed Images

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
