Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > Russian Market 520806 VKC2535 Deep Groove Ball Bearing Lada 21081601180 VAZ 2108-1601182

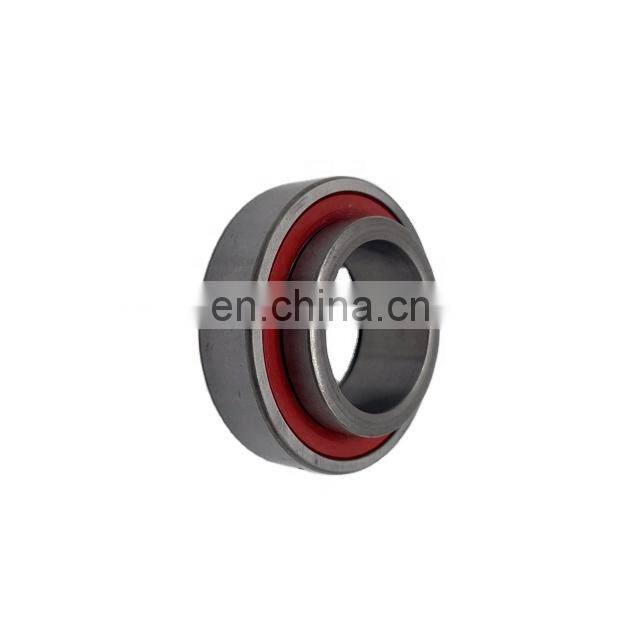

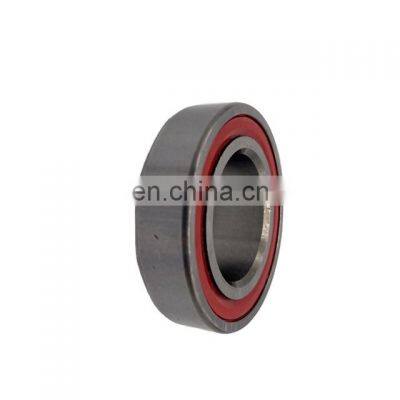

Russian Market 520806 VKC2535 Deep Groove Ball Bearing Lada 21081601180 VAZ 2108-1601182
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Russian Market 180306 80306 60306 50306 6306 Deep Groove Ball Bearing Lada Vaz2101-2107 2140NegotiableMOQ: 1 -
Russian Market 6306-2RS1 180306 6306FT150 Vaz2101 2107 180306 6-180306 Deep Groove Ball BearingNegotiableMOQ: 1
-
Russian Market 6306DDU W6306- 6306-2RS Deep Groove Ball Bearing Lada Vaz2101-2107NegotiableMOQ: 1
-
Russian Market 6306HT200 6306 2RS 6-180306 Deep Groove Ball Bearing Lada Vaz2101-2107NegotiableMOQ: 1
-
Russian Market 6306EE 86-180306AC17 180306AEC17 Deep Groove Ball Bearing Vaz2101 2107NegotiableMOQ: 1
Product Description
Specification
Single-row radial ball bearing of the main design. Universal - perceives radial and axial loads (axial to a lesser extent). It is
closed with washers on both sides, plastic lubricant is applied at the factory in advance - thus the bearing does not need
lubrication and other types of care. It can be installed in nodes where contact with moisture is possible. On the outer ring there is a groove for the retaining ring. The bearing is non-separable, easy to mount, easy to operate. Capable of operating at high rotational speeds
closed with washers on both sides, plastic lubricant is applied at the factory in advance - thus the bearing does not need
lubrication and other types of care. It can be installed in nodes where contact with moisture is possible. On the outer ring there is a groove for the retaining ring. The bearing is non-separable, easy to mount, easy to operate. Capable of operating at high rotational speeds
Inner diameter (D): 31mm; Outer diameter (d): 55mm; Width (h): 13/19mm; Weight: 0.13 kg; Ball diameter: 6.35mm; Number of balls:12. ; Dynamic load capacity: 11.2 kn；; Static load: 7.4 kn；Rated speed: 3200 rpm. /minute.
Applicability: vaz2108 2109 2110 2111 2112 and other models
Product name | Russian market520806 Single row deep groove ball bearing |
Type | deep groove BALL |
Structure | Deep Groove |
Seals Type | 2RS |
Number of Row | Single row |
Size | 31*55*13 |
weight | 0.13kg |
Other bearing used in lada VAZ 2110:
Bearings VAZ 2108, 2109, 2110, 2111, 2112, 21314, 2115 and their analoguesApplicabilityBearing numberAnalog importDimensions Quantitysecondary shaft464706—30х36х251front support output shaft42305NJ30525х62х171front support input shaft6-42205А1Е1УШ1NJ205 25х52х151Gearbox output shaft bearing, front support503056305N25x62x172differential (right and left support72073020735х72х18,252
steering gear86-903—--12steering gear104600420х42х121Front suspension strut bearing348702 (или в комплекте 8115)—14,5х52х1475х100х192Steering gear bearing104600420х42х121Gear steering gear604901 11,1х17,5х131Steering gear needle bearing604901—11,1х17,5х131Front hub bearing537906 или 256706VKBA 130730х60х372Front hub bearing537907 or 256907VKBA 1306 or VKBA 378634х64х372
Clutch release bearing520806—31х55х13/191Timing belt tensioning256705—25x62x281Generator bearing1802026202-2RS15х35х112Generatorbearing1801036003-2RS17х35х101Generator bearing1803026302-2RS15х42х131Generator bearing1803036303-2RS17х47х142
steering gear86-903—--12steering gear104600420х42х121Front suspension strut bearing348702 (или в комплекте 8115)—14,5х52х1475х100х192Steering gear bearing104600420х42х121Gear steering gear604901 11,1х17,5х131Steering gear needle bearing604901—11,1х17,5х131Front hub bearing537906 или 256706VKBA 130730х60х372Front hub bearing537907 or 256907VKBA 1306 or VKBA 378634х64х372
Clutch release bearing520806—31х55х13/191Timing belt tensioning256705—25x62x281Generator bearing1802026202-2RS15х35х112Generatorbearing1801036003-2RS17х35х101Generator bearing1803026302-2RS15х42х131Generator bearing1803036303-2RS17х47х142
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
