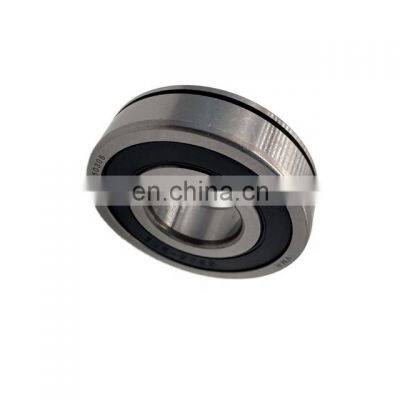

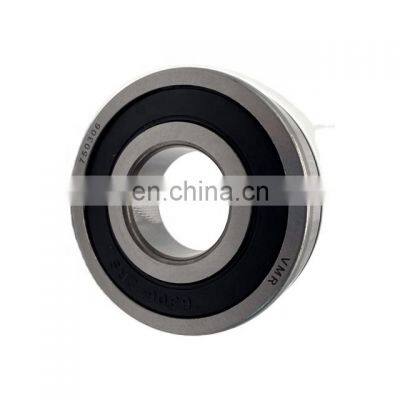

2123-1701190 750306 Single Row Deep Groove Ball Bearing for Russian Small Car VAZ-2123 Gearbox

Single-row deep groove ball bearing of basic design. Universal - accepts radial and axial loads (axial to a lesser extent). Closed with washers on both sides, pre-filled with grease at the factory - so the bearing does not need lubrication or other maintenance. Can be installed in units where contact with moisture is possible. On the outer ring there is a groove for the retaining ring.

The bearing is non-separable, easy to install, easy to operate. Able to work at high rotation speeds.

Characteristics and dimensions of bearing 750306:
Inner diameter - 30 mm;

Width - 19 mm;

Weight - 0.34 kg;

Rated speed - 6500 rpm;

Dynamic loading capacity - 14.6 k / N;

Static lifting capacity - 28.1 k / N

Application:

This is a single-row deep groove ball bearing, sealed on both sides with rubber seals, pre-lubricated, and has a groove in the outer ring. Almost the only purpose of this type is the gearbox and transfer case bearing of the VAZ-2123 Chevrolet Niva. Fits into this assembly along with the very similar bearing 750706, which is slightly larger. Complete list of VAZ bearings.

Other related Product use in Vaz 2123:

 A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion

  Established in 2009,Shandong Vanlin bearing Co., Ltd is located in jinan western industrial area, jinancity, shandong province.
Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of
industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units,
wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings

  Q: Are you trading company or manufacturer ?
A: We are factory and doing exporting by ourself.

Q:What’s your after-sales service and warranty?
A:1.12 months warranty or 30000km;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you provide samples ? is it free or extra ?
A: Samples and trial order are both available, the sample can be free if it's not a big value, customer is supposed to take the
courier charge.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, can also customize packaging box as per your requirements.
