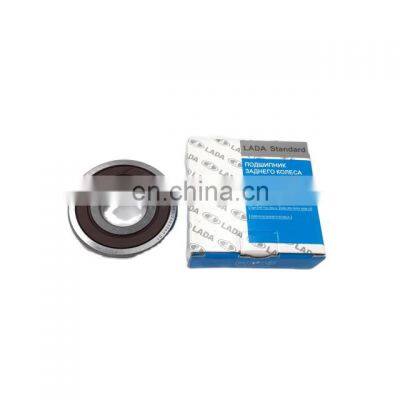

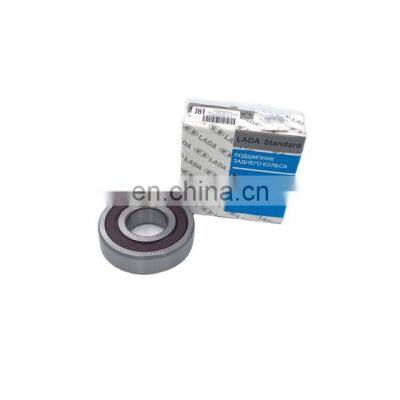

Russian VAZ-2101 passenger car rear axle deep groove bearing 2101-2403080 6-180306 K1YC17

180 - performance features;
3 - a series of widths;
06 - code of the inner diameter.
The bearing can be operated up to 16 kN when stationary and up to 28.1 kN when operating at rated speed. The limiting speed is 10,000 rpm

Dimensions and specifications
(bearing 6-306 - open, basic design, cage made of steel GCR-15, accuracy class 6):

Inner diameter - 30 mm;

Outside diameter - 72 mm;

Height - 19 mm;

Weight - 0.35 kg;

Number of balls - 8 pcs.;

Ball diameter - 12.303 mm;

Rated speed - 11000 rpm;

Dynamic lifting capacity - 28.1 kN.

Application:

Single row ball bearings 306 and modifications are used in various sectors of the national economy. But for the most part - as a spare part for trucks and cars, agricultural, road construction and other equipment.

Bearing with a groove for a retaining ring 50306 is installed in different units of VAZ cars - "classic": gearbox, primary and secondary shafts and "Niva" and "Chevrolet-Niva" (front axle inner hinge housing, gearbox), minibuses and Gazelle light trucks (transfer case input shaft), ErAZ minibuses (gearbox), MTZ tractors (power take-off shaft), almost all models of light trucks, minibuses and UAZ cars (transmission intermediate shaft and transfer case).

Closed bearings 180306 are installed on the rear axle of the VAZ "classics" (2101-2107) and the "Moskvich", the drive of the unloading device of the "Don" combines, the generator-exciter of the BelAZ dump trucks.

Open bearings 306 are installed on KamAZ trucks (power take-off gear axle), GAZ (secondary and intermediate transfer case shafts), BelAZ (power take-off), MAZ (generator and engine), engines and electric motors of tram cars. They are widely used in DT and MTZ tractors, Don and Niva combines, forklift trucks and many other products of domestic engineering.

Other related Product use in Vaz 2101-2107:

 A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion

  Established in 2009,Shandong Vanlin bearing Co., Ltd is located in jinan western industrial area, jinancity, shandong province.
Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of
industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units,
wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings
