Home > Products > Auto bearings > Complete After-Sales Service R153.14 Auto Front Wheel Hub Bearings Size 34*64*37 for Lada

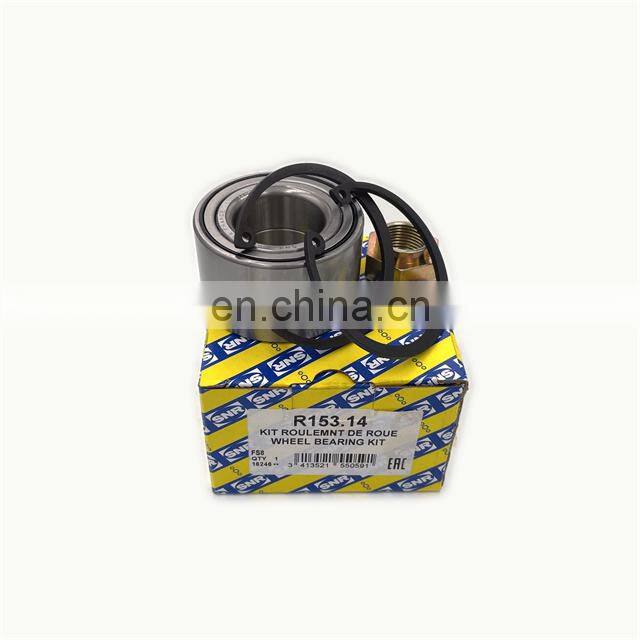

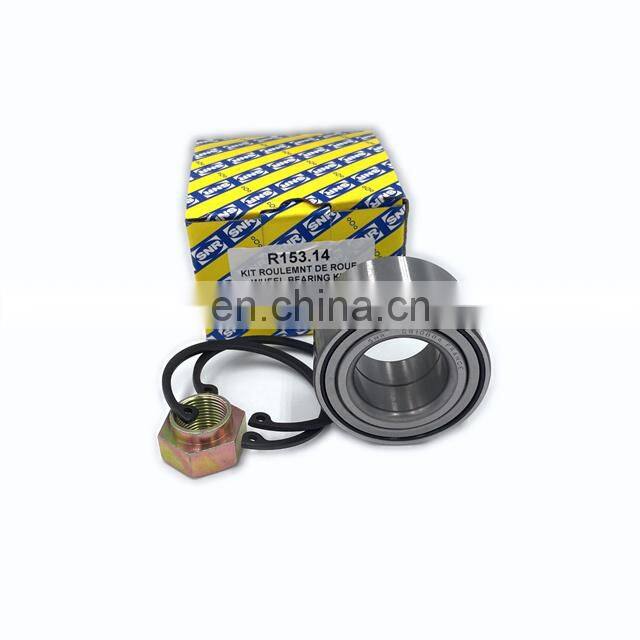

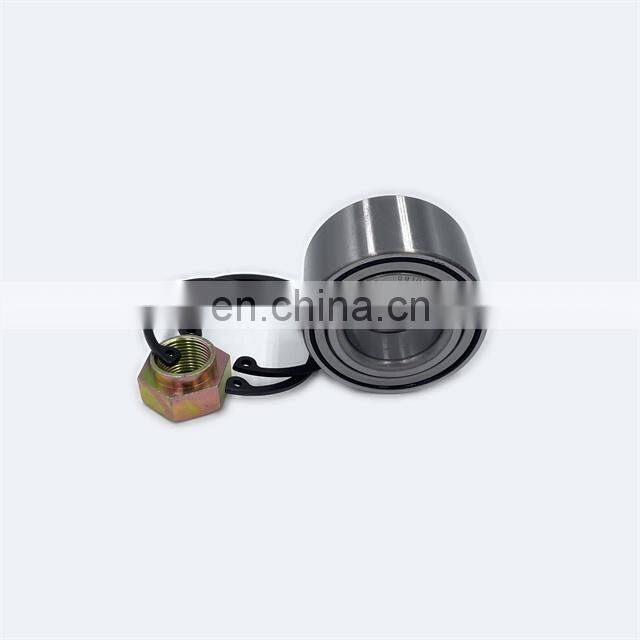

Complete After-Sales Service R153.14 Auto Front Wheel Hub Bearings Size 34*64*37 for Lada
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Sale Various Widely Used R153.14 2108 -3103020 Front Auto Bearing Wheel Hub Kit For Lada
-
High Quality Front Wheel Hub Bearings Right/left 713618660 VKBA3929 Size 38*71*39 for Russia Car
-
R154.13 Rear Hub Bearing Angular Contact Ball Bearing Wheel Bearing Removal Tool Kit for Golf/Passat/Vento/Polo
-
R154.13 Rear Hub Bearing Angular Contact Ball Bearing All Balls Wheel Bearing Kit for Felicia SEAT (88-01)
-
Rear Hub Bearing Angular Contact Ball Bearing Size 39*50*17 R154.13 Wheel Bearing Press Kit for Golf/Passat/Vento/Polo
-
Rear Hub Bearing R154.13 Auto Front Wheel Hub Unit Bearing Kit for Golf/Passat/Vento/Polo
Product Description
Specification
Product name | Good Quality Cylinder SNR R153.14 2108-3103020 size 34*64*37 Auto Front Wheel Hub Bearings For Car |
Usage | wheel hub bearings |
Rotational Speed ingrease | 6000 |
Car Make | LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. | 2108-3103020 |
Place of Origin | China |
Brand Name | VLBG SNR |
Model Number | R153.14 2108 -3103020 |
Warranty | 12Months |
Inner diameter | 34MM |
Outside diameter | 64MM |
Height | 37MM |
Outer cage width | 37mm |
Certificate | ISO9001/TS16949 |
Number of balls pcs | 28 |
Weight | 0.445kg |
Ball diameter | 9.52 |
Steel grade | shkh-15 |
Dynamic Load Capacity.H | 31500 |
Static Lifting capacity.H | 27900 |
R153.14 2108 -3103020 | Double-row angular contact ball bearing GOST 6-256907 |
Double-row angular contact ball bearing GOST R153.14
Double-row angular contact ball bearing GOST R153.14 was specially developed for operation in passenger car hub assemblies.
It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads.
Bearing dimensions and characteristics
The main components of the ball bearing article 256907 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals.
This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.
The dimensions of bearing R153.14 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside.
The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
Diameter and number of balls
The number of rolling elements in the bearing R153.14 - 28 pcs. These are balls of a regular spherical shape with a diameter of 9.525 mm. They are made of special grades of steel (as a rule, ShKh-15) and heat-treated.
The separator can be steel, made by stamping from an alloy with a high carbon content (without additional designation), cast polyamide (E5), made of textolite (E1C17).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 256907 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
