Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > Factory Product Lada Standard Packing Front Wheel Bearing 256907 2108-3103020 Size 34x64x37 for Vaz 2108 Front Axle

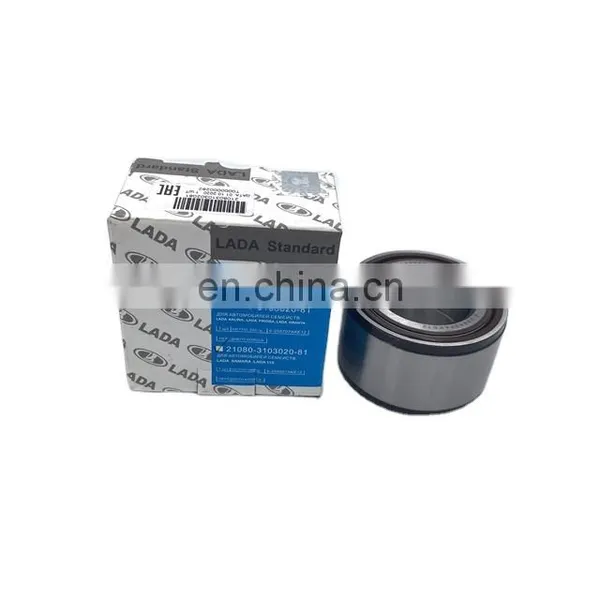

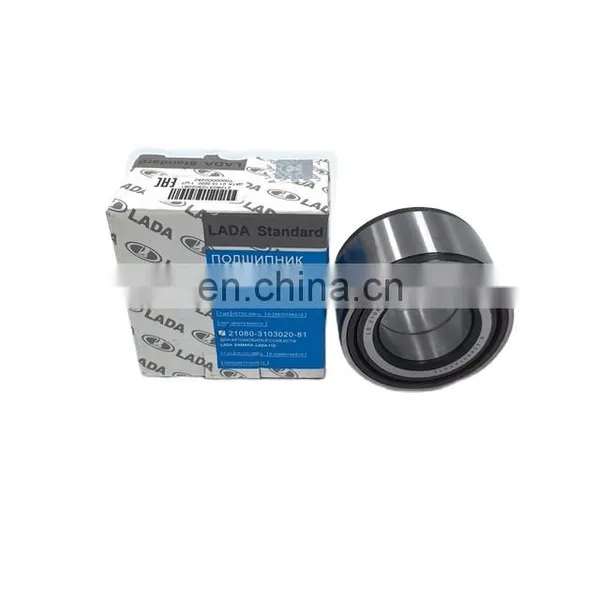

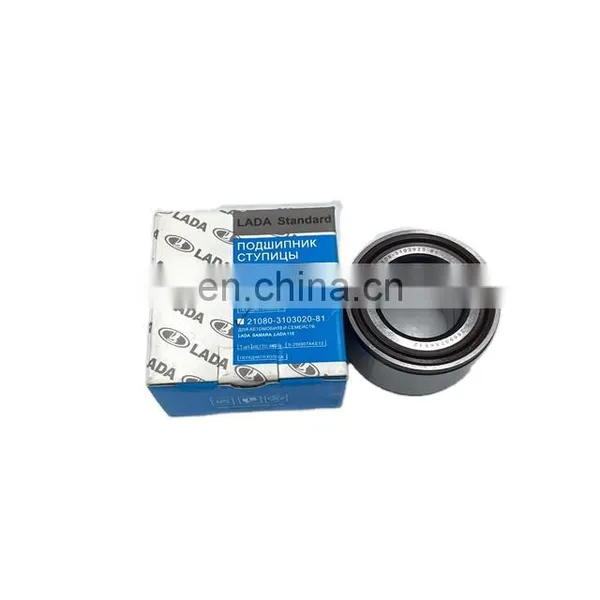

Factory Product Lada Standard Packing Front Wheel Bearing 256907 2108-3103020 Size 34x64x37 for Vaz 2108 Front Axle
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Provide VAZ 2123-1601180 Releaser Clutch Bearing Assembly for LADA 2123 Chevrolet NivaNegotiableMOQ: 1 -
Factory Provide UAZ 3151-40-1601180 Clutch Pressure Plate: Clutch Coupling UAZ With Bearing (688911)NegotiableMOQ: 1
-
Factory Provide UAZ 3151-40-1601180-10 Clutch Pressure Plate: Clutch Coupling UAZ With Bearing (688911)NegotiableMOQ: 1
-
50SCRN31P-4B Clutch Release Bearing for Release Bearing Assembly Size 33*50*79.2mmNegotiableMOQ: 1
-
Suspension Parts Shock Absorber Bearing 48619-42010 For CarNegotiableMOQ: 1
Product Description
Description:
Its main area of application is the front hub bearing of VAZ 2108, 2109, 2110, 2111, 2112. It has the following design
characteristics - ball, angular contact, double row, closed type (seals on both sides). The double row ball bearing is
bi-directional. Bearing 256707 is installed in the front hub of more modern VAZ models (Kalina, Grant).These bearings carry
double-sided axial loads. They are manufactured in the 6th class of accuracy with a contact angle of 36 °. They consist of an
outer ring, two inner rings, two polyamide cages, two sets of balls, two combined rubber-reinforced seals and are filled with
grease. During operation, the bearings do not require additional lubrication and adjustment. The gap between the inner rings
during installation is selected by tightening with a torque of 18-25 kgf.m, which ensures the rigidity of the support and the ease
of rotation of the wheel. The bearings have a redesigned double-sided two-stage seal with a centrifugal effect, which improves the
dust protection of the bearing during operation.
Analog 532066DA, 2108-3103020 Specifications: Inner diameter (d): 34 mm; Outside diameter (D): 64 mm; Width (H): 37mm; Weight:
0.445 kg; Ball diameter: 9.525mm; Number of balls: 28 pcs; Dynamic loading capacity: 31.5 kN; Static lifting capacity: 27.9 kN;
Rated speed: 6000 rpm
characteristics - ball, angular contact, double row, closed type (seals on both sides). The double row ball bearing is
bi-directional. Bearing 256707 is installed in the front hub of more modern VAZ models (Kalina, Grant).These bearings carry
double-sided axial loads. They are manufactured in the 6th class of accuracy with a contact angle of 36 °. They consist of an
outer ring, two inner rings, two polyamide cages, two sets of balls, two combined rubber-reinforced seals and are filled with
grease. During operation, the bearings do not require additional lubrication and adjustment. The gap between the inner rings
during installation is selected by tightening with a torque of 18-25 kgf.m, which ensures the rigidity of the support and the ease
of rotation of the wheel. The bearings have a redesigned double-sided two-stage seal with a centrifugal effect, which improves the
dust protection of the bearing during operation.
Analog 532066DA, 2108-3103020 Specifications: Inner diameter (d): 34 mm; Outside diameter (D): 64 mm; Width (H): 37mm; Weight:
0.445 kg; Ball diameter: 9.525mm; Number of balls: 28 pcs; Dynamic loading capacity: 31.5 kN; Static lifting capacity: 27.9 kN;
Rated speed: 6000 rpm
Application:
VAZ 2108, 2109, 2110, 2111, 2112 Nexia 1995-2005 1,5L 8kl.
Other oe number:
34BWD04BCA70, 309726DA, 532066DB, AU0701-4LL/L588, IJ111009, DAC3464W-52RSCS44, 713644660
We can also provide the kit one, with circrip and split pin
VAZ 2108, 2109, 2110, 2111, 2112 Nexia 1995-2005 1,5L 8kl.
Other oe number:
34BWD04BCA70, 309726DA, 532066DB, AU0701-4LL/L588, IJ111009, DAC3464W-52RSCS44, 713644660
We can also provide the kit one, with circrip and split pin
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
