Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112

Jingjiang Fuji Technology Co., Ltd.
4Yrs
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 thumbnail-1
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 thumbnail-2
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 thumbnail-3
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 thumbnail-4
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 thumbnail-5
Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 photo-1

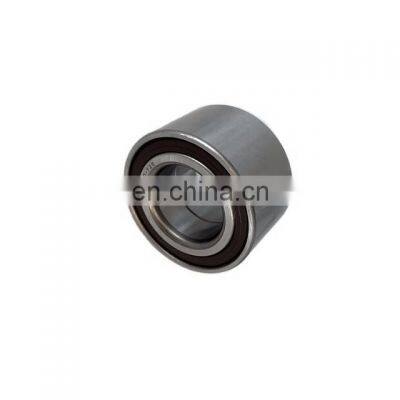

Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 photo-2

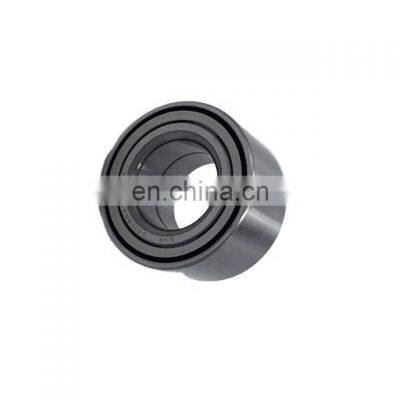

Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 photo-3

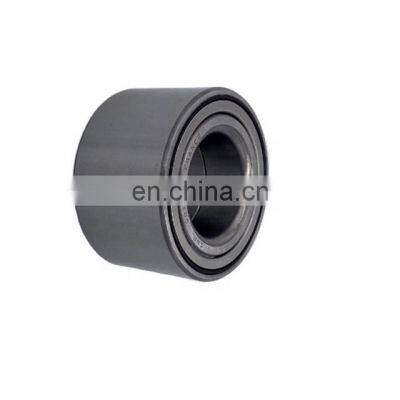

Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 photo-4

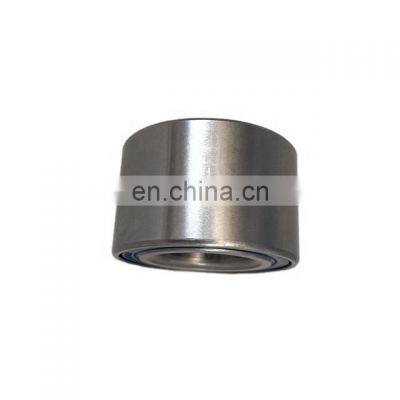

Front Wheel Hub Bearings Right/left GB10884 532066DE Size 34*64*37 for Russian Car VAZ 2108-2112 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification
Product name
 Front wheel hub bearings GB10884 532066DE size 34*64*37 for Russian car VAZ 2108-2112
Usage
wheel hub bearings
Rotational Speed ingrease
6000
Car Make
LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA
OE NO.
532066DE
Place of Origin
China
Brand Name
VLBG
Model Number
GB10884 532066DE
Warranty
24Months
Inner diameter
34MM
Outside diameter
64MM
Height
37MM
Outer cage width
37mm
Certificate
ISO9001/TS16949
Number of balls pcs
28
Weight
0.445kg
Ball diameter
9.52
Steel grade
shkh-15
Dynamic Load Capacity.H
31500
Static Lifting capacity.H
27900
 GB10884 532066DE
Double-row angular contact ball bearing
Double-row angular contact ball bearing GOST GB10884
Double-row angular contact ball bearing GOST GB10884 was specially developed for operation in passenger car hub assemblies. It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads. Bearing dimensions and characteristics The main components of the ball bearing article GB10884 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals. This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.
Inner diameter (d) - 34 mm.
Outer diameter (D) - 64 mm.
Width (height) (B) - 37 mm.
Outer cage width (C) - 37 mm.
Weight - 0.464 Kg
Number of raceways - 2
Seal - yes
Tags: SNR , 34x64x37
The dimensions of bearing 256907 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside. The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
OE Number:
34BWD04BCA70
256907
532066DE
309726DA
532066DB
AU0701-4LL/L588
VKBA1306
IJ111009
DAC3464W-52RSCS44
713644660
F 16019
DAC3464W-52RS
BAH-0092
R172.03
34BWD11
DAC3464W-22RS
DAC3464G1-2RSCS42
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency. Among the modifications of the ball bearing 256907 are products with different types of cages and different materials used for the manufacture of plugs. Applicability Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102). If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.

FAQ

Q.Are you trading company or manufacturer ?
Yes we are factory.

Q.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock.

Q.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q.What is your terms of payment ?
We can accept any way payment.
