6-256907 E9C17520-2002 00 rear wheel bearings for Moskvich-2141 Car Moskvich-21412
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
6-256907 E9C17520-2002 00 front wheel bearing for for Car ZAZ-1102 1103 1105 Tavria
-
Promotional Various Good Quality Cylinder 256907 2108 3103020 Dac34640037 Auto Front Wheel Hub Bearings For Car Vaz 2108-2112
-
256707 1118-3103020 GB12132 GB12132S02 Front wheel bearing for Lada 1118 2170 2190 TRIALLI CS 818
-
6-256707EK12 AEKL20 front wheel hub bearings for VAZ-1119 VAZ-1118 LADA Kalina
-
DAC35680037 256707 1118-3103020 Wheel Hub Double row angular contact ball For car Lada
-
256707 1118-3103020 BAH0031D BA2B633816AA BAHB633528F BAHB633967 BAHB633295B wheel hub bearings for lada VAZ
Product Description
Specification
Product name | 6-256907 E9C17520-2002 00 rear wheel bearings for Moskvich-2141 Car Moskvich-21412 |
Usage | wheel hub bearings |
Rotational Speed ingrease | 6000 |
Car Make | LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. | 1118-3103020 |
Place of Origin | China |
Brand Name | VLBG |
Model Number | 256907 2108 3103020 6-256907 E9C17520-2002 00 |
Warranty | 24Months |
Inner diameter | 34MM |
Outside diameter | 64MM |
Height | 37MM |
Outer cage width | 37mm |
Certificate | ISO9001/TS16949 |
Number of balls pcs | 28 |
Weight | 0.445kg |
Ball diameter | 9.52 |
Steel grade | shkh-15 |
Dynamic Load Capacity.H | 31500 |
Static Lifting capacity.H | 27900 |
256907 2108 3103020 DAC34640037 | Double-row angular contact ball bearing GOST 6-256907 |
Double-row angular contact ball bearing GOST 6-256907
Double-row angular contact ball bearing GOST 6-256907 was specially developed for operation in passenger car hub assemblies.
It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads.
Bearing dimensions and characteristics
The main components of the ball bearing article 256907 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals.
This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.

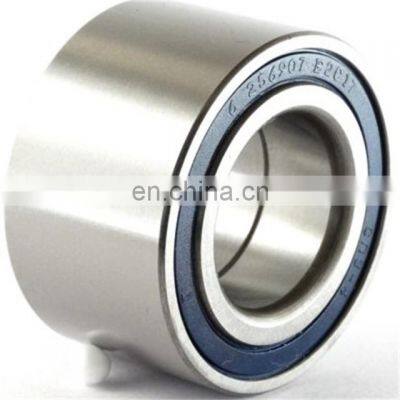

For example 6-256907 E2C17:
6 - normal accuracy;
25 - design features (seals);
6 - angular contact ball bearing;
9 - ultralight series;
07 - code of the inner diameter (d / 5);
E2 - PCB separator;
C17 - type of grease (Litol-24).
The dimensions of bearing 256907 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside.
The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
Diameter and number of balls
The number of rolling elements in the bearing 256907 - 28 pcs. These are balls of a regular spherical shape with a diameter of 9.525 mm. They are made of special grades of steel (as a rule, ShKh-15) and heat-treated.
The separator can be steel, made by stamping from an alloy with a high carbon content (without additional designation), cast polyamide (E5), made of textolite (E1C17).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 256907 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
Wheel hub bearings
It is used in the following vehicles: LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA
VAZ 2108 - Lada / Sputnik / Samara1, VAZ 2109 - Lada / Sputnik / Samara1, VAZ 21099 - Lada / Samara1, VAZ 2113 - Lada Samara II 3dv. hatch, VAZ 2114 - Lada Samara II 5dv. hatch, VAZ 2115 - Lada Samara II sedan, VAZ 2110 - Lada 110, VAZ 2111 - Lada 111, VAZ 2112 - Lada 112
VAZ 2108-099, 2113-15
