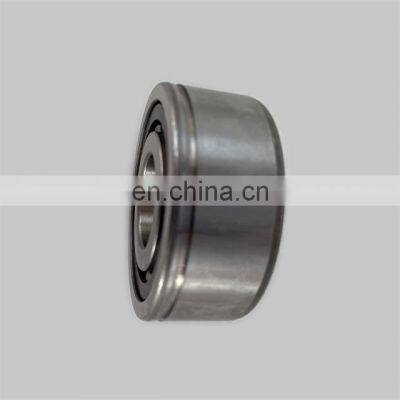

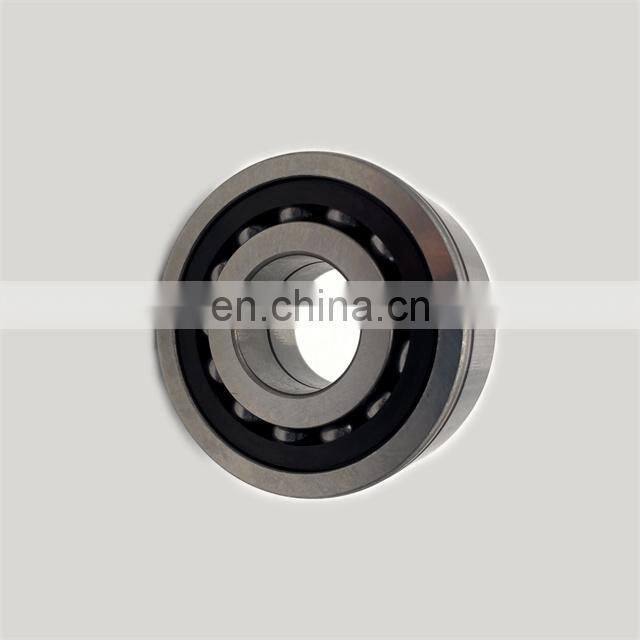

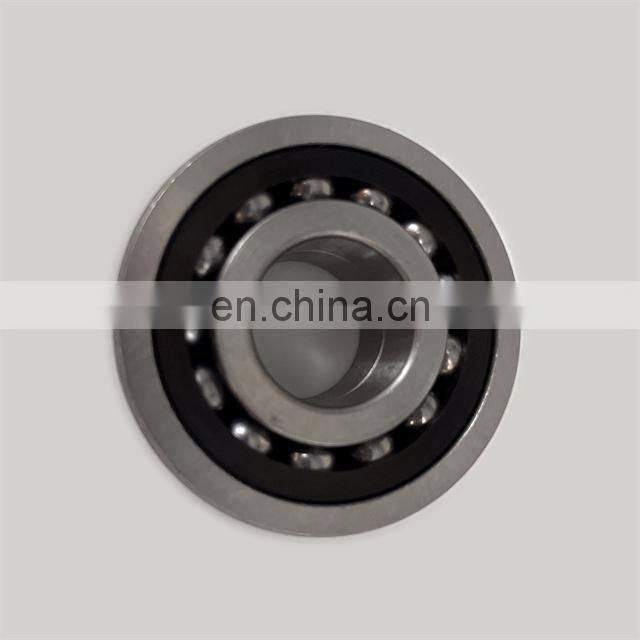

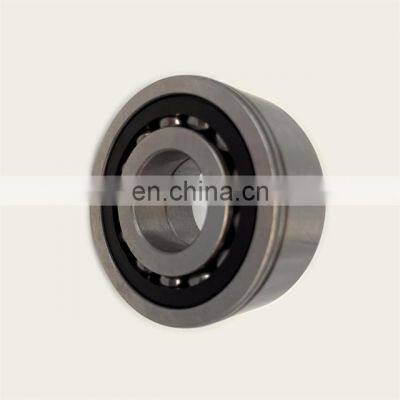

156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car

Jingjiang Fuji Technology Co., Ltd.
4Yrs
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car thumbnail-1
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car thumbnail-2
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car thumbnail-3
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car thumbnail-4
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car thumbnail-5
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car photo-1
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car photo-2
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car photo-3
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car photo-4
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ Car photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification
Product name
156704 6-156704 DAC205000206 Rear Wheel Hub Bearing for Russian VAZ car
Usage
wheel hub bearings
Size
20x50x20.6
Car Make
156704 Car Automobile transport 6-156704 VAZ-2101 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2102 car
Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2103 car Passenger car Gearbox (gearbox) (intermediate shaft)
6-156704 VAZ-2105 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2106 car Passenger car Gearbox (gearbox)
(intermediate shaft) 6-156704 VAZ-2107 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2121 car Off-road
passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-21213 car Off-road passenger car Gearbox (gearbox), intermediate
shaft, front support 6-156704 E1 VAZ-2123 Chevrolet-Niva car. Passenger cross-country vehicle Gearbox (gearbox), intermediate
shaft, front support 6-156704 Moskvich IZH-2126 car Passenger car Gearbox (gearbox), intermediate shaft, rear support 156704
VAZ-1111 OKA car Intermediate shaft 6-156704 E VAZ-2101-2108 car Gearbox (gearbox): intermediate shaft 6-156704 E VAZ-2121 Niva
car Gearbox (gearbox): intermediate shaft
OE NO.
156704 2101-2111 212108 DAC205000206 320104
Place of Origin
China
Brand Name
VLBG
Model Number
6-156704
Warranty
24Months
Application
Russian car LADA VAZ
Inner diameter
20MM
Outside diameter
52MM
Height
20.6MM
Weight
0.197
Certificate
ISO9001/TS16949
Number of Rolling balls
24
Service
Complete After-Sales Service
156704 2101-2111 212108 DAC205000206 320104 Automotive Wheel Hub Bearing for lada vaz
Domestic bearings are manufactured in accordance with GOST 520-2002. Technical parameters and dimensions of the intermediate shaft bearing 156704:
Inner diameter (d): 20 mm; Outside diameter (D): 50 mm; Width (H): 20.6mm; Weight: 0.197 kg; Ball diameter: 7.144mm; Number of balls: 24 pcs; Dynamic loading capacity: 16 kN; Static lifting capacity: 13 kN; Rated speed with grease: 12000 rpm 156704 E 156704 Е1 156704E2
Bearing 156704

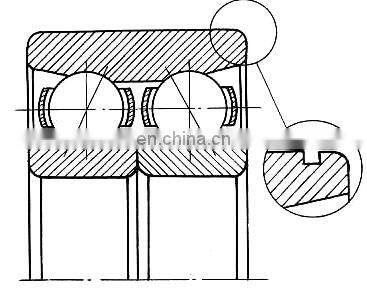

Bearing 156704 Its main area of application is the bearing of the intermediate shaft of the gearbox of VAZ cars, those models that are usually defined as "classic" (2101-2107), as well as "Niva" 2121. By design, it is an angular contact, double-row ball bearing with two internal rings, on the basis of which all the advantages of angular contact bearings are inherent in it (the ability to perceive combined radial-axial loads at high rolling speeds, and since it is double-row, it also fixes the shaft in both directions). Equipped with a polyamide resin cage. The main manufacturers of this type are the Vologda Bearing Plant (23 GPPs or VBF), the Kursk Plant of Thrust Bearings (20 GPPs), and the Samara Plant SPZ-4. As many motorists probably know, Vologda bearings are of the highest quality, at the same time they are the most counterfeited and are more expensive than others. Other types used in the VAZ gearbox are 50706 ( input shaft, rear support), 50306 (or N6306) (output shaft, intermediate support), 92705 (intermediate shaft, rear support), 205 (or 6205) (output shaft, rear support ).
Application of bearing 156704
156704 Car Automobile transport 6-156704 VAZ-2101 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2102 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2103 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2105 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2106 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2107 car Passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-2121 car Off-road passenger car Gearbox (gearbox) (intermediate shaft) 6-156704 VAZ-21213 car Off-road passenger car Gearbox (gearbox), intermediate shaft, front support 6-156704 E VAZ-2123 Chevrolet-Niva car. Passenger cross-country vehicle Gearbox (gearbox), intermediate shaft, front support 6-156704 Moskvich IZH-2126 car Passenger car Gearbox (gearbox), intermediate shaft, rear support 156704 VAZ-1111 OKA car Intermediate shaft 6-156704 E VAZ-2101-2108 car Gearbox (gearbox): intermediate shaft 6-156704 E VAZ-2121 Niva car Gearbox (gearbox): intermediate shaft


FAQ

Q.Are you trading company or manufacturer ?
 Yes we are factory

Q.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock.

Q.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q.What is your terms of payment ?
We can accept any way payment
