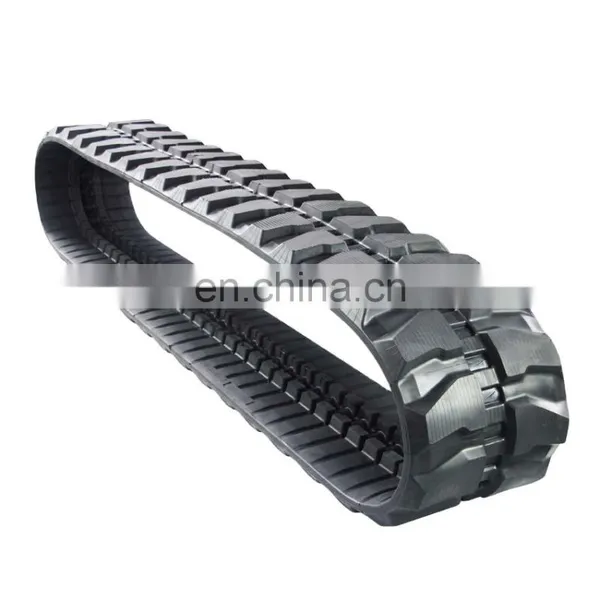

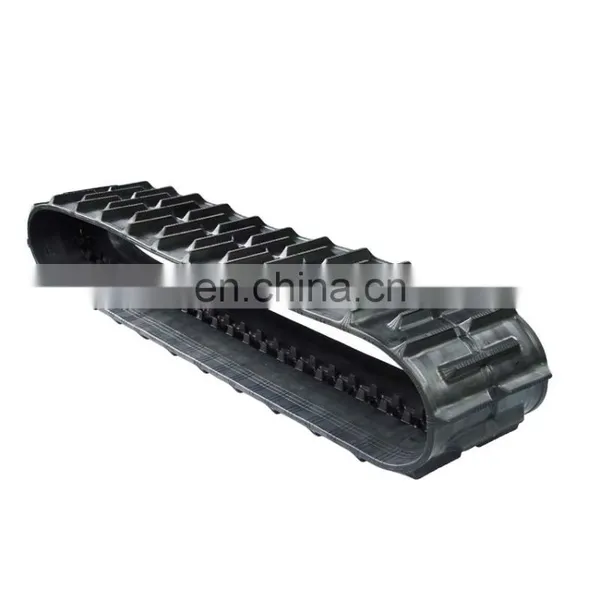

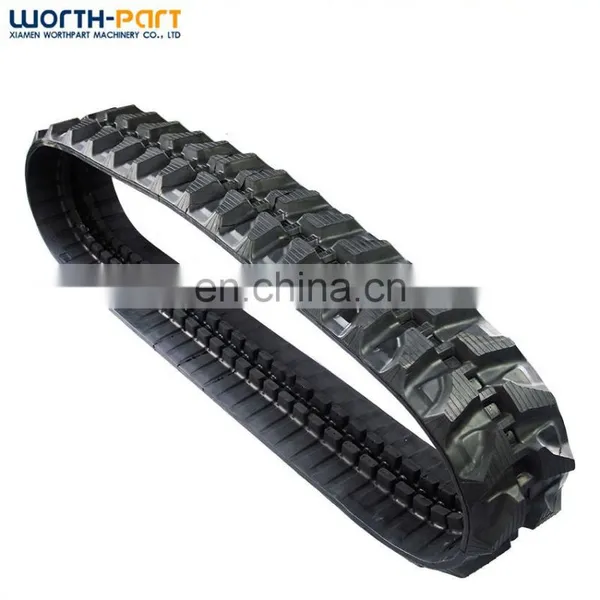

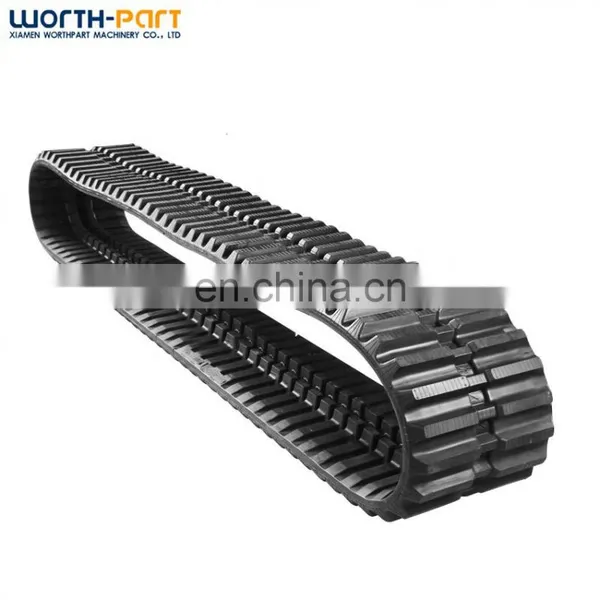

Rubber Track T200 ,320x86x52,x220,x320,x322,320,322x320d,x322d,x325,325,331,334 Excavator Undercarriage Parts Crawler Excavator

Product Features

1. Type of rubber tracks:

1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: guarantee one year under normal use

4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine

2. 6 Tips feature of rubber tracks:(why choose rubber track to insteads of the track shoe with undercarriage spare parts)

(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.

(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed

 Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration

 Rubber tracks insulate machine and operator from vibration, extending the machine’s lifetime and lowering operate fatigue.

(5). Low ground pressure

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .

(6). Superior traction

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

How to Measure Rubber Tracks?

To check for the size of your existing rubber track you will need to measure followings.

• Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)
• Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you). This distance is known as the pitch of the track.
• Count the total number of links (also called metal pieces or lugs) inside of the track.
• The measurement of a track is Width x Pitch x Links.

Rubber Track Tread Patterns and OEM Track Sizes

A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.

All manufacturer's names,symbols&descriptions are used for reference purpose only,and it is not implied that and any part listed is the product of these manufacturers.

Xiamen Worthpart machinery Co., Ltd, an excellent supplier of Excavators parts and Bulldozers parts in China, our main products are Undercarriage Parts for excavator and bulldozer, such as track rollers, carrier rollers etc.

With more than 8 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.

1. You are a trader or a manufacture?
We are an industry and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. The distance is  80Kms, 1.5 hours.

2. How can I be sure the part will fit my excavator?
Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.

3. How about the payment terms?
We usually accept T/T or Trade Assurance. other terms also could be negotiated.

4. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable.

5. What is your delivery time?
FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days.

6. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
