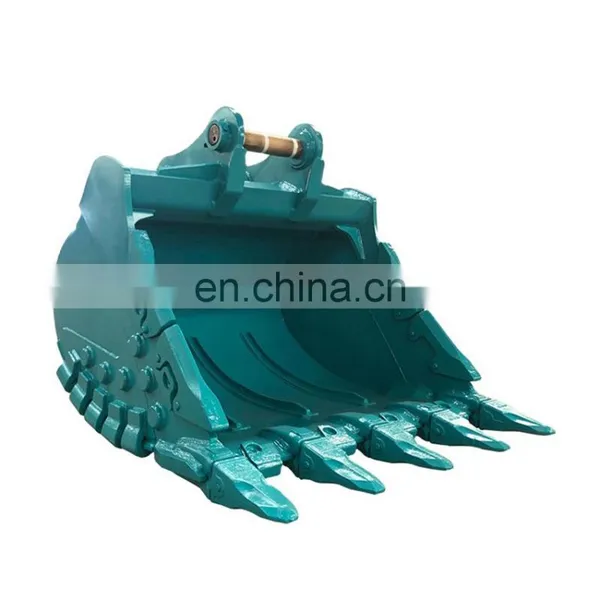

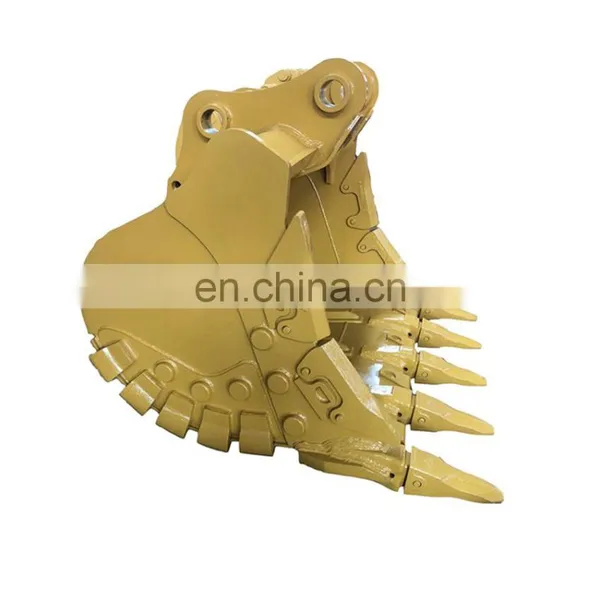

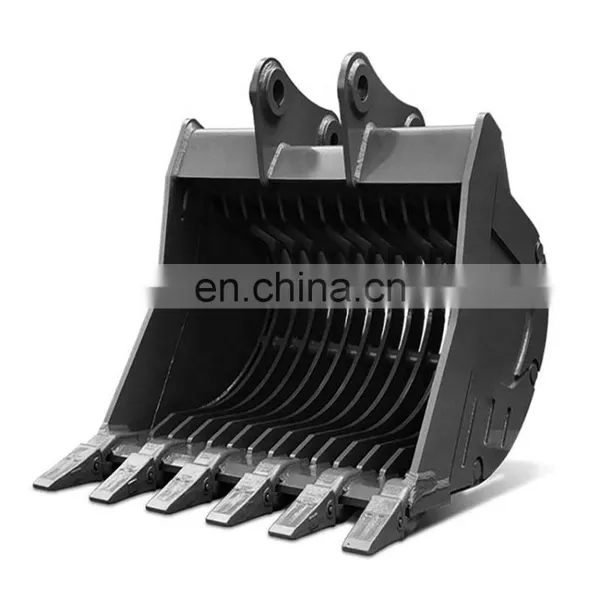

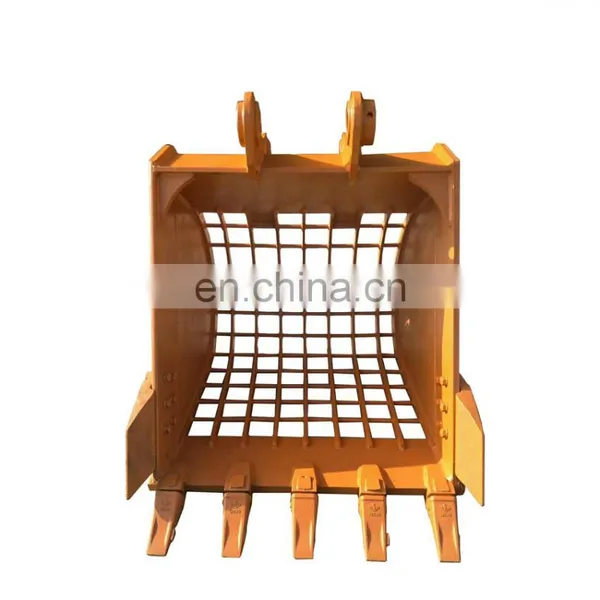

Sumitomo SH210-5 Excavator Bucket
- T/T Credit Card
You May Like
-
Sany Excavator Parts 365 Bucket For Excavator
-
Heavy Duty Type Bucket For Excavator Volvo 360
-
PC450-7 Excavator Heavy Duty 208-934-7111 Hard Rock Bucket
-
Factory Direct Selling 13Ton Excavator Bucket Skeleton Bucket Riddle Bucket
-
207-70-1412 Weld On Adapter Bucket Teeth For Excavator Pc300
-
Parts Excavator Vibro Ripper
Product Description

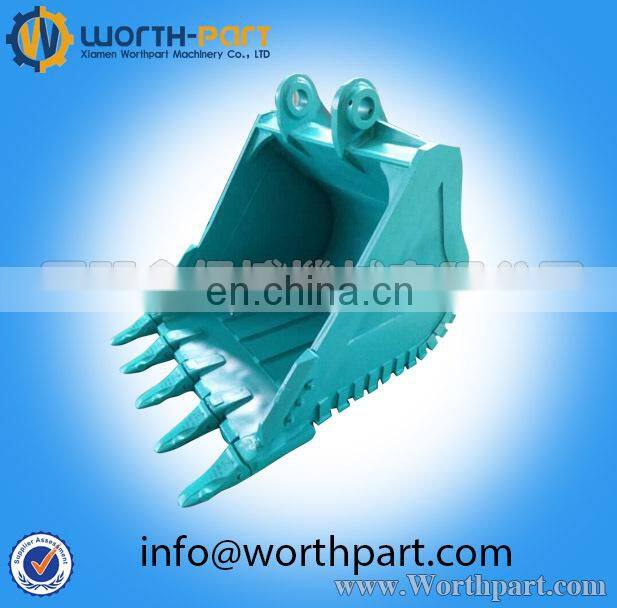

Sumitomo SH210-5 Excavator Bucket
1.Bucket sorted by its material
Excavator Bucket capacity is from 0.25 m3 to 6 m3,suit for all types excavators, best price and short delivery period.
Excavator Bucket material analysis:
|
Type |
Material |
Configuration and performance |
Applications |
|
Standard bucket |
Q345B |
Normal thickness of the plate,excellent domestic toothholder |
Applicable to light working environment, such as the excavating of clay,sand and loamy gravel |
|
Strengthen bucket |
Q345B |
Add strengthen plate in the bottom, excellent domestic toothholder,prolonged service life |
Applicable to light working environment ,such as excavating and loading of hard soil,soil with soft rock ,and soft rock |
|
NM360+Q345B |
Choose domestic wear-resistant plate as thootholder plate and side plate ,excellent domestic toothholder , to reach high abrasion and bending ability |
Applicable to heavy environment ,such as the excavating and loading of grave ,soil mixed with hard rock,second hard rock, weathered grantie. |
|
|
Rock bucket |
HARDOX500+Q345B |
Add strengthen plate in the bottom,add side protective plate and proctective plate,Korea SBIC toothholder , to reach high abrasion and bending ability |
Applicable to heavy working environment , such as the loading of hard stone and ore after the blasting. |
2.Chemical components and mechanical performances
|
Material |
Code |
Main |
Che |
mical |
Com |
position |
Hardness |
Extension |
Drag and Extension Intensity |
Bend Intensith |
|
|
|
C |
Si |
Mn |
P |
S |
|
|
|
|
|
Mn Board |
Q345B |
0.18 |
0.55 |
1.4 |
0.03 |
0.03 |
163~187 |
21 |
470~660 |
345 |
|
Homemade Regrinding Board |
NM360 |
0.20 |
0.3 |
1.3 |
0.02 |
0.006 |
360 |
16 |
1200 |
1020 |
|
High Intensity Regrinding Board |
HARDOX-500 |
0.20 |
0.7 |
1.7 |
0.025 |
0.01 |
470~500 |
8 |
1550 |
1300 |

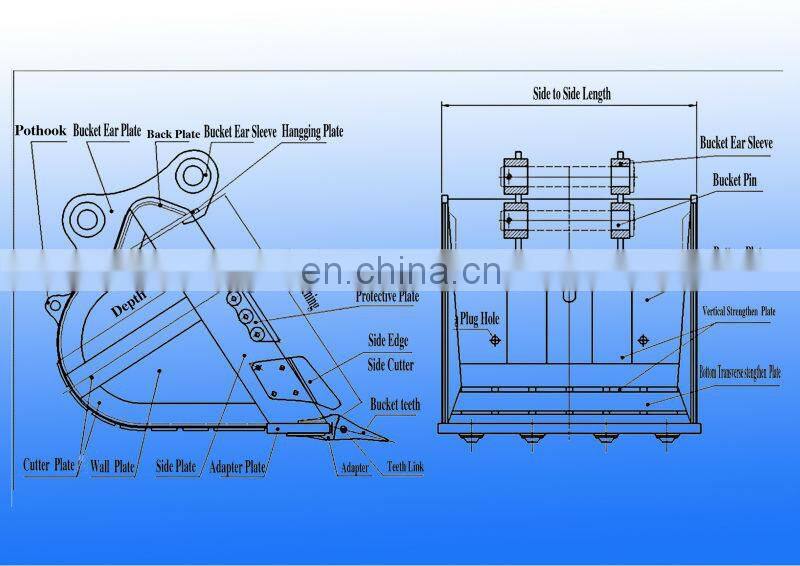

Bucket structure.........
3. Specifications
Excavator Bucket Characteristics:
Large bucket capacity, and large open area;
Large stowing surface, and accordingly high coefficient of fullness;
Made of top quality structural and high strength steel, the adapters are made of domestic top quality products;
Save working time, improve working efficiency.
Applications:
General digging of clay and light work, such as loading of sand, earth and gravel.
The Excavator Bucket specification covers from 0.1 cubic meters to 12 cubic meters available for the following models:
1. PC(from PC55~ PC650)
2. Cater (E 305~E385)
3. HITACHI (EX60~EX400, ZX35~ZX870)
4. CASE (CX55~CX460)
5. KOBELCO (SK55~SK480)
6. SUMITOMO (SH75~SH460)
7. HYUNDAI (R55~R505)
8. DOOSAN (DH35~DH500)
9. KATO (HD75~HD2047)
10. VOLVO: (EC55~EC700)
11. MINI EXCAVATORS :( YANMAR, TAKUECHI, KUBOTA, IHISCE, JCB)
4.Company Info

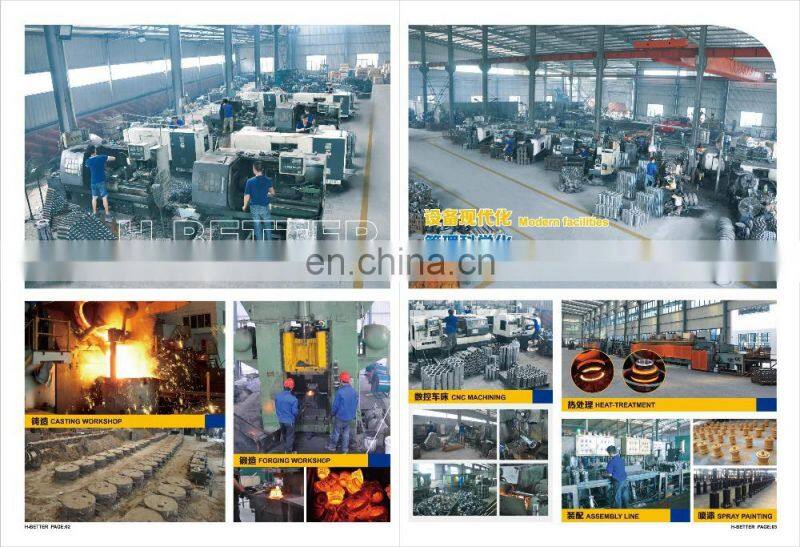

5.Workshop&Process

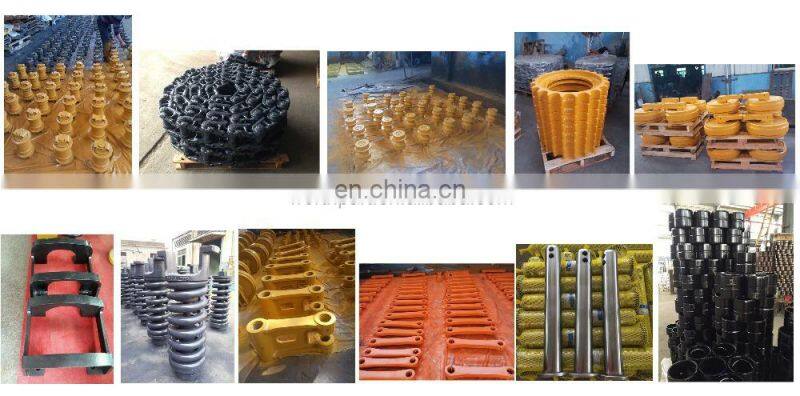

6.Products
7.Delivery
8.Our Exhibition
9.Certificates
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
