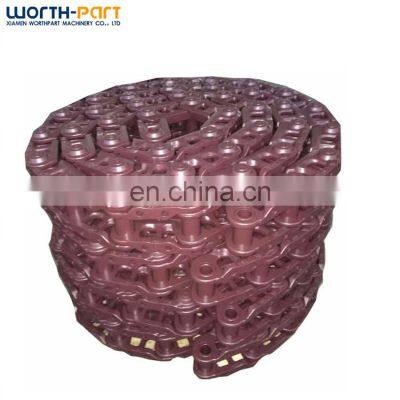

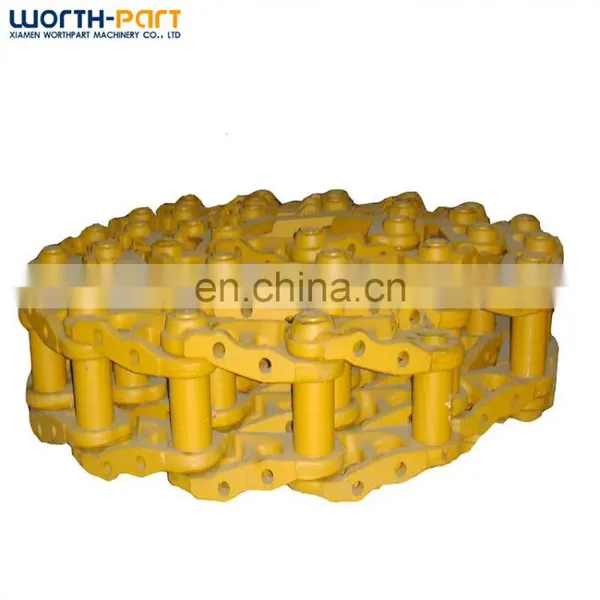

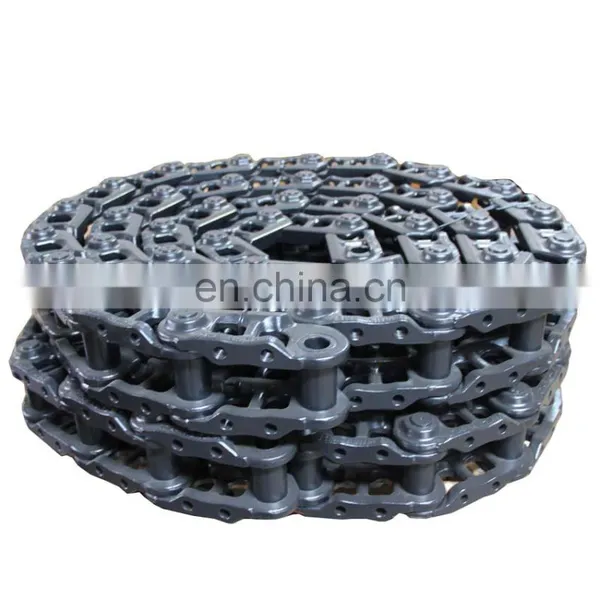

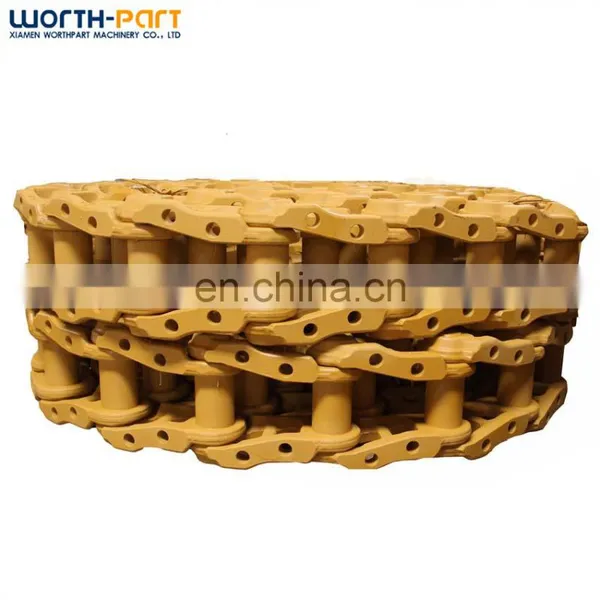

Volv-o EC460B LC Track Chain Link 14536907 14536900 14561344
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bulldozer Spare Parts D7G 3P0629 Dozer ChainNegotiableMOQ: 1 -
Bulldozer Parts Name Track Link For D8R 272-6009NegotiableMOQ: 1
-
Volv-o Excavator EC210 Parts Excavator Track Link AssemblyNegotiableMOQ: 1
-
Mitsubishi Bulldozer Parts Dealer BD2G Track Link/chainNegotiableMOQ: 1
-
Mitsubishi Bulldozer Dealer BD2G Track Shoe AssyNegotiableMOQ: 1
Volvo EC460B LC Track Chain Link 14536907 14536900 14561344
Product Description
|
Model Name |
Volvo EC460B LC Track Chain Link 14536907 14536900 14561344 |
| Material |
35MnB |
|
Color |
Black or Yellow |
|
Surface Hardness |
HRC52-58 |
|
Machine type |
Bulldozer ,Excavator ,Crane |
|
Warranty |
2000 hour |
|
Technique |
Froging/Casting |
|
Certification |
ISO9001-2008 |
|
Hardness Depth |
5-10mm |
|
Usage |
EC460 Track Chain, Track Link |
Product Overviews
Hot Sale
|
|
|
|
|
|
- 1. track link, track chain, track link assy, track group, track link with shoes.
- 2. track roller, bottom roller, lower roller.
- 3. carrier roller, top roller, upper roller.
- 4. sprocket, driving wheel,
- 5. idler, front idler, rear idler,
- 6. track adjuster, track tension spring, track cylinder, track cylinder assembly.
High surface hardness and deep hardened depth offer greater wear resistance and longer wear life.
Company Information
Worthpart is a manufacturing for excavator undercarriage parts, hydraulic cylinder and Ground Engaging Tools in China, with more than 12 years full experience and a professional sales team.
Our MAIN PRODUCTS:
Track roller, carrier roller, sprocket, idler, track chain, track bush and pin, track shoe.
Bucket bushing and pin, track cylinder, track adjuster, excavator recoil spring, bucket link, link rod, track guard etc.
Part Number
| Model | Link number | Link pitch |
Link part number |
Bolt hole dia | Bolt No | Nut No |
| E70 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E70B | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E110 | 39 | 171.5 | CR4854/39 | 16mm | 7H3597 | 1M1408 |
| E110B | 41 | 171.5 | 995398 | 16mm | 7H3597 | 1M1408 |
| E120(1LF) | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E120B | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E140 | 44 | 171.5 | 932015 | 16mm | 7H3597 | 1M1408 |
| E180 | 48 | 175.5 | 931927 | 18mm | 135-32-11211 | 79039445 |
| E200B | 45 | 190.5 | 964301 | 20mm | 79035814 | 970120 |
| E240,E240 | 46 | 190.5 | 878805 | 20mm | 79035814 | 964299 |
| E300 | 49 | 190.5 | 931963 | 20mm | 79035814 | 964299 |
| E300B | 46 | 203.2 | 995998 | 20mm | 14X-32-11210 | 964299 |
| E450 | 50 | 215.9 | 7I9091 | 22mm | 7H3599 | 7T9825 |
| E650 | 50 | 228.6 | 960260 | 24mm | 930271 | 930323 |
| E205 | 47 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E205 | 47 | 171.5 | 8U3456 | 16mm | 7H3597 | 1M1408 |
| E205 | 45 | 171.5 | 8E1442 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E211 | 51 | 171.5 | 5W9836 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E213 | 42 | 171.5 | 5W4165 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215 | 44 | 171.5 | 6A4713 | 14mm | 7H3596 | 7K2017 |
| E215 | 51 | 171.5 | 5C4089 | 14mm | 7H3596 | 7K2017 |
| E215 | 44 | 171.5 | 3T3695 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 5C0949 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215C/D | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E225 | 47 | 171.5 | 8K0323 | 16mm | 7H3597 | 1M1408 |
| E225 | 54 | 171.5 | 8K4699 | 16mm | 7H3597 | 1M1408 |
| E225 | 46 | 175.5 | 3V9026 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 53 | 175.5 | 3V9025 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 43 | 190.5 | 6Y8183 | 19mm | 1S1859 | 1S1860 |
| E225,E219,E215 | 49 | 190.5 | 6Y8184 | 19mm | 1S1859 | 1S1860 |
| E235 | 47 | 203.2 | 8E4713 | 19mm | 1S1859 | 1S1860 |
| E235 | 54 | 203.2 | 8E4714 | 19mm | 1S1859 | 1S1860 |
| E235 | 49 | 215.9 | 8E8643 | 22.2mm | 7H3599 | 7T9825 |
| E235 | 53 | 215.9 | 8E8644 | 22.2mm | 7H3599 | 7T9825 |
| E245 | 51 | 228.6 | 8K4753 | 25.4mm | 3T6308 | 2V0250 |
| E245 | 45 | 260.4 | 8E7857 | 25.4mm | 2M5657 | 1S6421 |
| E307 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E307B | 38 | 154 | 1452949 | 16mm | 7H3597 | 1M1408 |
| E311B | 41 | 171.5 | 4I7479 | 16mm | 7H3597 | 1M1408 |
| E312B | 43 | 171.5 | 1469175 | 16mm | 7H3597 | 1M1408 |
| E314C | 46 | 171.5 | 1764871 | 16mm | 7H3597 | 1M1408 |
| E315,E315B | 41 | 190.5 | 1028124 | 20mm | 9W3619 | 9W3361 |
| E315L | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317,E317N | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317BL,E317BLN | 45 | 190.5 | 1646893 | 20mm | 9W3619 | 9W3361 |
| E318B,E318BL,E318BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320BL | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320B,E320BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320C | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320L | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320S | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E322,E322N | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322B | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322L,E322LN | 51 | 190.5 | 1171374 | 20mm | 9W3619 | 9W3361 |
| E325 | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E325B | 45 | 203.2 | 1151848 | 20mm | 6Y0846 | 9W3361 |
| E325BL,E325BLN | 48 | 203.2 | 1151849 | 20mm | 6Y0846 | 9W3361 |
| E325N,E325L,E325LN | 48 | 203.2 | 6Y0853 | 20mm | 6Y0846 | 9W3361 |
| E330 | 45 | 215.9 | 6Y2755 | 22mm | 6Y9024 | 9W4381 |
| E330B | 45 | 215.9 | 1187300 | 22mm | 6Y9024 | 9W4381 |
| E330BL,E330BLN | 49 | 215.9 | 1187301 | 22mm | 6Y9024 | 9W4381 |
| E345B | 49 | 215.9 | 1504780 | 24mm | 208-32-51210 | 208-32-5122A |
| E345BL | 52 | 215.9 | 1504745 | 24mm | 208-32-51210 | 208-32-5122A |
| E350 | 47 | 228.6 | 8E6089 | 22mm | 1434891 | 9W4381 |
| E350L | 51 | 228.6 | 8E6090 | 22mm | 1434891 | 9W4381 |
| E365BL | 47 | 260.4 | 1421806 | 27mm | 195-32-11210 | 195-32-11221 |
| E375 | 47 | 260.4 | 6Y7453 | 27mm | 195-32-11210 | 195-32-11221 |
| E385B | 47 | 260.4 | 1740215 | 30mm | 1740221 | 1740222 |
