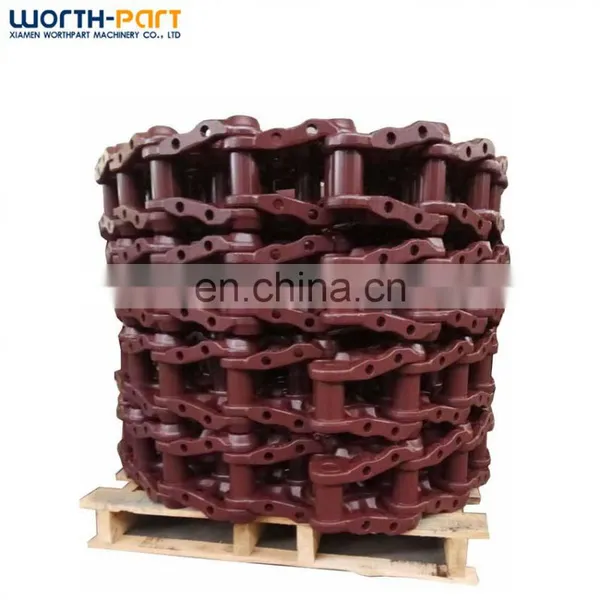

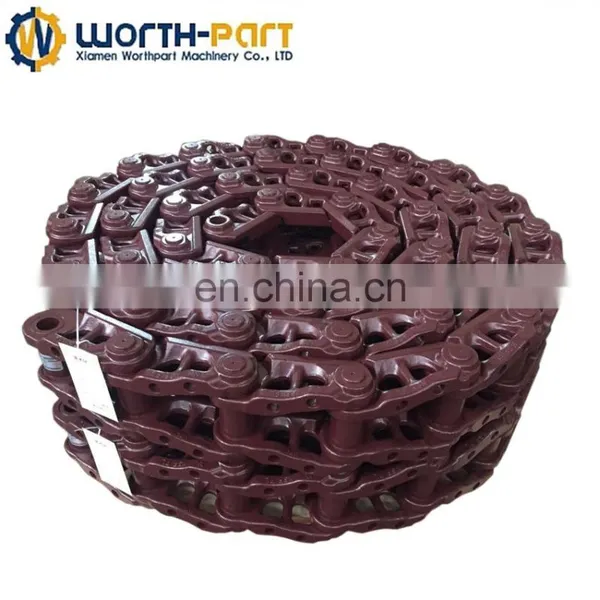

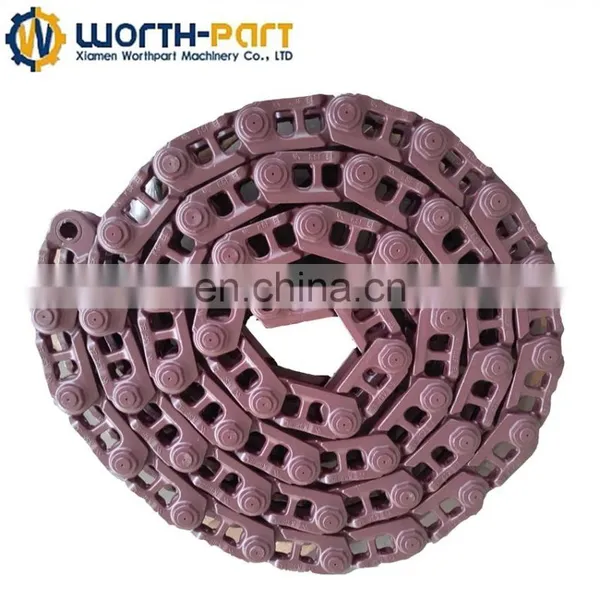

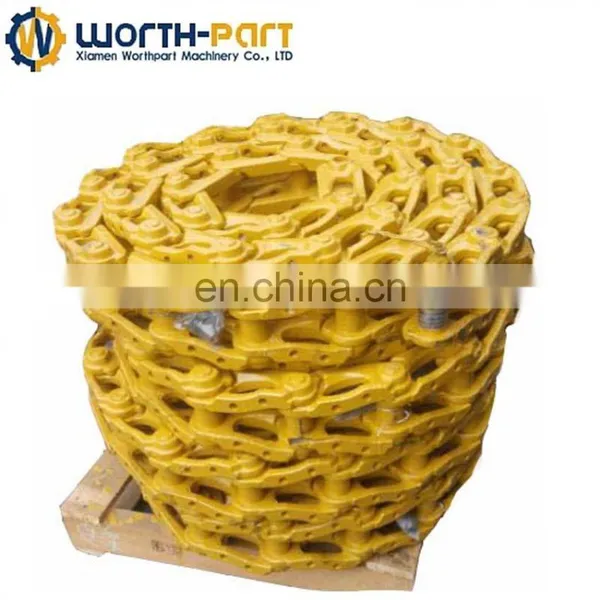

2018 New Style 35MnB PC200 Excavator 20Y-32-00013 Track Chains
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Forging Steel D6R Undercarriage Dozer Track LinkNegotiableMOQ: 1 -
Bulldozer Undercarriage Parts D6R XL Track ShoeNegotiableMOQ: 1
-
Track Shoe Excavator Track Shoe,Bulldozer Track Shoe,track Shoe AssyNegotiableMOQ: 1
-
High Quality Excavator Bottom Roller Kubota U15 Track RollerNegotiableMOQ: 1
-
High Quality Excavator Bottom Roller Kubota U30 U35 KX030 KX035 Track RollerNegotiableMOQ: 1
2018 New Style 35MnB PC200 Excavator 20Y-32-00013 Track Chains
Product Description
|
Model Name |
PC200 Excavator 20Y-32-00013 Track Chains |
|
Material |
35MnB for PC200 Track Chain |
|
Color |
Black or Yellow |
|
Surface Hardness |
HRC52-58 |
|
Machine type |
Bulldozer ,Excavator ,Crane |
|
Warranty |
2000 hour |
|
Technique |
Froging/Casting |
|
Certification |
ISO9001-2008 |
|
Hardness Depth |
5-10mm |
|
Usage |
PC200 Excavator Undercarriage Parts |
High surface hardness and deep hardened depth offer greater wear resistance and longer wear life.
Hot Sale
|
|
|
|
|
|
- 1. track link, track chain, track link assy, track group, track link with shoes.
- 2. track roller, bottom roller, lower roller.
- 3. carrier roller, top roller, upper roller.
- 4. sprocket, driving wheel,
- 5. idler, front idler, rear idler,
- 6. track adjuster, track tension spring, track cylinder, track cylinder assembly.
High surface hardness and deep hardened depth offer greater wear resistance and longer wear life.

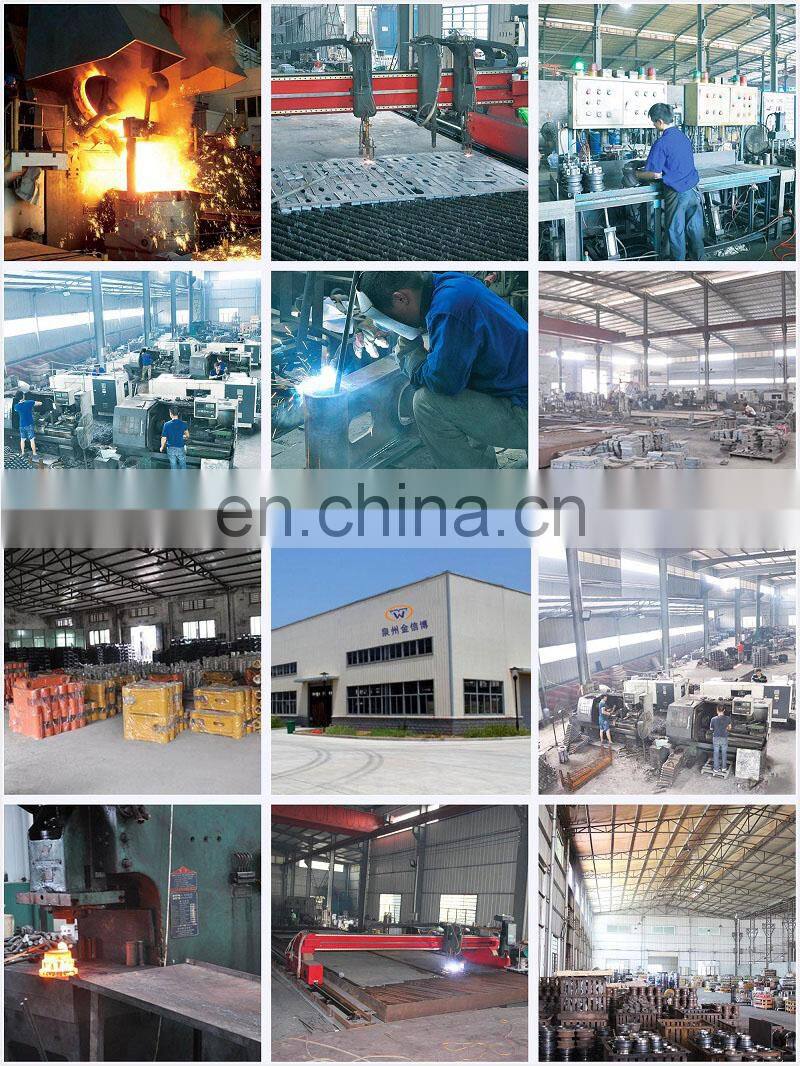

Company Information
Worthpart is a manufacturing for excavator undercarriage parts, hydraulic cylinder and Ground Engaging Tools in China, with more than 12 years full experience and a professional sales team.
Our MAIN PRODUCTS:
Track roller, carrier roller, sprocket, idler, track chain, track bush and pin, track shoe.
Bucket bushing and pin, track cylinder, track adjuster, excavator recoil spring, bucket link, link rod, track guard etc.
Part Number
| Model | Link number | Link pitch |
Link part number |
Bolt hole dia | Bolt No | Nut No |
| E70 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E70B | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E110 | 39 | 171.5 | CR4854/39 | 16mm | 7H3597 | 1M1408 |
| E110B | 41 | 171.5 | 995398 | 16mm | 7H3597 | 1M1408 |
| E120(1LF) | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E120B | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E140 | 44 | 171.5 | 932015 | 16mm | 7H3597 | 1M1408 |
| E180 | 48 | 175.5 | 931927 | 18mm | 135-32-11211 | 79039445 |
| E200B | 45 | 190.5 | 964301 | 20mm | 79035814 | 970120 |
| E240,E240 | 46 | 190.5 | 878805 | 20mm | 79035814 | 964299 |
| E300 | 49 | 190.5 | 931963 | 20mm | 79035814 | 964299 |
| E300B | 46 | 203.2 | 995998 | 20mm | 14X-32-11210 | 964299 |
| E450 | 50 | 215.9 | 7I9091 | 22mm | 7H3599 | 7T9825 |
| E650 | 50 | 228.6 | 960260 | 24mm | 930271 | 930323 |
| E205 | 47 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E205 | 47 | 171.5 | 8U3456 | 16mm | 7H3597 | 1M1408 |
| E205 | 45 | 171.5 | 8E1442 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E211 | 51 | 171.5 | 5W9836 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E213 | 42 | 171.5 | 5W4165 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215 | 44 | 171.5 | 6A4713 | 14mm | 7H3596 | 7K2017 |
| E215 | 51 | 171.5 | 5C4089 | 14mm | 7H3596 | 7K2017 |
| E215 | 44 | 171.5 | 3T3695 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 5C0949 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215C/D | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E225 | 47 | 171.5 | 8K0323 | 16mm | 7H3597 | 1M1408 |
| E225 | 54 | 171.5 | 8K4699 | 16mm | 7H3597 | 1M1408 |
| E225 | 46 | 175.5 | 3V9026 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 53 | 175.5 | 3V9025 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 43 | 190.5 | 6Y8183 | 19mm | 1S1859 | 1S1860 |
| E225,E219,E215 | 49 | 190.5 | 6Y8184 | 19mm | 1S1859 | 1S1860 |
| E235 | 47 | 203.2 | 8E4713 | 19mm | 1S1859 | 1S1860 |
| E235 | 54 | 203.2 | 8E4714 | 19mm | 1S1859 | 1S1860 |
| E235 | 49 | 215.9 | 8E8643 | 22.2mm | 7H3599 | 7T9825 |
| E235 | 53 | 215.9 | 8E8644 | 22.2mm | 7H3599 | 7T9825 |
| E245 | 51 | 228.6 | 8K4753 | 25.4mm | 3T6308 | 2V0250 |
| E245 | 45 | 260.4 | 8E7857 | 25.4mm | 2M5657 | 1S6421 |
| E307 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E307B | 38 | 154 | 1452949 | 16mm | 7H3597 | 1M1408 |
| E311B | 41 | 171.5 | 4I7479 | 16mm | 7H3597 | 1M1408 |
| E312B | 43 | 171.5 | 1469175 | 16mm | 7H3597 | 1M1408 |
| E314C | 46 | 171.5 | 1764871 | 16mm | 7H3597 | 1M1408 |
| E315,E315B | 41 | 190.5 | 1028124 | 20mm | 9W3619 | 9W3361 |
| E315L | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317,E317N | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317BL,E317BLN | 45 | 190.5 | 1646893 | 20mm | 9W3619 | 9W3361 |
| E318B,E318BL,E318BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320BL | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320B,E320BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320C | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320L | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320S | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E322,E322N | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322B | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322L,E322LN | 51 | 190.5 | 1171374 | 20mm | 9W3619 | 9W3361 |
| E325 | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E325B | 45 | 203.2 | 1151848 | 20mm | 6Y0846 | 9W3361 |
| E325BL,E325BLN | 48 | 203.2 | 1151849 | 20mm | 6Y0846 | 9W3361 |
| E325N,E325L,E325LN | 48 | 203.2 | 6Y0853 | 20mm | 6Y0846 | 9W3361 |
| E330 | 45 | 215.9 | 6Y2755 | 22mm | 6Y9024 | 9W4381 |
| E330B | 45 | 215.9 | 1187300 | 22mm | 6Y9024 | 9W4381 |
| E330BL,E330BLN | 49 | 215.9 | 1187301 | 22mm | 6Y9024 | 9W4381 |
| E345B | 49 | 215.9 | 1504780 | 24mm | 208-32-51210 | 208-32-5122A |
| E345BL | 52 | 215.9 | 1504745 | 24mm | 208-32-51210 | 208-32-5122A |
| E350 | 47 | 228.6 | 8E6089 | 22mm | 1434891 | 9W4381 |
| E350L | 51 | 228.6 | 8E6090 | 22mm | 1434891 | 9W4381 |
| E365BL | 47 | 260.4 | 1421806 | 27mm | 195-32-11210 | 195-32-11221 |
| E375 | 47 | 260.4 | 6Y7453 | 27mm | 195-32-11210 | 195-32-11221 |
| E385B | 47 | 260.4 | 1740215 | 30mm | 1740221 | 1740222 |
