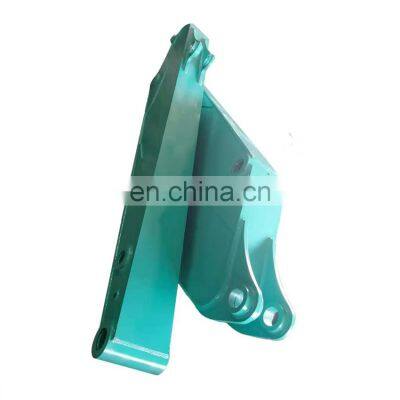

SK230 Kobelco excavator long reach boom arm
1.Products features
long reach boom & arm :
1)Type: two-segment type (long reach boom ), three-segment type (demolition boom)
Two-segment type is mainly applied in the transit of building materials like earth, sand, and concrete, slope maintenance of expressways and dredging of watercourses, etc
Three-segment type is mainly applied in demolishing high-rise.
2)Optimized materials selection, Q345B,Q690D,Weldox
3) Standard supply contains:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system
4) Advanced manufacturing process, Technique is in the line with global standards
5) Applicable for all the excavator model,OEM service is also available
| Excavator gross weight | total length(mm) | Weight(kg) | Arm Length(mm) | Arm Weight(kg) | Boom and Arm length(mm) | Boom and Arm Weight(kg) |
Bucketvolume capacity(m3) |
| 12T | 4600 | 1500 | 3125 | 650 | 7725 | 2150 | 0.5 |
| 20T | 5700 | 1900 | 3750 | 800 | 9450 | 2700 | 0.8 |
| 25T | 6150 | 2300 | 4050 | 1200 | 10200 | 3500 | 1.3 |
| 30T | 6470 | 2500 | 4118 | 1350 | 10588 | 3850 | 1.4 |
| 35T | 6430 | 2850 | 4185 | 1550 | 10615 | 4400 | 1.6 |
| 40T | 7055 | 3400 | 4425 | 1700 | 11480 | 5100 | 1.8 |
| 45T | 7120 | 3800 | 4430 | 1800 | 11550 | 5600 | 2 |

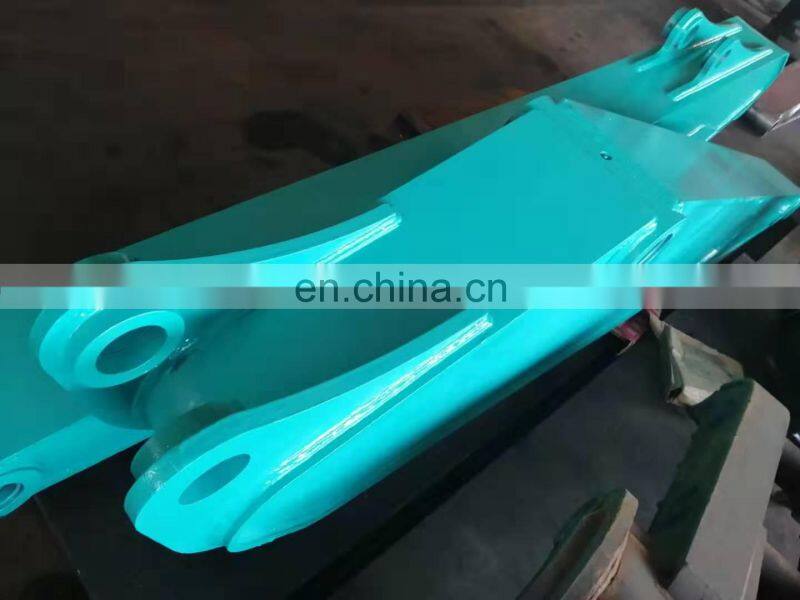

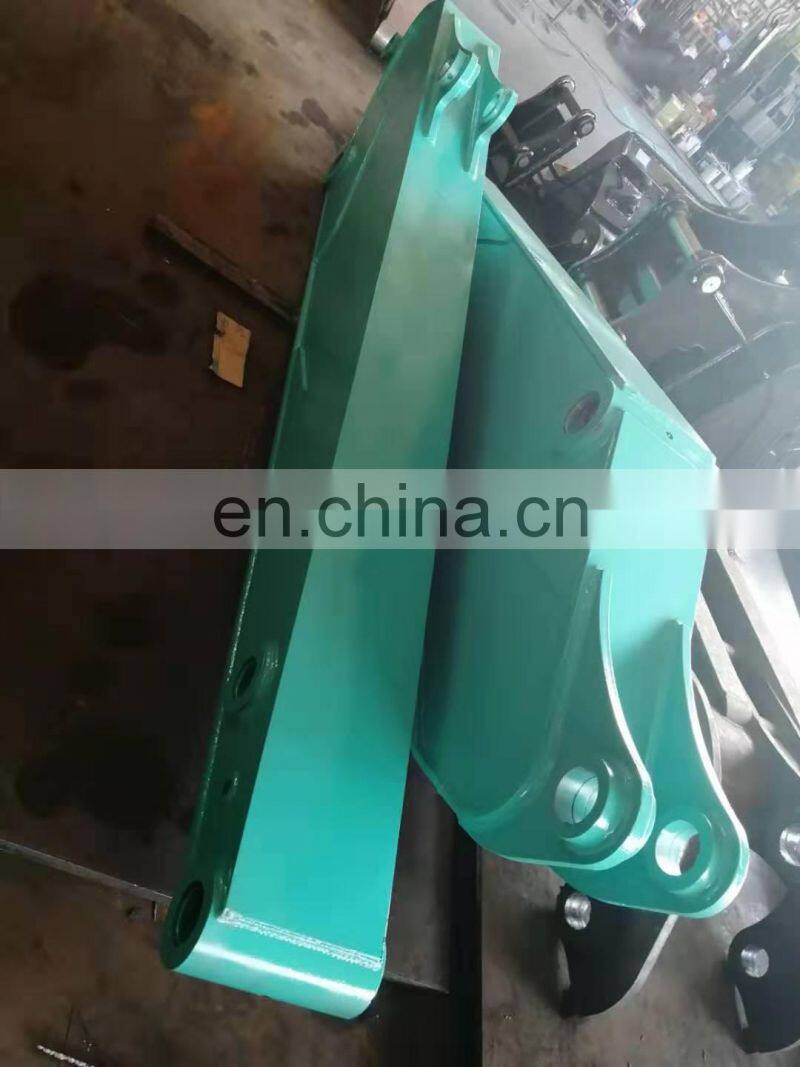

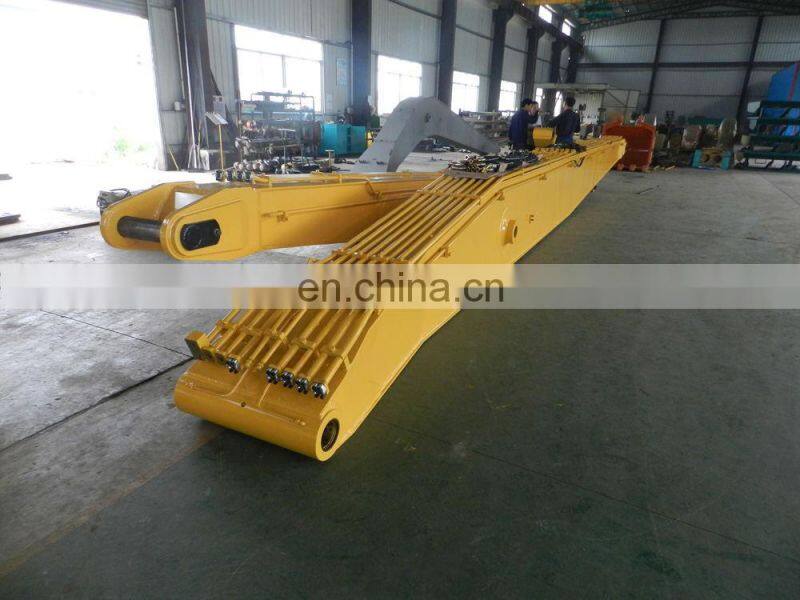

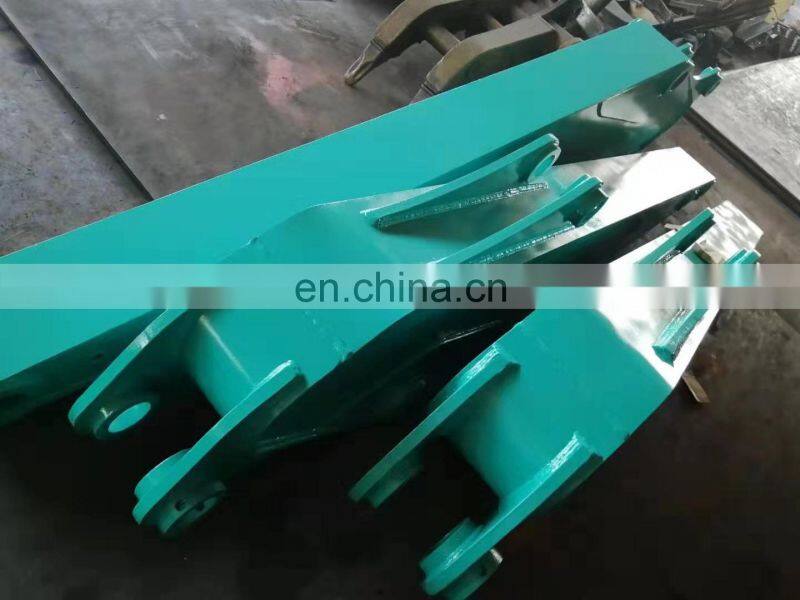

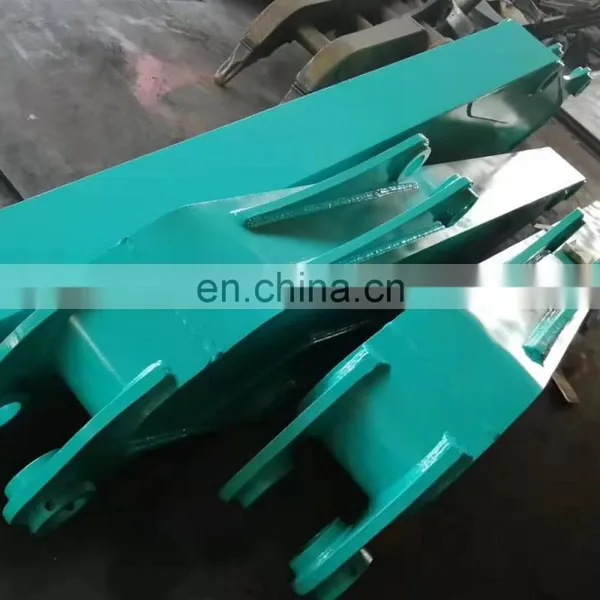

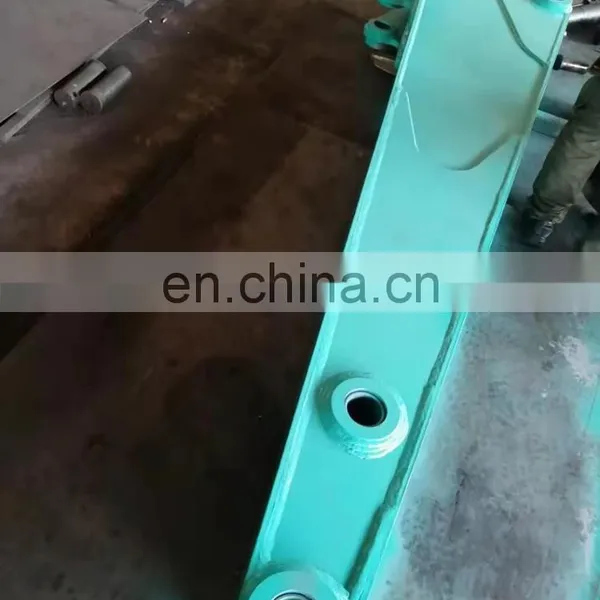

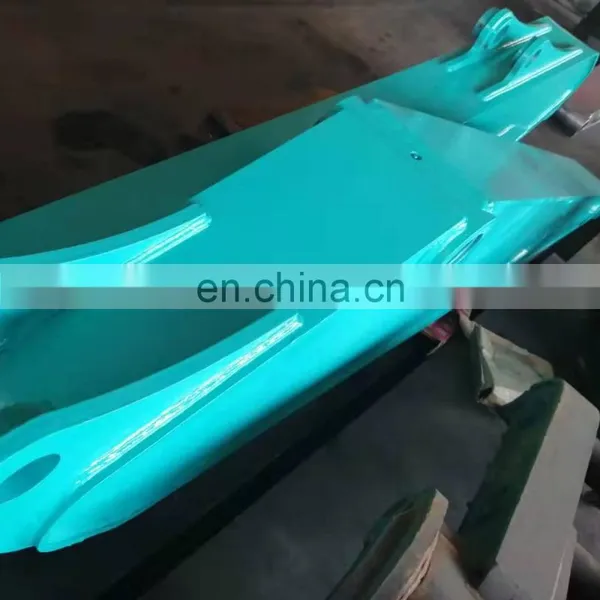

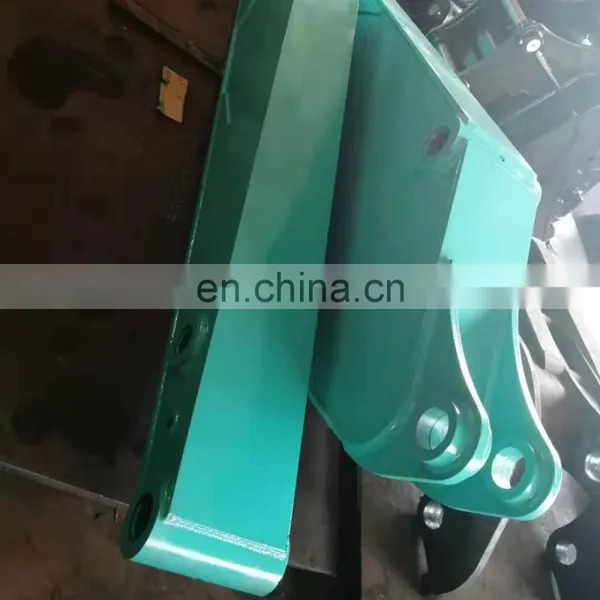

2.Product photoes:
