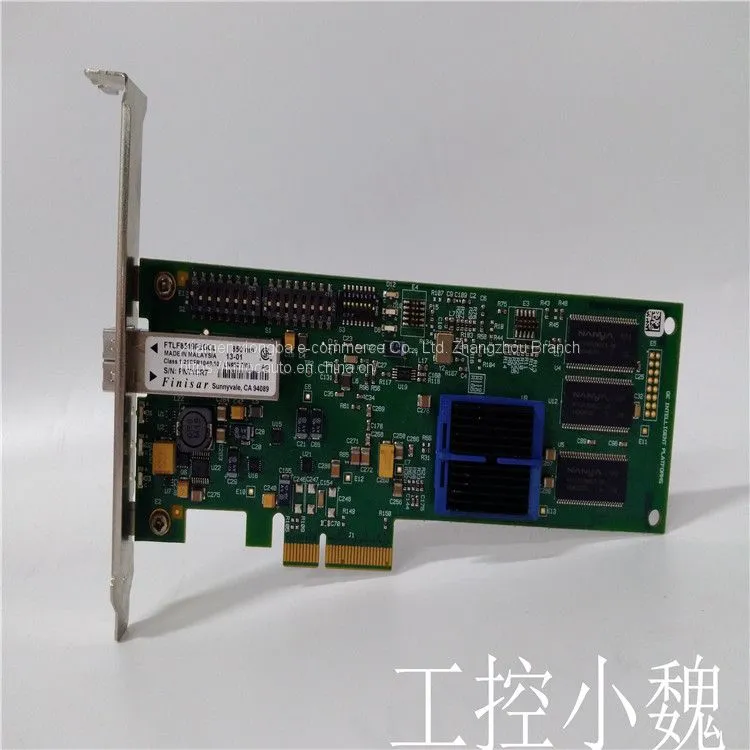

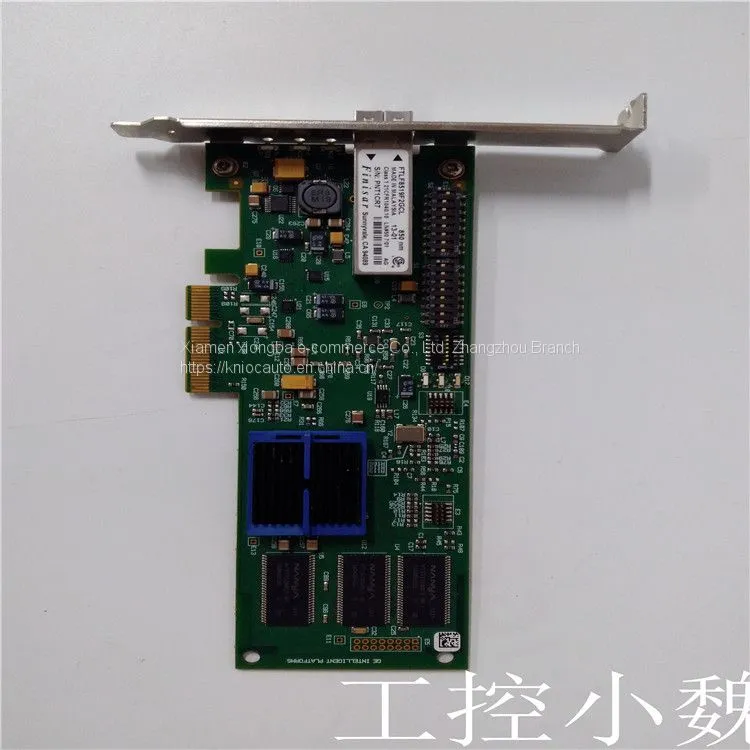

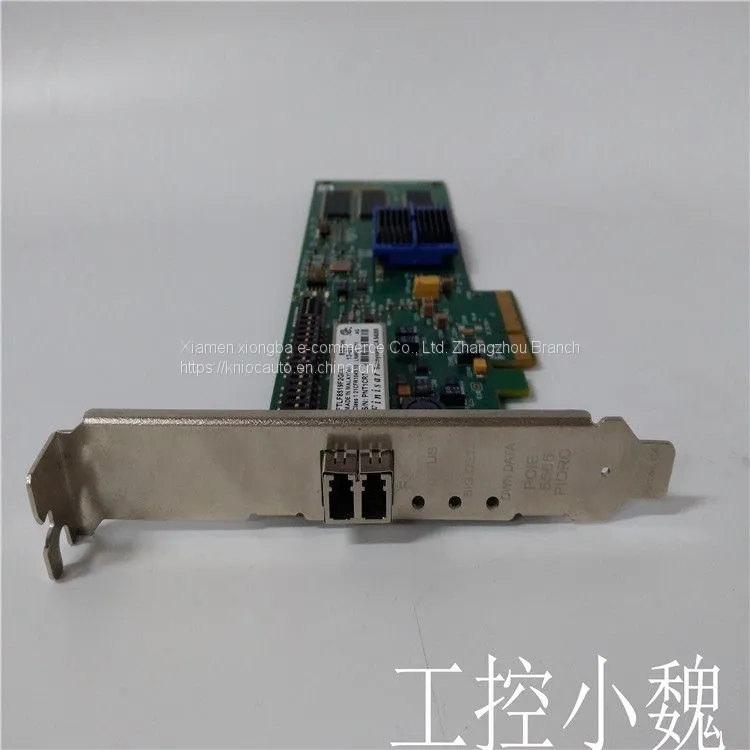

PCI-5565PIORC-110000 GE

PCI-5565PIORC-110000 GE thumbnail-1
PCI-5565PIORC-110000 GE thumbnail-2
PCI-5565PIORC-110000 GE thumbnail-3
PCI-5565PIORC-110000 GE thumbnail-4
PCI-5565PIORC-110000 GE thumbnail-5
PCI-5565PIORC-110000 GE photo-1
PCI-5565PIORC-110000 GE photo-2
PCI-5565PIORC-110000 GE photo-3
PCI-5565PIORC-110000 GE photo-4
PCI-5565PIORC-110000 GE photo-5
US$ 4154 - 9455 MOQ: 1 Bushel
Key Specifications
Get Latest Price
Brand Name:
GE
Place of Origin:
Switzerland
Model Number:
PCI-5565PIORC-110000
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., Ltd. Zhangzhou Branch
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
haikou
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GE
Place of Origin Switzerland
Model Number PCI-5565PIORC-110000
Use Audio / Video Players
brand model QQ email Personal official website
GE PCI-5565PIORC-110000 2797820256@qq.com /
weight Specifications Telephone
10kg 15cm +86 18030177759

PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000PCI-5565PIORC-110000

The PMC-5565PIORC reflective memory node card provides a high-speed, low latency, deterministic interface that allows data sharing between up to 256 independent systems (nodes) at a rate of up to 170 Mbyte/s. Each reflective memory board can be configured with 128 MB or 256 MB on-board SDRAM. Local SDRAM provides fast read access time to stored data. Writes are stored in the local SDRAM and broadcast to other reflective memory nodes through high-speed optical fiber data paths. Data transmission between nodes is software transparent, so there is no I/O overhead. Transmit and receive FIFO buffered data during peak data rates to optimize host and bus performance to maintain high data throughput. PMC-5565PIORC conforms to RoHS standard, and has improved PIO reading performance and firmware that can be upgraded in the field.



PCI Reflective Memory with PIO read performance

As a longstanding leader in Reflective Memory (RFM) technology, J-Squared understands the demands of real-time networks. We know that certain types of applications require the determinism, implementation simplicity, and lack of software overhead that ubiquitous technologies such as Ethernet can’t deliver.


Our PCI-5565PIORC Reflective Memory node card in PCI form factor is engineered specifically to provide highly deterministic, tightly timed performance for a variety of advanced networking applications that need to deterministically move large amounts of data fast and share that data in real time among similar or disparate network nodes.


J-Squared’s RFM products are designed to fit into your existing hardware and operating system environment, integrating diverse hardware platforms running different operating systems into a single, shared memory network.


The PCI-5565PIORC is well-suited for industrial control applications in which implementation simplicity, a lack of software overhead, and bus structure and operating system independence are key factors, such as:

Aircraft simulators

Automated testing systems

Ship and submarine simulators

Aluminum rolling mill

Power plant simulators

Engine test stands

Industrial process control

High-speed data acquisition

PLCs

Features

High speed, easy to use fiber-optic network (2.12 Gbaud serially)

Data written to memory in one node is also written to memory in all nodes on the network

Up to 256 nodes

Connection with multimode fiber up to 300 m, single mode fiber up to 10 km

Dynamic packet size, 4 to 64 bytes of data

Transfer rate 43 MB/s (4 byte packets) to 174 MB/s (64 byte packets)

64 MB or 128 MB SDRAM Reflective Memory

Two independent DMA channels

Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command

Error detection

Redundant transfer mode for extra error suppression

No processor overhead

No processor involvement in the operation of the network

PCI 64-bit 66 MHz transfers, 3.3 or 5V, single width mezzanine interface

Please call for Windows Drivers (available Windows 7/XP/Vista/Server 2008/Server 2003, 32/64-bit for PCIE/PCI/PMC)
PCI-5565PIORC-110000
PCI-5565PIORC-111000
PCI-5565PIORC-210000
PCI-5565PIORC-211000
PCI-5565PIORC-110000
PCI-5565PIORC-210000
PCIE-5565PIORC-100A00
PCIE-5565PIORC-200A00
PMC-5565PIORC-110000
PMC-5565PIORC-210000
CPCI-5565PIORC-110000
CPCI-5565PIORC-210000
1394-SR9A
1394-SJT10-C-RL
1394C-SJT22-A
1394-SJT22-A
1394-AM04/B
1394-AM04
1394C-SJT05-D
1394-AM75-B
1394C-SJT22-A
1394-SJT05-C-RL】
 IBA F0B-4i-S
 PM866AK01 3BSE076939R1 PM866AK02 3BSE081637R1
PFTL101B 0-2KN
 WATLOW ANAFAZE  CLS208
WATLOW ANAFAZE   CLS204
WATLOW ANAFAZE CLS216
WATLOW ANAFAZE  CLS200


Product Tags: PCI-5565PIORC-110000 , GE
