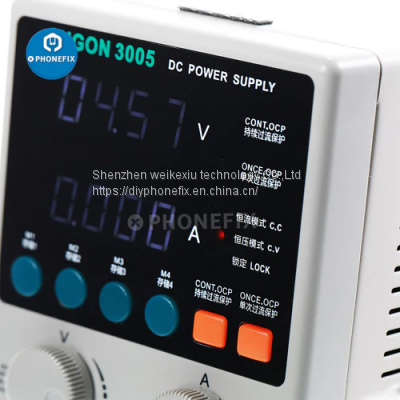

SUGON 3005D Adjustable Digital DC Power Supply For Phone Repair

30V/5A full digital power control single

10mV/1mA high accuracy and resolution

Low noise and ripple

CV/CC given voltage and constant current mode

Highly reliable OCP, OVP, arbitrarily set protection

Built-in set of parameters stored

Outputs a switch control

Power and memory function

Keypad lock to prevent misuse

An intelligent temperature control fan, effectively reduce the noise

An easy alternative to traditional digital power

Precisely generate the required voltages and currents.

0-30V adjustable DC output high-precision.

10mV and 1mA resolution.

Professional power supply design with intuitive operability.

Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.

To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can

The keyguard lock panel buttons to prevent undesirable results in the key test engineering

Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Input voltage: 220V /

Frequency range: 50- 60Hz

Operating temperature : 32-104 ℉ (0-40 ºC)

Operating humidity :<80%RH

Storage temperature : 32-158 ℉ (0-70 ºC)

Storage humidity :<70%RH

Output Voltage Range: 0-30V Continuously adjustable

Setup Resolution : 10 mV

Setup Accuracy :<0.05% +20 mV

Ripple :<1mVRMS

Read back Accuracy: 10 mV

Temp. Coefficient :<0.1% + 10mV

Read back Temp. Coefficient :<100 ppm+10 mV

Output Current Range: 0-5A Continuously adjustable

Setup Resolution : 1 mA

Setup Accuracy :<0.1% +3 mA

Ripple :<3mARMS

Read back Accuracy: 1 mA

Temp. Coefficient :<0.1% + 5mA

Read back Temp. Coefficient :<100 ppm+5 mA

Dimensions : 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)
