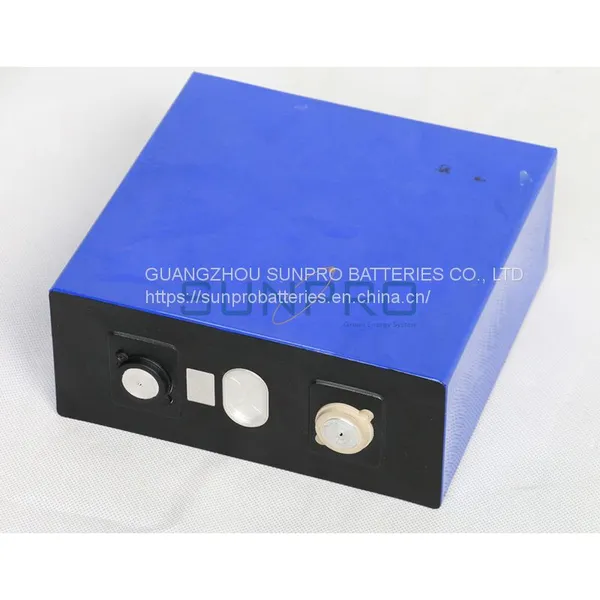

LiFePO4 Battery 3.2V 300AH PRISMATIC CELL
Product Description
Battery Model: SPRO-LFP3.2V300AH
Battery Material: LiFePO4
Nominal Voltage: 3.2V [min2.5V-max3.65V]
Nominal Capacity: 300AH
SUNPRO LiFePO4 Prismatic Battery Cell 3.2VDC 300AH
Model Name |
SPRO-LFP72174204-300AH |
Casing material |
Aluminum shell |
Nominal Voltage (DC) |
3.2V |
Rated Capacity (AH) |
300AH |
Voltage range (DC) |
2.5V-3.65V |
Internal Resistance (mΩ) |
≤ 0.8mΩ |
Cut-off Voltage (DC) |
Charging: 3.65V |
Discharging: 2.5V | |
Charging Current |
60A (Standard, 0.2C) |
Max Charge Current |
300A (1C) |
Const. Discharge Current |
300A (1C) |
Peak Discharge Current |
600A (2C) |
Dimension |
D72*W174*H204mm |
Net Weight |
5.55kg |
SUNPRO Batteries Note
Users should configure a suitable BMS for strictly monitoring, management and protection.
The reversal charging is forbidden. Correctly connect the battery cells with Positive Pole and Negative Pole, otherwise short circuit would happen due to wrong connection on +/- terminal then cause damage and safety problem.
No matter what kind of charging mode is, once the temperature of the cell is above the maximum charging temperature, charging should be stopped.
If the Lithium batteries kept unused for a long time, it should be charged and discharged at the standard model every 3 or 6 months.
