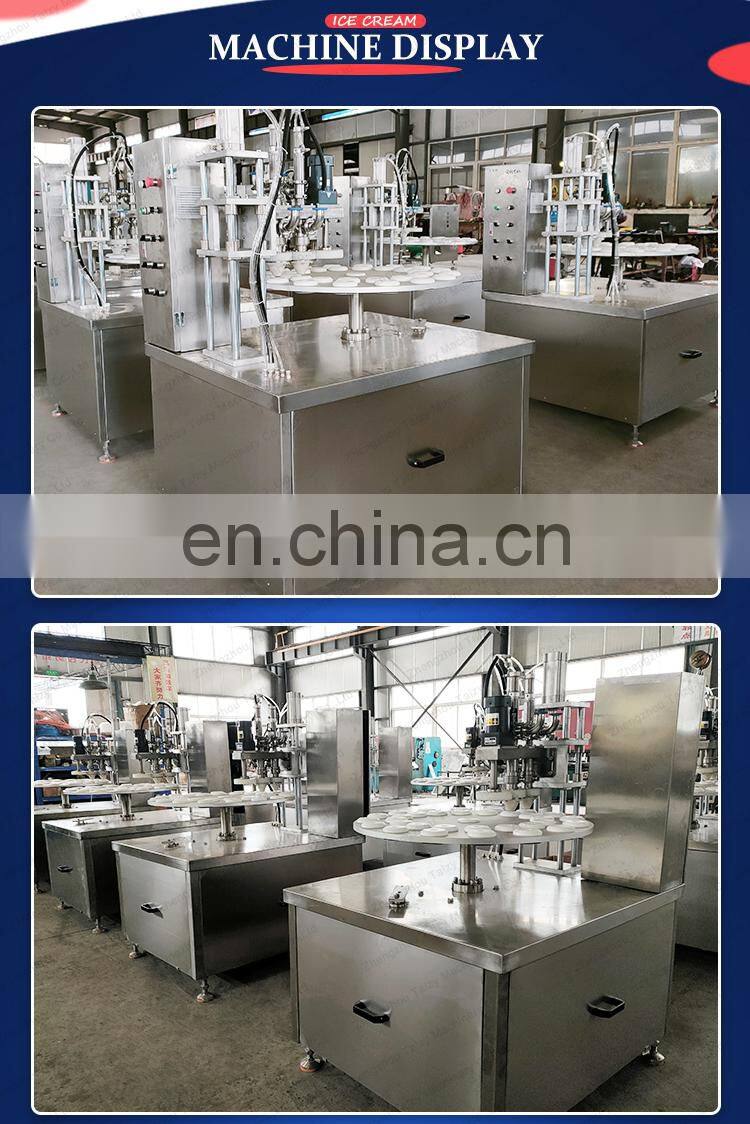

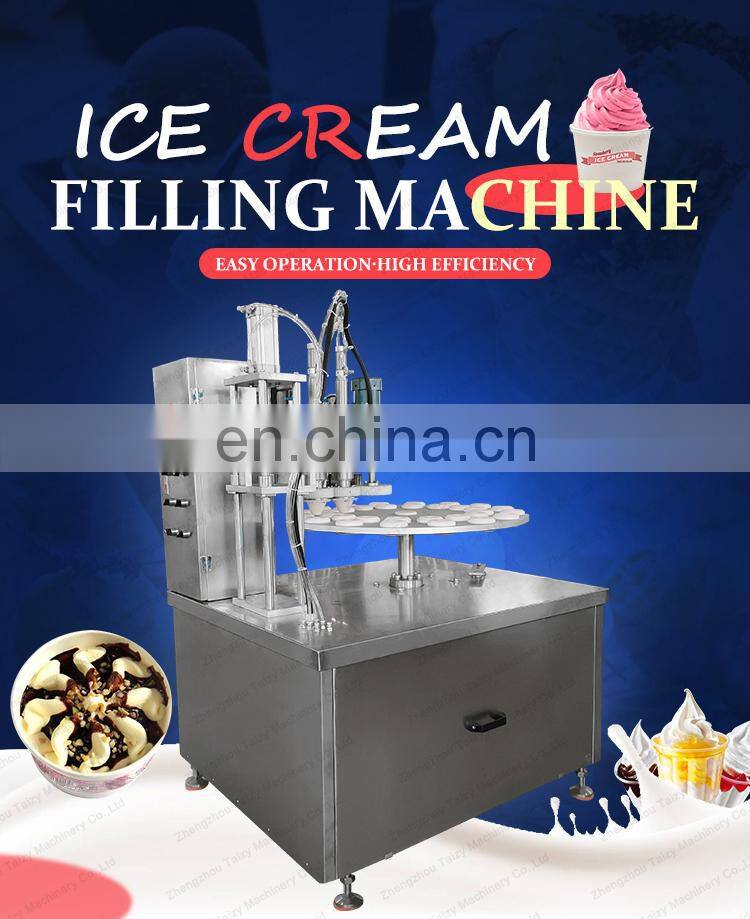

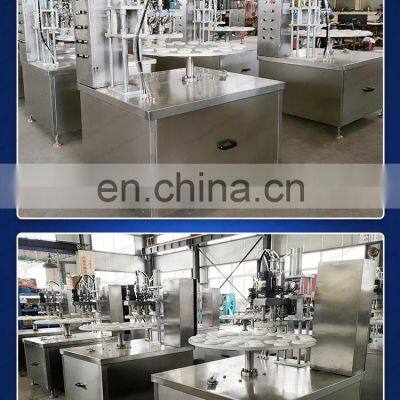

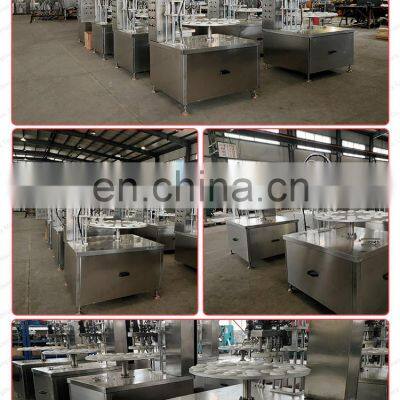

The G16 ice cream filling machine is designed for filling ice cream in cups and cones with 16pcs cup molds. Please connect the outlet of continuous ice cream freezer and the inlet of ice cream filling machine, ice cream can be filled, shaped and packaged. The machine adopts an inverter to control the speed with stable performance. All parts contacting with ice cream are made of environmental stainless steel or non-poison nylon to meet food hygiene standards and regulations.

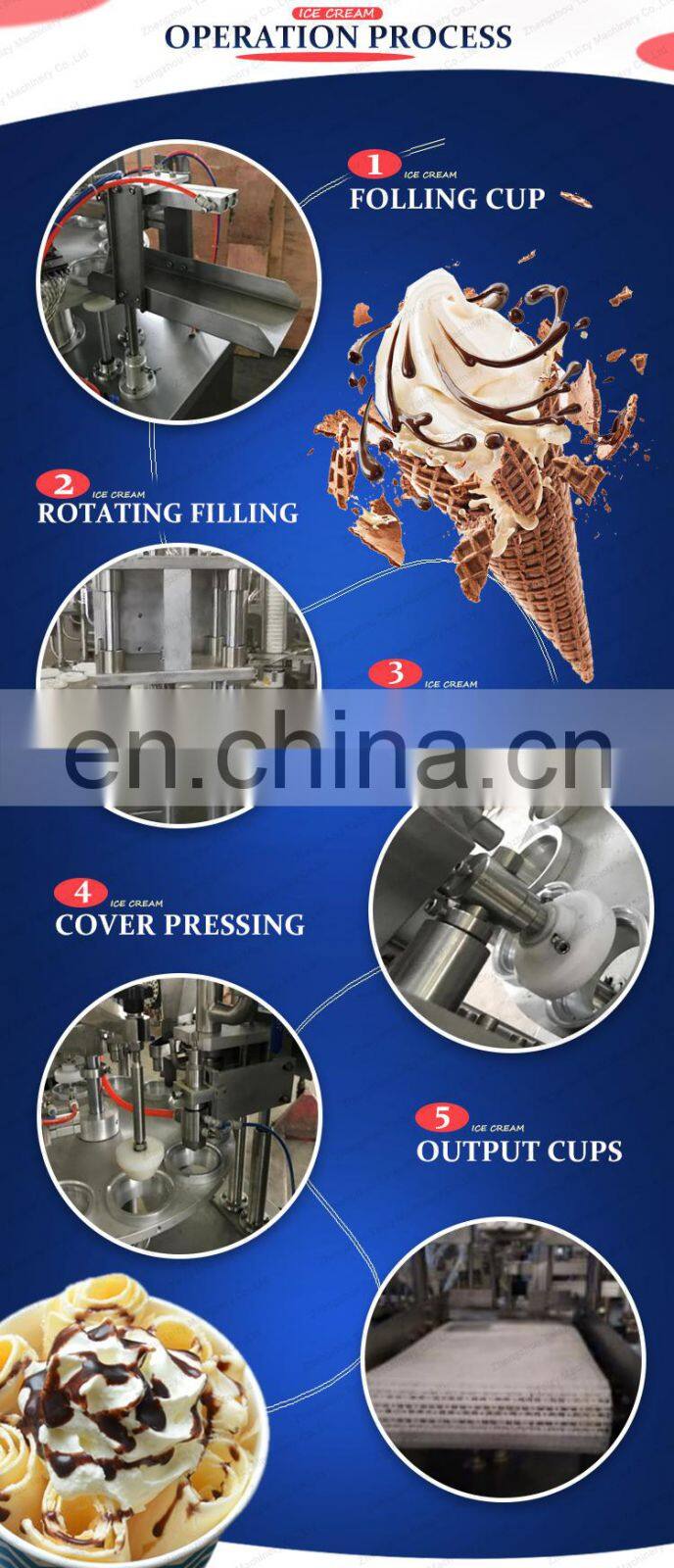

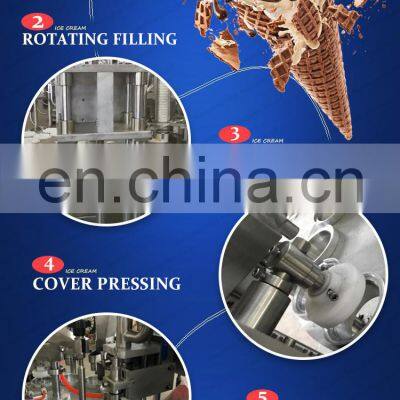

Functions for 2 size cup :
1.Cup dropping by machine
2.Ice cream filling by machine
3.Jam topping by machine
4.Film dropping by machine
5.Film heating by machine
6.Cover dropping by machine
7.Cover pressing by machine
8.Push out to ss plate by machine.
Machine features:
1.The machine uses a rotary disk so it is accurate for fixing position and not to worry about the error.
2.Return accuracy decided by the worm and cam gear which with small gap/durable life/low sound.
3.It fixed with two filling devices and the fulling fancy height can be up to 70mm.
4.It's constructure combined with more working units in order to make it has more expansion functions.
|
Model |
|
|
Normal Capacity |
3500pcs/hour (150ml-250ml per cup) |
|
Cup mold |
32pcs |
|
Electric power |
380V/3/50Hz |
|
Total power |
<= 5 |
|
Pressure of compressed air |
0.6MPa |
|
Consumption of compressed air |
0.6m³/MIN |
|
Gross weight |
1500kg |
|
Machine size |
2200*1800*2000mm |
