Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine

Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine photo-1
Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine photo-2
Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine photo-3
Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine photo-4

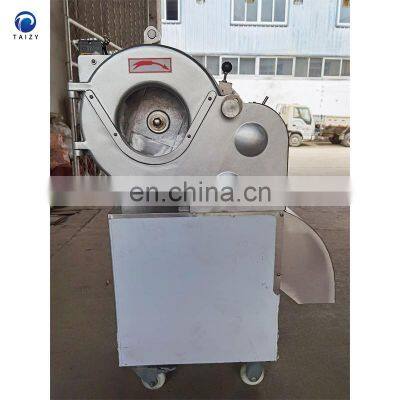

Industrial Commercial Electric Vegetable Potato Onion Cube Cutter Slicer Dicer Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

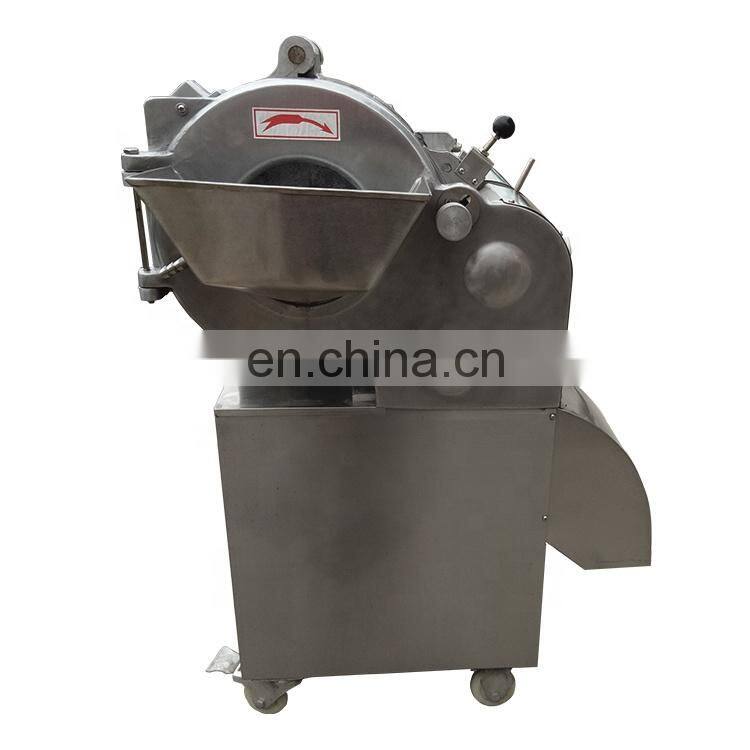

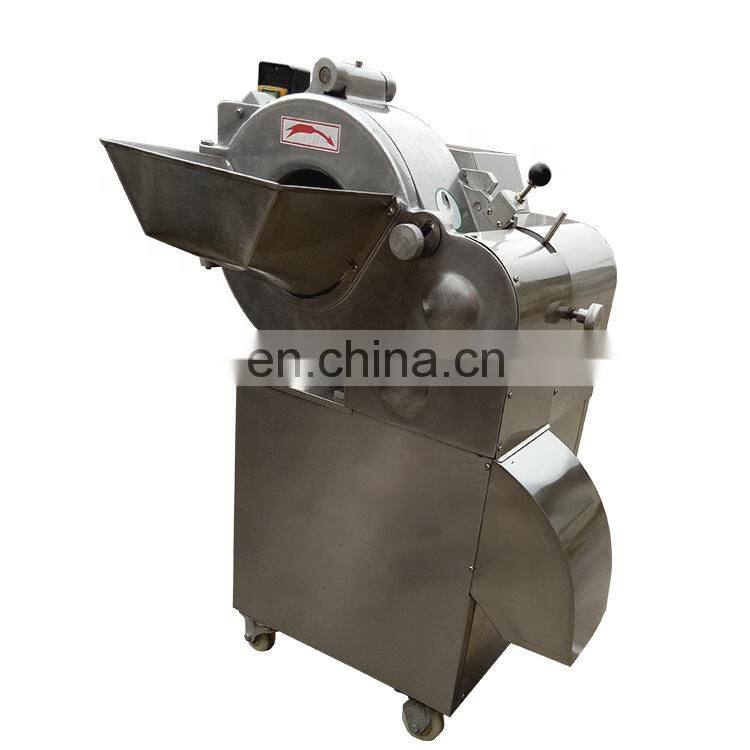

The TZ-100 dicing machine is suitable for the processing of various roots and stems into cubes and cuboid shapes in dehydrated vegetables, quick-frozen vegetable processing plants and food pickles. The machine adopts compound cutter, one-time forming, regular shape, smooth cut surface and high forming rate, which is favored by foreign trade exporting units. The machine has advanced design, convenient operation, low energy consumption and high efficiency. It is made of stainless steel, anti-corrosion, beautiful and meets the sanitary standard.

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine

structural features and working principle

1.Structural features The machine mainly consists of base, housing, dial, vertical knife, wire cutter body, cross cutter body, transmission system and electrical control system. The machine base, casing, hopper and main components are made of stainless steel to ensure long-term work without rust, non-toxic and other characteristics.

2 Working principle The dial of the machine drives the object to be cut to rotate at a high speed. Using the centrifugal force of the object, the object to be cut is cut into pieces by means of a vertical knife, and then cut into strips by a disc cutter, and the material to be cut is sent into the horizontal direction. Cut the knife edge and cut it into the desired cube or cuboid by a cross cutter.

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine



Technical Parameters:



Model

TZCHD-100

Capacity

1000kg/h(for 15mm cube)

Cutting size

3,4,5,6,7,8,9,10,12,15,20 mm strips or cubes

Motor

380V,0.75kW

Dimension

710*660*1085mm

Weight

100kg



 industrial commercial electric vegetable potato onion cube cutter slicer dicer machine

Detailed Images:

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine

 industrial commercial electric vegetable potato onion cube cutter slicer dicer machineindustrial commercial electric vegetable potato onion cube cutter slicer dicer machineindustrial commercial electric vegetable potato onion cube cutter slicer dicer machine

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine



Feedback

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine

Factory show

industrial commercial electric vegetable potato onion cube cutter slicer dicer machine





Packaging & Shipping



1. Machine we use the good wooden package.

2. Usually we will deIivery machine in 3 -5 working days after receive customer's prepayment.

3. Our machine warranty time is 1 year.
