Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine

Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine photo-1
Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine photo-2
Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine photo-3

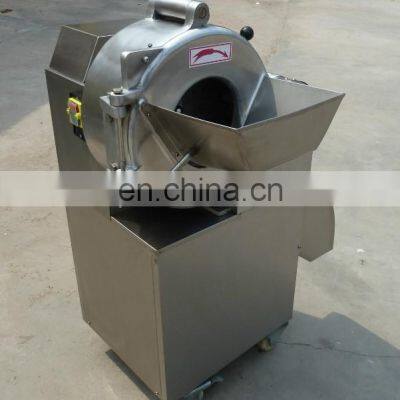

Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine photo-4

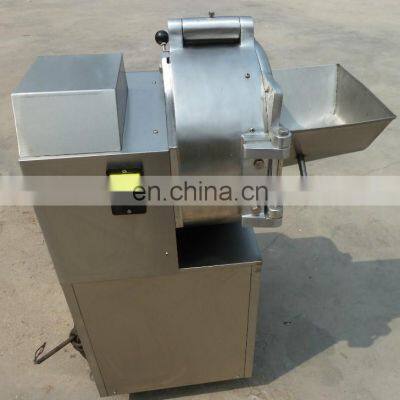

Automatic Carrot Dicer Machine Onion Cube Cutting Machine Vegetable Fruit Dicing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

The TZ-100 dicing machine is suitable for the processing of various roots and stems into cubes and cuboid shapes in dehydrated vegetables, quick-frozen vegetable processing plants and food pickles. The machine adopts compound cutter, one-time forming, regular shape, smooth cut surface and high forming rate, which is favored by foreign trade exporting units. The machine has advanced design, convenient operation, low energy consumption and high efficiency. It is made of stainless steel, anti-corrosion, beautiful and meets the sanitary standard.

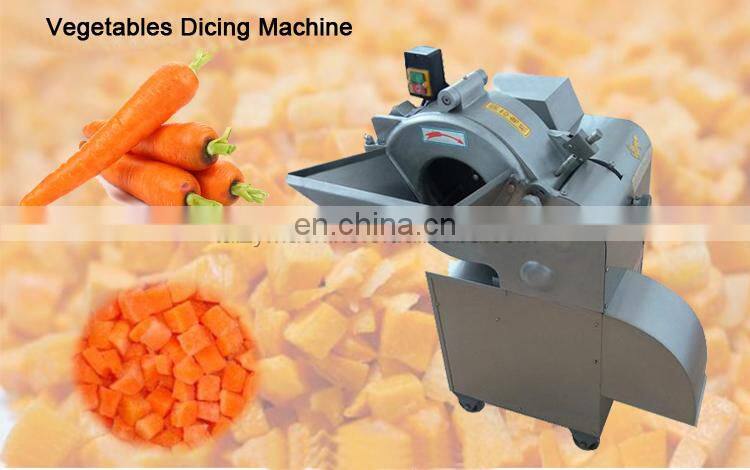

automatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machine

structural features and working principle

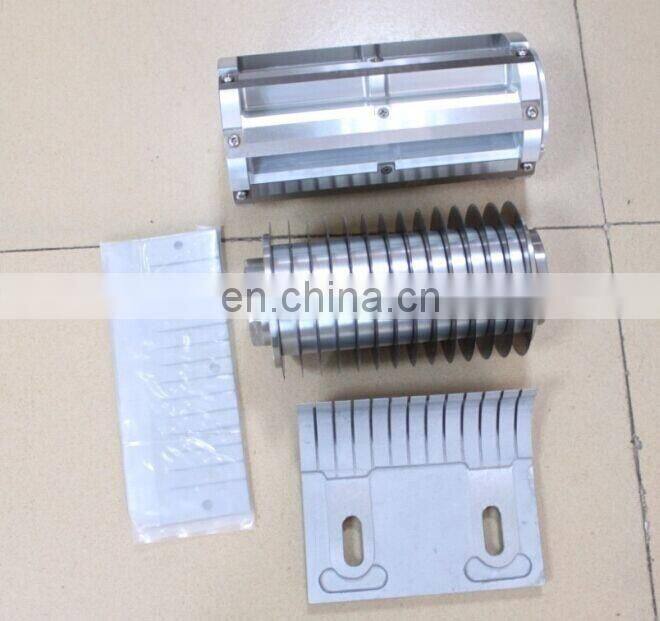

1.Structural features The machine mainly consists of base, housing, dial, vertical knife, wire cutter body, cross cutter body, transmission system and electrical control system. The machine base, casing, hopper and main components are made of stainless steel to ensure long-term work without rust, non-toxic and other characteristics.

2 Working principle The dial of the machine drives the object to be cut to rotate at a high speed. Using the centrifugal force of the object, the object to be cut is cut into pieces by means of a vertical knife, and then cut into strips by a disc cutter, and the material to be cut is sent into the horizontal direction. Cut the knife edge and cut it into the desired cube or cuboid by a cross cutter.



Technical Parameters:



Model

TZCHD-100

Capacity

1000kg/h(for 15mm cube)

Cutting size

3,4,5,6,7,8,9,10,12,15,20 mm strips or cubes

Motor

380V,0.75kW

Dimension

710*660*1085mm

Weight

100kg

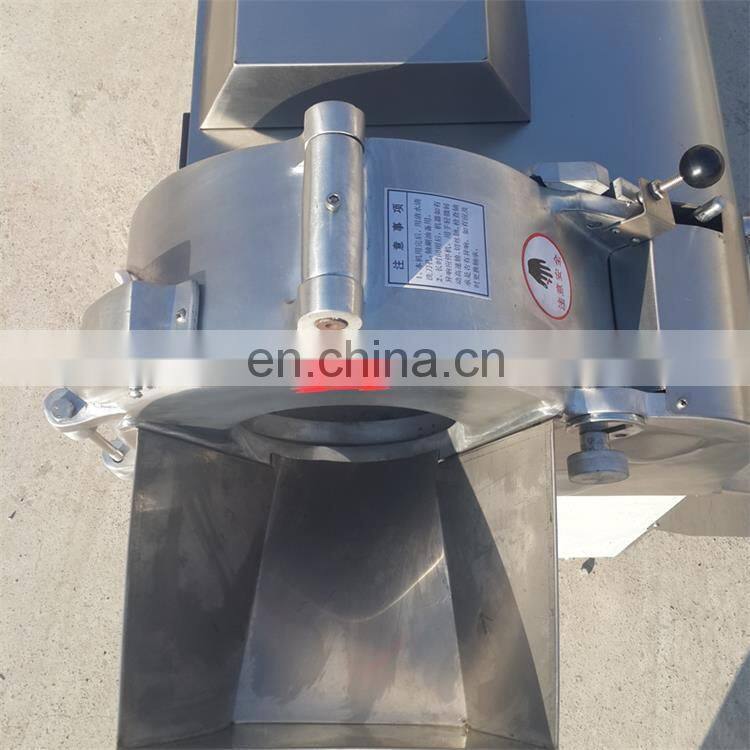

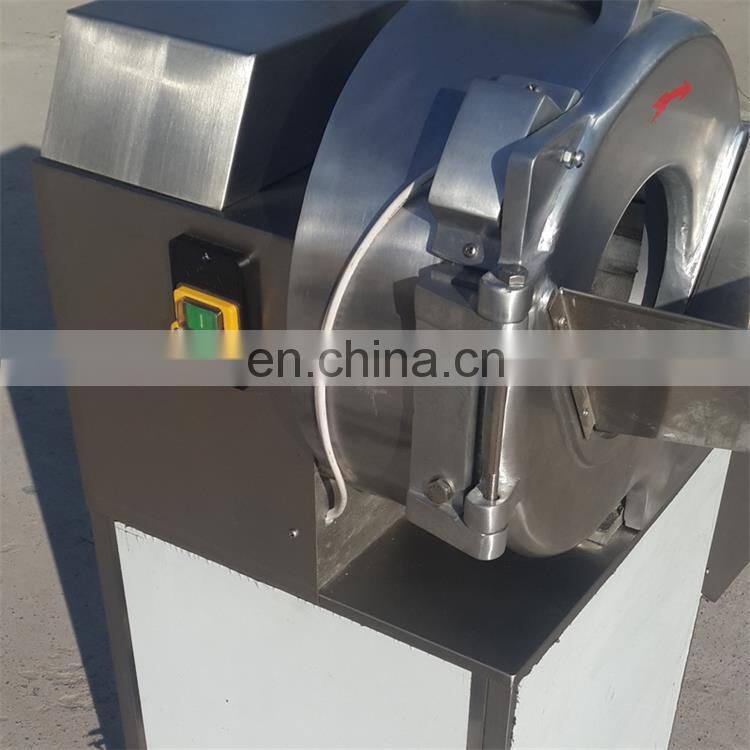

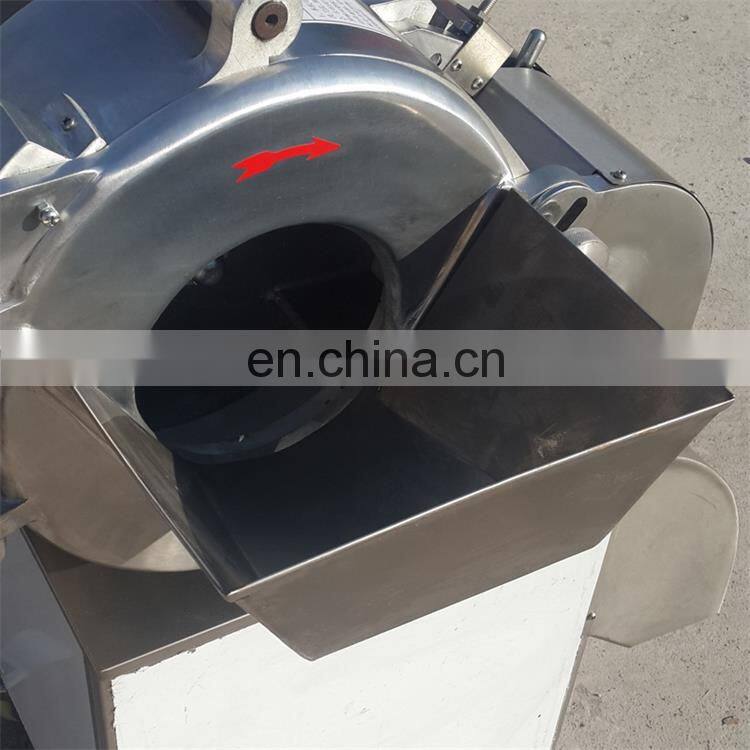

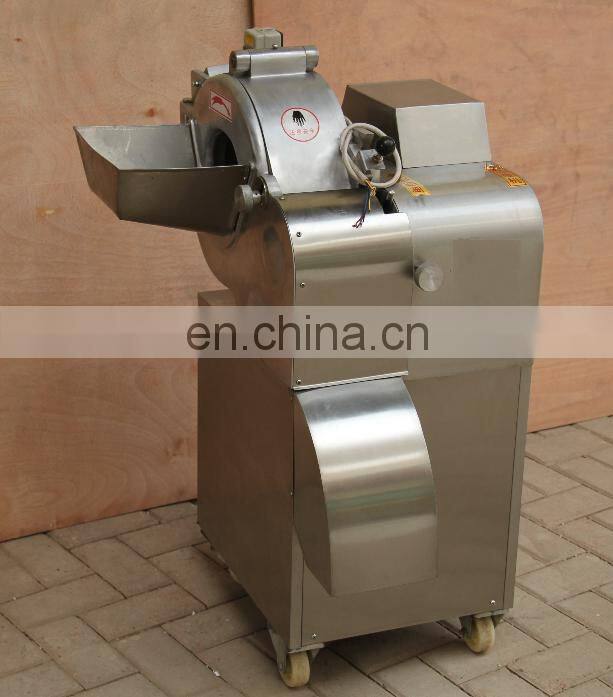

Detailed Images:

automatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machine

 automatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machineautomatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machineautomatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machine

automatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machine



Feedback



FAQ

1. How long will the transportation take?

Depending on your quantity, for goods, we have in stock. Delivery takes a few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.

2. Are you a manufacturer or distributor?

We are an experienced manufacturer and exporter. We own a technical team comprised of over-average experts in R&D and innovation. Notably, we own high-level factories and cooperating factories who can offer efficient manufacturing and high-end products when dealing with a bulk order.

3. How do I know about the details and quality of your machine?

First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.

4. What certification do you have?

We have ISO, CE, BV, SGS, TUV etc. Please do trust us, we are determined to provide you the best quality equipment.

5. Why choose us?

We have dedicated to the machinery manufactory industry for more than 10 years with a rare negative response. We are time has proven-- client’s response and comments are the most validated evidence.

Factory show

automatic carrot dicer machine onion cube cutting machine vegetable fruit dicing machine





Packaging & Shipping



1. Machine we use the good wooden package.

2. Usually we will deIivery machine in 3 -5 working days after receive customer's prepayment.

3. Our machine warranty time is 1 year.
