Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line

Product Description

Introduction of Cashew Nut Processing Line

Cashew production line processing needs to be selected according to customer output capacity, We can provide full solution according to the customer request, work with a single machine or manually with a continuous production line.

Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line

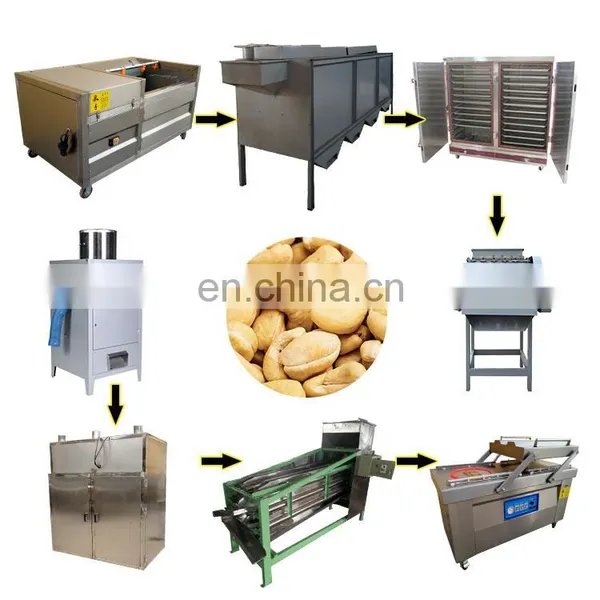

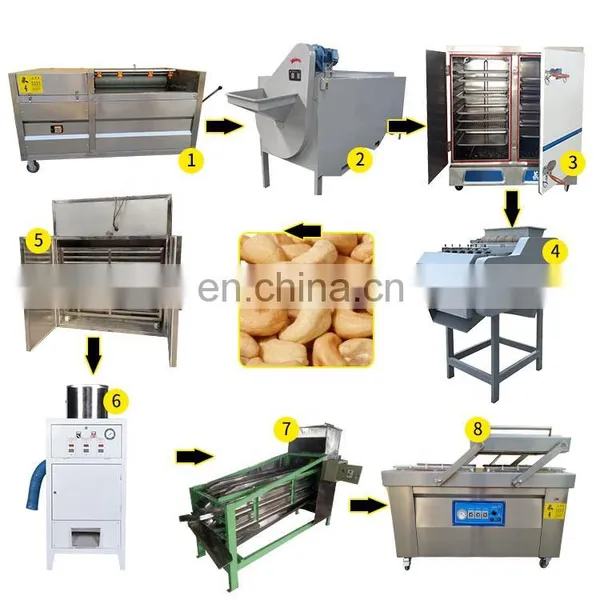

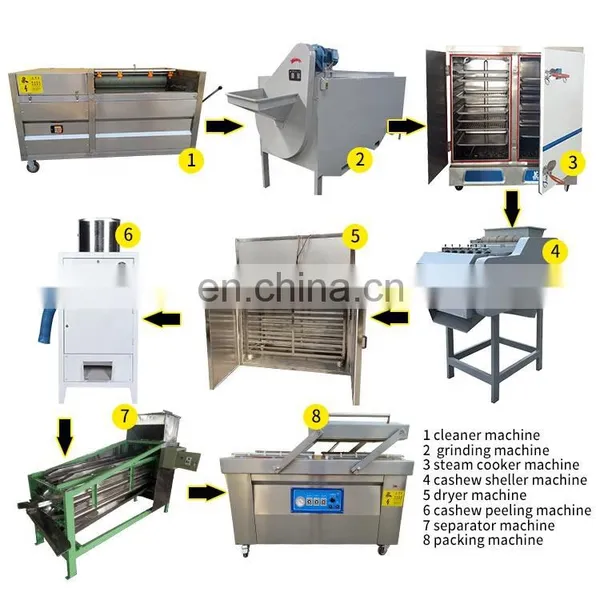

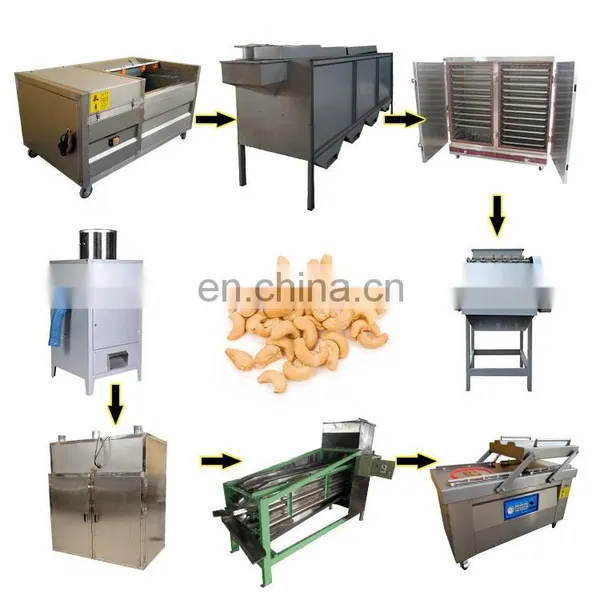

Features of Cashew Nut Processing Line

1) Cashew nut washing machine: wash the cashew.
2) Cashew nut grading machine: separate the cashew into several grades.
3) Cashew nut steam cooker: boil the cashew by electricity or gas so that you can shell the cashew easily.

4) Cashew nut cooler machine: make the boiled cashew nuts cool.

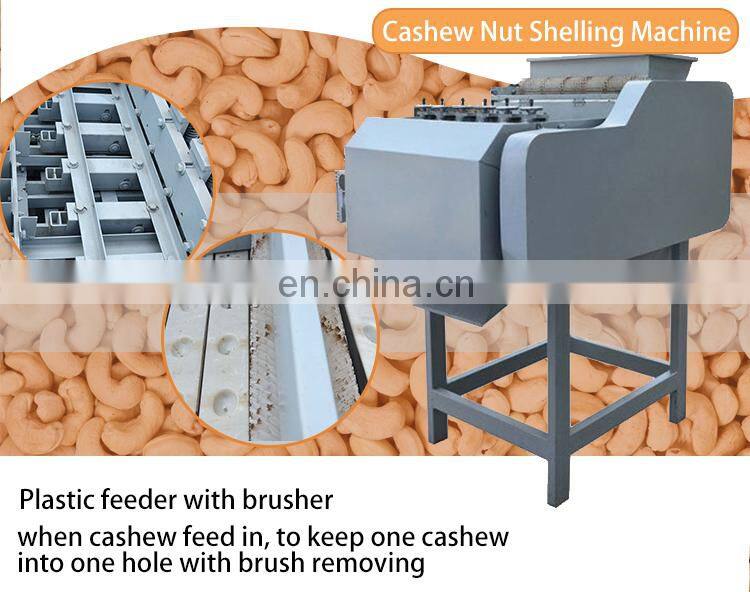

5) Cashew nut shelling machine: shelling the cashew.
6) Cashew nut cashew nut separator: separate the cashew nut shell and kernel.

7) Cashew nut dryer machine: dry the kernel so that you can peel the kernel easily.

8) Cashew nut peeling machine: peel the kernel and then get the clear cashew nut kernel.

9) Cashew nut sorting machine: separate the nuts into service grades.
10) Cashew nut roasting machine: you can roast the kernel.you also can use the conveyor belt type dryer to roast the kernels. (Optional)
11) Cashew nut packing machine: pack the kernel into small bags or vacuum bags . (Optional)



Technical data of Cashew Nut Processing Line



Item

Description

Grading machine



Capacity: 300kg/h                    Power: 3kw

Size: 2.6*1*1.8m                     Weight: 800kg



Steam cooker



Voltage: 380V

Capacity: 200kg/h                      Power: 18kw

Size: 1.5*0.6*1.55m                      Weight: 150kg



Cooler machine

Capacity: 300 kg/h

Fan power:0.75kw

Motor power:0.37kw

The volume of the wind:900 cubic meters/h

Dimensions:

5000 * 700 * 1450 mm

automatic shelling machine

Voltage:380V/50hz

Capacity:170-200kg/h

Power:3kw

Size:1.45*1*1.55m

Weight:300kg

Shelling rate:95%

Cashew shell & Kernel Separator

Capacity:300-500kg/h

Voltage: 380V/50HZ

Power: 0.75kw

Size: 2.5*0.7*1.5m

Weight:230kg

Cashew nut drying machine

Frequency: 380V/50Hz

Capacity:200-200kg/h

Power: 7.5KW*6

Dimension:2*1.1*2.2m

Plate number:48pcs

Cashew nuts peeling machine

Capacity:100kg/h

Voltage 220V/50HZ

Power:0.22kw

Size:0.7*0.7*1.3m

Weight:100kg

Air compressor



Votage:380v,50hz

Power:7.5kw

Pressure:8MPA

Weight:260kg

Size:1.6*0.7*1.3m

Nuts sorting machine



Power:1.1kw

Votage:380v,50hz

Size:2.3*0.8*1.6m

Capacity:300kg/h

Weight:180kg

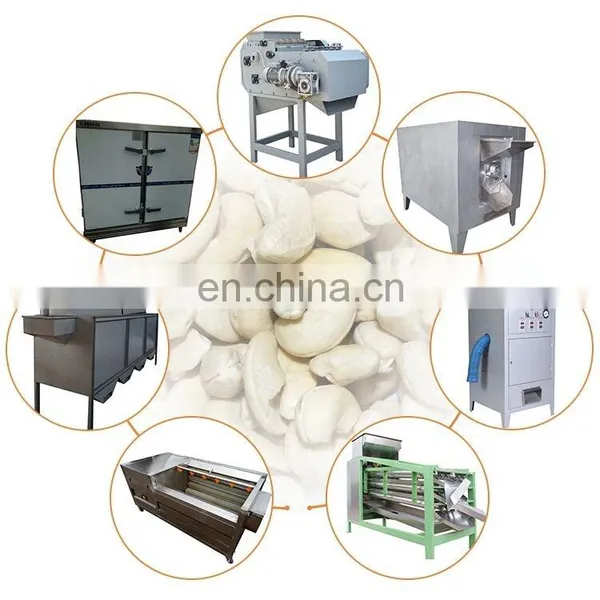

Pictures shows of Cashew Nut Processing Line

Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line

Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing LineWhole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing LineWhole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing LineWhole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing LineWhole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line



 Whole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing LineWhole Complete Cashew Cooking Kernel Grading Shelling Separating Machine Cashew Nut Processing Line

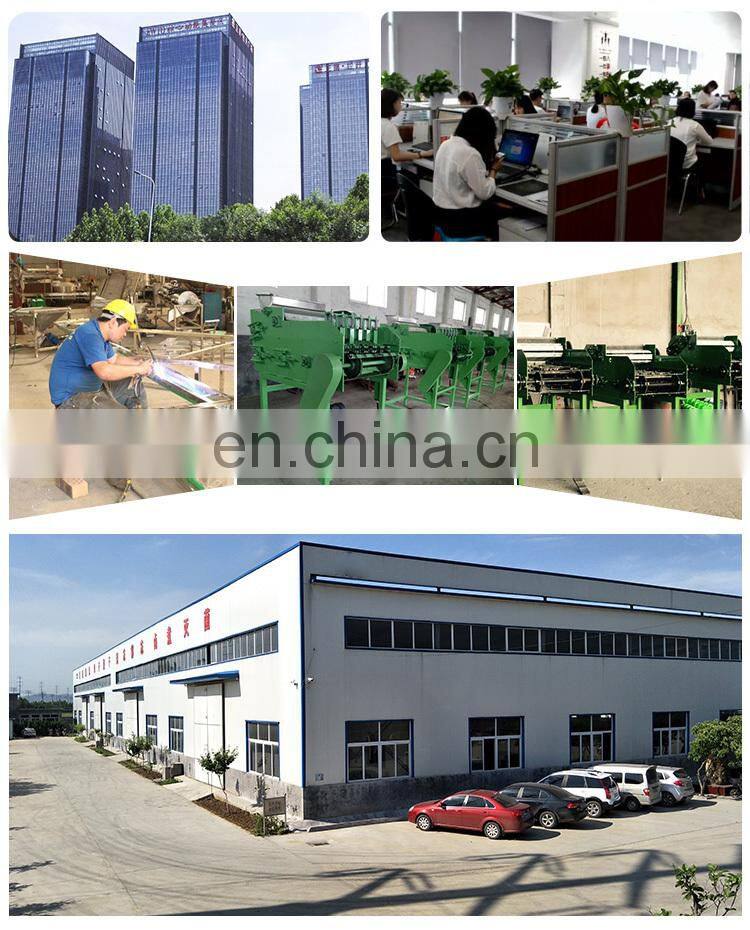

Company Information

Zhengzhou Taizy Machinery Co. Ltd in Zhengzhou, is a large-scale industrial group  mainly specialized in the

food processing machines, covers Fryer Machinery,  Fruits and vegetables processing Machine, Paste Processing Machinery, Meat Processing  Machinery, Nut Processing Machinery. With years of manufacturing

and Sales experience in machinery industry, let customer satisfied is our ultimate aim, we got a good fame for

providing high quality machines and best service concept - quality first, service foremost.



Our Services

1. MOQ (Minimum Order Quantity)

 One set is welcome, and mix products for order are welcome.

 2. Delivery Time

Depending on your quantity, for goods we have in stock. Delivery takes few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.

 3. Deviation

There might be sightly difference in color, because of the computer monitor settings .

With the difference in the measurement method, please allow 1-3cm in size deviation.

 4. Package

Standard export wooden case or other packages depending on products packaging weight is subject to the actual pack.

 5. Service

 Welcome your compliments and suggestions. Any inquiries or complaints will be respond within 24 hours.
