Food Processing Machines Chocolate Cream Making Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Chocolate Conching Machine Refiner Grinding Mixing
-
Granola Bar Making Machine Cereal Bar Making Machine Protein Bar Making Machine
-
Snickers Machine Cereal Bar Machine Snickers Chocolate Bar Line Snickers Chocolate Bar Making Machine
-
Automatic Small Protein Bar Making Machine
-
Protein Bar Extrude Machine Energy Bar Extrude Functional Candy Bar Extruding Machine
-
Snickers Bar Forming Machine Candy Bar Forming Making Machine Bar Cutting Line
Product Description
Product Overview

High quality ball miller with conche line
chocolate spread making machine for compound chocolate or pure chocolate

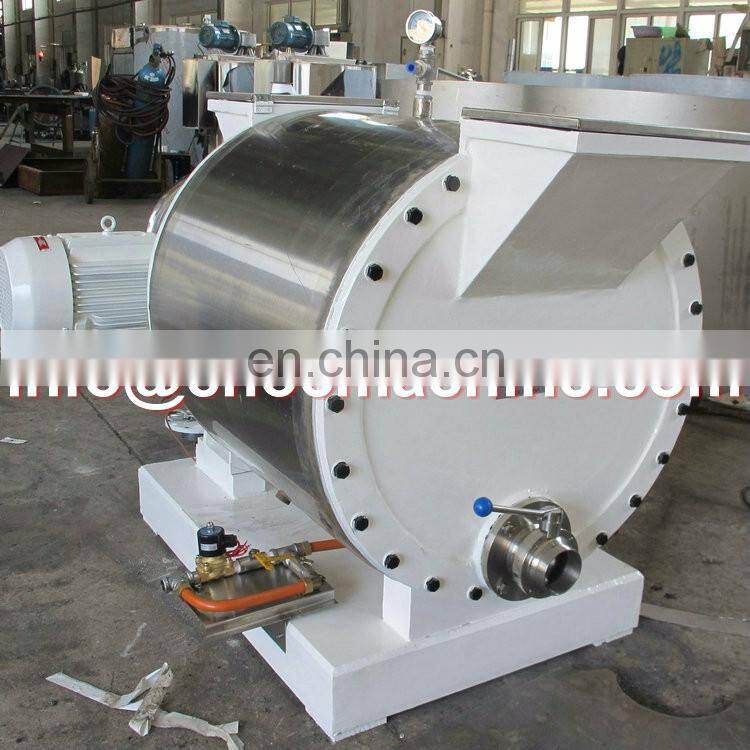

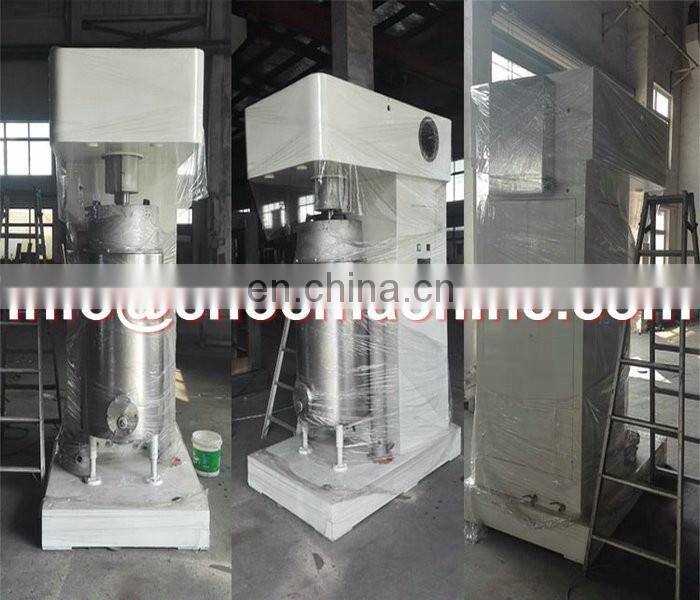

Chocolate conche ball miller grinding
It is the basic machine to grind chocolate material, as well as oil-bearing material, fluidness and some chemical raw material. after conche mixing refiner material delivery to ball milling fineness grinding by chocolate pump..
This chocolate refiner conche machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi-functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.
This chocolate refiner conche machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi-functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.
PRODUCT SPECIFICATIONS
Item | model | grinding time | power | machine size |
conche | 50kg/batch | 16-22hr | 2.7kw | 1200x800x1100 |
conche | 500kg/batch | 16-22hr | 14kw | 2650x1070x1350 |
conche | 1000kg/batch | 16-22hr | 28kw | 2900x2100x1630 |
conche with ball miller | 1000kg/batch | 2-4hr | 55kw | |

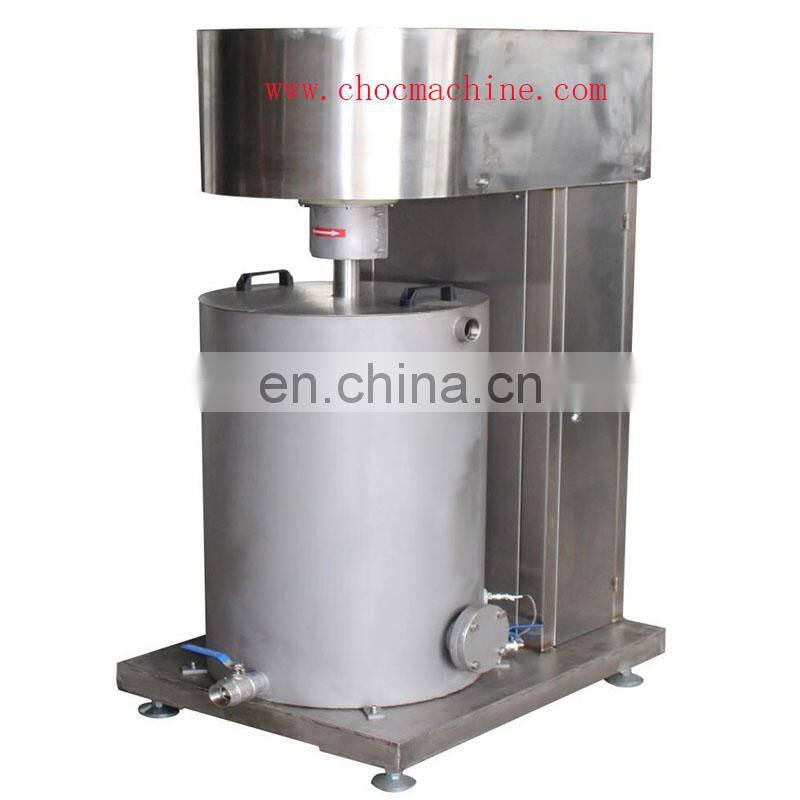

ball miller | 20kg/batch | 3-4hr | 2.7kw | 600x700x800 |
ball miller | 50kg/batch | 3-4hr | 3kw | 600x800x900 |
ball miller | 100kg/batch | 3-4hr | 7.5kw | 800x1000x1500 |
ball miller | 300kg /batch | 3-4hr | 33kw | 1800x1200x2500 |
ball miller | 500kg/batch | 3-4hr | 45kw | 2000x1500x2500 |
ball miller | 1000kg/batch | 3-6hr | 55kw | 2500x1800x2500 |
FEATURES AT A GLANCE

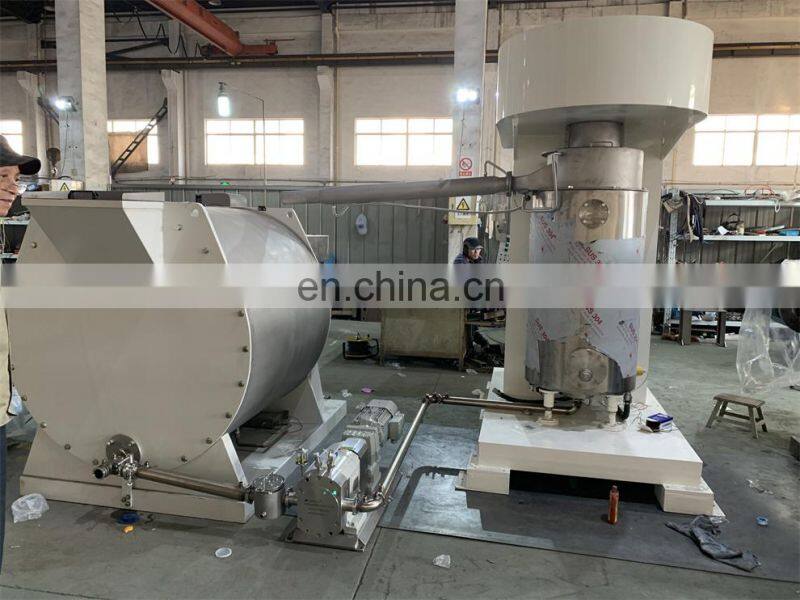

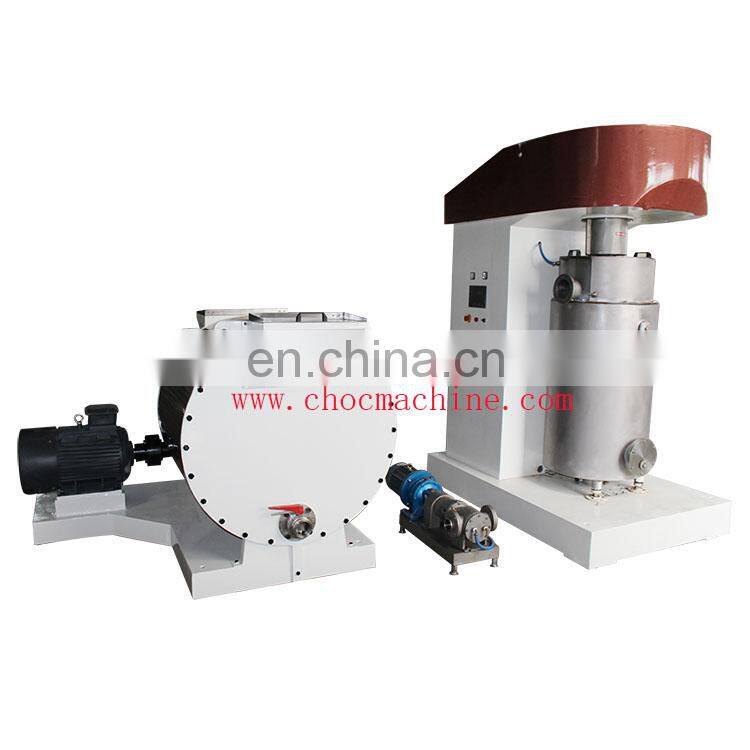

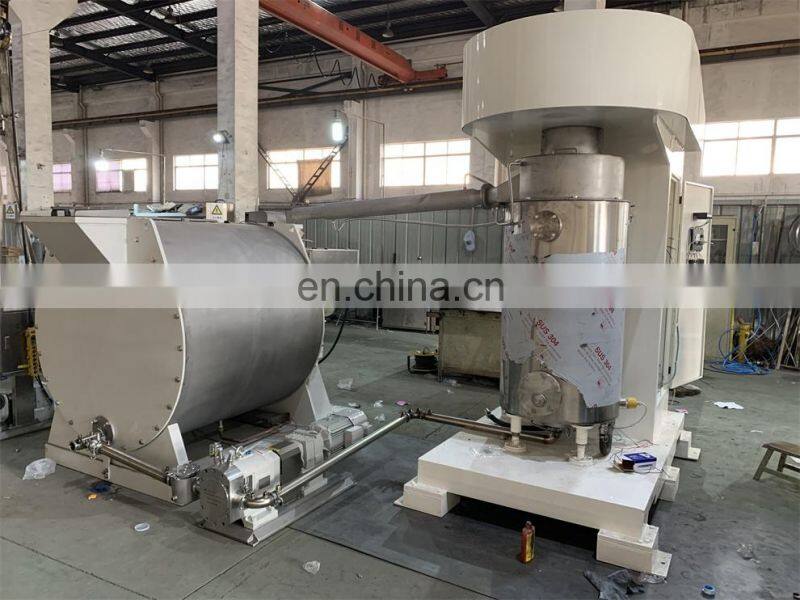

conche with ball miller

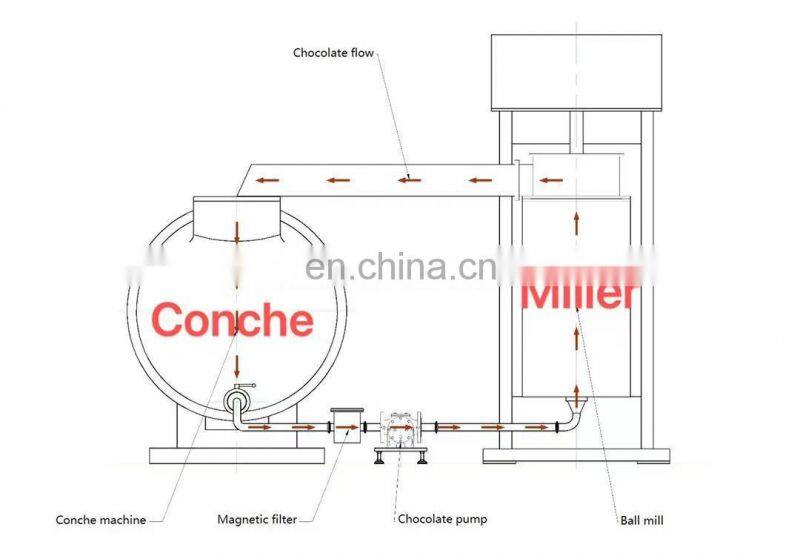

consist of conche ball miller and pump magnetic filter
conche mixing material
ball milling grinding material .
delivery tank after finished grinding .
Model :50kg/500kg/1000kg
grinding time: 16-22hr/batch
fineness: 22-25um
knife thickness: 5mm
Chocolate spread making machine

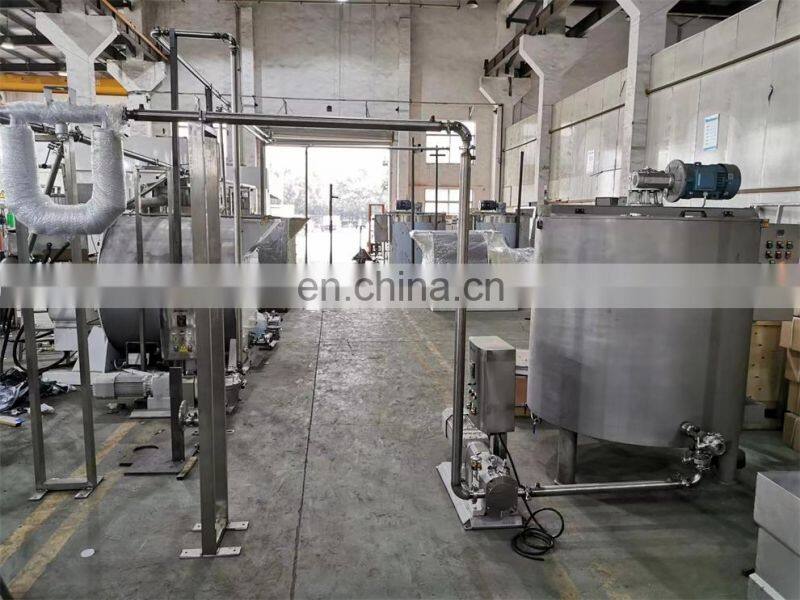

conche refiner- pump delivery-tank-pump-depositor line.





PRODUCT CONFIGURATION

Right chocolate conche

front conche

left conche

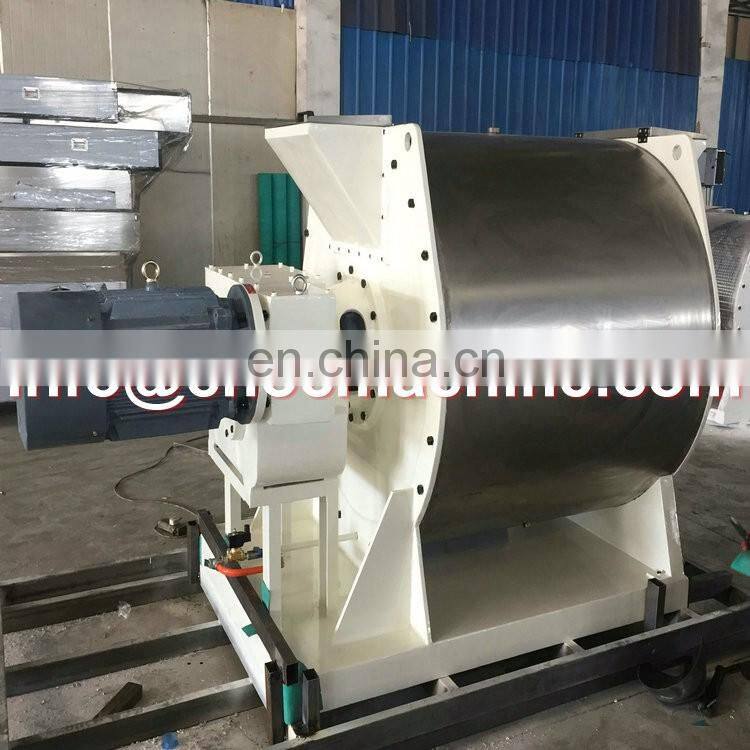

50kg model conche refiner

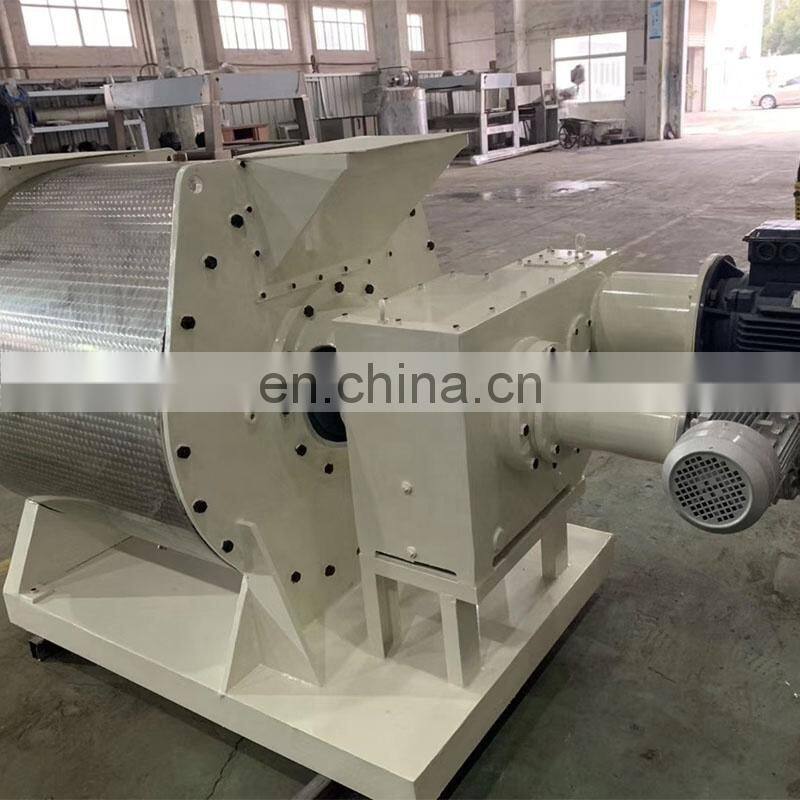

500kg model conche refiner

1000kg model conche refiner
Successful Project

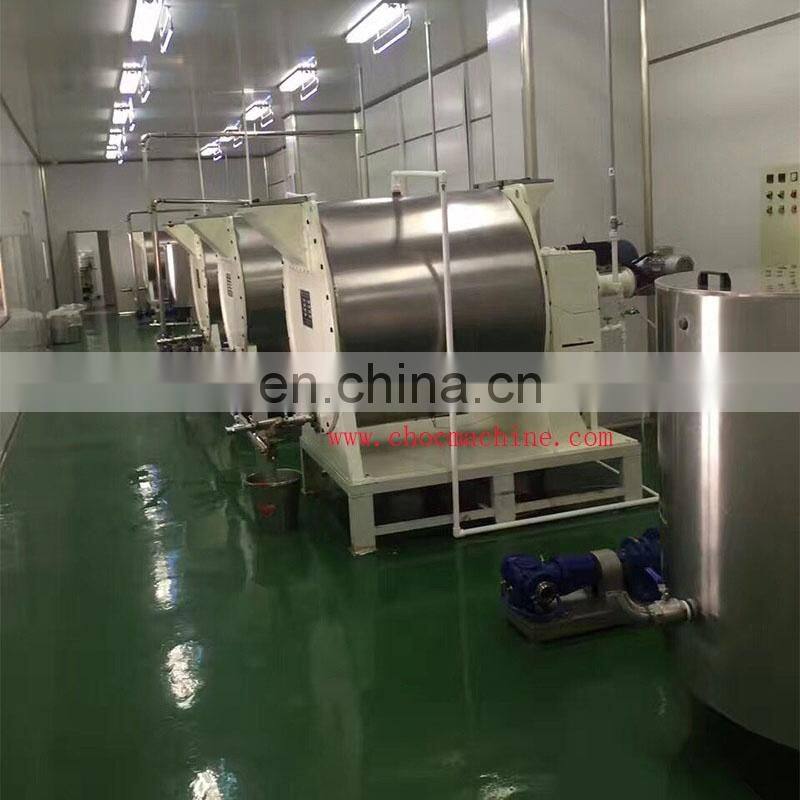

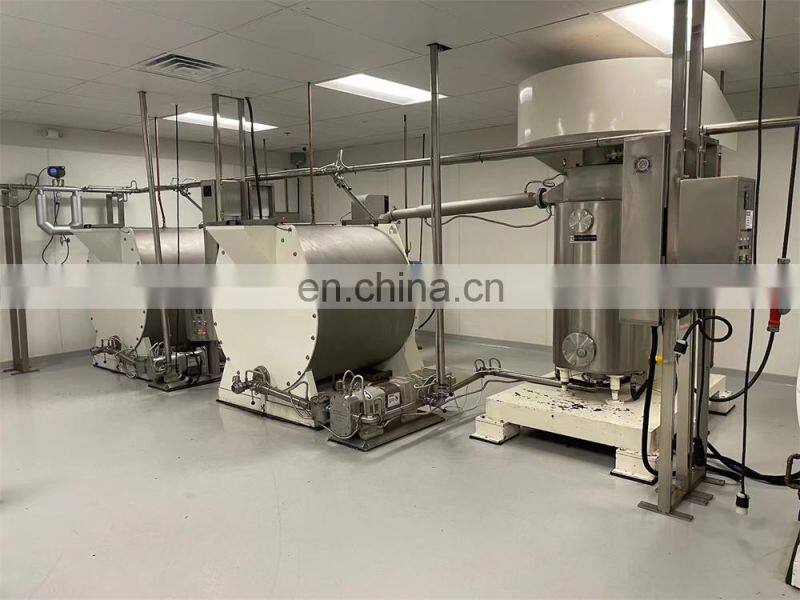

chocolate conche installed at customer factory

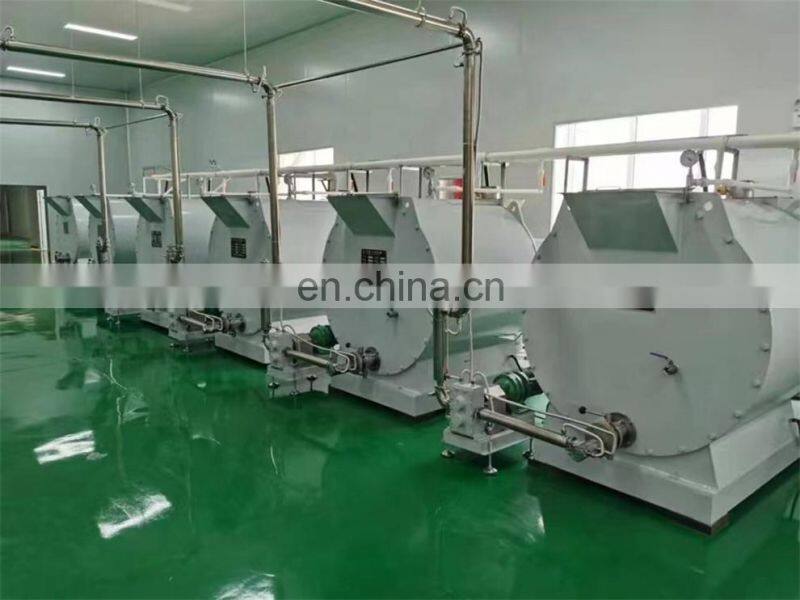

6SET conche installed

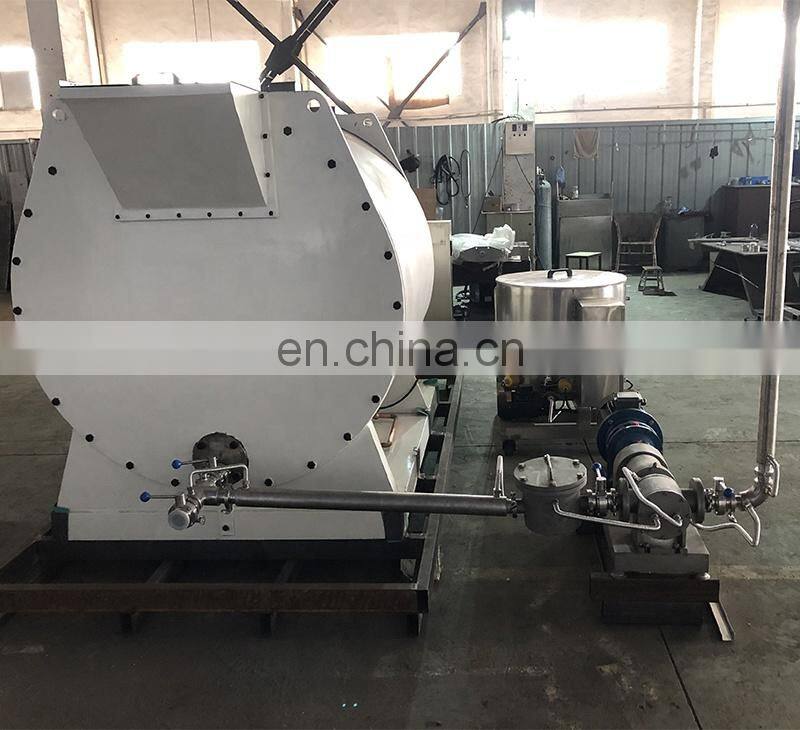

connect pipe before wrap machine

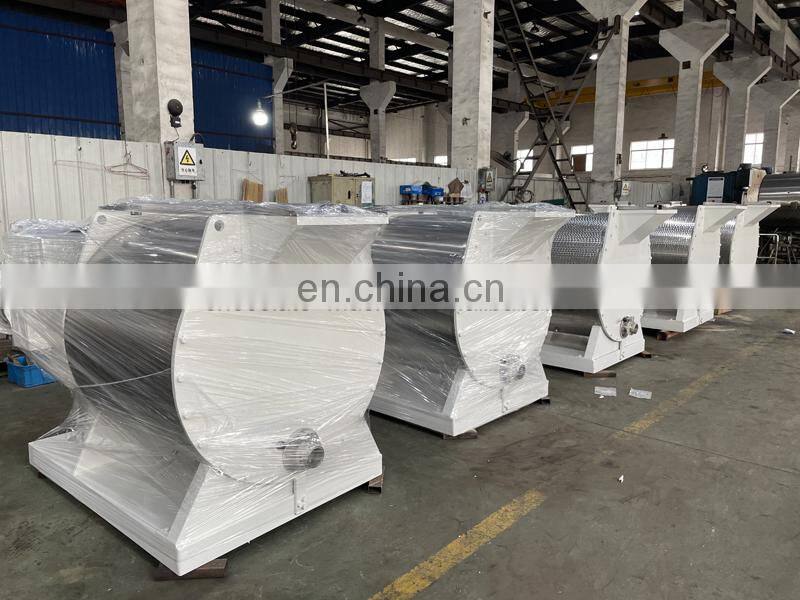

3set conche two set ball miller export to USA

Project in USA

Project in Spain

Project in Russia
