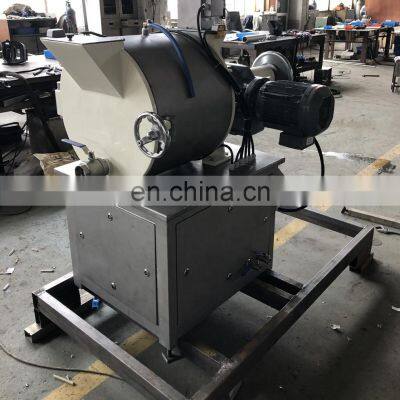

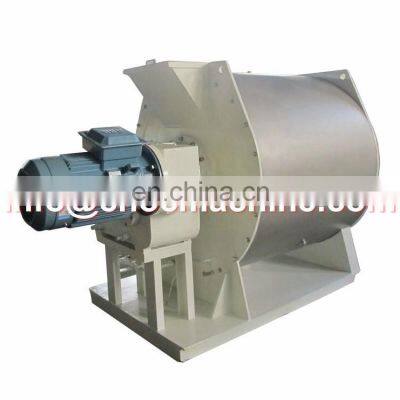

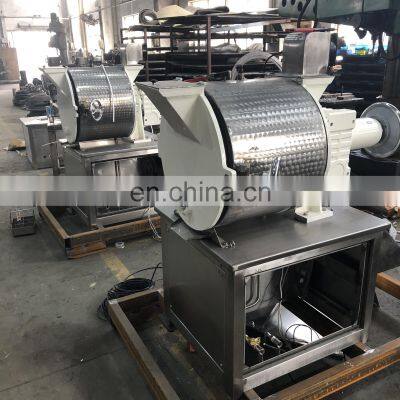

MAQUINA CONCHA MANUFACTURER 50kg Model for Chocolate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2002
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MAQUINA CONCHA MANUFACTURER CHOCOLATE CONCHE BALL MILLER INSTALLED AT USANegotiableMOQ: 1 -
Mini Chocolate Conching Refiner for ShopNegotiableMOQ: 1
-
Chocolate Grinding Machine for Chocolate Paste Chocolate Mess LiquorNegotiableMOQ: 1
-
Chocolate Conche Refiner Ball Miller Units Export to USANegotiableMOQ: 1
-
Chocolate Melanger Conche Refiner MachineNegotiableMOQ: 1
Product Overview
Chocolate conche grinding
It is the basic machine to grind chocolate material, as well as oil-bearing material, fluidness and some chemical raw material.
This chocolate refiner conche machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi-functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.
This chocolate refiner conche machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi-functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.
FEATURES AT A GLANCE
Europe standard
Our conche very popular on the market . special most our machine is Europe design.
High safety and high quality.
Safety switch top fan
SEW /ABB/ Siemens MOTOR
Schneider electrical
Model :50kg/500kg/1000kg
grinding time: 16-22hr/batch
fineness: 22-25um
knife thickness: 5mm
Chocolate spread making machine
conche refiner- pump delivery-tank-pump-depositor line.
PRODUCT CONFIGURATION
50kg model conche refiner
50kg model conche refiner
wheel easy open for washing machine
PRODUCT SPECIFICATIONS
Item |
model |
grinding time |
power |
machine size |
conche |
50kg/batch |
16-22hr |
2.7kw |
1200x800x1100 |
conche |
500kg/batch |
16-22hr |
14kw |
2650x1070x1350 |
conche |
1000kg/batch |
16-22hr |
28kw |
2900x2100x1630 |
conche with ball miller |
1000kg/batch |
2-4hr |
55kw |
|
ball miller |
20kg/batch |
3-4hr |
2.7kw |
600x700x800 |
ball miller |
50kg/batch |
3-4hr |
3kw |
600x800x900 |
ball miller |
100kg/batch |
3-4hr |
7.5kw |
800x1000x1500 |
ball miller |
300kg /batch |
3-4hr |
33kw |
1800x1200x2500 |
ball miller |
500kg/batch |
3-4hr |
45kw |
2000x1500x2500 |
ball miller |
1000kg/batch |
3-6hr |
55kw |
2500x1800x2500 |
High quality chocolate conch with ball miller units
chocolate spread making machine
Successful Project
chocolate conche installed at customer factory
6SET conche installed
connect pipe before wrap machine
3set conche two set ball miller export to USA
Project in USA
Project in Spain
Project to Russia
SIMILAR PRODUCTS
conche with ball miller
consist of conche ball miller and pump filter
conche mixing material
ball milling grinding material .
delivery tank after finished grinding .
