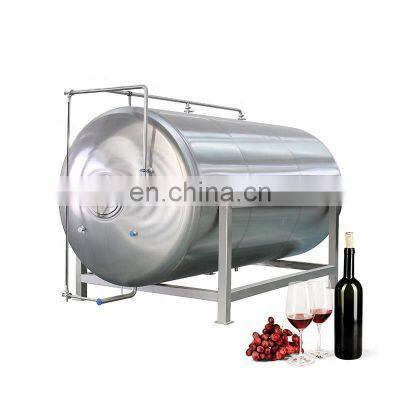

Cheap Homebrew 50l Gin Fermentation 2000l Industrial Horizontal Conical Fermenter Tank 250 65l Fermenting Storage Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1992
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Conical Fermentation Machines Fermenting Equipment Beer 1000 Liter 60l 30l Wine Fermenter TankNegotiableMOQ: 1 -
Opaque Wine Kombucha Brewing Fermentation Tank Bucket 240l 50l Brewery Pressure Conical FermenterNegotiableMOQ: 1
-
High Quality 30l 150l 50l Stainless Steel Wine Fermenter 500l Fermentatore 60l 5000 Liter Conical Fermentation Kit TankNegotiableMOQ: 1
-
Chinese Bao Machine Steamed Vegetable Automatic Steamed Stuffed Buns Making Machine to Make MeatballNegotiableMOQ: 1
-
Commercial Empanada Encrusting Machine Chocolate Chip Encrusting Machine Butter Cookies Snack MachinesNegotiableMOQ: 1
Product Description
Introduction:

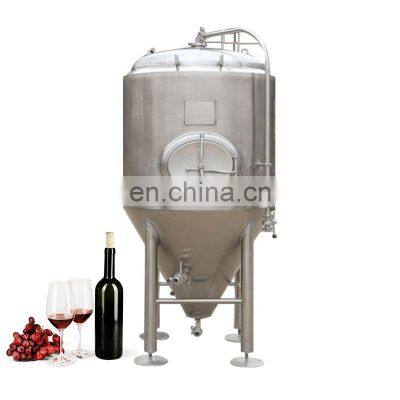

The fermentation tank is made of austenitic stainless steel, and the cooling jacket is in the form of a honeycomb jacket. There are jackets on both the tank body and the cone bottom, which can effectively improve the cooling rate. Different proportions of jacket heat exchange can be set according to the customer's process requirements, the bottom is a small cone bottom of 60°, which is designed for fermentation and improvement of beer and reproduction of yeast; PU insulation is adopted for insulation, which can work outdoors and save plant costs. The outer skin is made of fully welded stainless steel, manhole, CIP system, thermometer interface, sampling port and other components.
Specification
Model | Material | Heating area | Diameter (m) | Height(m) | Production capacity | Volume in US Gallon |
GD-100 | 304 | 0.5㎡ | 0.65 | 1.5 | 100L/Day | 26US Gallon |
GD-200 | 304 | 0.8㎡ | 0.85 | 1.6 | 200L/Day | 53US Gallon |
GD-300 | 304 | 1.2㎡ | 0.96 | 1.7 | 300L/Day | 79US Gallon |
GD-500 | 304 | 1.8㎡ | 1.16 | 2.3 | 500L/Day | 132US Gallon |
GD-1000 | 304 | 2.6㎡ | 1.36 | 2.5 | 1000L/Day | 264US Gallon |
GD-2000 | 304 | 3.6㎡ | 1.56 | 2.85 | 2000L/Day | 528US Gallon |
GD-3000 | 304 | 4.5㎡ | 1.76 | 3.8 | 3000L/Day | 792US Gallon |
GD-5000 | 304 | 7.2㎡ | 1.96 | 4.4 | 5000L/Day | 1320US Gallon |
Features:
1、The bottom is conical to facilitate the discharge of yeast at any time during the production process, and cohesive yeast is required.
2、The tank itself has a cooling device, which is convenient to control the fermentation temperature, easy to control the production, shorten the fermentation period, less chance of contamination, and stable wine quality.
3、There is a thermal insulation device outside the tank, which can be placed outdoors, reducing construction investment, saving floor space, and facilitating expansion.
4、A sealed tank is used to facilitate CO2 washing and CO2 recovery, and fermentation can also be carried out under a certain pressure. It can be used as a fermentation tank or a wine storage tank, which can combine fermentation and wine storage into one.
5、The fermentation tank can be controlled by instrument or microcomputer, which is easy to operate and manage.
6、Conical tanks are suitable for both bottom fermentation and top fermentation.
7、CIP automatic cleaning device can be used, easy to clean
2、The tank itself has a cooling device, which is convenient to control the fermentation temperature, easy to control the production, shorten the fermentation period, less chance of contamination, and stable wine quality.
3、There is a thermal insulation device outside the tank, which can be placed outdoors, reducing construction investment, saving floor space, and facilitating expansion.
4、A sealed tank is used to facilitate CO2 washing and CO2 recovery, and fermentation can also be carried out under a certain pressure. It can be used as a fermentation tank or a wine storage tank, which can combine fermentation and wine storage into one.
5、The fermentation tank can be controlled by instrument or microcomputer, which is easy to operate and manage.
6、Conical tanks are suitable for both bottom fermentation and top fermentation.
7、CIP automatic cleaning device can be used, easy to clean
Product Detail
Application:
Fermentation tanks are widely used in dairy products, beverages, bioengineering, pharmaceuticals, fine chemicals and other industries. The tank body is provided with an interlayer insulation layer, which can be heated, cooled and insulated. The tank body and the upper and lower filling heads (or cones) are processed by spinning R angle, the inner wall of the tank is mirror polished, there is no sanitary dead angle, and the fully enclosed design ensures that the materials are always mixed and fermented in a pollution-free state, and the equipment is equipped with air Breathing holes, CIP cleaning nozzles, manholes and other
devices.
devices.
FAQ
1: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
Packaging & Shipping
1.Install waterproof membrane to reduce dust and water pollution.
2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.For customized type, delivery date need to be negotiated before taking order.
