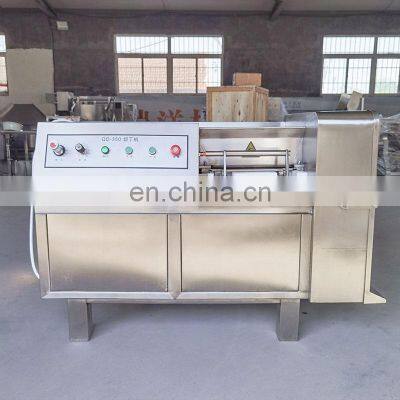

Compact Auto Table Top Chicken Meat Bowl Cutter Electric Bar Tripe Fish Fillet Meat Cutting Making Machine Frozen Automatic
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Small Vertical Meat Cutter Commercial Horizontal Fresh Multiple Meat Dice Sliver Chopper Cutter from Meats Jobs
-
Stand Automatic Heavy Duty Meat Slicing Cutter Machine Vegetable Meat Chopper Cutter and Mincer
-
Floor-standing Electric Fresh Frozen Chicken Fish Meat Cube Cutter Slicers Automatic for Slice Meat Froen
-
Multi Purpoae Industrial Stainless Professional Automatic Mechanical Best Thin Meat Machine Slicer Electric Heavy Duty
-
Table Top Fully Automatic Industrial Frozen Electric Fresh Pork Meat Block Slicer Cutter the Meat Cubes
-
Industrial Professional Semi-auto Stainless Steel Frozen Meat Slicer Vegetable Chip Cut Dicer Machine Deshine Automatic Full
Product Description
Product Description
Introduction:
Meet Cutting machine is an important equipment in the production process of meat products. Cut meat, fat and other main raw materials into diced meat required by users, and adjust the size of the knife grid to cut shredded meat, meat slices, and meat diced. The size of the diced meat is determined by the number of blades in the knife grid. The cutting machine is mainly composed of a frame, a reducer, a motor, a tool rest, an eccentric shaft assembly, a main cutter assembly, and a hydraulic system. The main motor drives the main shaft to rotate through the reducer, the fork on the main shaft drives the upper knife grid, the lower knife grid and the left and right reciprocating motion, the material pushed out by the push block is cut into strips, and the main cutter cuts the meat strips into diced meat.
Features:
1.The safety protection performance is good, and the rotating cutter stops working immediately after the front door is opened.

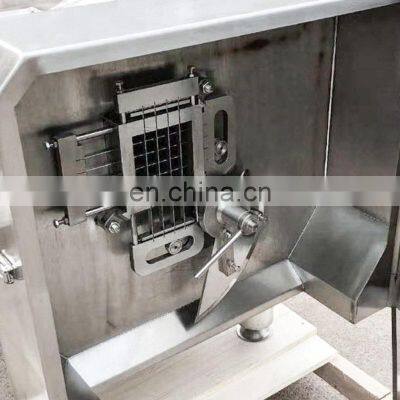

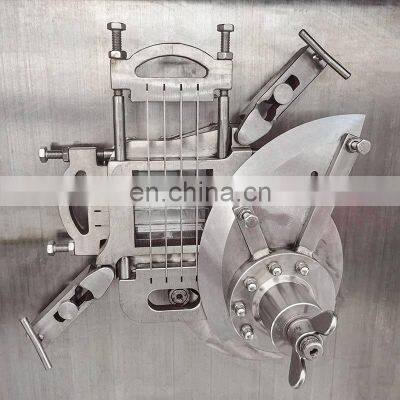

2.All kinds of knives are easy to disassemble, easy to install, easy to clean and replace the knife grid.
3.The side pressure mechanism can increase the amount of meat cut at one time, and help the pre-pressure to reach the set value faster, improving production efficiency.
4.The design of the fork mechanism improves the cutting quality of the product, reduces the noise, and reduces the mechanical failure rate.
5.Adjust the pre-pressure knob to ensure consistent product throughout the cutting process.
6.Meat material can be fed in steps to minimize product squeezing during cutting.
7.Changing the number of blades in the knife grid can cut meat of different sizes, which is easy to combine.
Specification

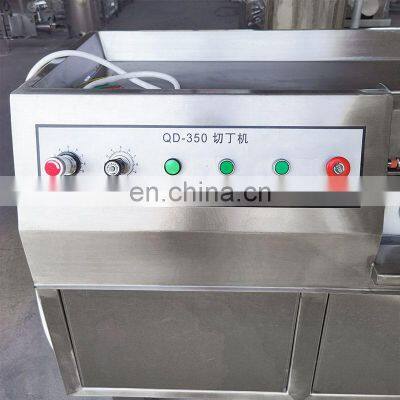

Model | GD-350 | GD-550 | ||
Output | 500-600kg | 700-900kg | ||
Power | 3.2kw | 3.7kw | ||
Oil pump motor power | 1.5kw | 1.5kw | ||
Main engine motor power | 1.7kw | 2.2kw | ||
Longest cutting length | 300mm | 550mm | ||
Cut grid size (mm) | 5/6/7/8/9/11/13/16/20/27 (Can be customized) | 5/6/7/8/9/11/13/16/19 (Can be customized) | ||
Cutting groove size | 84*84*350mm | 120*120*550mm | ||
weight | 500kg | 700kg | ||
Size | 1480*800*980mm | 1940*980*1100mm | ||
Note: Suitable for cutting boneless meat, not suitable for too hard bones, easy to damage the blade | ||||
Product Detail
Application:
1. It is used for dicing of poultry products, various frozen meat trays and meat products. It is formed at one time. The cut products have clear edges and corners, regular shapes and consistent sizes.
2.This machine is often used in meat processing factories, snack food processing enterprises, Chinese restaurants, central kitchens, western restaurants, etc.
FAQ
1: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.
Packaging & Shipping
1.Install waterproof membrane to reduce dust and water pollution.
2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.For customized type, delivery date need to be negotiated before taking order.
