Electric Industrial Beef Dicer / Diced Frozen Meat Cutting Machine

Name: Electric Industrial Beef Dicer / Diced Frozen Meat Cutting Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Introduction:

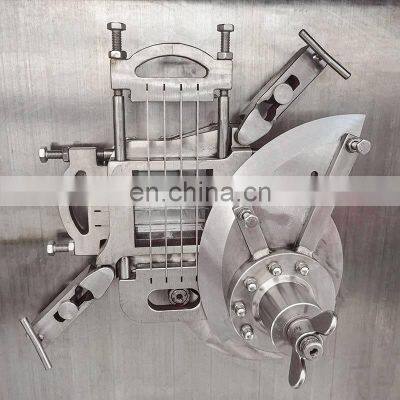

Meet Cutting machine is an important equipment in the production process of meat products. Cut meat, fat and other main raw materials into diced meat required by users, and adjust the size of the knife grid to cut shredded meat, meat slices, and meat diced. The size of the diced meat is determined by the number of blades in the knife grid. The cutting machine is mainly composed of a frame, a reducer, a motor, a tool rest, an eccentric shaft assembly, a main cutter assembly, and a hydraulic system. The main motor drives the main shaft to rotate through the reducer, the fork on the main shaft drives the upper knife grid, the lower knife grid and the left and right reciprocating motion, the material pushed out by the push block is cut into strips, and the main cutter cuts the meat strips into diced meat.

Features:

1.The safety protection performance is good, and the rotating cutter stops working immediately after the front door is opened. 2.All kinds of knives are easy to disassemble, easy to install, easy to clean and replace the knife grid. 3.The side pressure mechanism can increase the amount of meat cut at one time, and help the pre-pressure to reach the set value faster, improving production efficiency. 4.The design of the fork mechanism improves the cutting quality of the product, reduces the noise, and reduces the mechanical failure rate. 5.Adjust the pre-pressure knob to ensure consistent product throughout the cutting process. 6.Meat material can be fed in steps to minimize product squeezing during cutting. 7.Changing the number of blades in the knife grid can cut meat of different sizes, which is easy to combine.

Specification

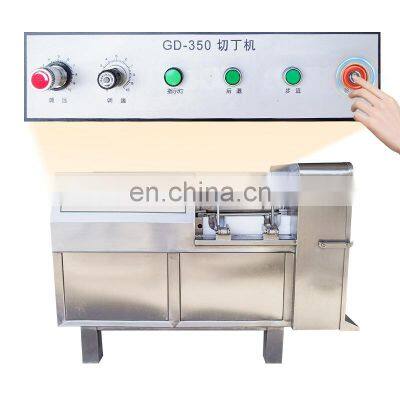

Model	GD-350	GD-550
Output	500-600kg	700-900kg
Power	3.2kw	3.7kw
Oil pump motor power	1.5kw	1.5kw
Main engine motor power	1.7kw	2.2kw
Longest cutting length	300mm	550mm
Cut grid size (mm)	5/6/7/8/9/11/13/16/20/27 (Can be customized)	5/6/7/8/9/11/13/16/19 (Can be customized)
Cutting groove size	8484350mm	120120550mm
weight	500kg	700kg
Size	1480800980mm	19409801100mm
Note: Suitable for cutting boneless meat, not suitable for too hard bones, easy to damage the blade

Product Detail

Application:

1. It is used for dicing of poultry products, various frozen meat trays and meat products. It is formed at one time. The cut products have clear edges and corners, regular shapes and consistent sizes. 2.This machine is often used in meat processing factories, snack food processing enterprises, Chinese restaurants, central kitchens, western restaurants, etc.

FAQ

1: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
2: Are you manufacturer?
Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
3: Do you have English Manual for each machinery?
Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
4.Can I print my Logo on the machine?
Yes, sure. We can provide professional customized logo services for customers.
5: How does your factory do regarding quality control ?
Quality is priority.We always attach great importance to quality control from the very beginning to the end of the production.Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you provide any recipes for the product?
Yes, we will provide a basic recipe. And clients can add different color and flavor on that base.

Packaging & Shipping

1.Install waterproof membrane to reduce dust and water pollution.

2.Standard wooden boxes are used as outer packaging to reduce bumps in international transportation

Delivery Time

For stock type, we can send within 48hrs after confirming order.
For customized type, delivery date need to be negotiated before taking order.
