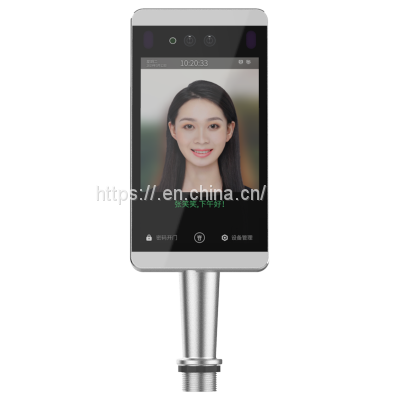

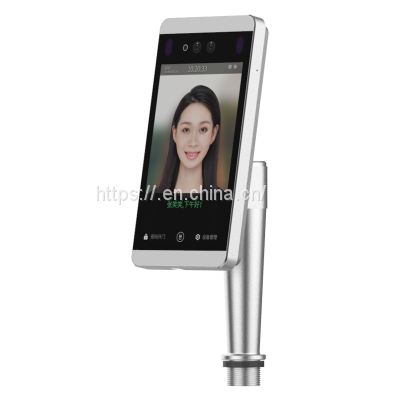

Home > Security & Protection > Access Control System > Facial Recognition System > 8-inch Liveness Binocular Face+ Card Time Attendance and Access Control
US$ 350 - 450
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Selina-WEDS
Place of Origin:
China
Model Number:
18660534653
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantai
Delivery Detail:
3 days
Related Products
-
Dual Screen + Mechanical Keyboard Support QR Code & RFIDUS$ 300 - 350MOQ: 2 Pieces -
Linux OS Access Control With Face Recognition & Mask DetectionUS$ 200 - 250MOQ: 2 Pieces
-
Large Screen Advertising & Promotion of Biometric Identification MachinesNegotiableMOQ: 2 Pieces
-
QR Code Intelligent Card Reader With Access ControlUS$ 100 - 150MOQ: 2 Pieces
-
4-inch Liveness Scan Facial Intelligent Time Attendance Device With Access ControlUS$ 200 - 300MOQ: 2 Pieces
Brand Name
Selina-WEDS
Place of Origin
China
Model Number
18660534653
◉ 8″ touch screen
◉ Linux RV1109/Android RK3288, support SDK/API
◉ Excellent facial recognition with liveness detection
◉ 20,000 face library with high accurate verification
◉ Waterproof and dustproof with industrial design both indoor outdoor usage.
| Main function | Mainly for time attendance and access control both door and outdoor, face recognition, live detection, swiping card under the screen | ||
| Dimensions | 243.3*127.2*32mm（L*W*H） | ||
| Weight | About 1.1KG | ||
| Core architecture | CPU RV1109 Dual core A7 | RK3288 4 CORES 1.6G | |
| NPU 1.2T (With RV109) | GPU Mali-T760MP4 (With RK3288) | ||
| RAM 1GB (With RV109) | RAM 2GB (With RK3288) | ||
| ROM 4GB (With RV109) | ROM 16GB (With RK3288) | ||
| OS | Linux 4.19 | Android 8.1 | |
| Face recognition | Megvii face algrithm | 1: N speed: ≤1S 1:1 speed: ≤1S Maximum number of user: 20,000 Recognition distance: the best recognition distance is 1 meter and the longest distance is 2 meters; Recognition angle: 35 degrees up, 35 degrees down, 30 degrees left, 30 degrees right, 35 degrees plane rotation Biopsy: support live Base library size/ Pass rate/ False recognition rate 5000 people 99.8% 0.5% 10000 people 99.5% 0.5% 20000 people 99.2% 0.5% | |
| Communication | Ethernet | 10/100Mbps Ethernet | |
| Bluetooth | Not support | ||
| Output | Display | 8'' IPS high-definition screen (Resolution800*1280)；Brightness 500cd/㎡ | |
| White supplementary light | Support | ||
| Infrared supplementary light | Support | ||
| Electroacoustics | Built-in speaker, power 1W | ||
| Supports audio player | |||
| Input | Power button | No | |
| Reset button | No | ||
| Tamper button | No | ||
| Photosensitive module | Yes | ||
| Human induction module | Yes | ||
| Touch screen | 5 point capacitive touch screen, Response time<48ms, Surface hardness＞6H, Transmittance ≥85% | ||
| Mifare reader | Frequency 13.56MHz, support M1/CPU, 0.1s card reader Card reading distance: 2.5-5cm | ||
| RGB camera | 2 million HD cameras, dynamic 20-25 frames Pixel: 2 million Resolution: 1920*1080 Pixel size：2.8um Aperture：2.0 Aperture：4.3mm Angle of view：68° | ||
| IR camera | 2 million HD cameras, dynamic 20-25 frames | ||
| Interface | USB DEVICE interface | No | |
| Relay | Support NO,NC,COM | ||
| RJ45 | Yes | ||
| USB HOST interface | USB2.0 | ||
| 485 | Yes | ||
| WG output | Configurable output or input, default input | ||
| GPIO | Support three-way expansion (door magnetic, door button, fire alarm) | ||
| Voltage interface | Yes | ||
| Power | Power supply | DC12V-2A | |
| POE | No | ||
| Power | Rated power：＜10W | ||
| Peak power：＜15W | |||
| Reliability | Operating temperature | ⁃20℃~+60℃ | |
| Working humidity | Humidity 10%-90%, no condensation | ||
| Storage temperature | ⁃30℃~+70℃ | ||
| Storage humidity | 20%-90% no condensation | ||
| Non-stop work | 30*24 hours | ||
| ESD | ±6kV contact discharge, ±8kV air discharge | ||
| EFT | Reach level 2 standard | ||
| Surge | Reach level 2 standard | ||
