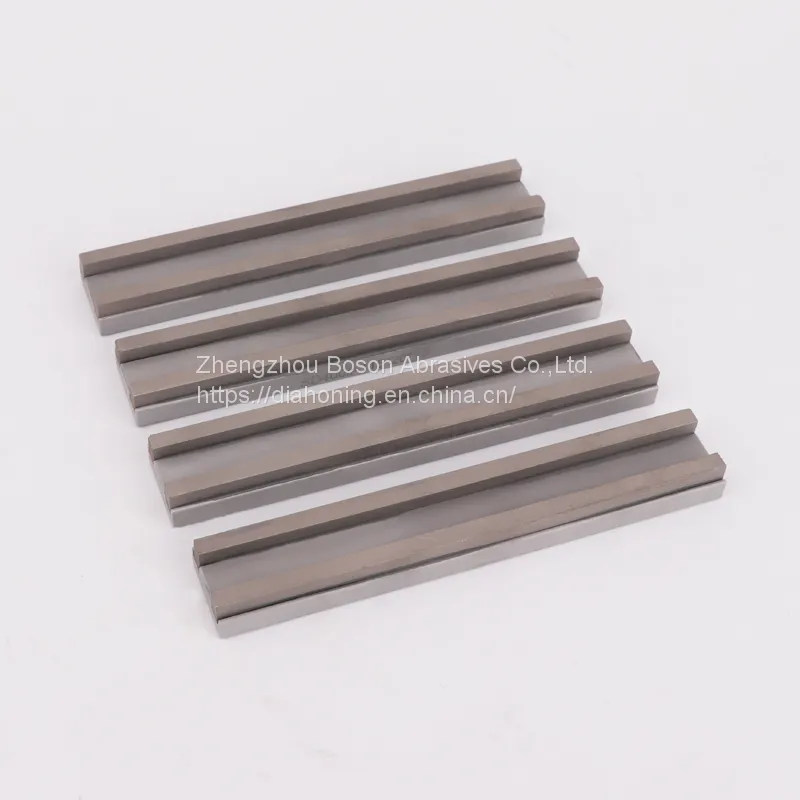

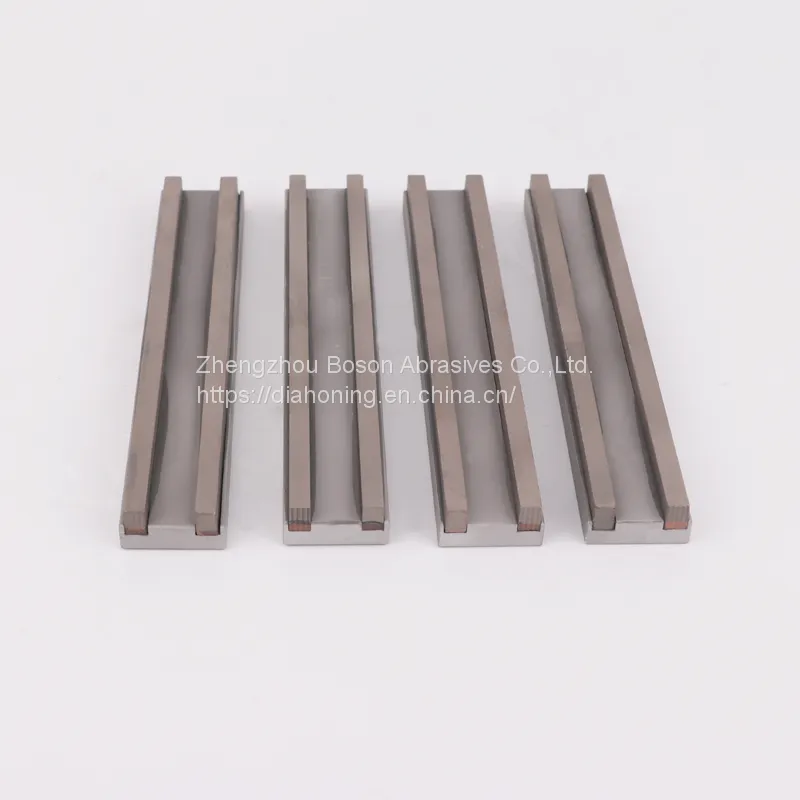

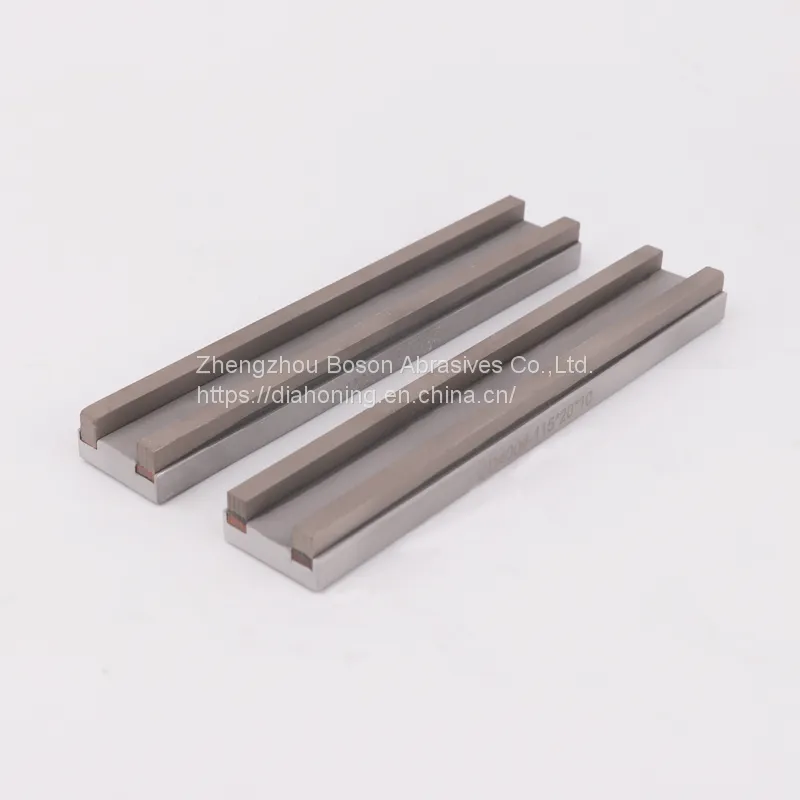

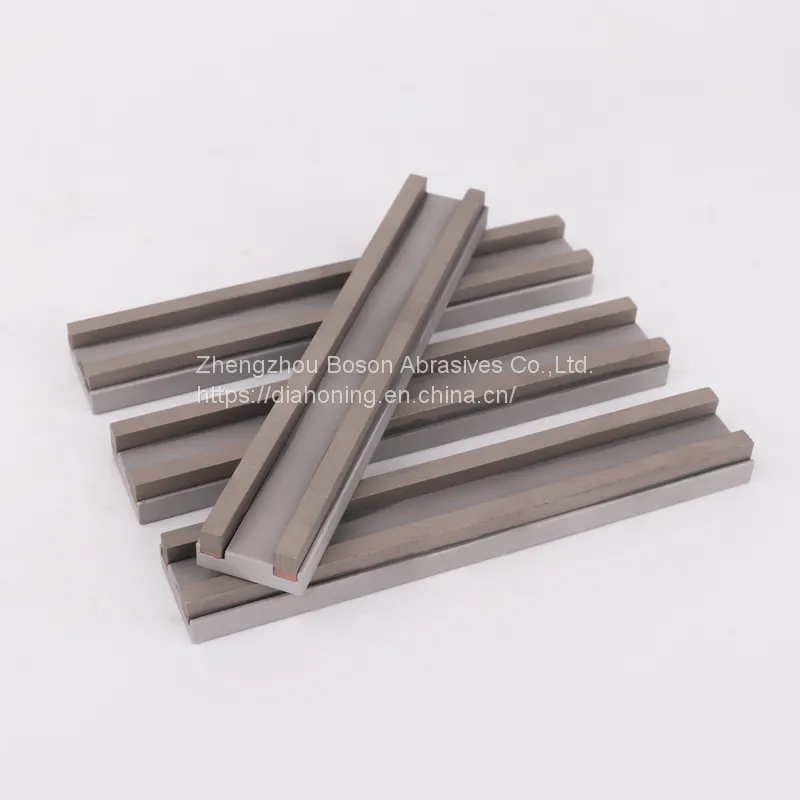

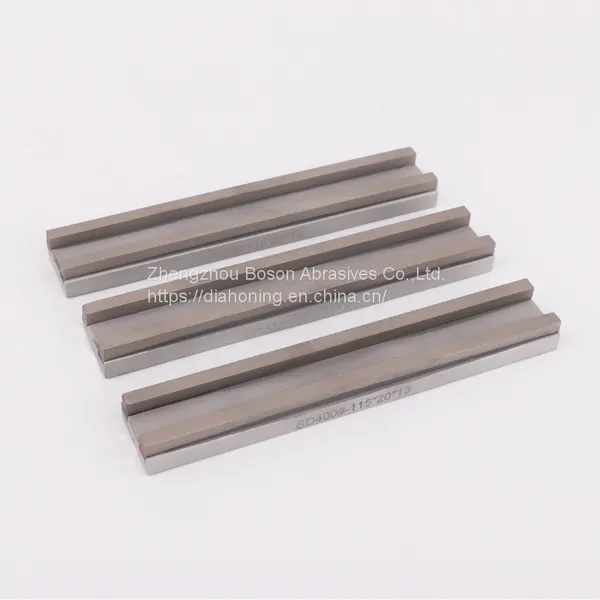

Help CenterMetal Bond Diamond Honing Stones Honing Sticks
Related Products
-
Engine Cylinder Honing Stones CBN and Diamond Honing StonesUS$ 30 - 50MOQ: 6 Pieces -
K10-308asd Electroplated Diamond Super Mandrel for SunnenUS$ 30 - 35MOQ: 5 Pieces
-
Sunnen Honing Stones CBN and Diamond Honing StonesUS$ 10 - 50MOQ: 5 Pieces
-
Sunnen Honing Stones, Superabrasive Diamond Abrasive StonesUS$ 10 - 50MOQ: 5 Pieces
-
Metal Bond CBN Honing Stones, Diamond Honing SticksUS$ 30 - 50MOQ: 5 Pieces
BOSON Abrasives are able to supply diamond honing stones, CBN Honing stones, aluminum oxide and Silicon carbide honing stone sets for SUNNEN MPS Hone Heads which work on Sunnen TUBE HONE Machines for precision sizing and finishing of long and large bores. Ideal for hydraulics cylinders, aircraft components, all type of down-hole oil field instruments and tubes high precision honing.
Note: For special abrasive needs, feel free to contact us.
Surface Finish Conversions: Millimeter to Inch – To convert one unit of measure to the other use the following formulas.
Micrometer to microinch: Micrometer x 40 = Microinch
Formulas for determining minimum stock removal required on diameter to achieve desired surface finish.
Surface Finish in Micrometers – (μm) Ra
(Existing Finish – Desired Finish) / 100 = Required Stock Removal
Example: Existing Finish = 1.25 μm”; Desired Finish = 0.25 μm”, (1.25 – 0.25) / 100 = 0.01mm
Surface Finish Conversions: Inch to Millimeter – To convert one unit of measure to the other use the following formulas.
Microinch to micrometer: Microinch ÷ 40 = Micrometer
*If two values are shown: the first number is for the small parts, honed on machines with one horsepower or less;
the second number is for large parts, honed on machines with two or more horsepower
Formulas for determining minimum stock removal required on diameter to achieve desired surface finish.
Surface Finish in Microinches – (μ”) Ra
(Existing Finish – Desired Finish) / 100,000 = Required Stock Removal
Example: Existing Finish = 50 μm”; Desired Finish = 10 μm”, (50 – 10) / 100,000 = 0.0004inch
