Home > Products > Power Tools > KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector

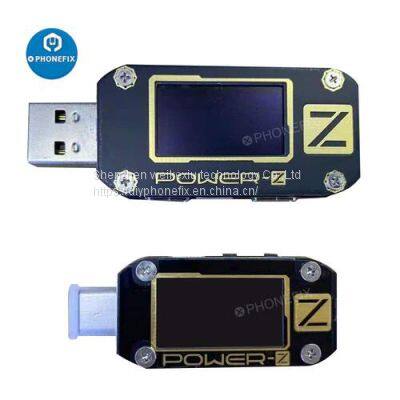

KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector

Name: KM001 POWER-Z USB Digital Tester Type-C Voltage Current Detector
Brand: POWER-Z
Availability: InStock

FOB Price

USD $40.99 - $46.99 / Bag

5 Bags(Min.Order)

Supply Ability 1000000 Bag / Bags per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	POWER-Z		Place of Origin	China
Model Number	FX142

Product Description

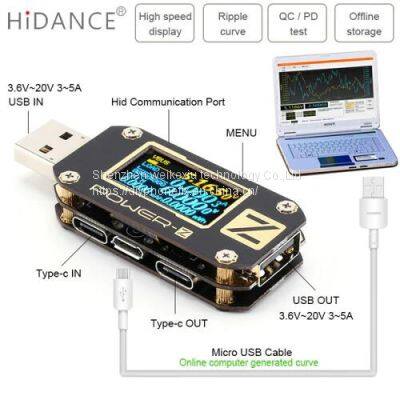

KM001 POWER-Z professional Type-C port USB digital voltmeter voltage current power detector, POWER-Z USB portable PD tester for mobile phone motherboard repair, multi-function portable USB PD tester for USB-A port QC3.0/PD voltage current power detector, POWER-Z KM001 This test table integrates a total of six USB ports, to meet the needs of most of the players test. Another feature of it is to support ripple testing. Its function is similar to a micro-oscilloscope, you can test less than 50Hz ripple, the daily use of enough.

KM001 POWER-Z Portable USB PD Tester: QC3.0/PD Digital Voltmeter Digital Voltage Current Type-C Meter Power Detector

It be used to test the PD instrument, the table gives full consideration to the complexity of the physical interface updating when charging, diversity and charging of the agreement, will be the most common USB-A interface, Micro USB port, Type-C interface integrated together, in addition to the USB PD measurement professional, can also be used for the measurement of QC3.0/2.0 and other fast charge.

Product Specifications :

Product Series: POWER-Z
Product Type: KM001
Product Name: Portable USB PD Tester
Operating voltage: 3.6-20V Current:3-5A
Support Agreement: USB PD, Qualcomm QC3.0 / 2.0, MTK PE / PE +, Huawei FCP / SCP, Apple 2.4A, BC1.2, DCP

Product Function :

Display voltage, current, power, mAh, mWh
Press the menu button can be transferred to the recording interface, you can set to store a variety of different capacity and energy data
Each stored data can be deleted and marked
Set the recording time interval and maximum capacity
Automatic run of the rule setting, current threshold setting
End time setting
Display the information interface
Test line resistance function

It will be measured wire into the tester, followed by a load, the resistance will always beating, until the resistance is stable, the degree, is the size of the line resistance, and there are good evaluation, let you know the wire is good or bad
You can set the waveform display refresh rate, the higher the refresh rate, the faster the display
Plug in the charger, the automatic display D + and D-voltage, the following shows the charger support the charging protocol
Press the menu button, automatically trigger quick charge voltage.

Package List :
1pcs x USB Input With Resistance 5V-1A 2A 3A(Option)
1pcs x Type-C Input With Resistance 5V-1A 2A 3A(Option)
1pcs x KM002C Tester (Option)

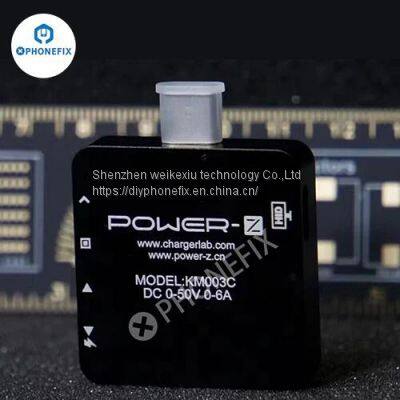

1pcs x KM003C Tester (Option)
