BSJ Mini Film Blowing Machine for Plastic Bag Making

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

BSJ-MINI Film Blowing Machine

The main motor is controlled by inverter,which not only increase the stability for speed adjustment,but also can save 30%'s energy.

Both the screw and barrel adopt 38CrMoAI,with nitrided treatment.

You could choice machine options like printing online,folding online,slitting online,bag making online as you like.We could design machine as you needs.

HDPE LDPE LLDPE FILM BLOWING MACHINE FOR MAKING BAGS, HOT SHRINKABLE, PACKING USAGE, GREENHOUSE FARMLAND USAGE

It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.

Main speficiation

Siemens motor

Delta brand

Lift traction

Easy optiion

Gear box recycle oil pump

Bimetallic screw

Ladder

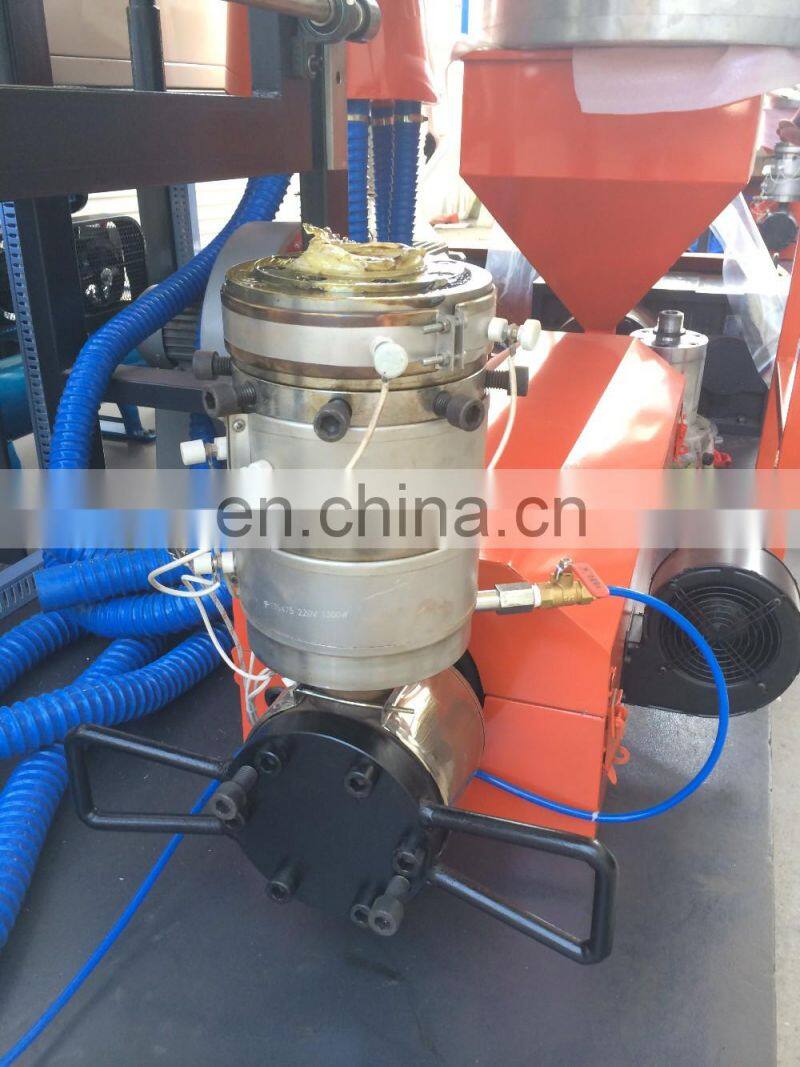

Thicker die head

Model	BSJ-45-500	BSJ-50-700	BSJ-55-900	BSJ-60-1100	BSJ-65-1350	BSJ-75-1700
Max.Layflat Width(mm)	400	600	600	1000	1200	1500
Film Thickness(mm)	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08
Max.Output(kg/h)	20	30	50	60	90	120
Raw Material	HDPE/LLDPE/LDPE/EVA
Screw Diameter(mm)	Φ45	Φ50	Φ55	Φ60	Φ65	Φ75
Screw L/D Ratio L/d	28:1	28:1	28:1	28:1	28:1	28:1
Extruder Driving Power(kw)	5.5-7.5	7.5-11	15-18.5	18.5	22	37-45
Take-off Wond-up Speed	10-60m/min	10-60m/min	10-60m/min	10-80m/min	10-80m/min	10-80m/min
Total Power(kw)	≈22	≈25	≈32	≈45	≈50	≈65
Overall Dimensions(L×W×H)M	2.6×1.5×4.5	3.2×1.7×4.5	4.2×1.9×5	4.8×2.1×6	5.8×2.4×6	7×2.7×7.5
Weight(T)	≈1.2	≈1.5	≈2	≈2.5	≈3.2	≈7.5

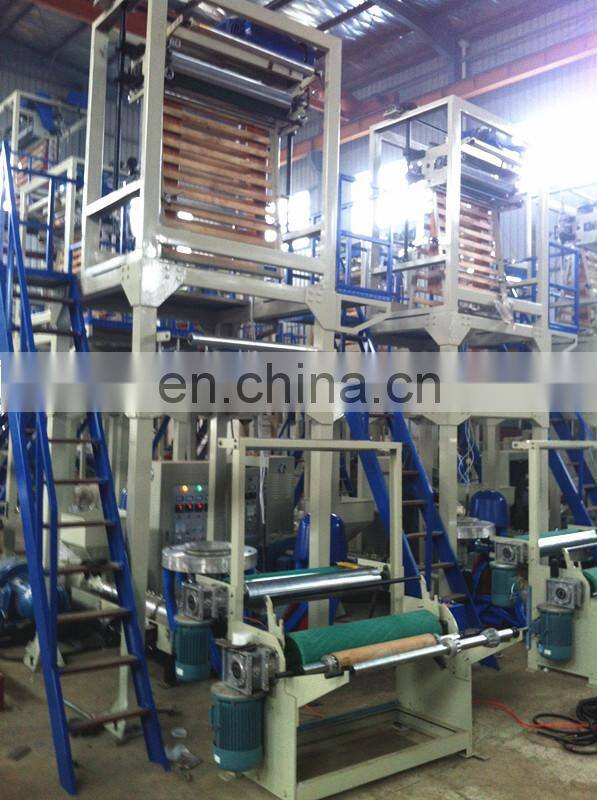

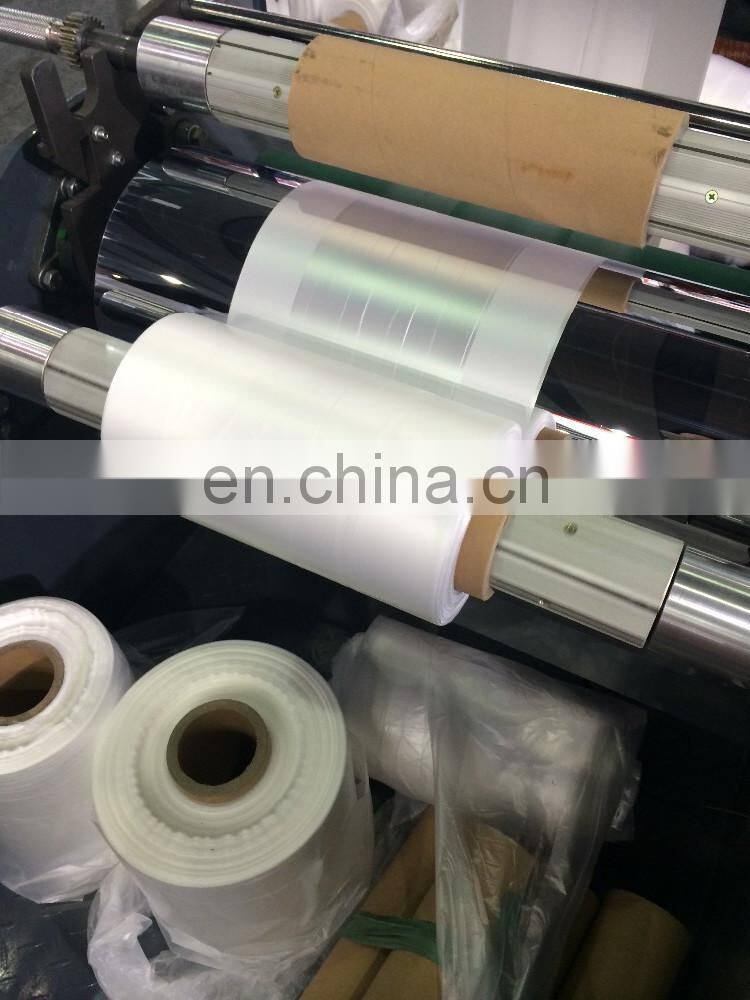

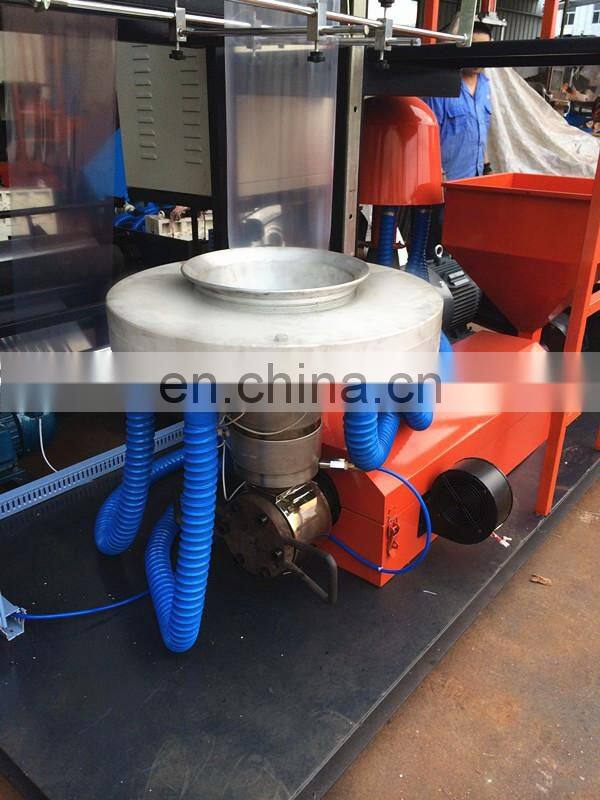

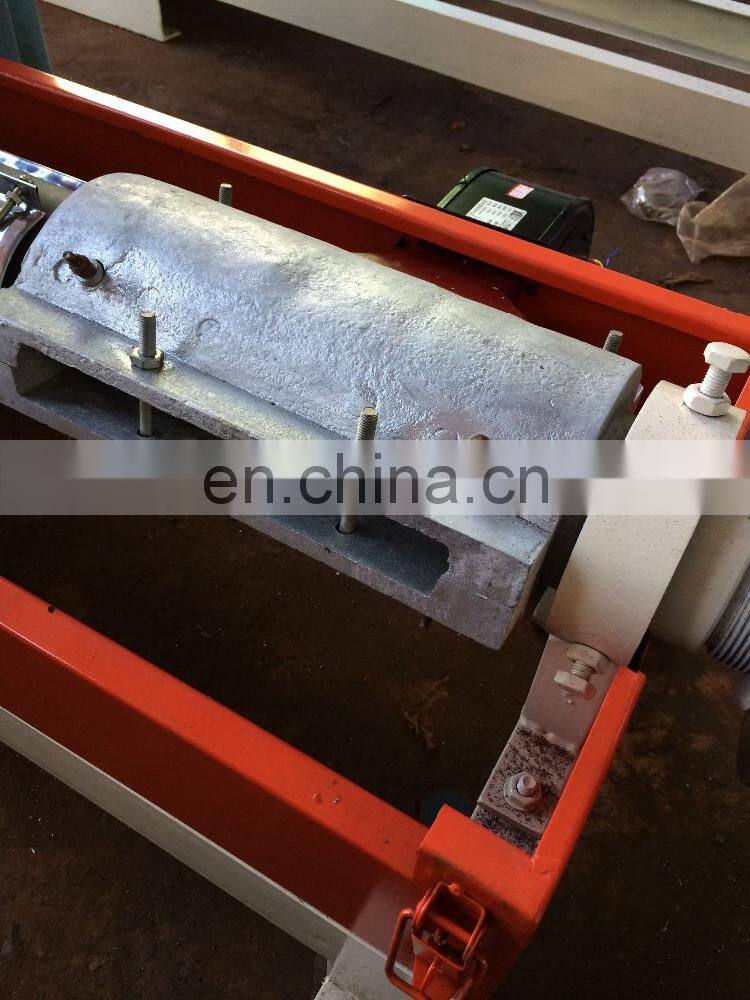

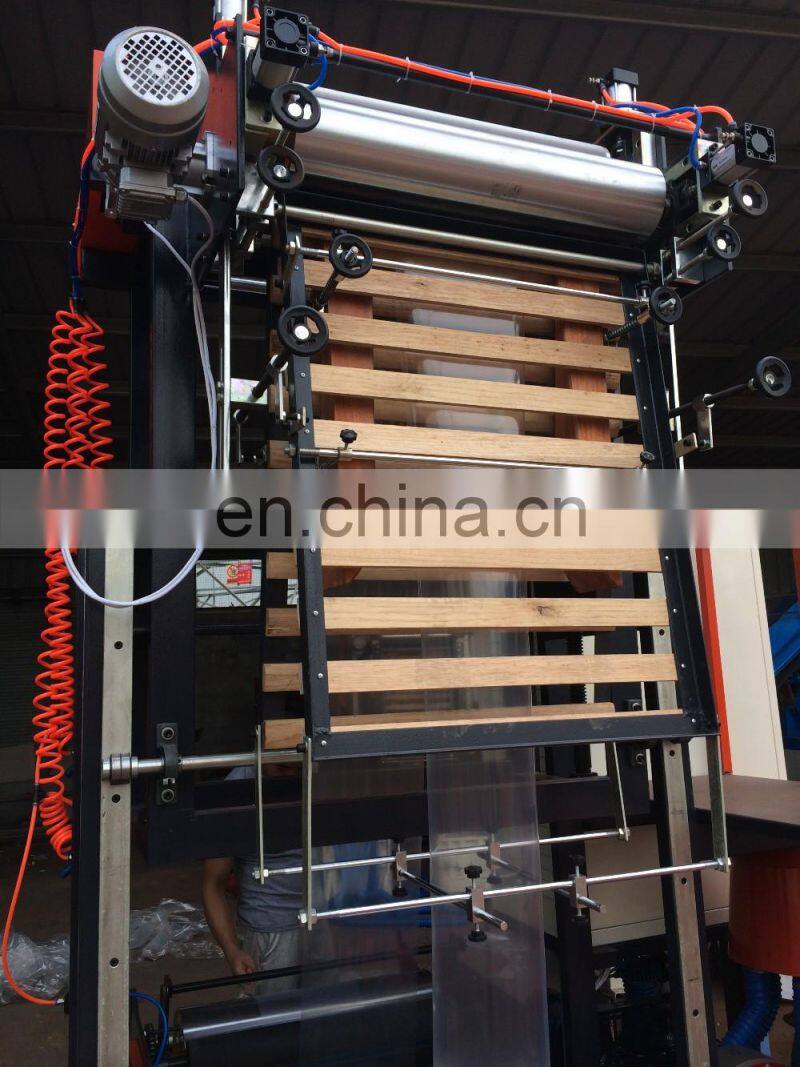

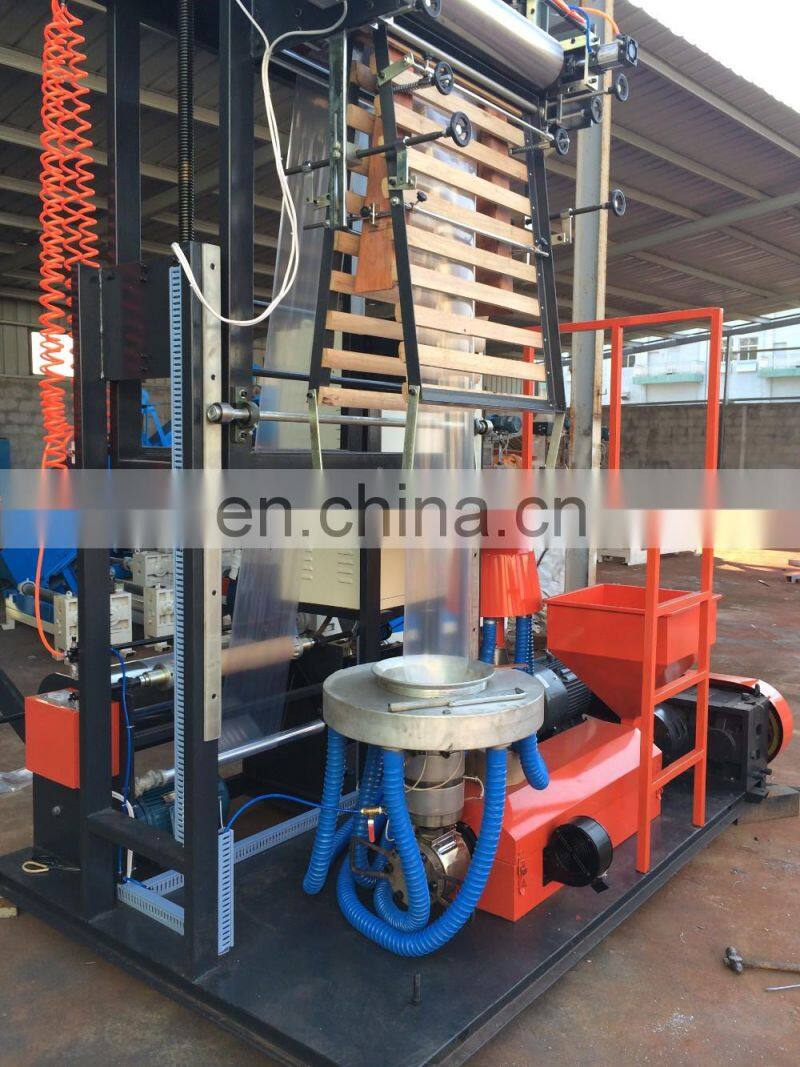

Detailed Images

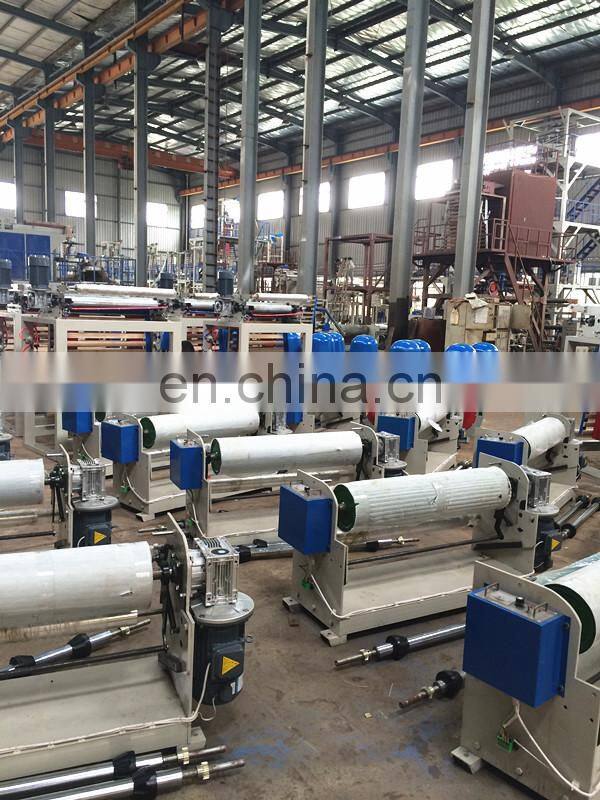

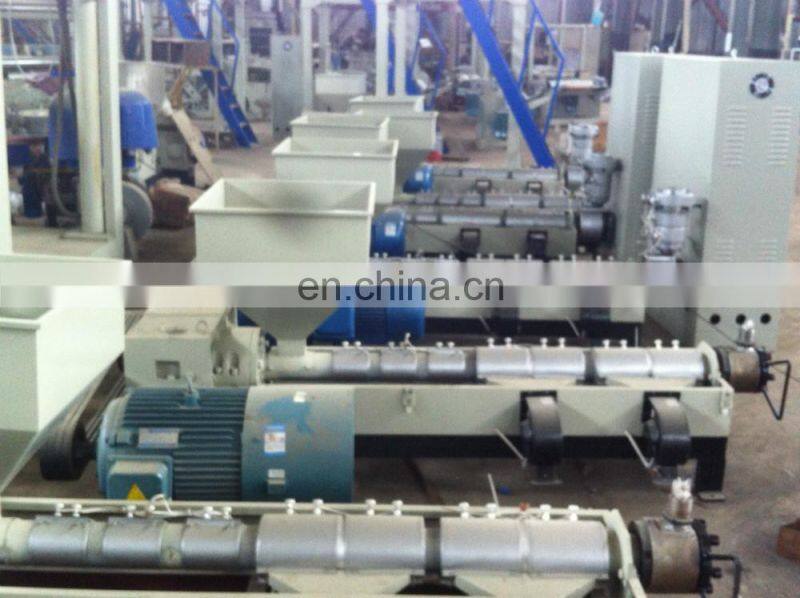

Work Shops

1.Workers are 10 years average working experience.

2.Main parts like die head and screw and air ring, machined in CNC equipment.

3. Strong body welding frame and carefully paint.

4.Good brand used, like SIEMENS, ABB, YASKAWA, DELTA, LS, OMRON, SCHNEIDER....

Packing & Delivery

We will pay attention to every parts packing with bubble film and stretch film or wooden case if possiable. Besides, we will laod machines one by one carefully. And our delivery team is professional on all the machine inspection and certificates for your clearance custom.

Company Profile

Good After Sale Service

1. Video
Watch the machine running by our Bosen Machinery engineer professional guide in the video. the videos are including the machine testing videos, training videos and maintain videos. Easy to operate and work.

2.Manual
Manual book in English with electric drawing. How to protect the machine, How to run the machine, What problem you may meet.

3.Engineer Overseas
Send engineers to your factory, according to your request.

4.On-the-spot Teaching
You could come to our factory to test and learn machines after you placing a order.

5.Online Service
You could contact with us 24 hours. We will promise reply you in 6 hours.

Certifications

FAQ

Q1: Are you a manufacturer or a factory?

A1: Yes,we are the manufacturer which has over 15 years experience.

Q2: Do you accept special design?
A2: Yes,we accept design and manufacturer products according to client's special requirements.

Q3: What about your package?
A3: We use ploywooden case normally, but if you have special requirement we can change and add special shipping mark.

Q4: How long will you take before shipping?
A4: It's depends on the products that you need,but we guarantee for shipping as fast as we could.Normally it will takes 10 days after we receive the payment.
