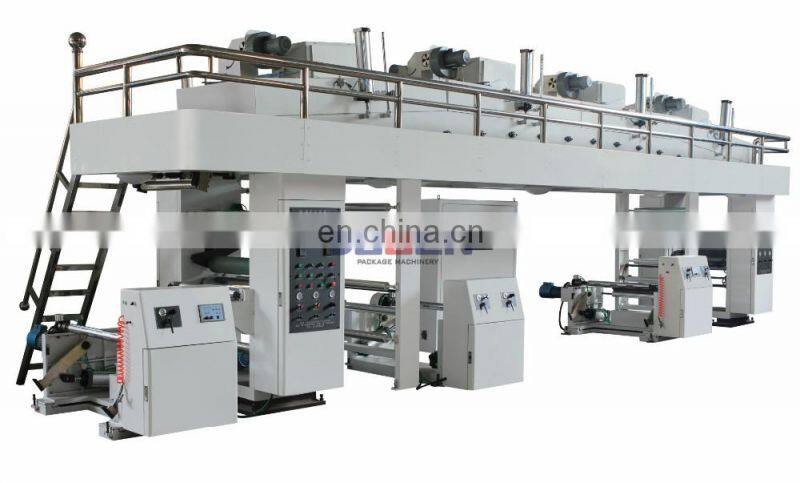

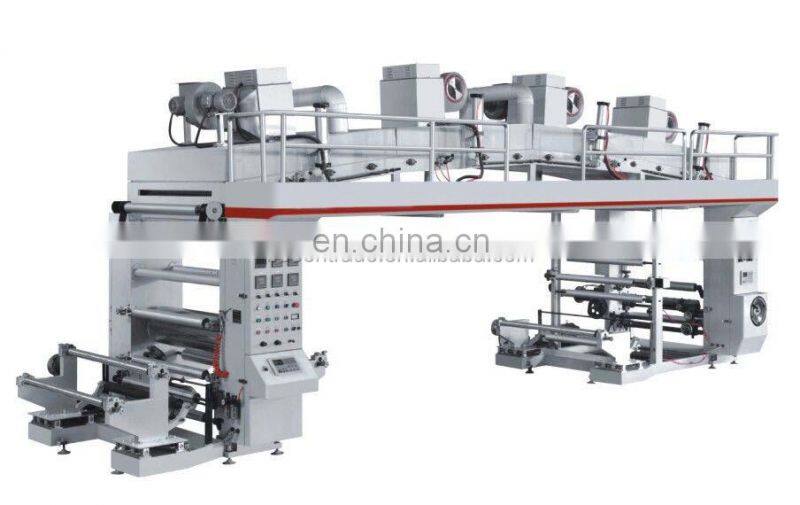

PVC PP Paper ALUMIUM-FOIL Dry Laminating Stacking Machine High Speed OPP PE Coating Machine Laminating Materials Automatic BOSEN

Product Application

 Max. width of laminating material: 200mm- 33200mm

 Laminating layers:2 layers

 Max. Mechanical speed: 130m/min.

 Max. Laminating speed: 120m/min

Max diameter of unwind: 600mm.

 Max diameter of rewind: 800mm

Suitable material:BOPP 18-100μm        CPP 20-100μm           PET 12-100μm          PE 35-100μm       NYLON 15-100μm

                                     Alu foil                            Metalized film               Paper 18-60μm

2. Unwinder unit
Outside dual station unwinding turret, 360°inching positive and negative rotation. Each unwinding has two EPC.

Adopt with magnetic powder brake

Auto tension control

 Air shaft

Auto splicing and cutting

3. Gluing part
Independent motor drive, frequency inverter controlling

Gluing with anilox roller(Diameter:160mm).

Anilox roller is shaftless installation which is convenient.

Pneumatic pressing rollers.

Pneumatic heave doctor blade, adjusted in 3 direction, controlled by dual cylinder, transmitted by independent synchronous motor.

4. Drying part
 Electric heating.

Waste air exhausting tunnel.

3 pace intelligent temperature control, 3 pace independent constant hot air drying and recycled system, air circulation system.

Material length in the oven: 8000mm /9000mm/10000mm according to the machine size.

Pneumatic oven open and close

EPC at the oven exit ensures the material not moving left and right during speeding after heating.

5. Laminating part:
Independent motor drive, frequency inverter controlling.

The laminating rollers are heated by heat-guiding oil, making the heating even and constant.

Water cooling roller make the laminating more firm.

Floating roller adjust the tension.

6. Rewind part:
Outside dual station unwinding turret, 360°inching positive and negative rotation.

Rewinding is transmitted by two torque motor, it can buffer the film impacting, reduce waste, save time, improving efficiency during roll change under high speed

The horizontal adjustment of the material rolls are manual.

Automatic cutting and splicing device.

7. Frame
The wall board is made of high strength low stress combined alloy cast iron.

The main transmission adopts AC frequency control, gluing roller and hot drum adopts floating roller to control the tightness or looseness of the film.

Frequency motor power: Gluing inverter, lamination inverter.

Main Features

1) Reasonable  structure, easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure dry channle opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Effective dry system and stable machine system.

Automatic Pneumatic  Dry System

Very dry zone has seperated pneumatic system control.

Each dry zone could be open and close

Wider Large Type

Width 600mm to 3200mm

Competitive price

High speed 150m/min

Winder and Rewinder

First winder is web guide correction system

Second winders has two station

Inveter is LG LS DELTA PASONIC YASKAWA...best quality

Motor is Siemens or high quality China brand

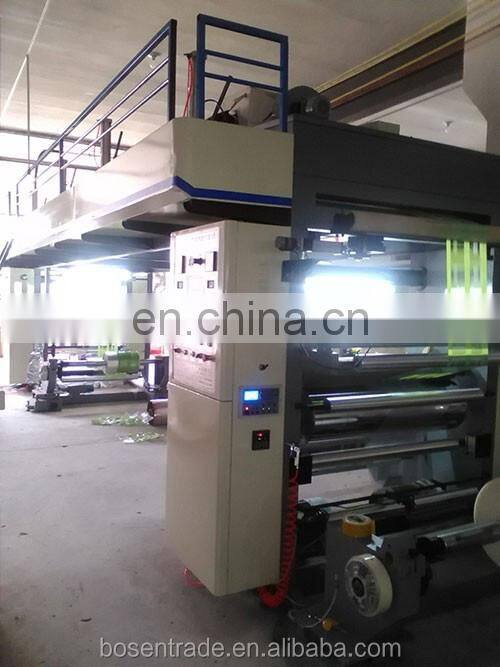

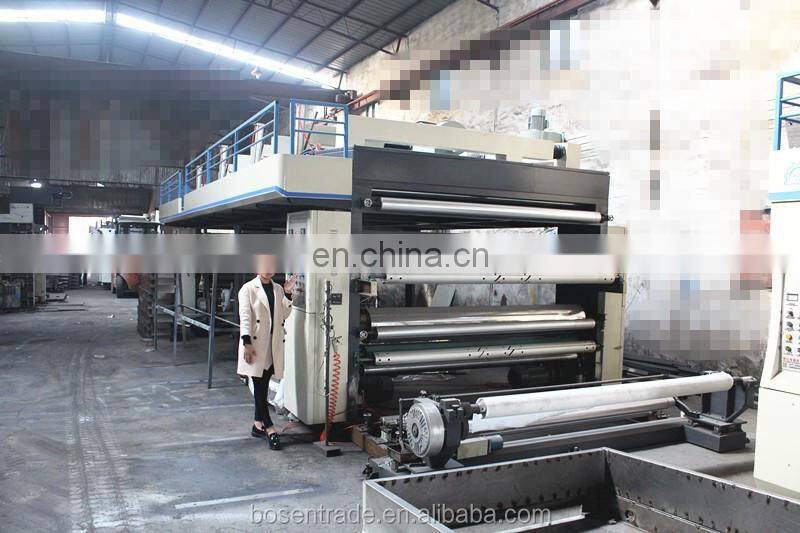

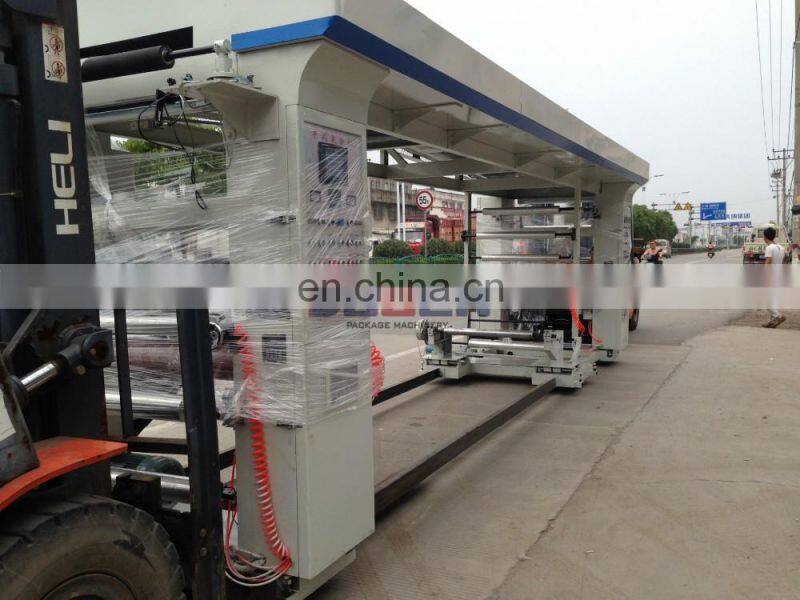

Test Running Machine more then 2 hours in our factory


Confirm very parts go  right

Test material and take video for our cutomer
