Home > Products > FILM BLOWING MACHINE > MINI Platic Shopping Bag Film Blowing Machine

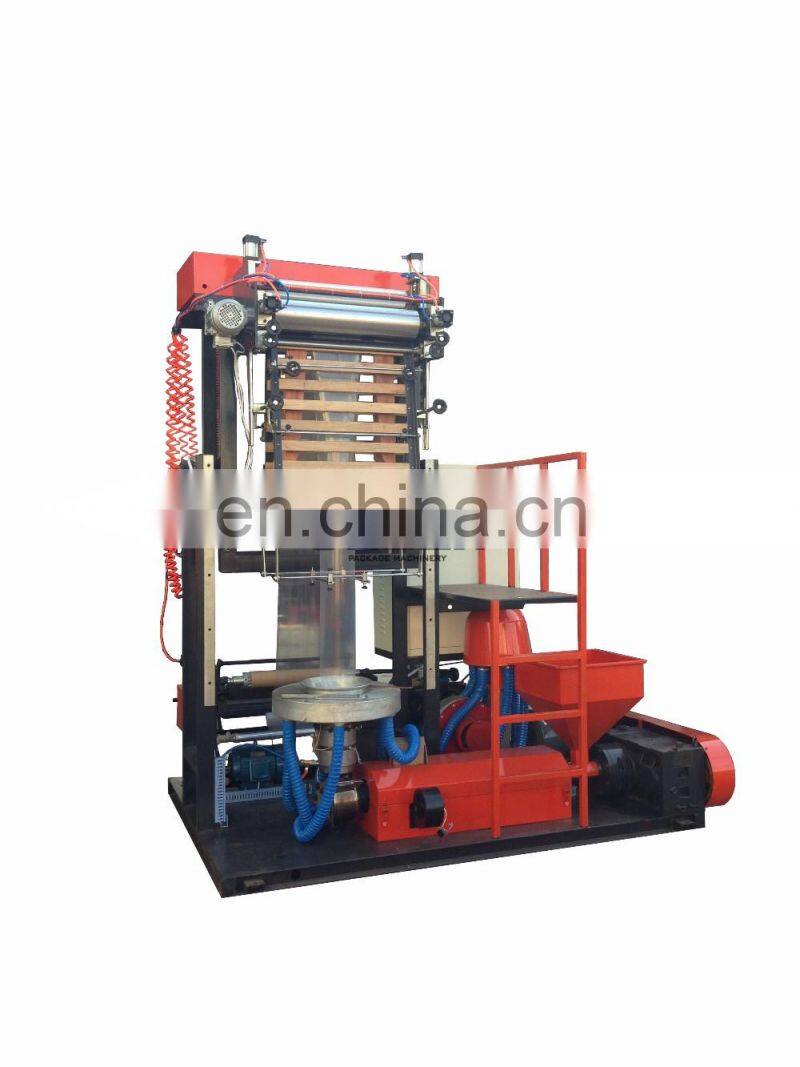

MINI Platic Shopping Bag Film Blowing Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

HDPE LDPE LLDPE FILM BLOWING MACHINE FOR MAKING BAGS, HOT SHRINKABLE, PACKING USAGE, GREENHOUSE FARMLAND USAGE

It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.

Main speficiation

Siemens motor

Delta brand

Lift traction

Easy optiion

Gear box recycle oil pump

Bimetallic screw

Ladder

Thicker die head

Model	BSJ-45-500	BSJ-50-700	BSJ-55-900	BSJ-60-1100	BSJ-65-1350	BSJ-75-1700
Max.Layflat Width(mm)	400	600	600	1000	1200	1500
Film Thickness(mm)	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08
Max.Output(kg/h)	20	30	50	60	90	120
Raw Material	HDPE/LLDPE/LDPE/EVA
Screw Diameter(mm)	Φ45	Φ50	Φ55	Φ60	Φ65	Φ75
Screw L/D Ratio L/d	28:1	28:1	28:1	28:1	28:1	28:1
Extruder Driving Power(kw)	5.5-7.5	7.5-11	15-18.5	18.5	22	37-45
Take-off Wond-up Speed	10-60m/min	10-60m/min	10-60m/min	10-80m/min	10-80m/min	10-80m/min
Total Power(kw)	≈22	≈25	≈32	≈45	≈50	≈65
Overall Dimensions(L×W×H)M	2.6×1.5×4.5	3.2×1.7×4.5	4.2×1.9×5	4.8×2.1×6	5.8×2.4×6	7×2.7×7.5
Weight(T)	≈1.2	≈1.5	≈2	≈2.5	≈3.2	≈7.5

Detailed Images

Work Shops

1.WORKERS ARE 10YEARS AVERAGE WORKING EXPERIENCE.

2.MAIN PARTS LIKE DIE HEAD AND SCREW AND AIR RING, MACHINED IN CNC EQUIPMENT.

3. STRONG BODY WELDING FRAME AND CAREFULLY PAINT.

4.GOOD BRAND USED, LIKE SIEMENS, ABB, YASKAWA, DELTA, LS, OMRON, SCHNEIDER....

Packing & Delivery

WE WILL PAY ATTENTION TO EVERY PARTS PACKING WITH BUBBLE FILM AND STRETCH FILM OR WOODEN CASE IF POSSIABLE. BESIDES, WE WILL LAOD MACHINES ONE BY ONE CAREFULLY. AND OUR DELIVERY TEAM IS PROFESSIONAL ON ALL THE MACHINE INSPECTION AND CERTIFICATES FOR YOUR CLEARANCE CUSTOM.

Our Service

BOSEN BORN OF GOOD SERVICE AND MACHINE. WE HAVE OUR MACHINE ENGINEER TEAM AND OVERSEAS SERVICE AVAILABLE.
WE ALSO HAVE PROFESSIONAL INSPECTION TEAM, GOOD SALES TEAM AND AFTER- SERVICE ONLINE 24 HOURS TEAM. OUR MACHINE IS QUALITY STRICKLY CONTROLLED.
WELCOME YOU TO JOIN US!
