Home > Products > Laminating Machine > Water-based glue fabric coating machine for Textile/Foam/Film/Leather/Nonwoven

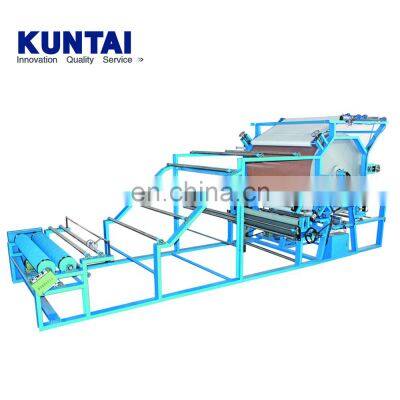

Water-based glue fabric coating machine for Textile/Foam/Film/Leather/Nonwoven
- 1000 per Month
- T/T Credit Card
Product Description
APPLICATION:
Water Based Glue Fabric Coating Machine can be used for:
1. This blanket laminating machine is used for gluing fabric, film and other materials, such as:
Fabric, Nonwoven...
Film (Membrane) such as PU, TPU, PTFE, PE, BOPP, OPP, PET, PVC...
Luggage materials, such as EVA, PVC...
Diving Material, such as SBR, CR...
2. Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.
FEATURES:
♦ It uses water-based glue.
♦ Improve the quality of the products greatly, save cost.
♦ Vertical structure, low breakdown rate and long service time.
♦ Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft and strengthen adhesive fastness.
♦ This leather laminating machine has two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs.
♦ Surface of heating roller is pasted with Teflon paper in order to efficacious prevent the hot melt adhesive against sticking on the surface of roller and carbonization.
♦ For clamp roller, both hand wheel adjustment and the pneumatic control are available.
♦ Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life
♦ Customized manufacturing is available.
♦ Low maintenance cost and simple to maintain
OPTION:
1. Accumulators for foam, textile, backlining, etc
2. Edge cutting device
3. Inspection machine
4. Swaying device to sway the final laminated materials into piles
5. Cutting machine
6. Conduction oil heating drying roller instead of normal heating drying roller ( When the temperature required by the materials is over 160 celcius degree)
STANDARD TECKNICAL PARAMETERS OF LAMINATING MACHINE(CUSTOMIZABLE)
Maximum Material Width | 1600mm/Customizable |
Machine Roller Surface | 1800mm/Customizable |
Machine Speed | 5-40m/min/Customizable |
Estimated Machine Dimension | 7600 x 2200 x 2400 mm(L*W*H) |
Estimated Machine Weight | 3500kg |
Heating Method | Electric Heating |
Glue Type | Water Based Glue |
Max Temperature | 180℃ |
Laminating Temperature | 160℃ |
Gluing Way | Full coating |
1. Are you a trading company or a manufacturer?
We are a manufacturer with more than 30 years of manufacturing and R&D experience.
2. Where is your factory?
We are located in Yancheng, three and a half hours drive from Shanghai, China. It only takes about 1hour 40mins to 2 hours.
3. Do you have a personal R & D department?
Yes we have. We have established our Kuntai R&D center with famous university Padova,Italy in Europe. Kuntai Machinery Co., Ltd as a professional manufacturer with more than 30 years experience in various Laminating Machine&Cutting Machine and other finishing machines.We always believe in technology- and market-oriented research. Every year, we develop a series of solutions to actual field application problems and develop new machines for our customers such as Tesla, Toyota, BMW of Germany, KIA of South Korea, 3M company and so on.
We also can provide customized machine services according to the actual needs of customers.
Our goal is to solve every field problem with customers, achieve better material finishing / processing results, and become
customers' think tank.If you have any new ideas for our machines, please feel free to contact us!
4. How do I trust your quality?
We have a strict and scientific quality control management system, and have passed the strict CE and ISO international certifications inspections. We have professional quality control personnel. For each step of our machine production, a set of quality control teams will be responsible for checking. The following steps can not be performed before the item passes all inspections. At the end of the machine assembly, a series of tests will be performed. We will not deliver it until the machine passes all tests. We provide a one-year warranty for our machines. Generally, our customers have used our machines for at least 5 years, 8 years or even 10 years. Throughout the life of our machines, spare parts will be replaced at cost.
5. How to operate the machine?
We have never used such a machine before. We just want to expand our business and start a new business. Do not worry! When buying our first machine, almost the majority of overseas customers were in the same situation. We have skilled and experienced follow-up service staff who have developed a complete solution to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform installation, testing and operation guidance of overseas machines.
