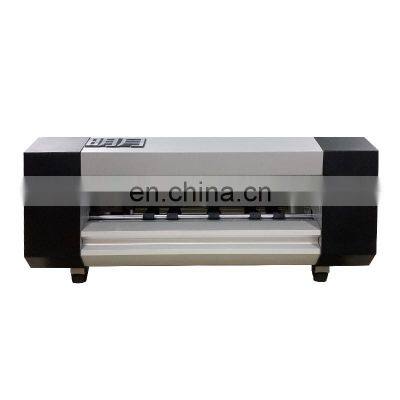

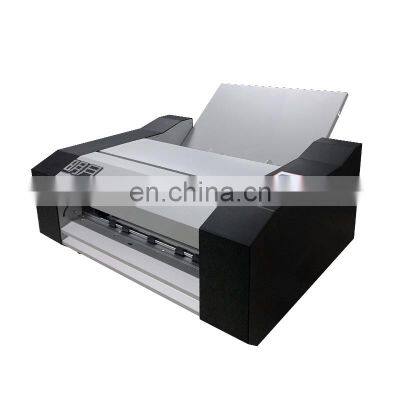

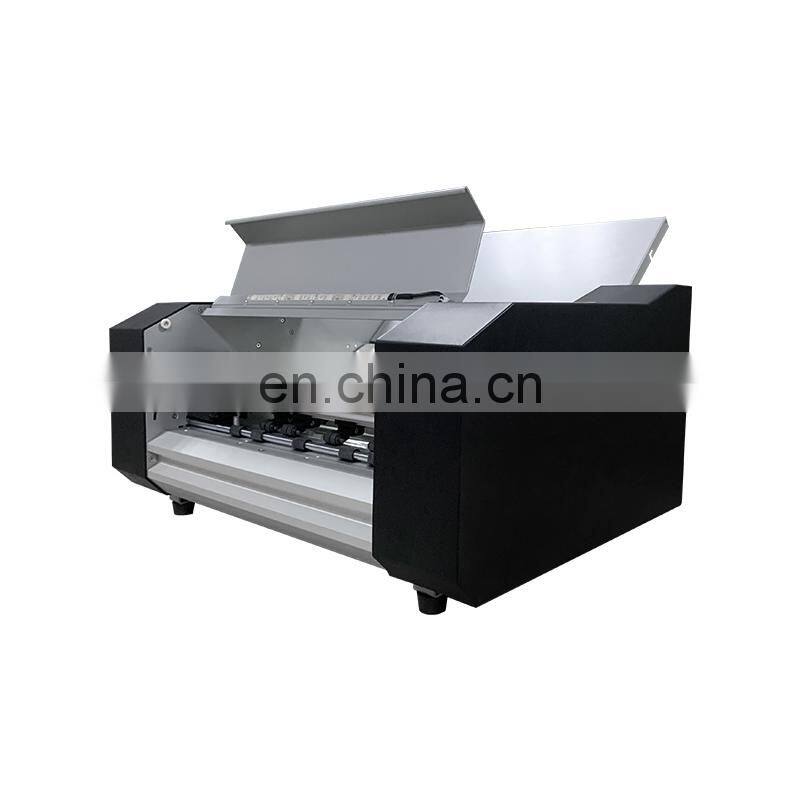

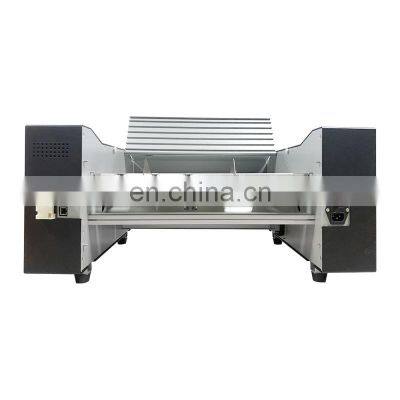

Top Sales Max Feed Size 330*483Mm Automatic Die Cutting Cutter Machine With Infrared Light Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2011
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price Max Cutting Speed 500Mm/S Sticker Film Die Cutting Machine With Lcd Blue Screen Control PanelNegotiableMOQ: 1 -
Samsmoon Hot Sale Paper Capacity 80 Pieces Automatic Film Die Cutting Machine With Infrared Light SensorNegotiableMOQ: 1
-
SDC-900A 2022 New Min Cut Size 5Mm2 Labels Sticker Automatic Paper Feed Die Cutting MachineNegotiableMOQ: 1
-
Guaranteed Quality Max Cutting Pressure 500G Labels Sticker Die Cutting MachinesNegotiableMOQ: 1
-
Multi-Purpose 320Mm Heavy Duty Hot Glue Book Binder Binding Machine With Frequency Conversion TechnologyNegotiableMOQ: 1
Product Description
Product Name | Die Cutting Machine |
Location Mode | Infrared light Sensor |
Motor Type | Progressive Motor |
Type of Scan Code | Gauge Point |
Paper Capacity | 80 pieces |
Sweep Speed | 8- 15 seconds |
Max Feed Size: | 330*483mm |
Max Cut Size | 325*473mm |
Min Cut Size | About 5mm2 |
Weight of Cutting paper | The thickest 300g |
Max Cutting Pressure | 500g |
Max Cutting Speed | 500mm/s |
Resolution of Machine | 0 .009mm |
Programmable Resolution | HPGL 0 .025mm |
Connection Type | WIFI/USB/data cabl |
Feeding Way: | Two-way friction automatic paper feeding device |
Software Support | CDR Plug-in |
Power Supply | 100-240v；50-60Hz |
SDC-900A Features：
1.Automatic continuous paper feeding in large-capacity paper feeder.
Can place 80-100 sheets of paper at a time, with a margin of about 5mm.
2.The platform adopts double-row linkage center baffle.
The thickened baffles are positioned synchronously, and the baffles will not be loosened on both sides of the paper for a long time.
3.Double spring and pickup roller design.
the surface of the concave-convex process pattern paper pick-up roller, increases the friction force, the material is wear-resistant, and cooperates with the paper feed valve to feed the paper efficiently, and the service life is longer. The paper feed is smoother and the automatic paper feed is more efficient.
4.Fully automatic infrared engraving
With LED light strips, files are automatically retrieved through the QR code, so that each cutting point is in the correct position to solve small batch tedious operations
5.Double row heavy duty pinch rollers
The pressing roller is made of polyurethane material, which will not break the surface of the material. With the B-grade precision steel barbed shaft at the bottom, the gripping force is firmer and the paper pressing is more stable.
6.A variety of transmission sister ports are convenient and fast
Support U disk QR code to automatically identify and extract files
7.LCD blue screen control panel
Adopt LCD button-type visualization panel, easy to operate
Our Certifications
Packaging and Shipping
Company Profile
Hangzhou Zhongguan Hanming Technology Co., Ltd., found in 2013, is an enterprise integrating R&D, production, sales and service of advertising and office printing equipment. It focuses on book binding machines and paper cutting machines of self-owned brand "Mingyue", "Cailiwang" and "Samsmoon". After over 15 years of development to more than 50 employees and about 5000 square meters factory, "Mingyue" book binding machines and paper cutting machines have been widely accepted by retailers and customers. Having attached great importance to product R&D and technological talent cultivation since establishment, Zhongguan Hanming is now in possession of a full set of product development and manufacturing technology. We provide not only factory standard machines, but also support OEM & ODM cooperation and service. Perfect quality, excellent service, impeccable technology and reasonable price make Zhongguan Hanming a leading enterprise in the printing industry.
