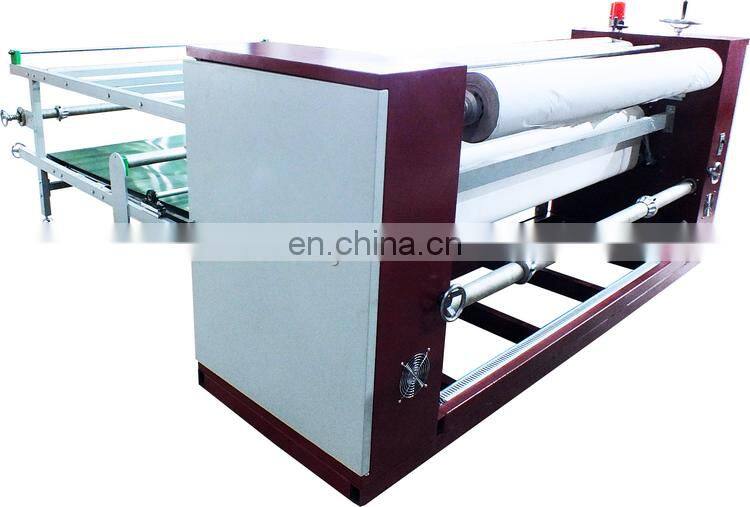

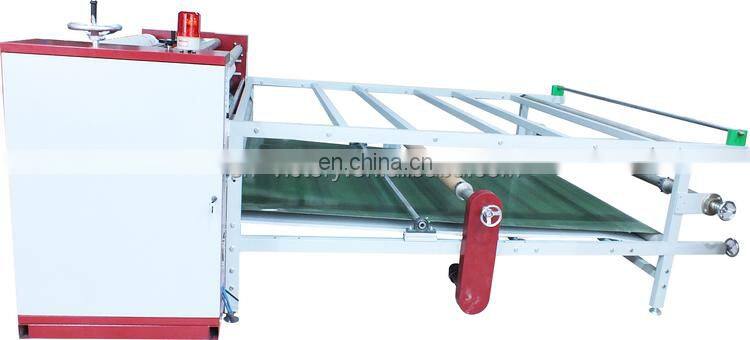

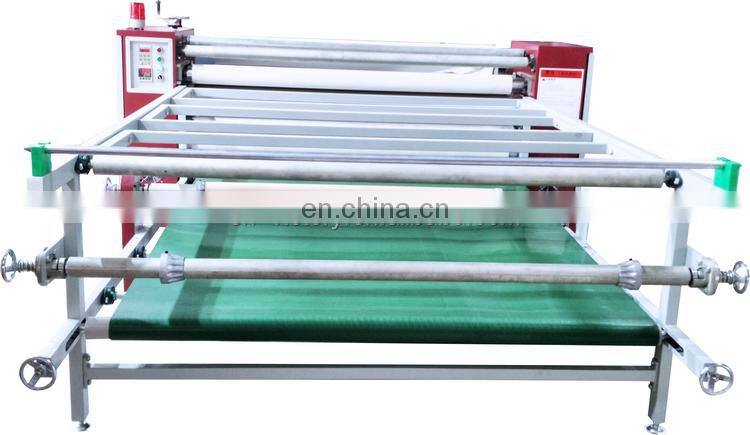

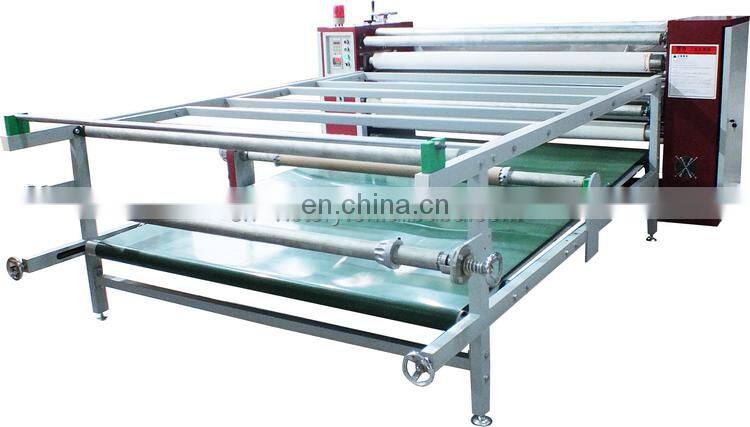

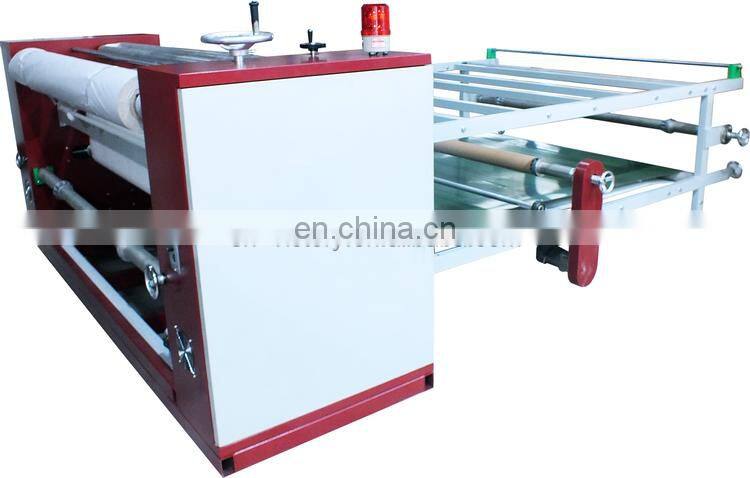

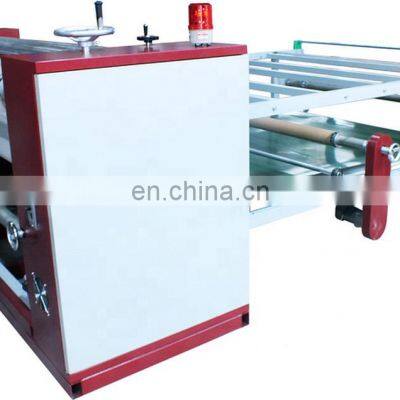

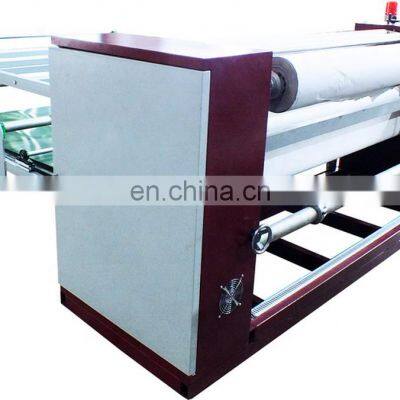

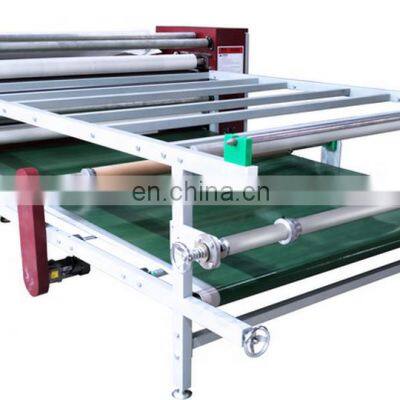

Factory Supply Best Price Multi-function Roller Heat Transfer Press Sublimation Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1994
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Heat Press Multifunction Flatbed Roll To Roll Sublimation MachineNegotiableMOQ: 1 -
Hot Sale Xp600 Convert Kit Update Eco Solvent Printer to Single Xp600 HeadNegotiableMOQ: 1
-
Factory Price Single Xp600 Convert Parts for Inkjet Printer ( Complete Set)NegotiableMOQ: 1
-
Hot Sale Dual Xp600 Convert Kit Update Eco Solvent PrinterNegotiableMOQ: 1
-
Factory Price Dual Xp600 Convert Parts for Inkjet Printer ( Complete Set)NegotiableMOQ: 1
Product Description
Technical characteristics:
This Roller –type sublimation thermal transfer printing equipment, the use of heat-conducting oil layer surrounding electric heating diversion of the principles of design and manufacture of heating, the cylinder surface temperature balanced and stable blanket with out of the mechanical structure, with three-phase frequency control devices, machine operation, easy maintenance,transfer to achieve the best and widely used in digital printing industry at home and abroad.
Features:
1. Can be rolled to the film to the film, a multi-purpose machine.
2. Bring your own exhaust fumes purification system to ensure a comfortable environment.
3. Adjustable speed motor winding with air expansion shaft, simple and fast operation, improve production efficiency.
4. Double-start pressurized system, the color is brighter, the permeability is stronger, and the production speed is faster.
5. Double-display automatic lubrication system can regularly inject lubricant into the machine, keep the bearing shaft lubrication
state, increase the service life of the bearing shaft, save time and worry.
6. The blanket automatically corrects the deviation, improves the printing quality and saves manual adjustment.
7. Automatic finished fabric winding, convenient and fast, saving time and space.

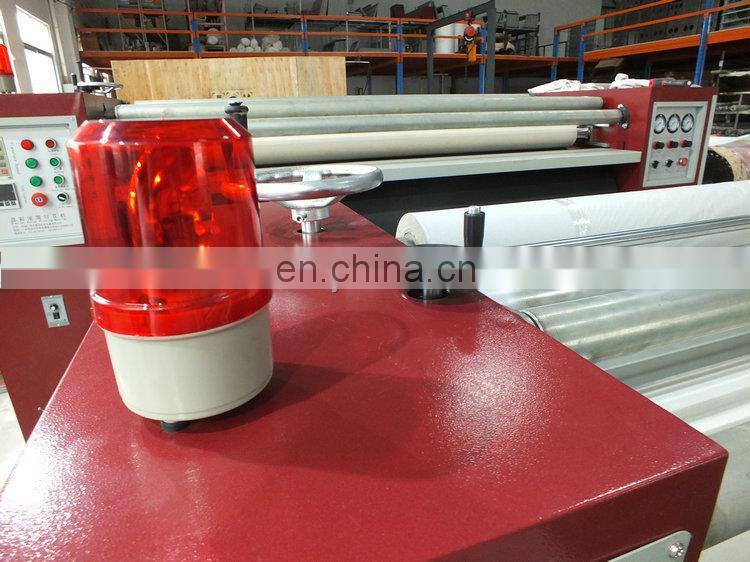

8. Shutdown alarm system to ensure the safety of machine blankets.
9. Independent current observation table, the heating tube can be found at any time, and the solid state relay is working
normally.
10. Intelligent temperature control table, the machine can be automatically shut down and power off under 80 degrees when the
machine is off work, prolonging the service life of the blanket and heat transfer oil.
11. Put the printing paper, the lining paper uses the inflation shaft with the torque brake to increase the tension of the paper
and it is not easy to wrinkle.
12. Receive the printing paper, the lining paper uses the air-expansion shaft with the torque brake, and the speed-regulating
motor makes the winding more tight and tight.
13. It can print about 350-450 meters per hour.
2. Bring your own exhaust fumes purification system to ensure a comfortable environment.
3. Adjustable speed motor winding with air expansion shaft, simple and fast operation, improve production efficiency.
4. Double-start pressurized system, the color is brighter, the permeability is stronger, and the production speed is faster.
5. Double-display automatic lubrication system can regularly inject lubricant into the machine, keep the bearing shaft lubrication
state, increase the service life of the bearing shaft, save time and worry.
6. The blanket automatically corrects the deviation, improves the printing quality and saves manual adjustment.
7. Automatic finished fabric winding, convenient and fast, saving time and space.
8. Shutdown alarm system to ensure the safety of machine blankets.
9. Independent current observation table, the heating tube can be found at any time, and the solid state relay is working
normally.
10. Intelligent temperature control table, the machine can be automatically shut down and power off under 80 degrees when the
machine is off work, prolonging the service life of the blanket and heat transfer oil.
11. Put the printing paper, the lining paper uses the inflation shaft with the torque brake to increase the tension of the paper
and it is not easy to wrinkle.
12. Receive the printing paper, the lining paper uses the air-expansion shaft with the torque brake, and the speed-regulating
motor makes the winding more tight and tight.
13. It can print about 350-450 meters per hour.
Specification
item | value |
Type | Heat Press Machine |
Applicable Industries | Food & Beverage Factory, Printing Shops, Food & Beverage Shops, Advertising Company |
Showroom Location | United States, Peru, Mexico, Morocco, Chile, Colombia, Sri Lanka, South Africa, Nigeria |
Usage | Paper Printer, Label Printer, Cloths Printer, t-shirt printer, Heating press |
Voltage | 3-Phase 4Line 380V/220V |
Dimensions(L*W*H) | 2200*2000*1350mm/2200*2540*1350mm |
Weight | 800KG |
Key Selling Points | Easy to Operate |
Marketing Type | Ordinary Product |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Gear |
Platen Size | 2.4m-3.5m optional |
Certification | CE Certificate, CE Certificate |
After-sales Service Provided | Video technical support |
Application | transfer image from sublimation paper to fabric |
Color | white/red |
width | 1.2m/1.7m/1.9m/2.1m optional |
Roller Drum diameter | 27cm/42cm/60cm/80cm optional |
Temperature range | 0-299℃ |
Transfer speed | About 50-60sqm/h |
BED Dimension | 2.4m |
Transfer Speed | About 50-60sqm/h |
Transfer Width | 1200mm/1700mm |
Blanket Dimwension | 1250mm/1750 |
Putting Device | 3(Fabic Putting/Sublimation Paper Putting/Protective Paper Putting) |
Collecting Devic | 2(Finished Sublimation Paper Revinding/protective Paper Rewinding) |
Gross Weight | 800kgs/1000kgs |
Machine Dimension | 2200*2000*1350mm/2200*2540*1350mm |
Packing Size | 2150*1000*1400mm/2650*1000*1400mm |

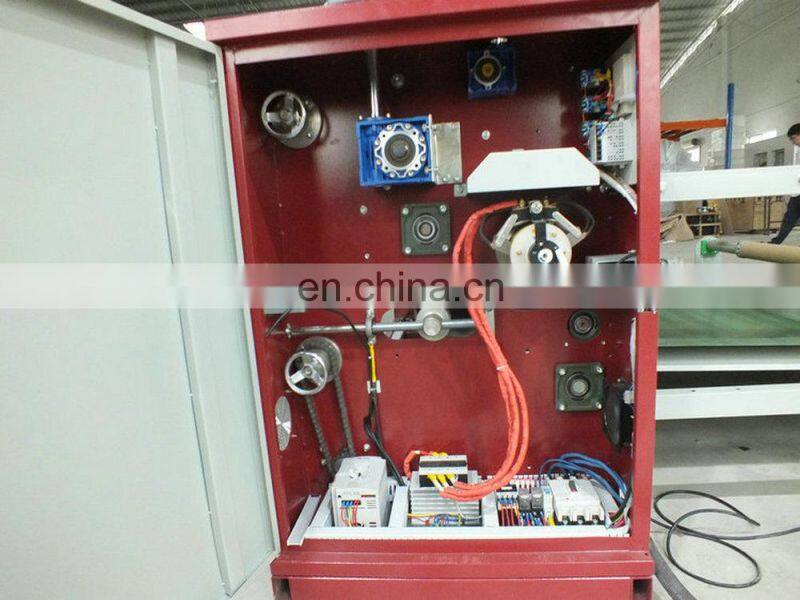

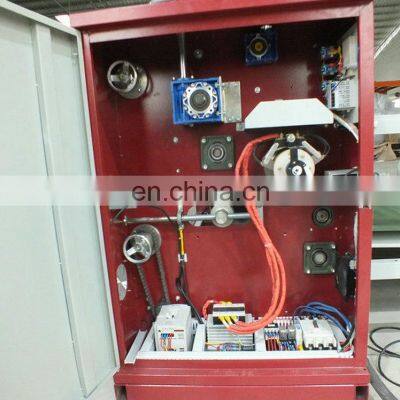

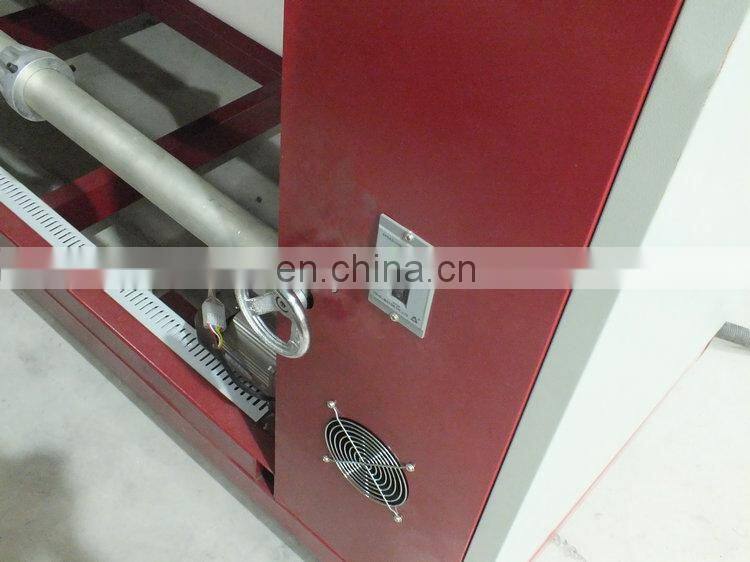

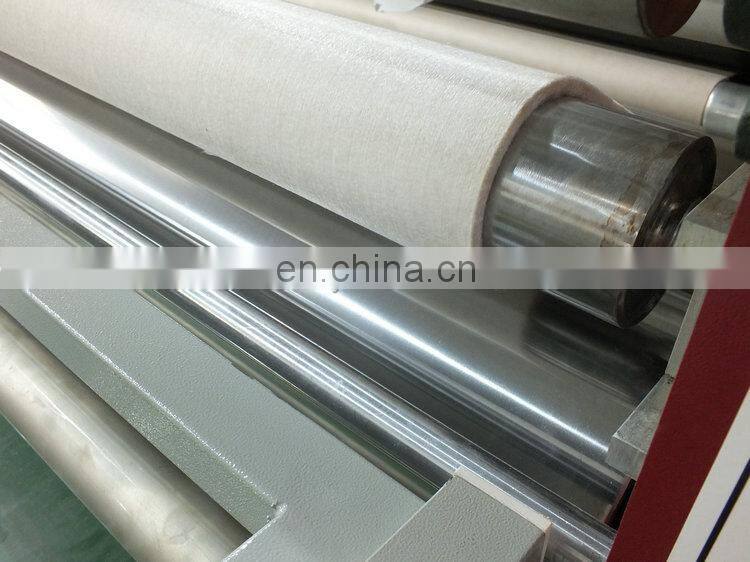

Machine Details
Packing & Delivery
1.Package:wooden box
Diameter of Roller Drum * Width :270*1200mm :2150*1000*1400mm / 800kgs
Diameter of Roller Drum * Width :270*1700mm :2650*1000*1400mm / 1000kgs
2.Package size: 2150*1000*1400mm/2650*1000*1400mm 3. Factory supply best price multi-function roller heat transfer press sublimation machine
Diameter of Roller Drum * Width :270*1200mm :2150*1000*1400mm / 800kgs
Diameter of Roller Drum * Width :270*1700mm :2650*1000*1400mm / 1000kgs
2.Package size: 2150*1000*1400mm/2650*1000*1400mm 3. Factory supply best price multi-function roller heat transfer press sublimation machine
