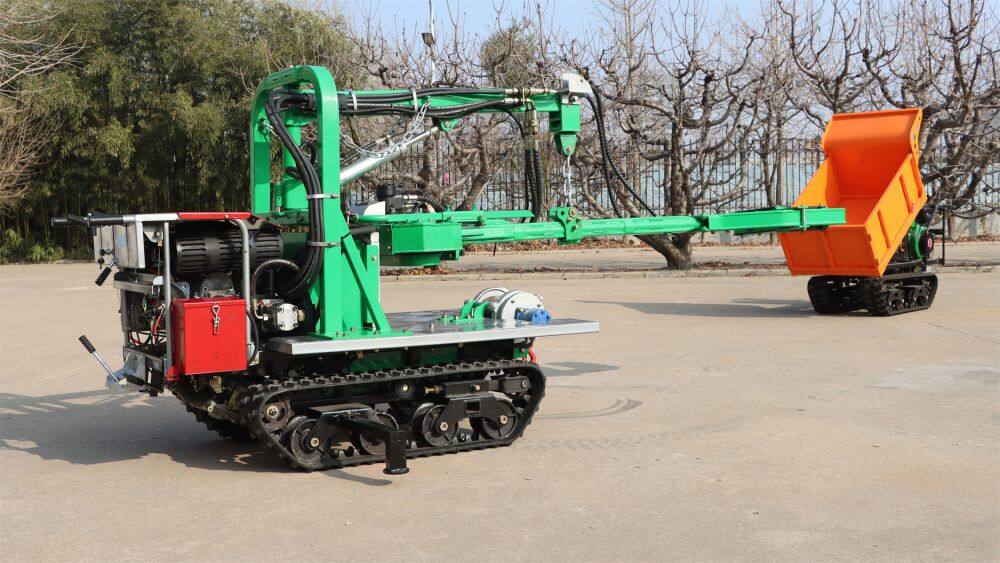

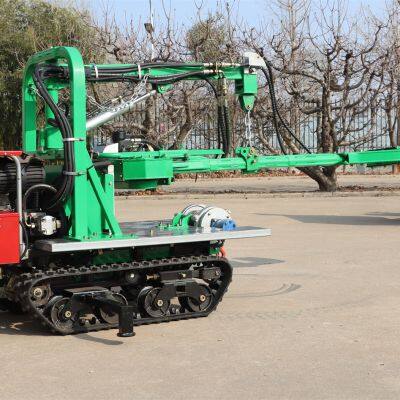

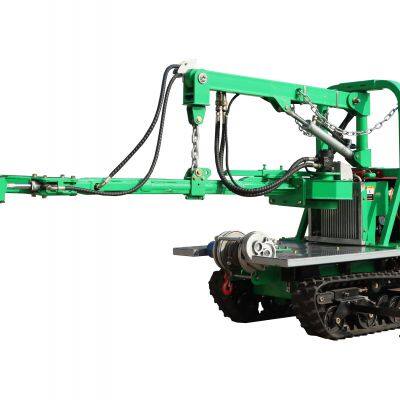

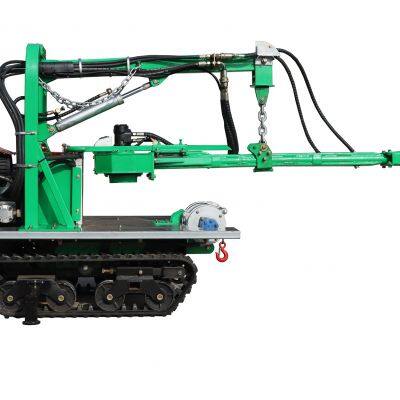

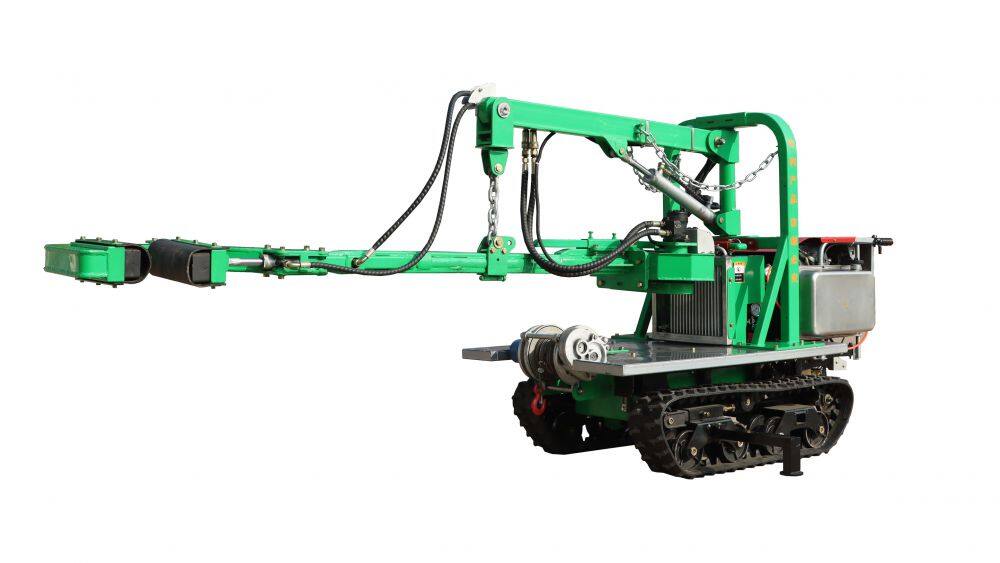

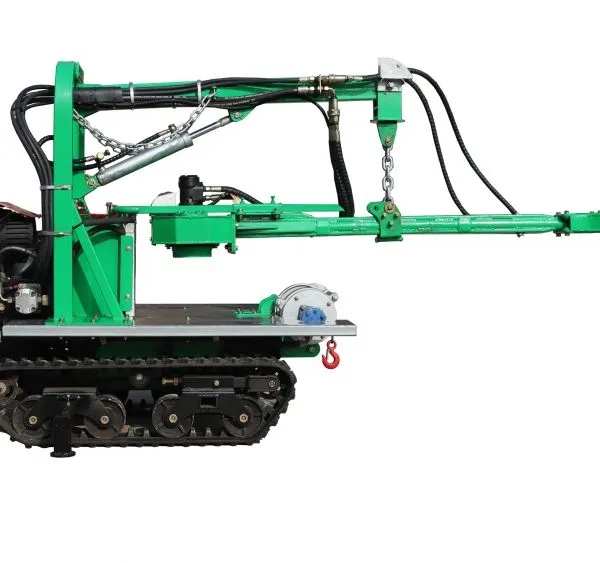

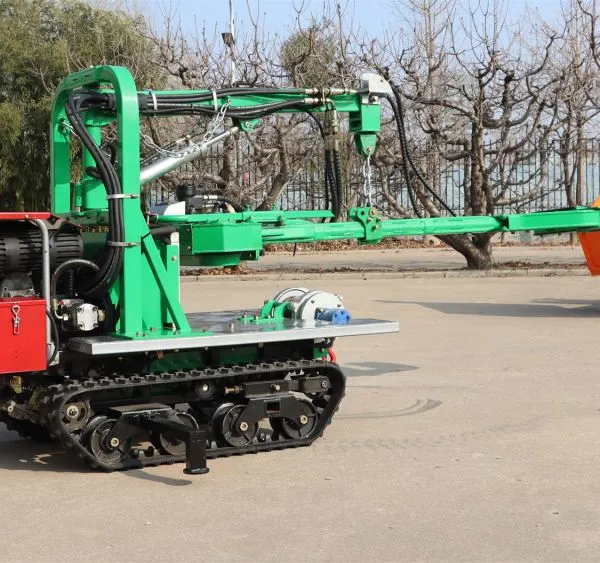

Help CenterSelf Propelled Type Crawler Walnut Harvesting Machine
Related Products
-
Tractor Mounted Pecan Tree Shaker MachineUS$ 4900 - 5500MOQ: 4 Sets -
Tractor Mounted Olive Shaker Harvester MachineUS$ 4900 - 5500MOQ: 6 Sets
-
Tractor Mounted Nut Tree Shaker Harvester MachineUS$ 4900 - 5500MOQ: 6 Sets
-
Crawler Self Propelled Walnut Tree Harvester MachineUS$ 5500 - 6500MOQ: 3 Sets
-
Self Propelled Hydraulic Vibrating Jujube HarvesterUS$ 6500 - 6900MOQ: 4 Sets
Crawler type walnut tree shaking harvester machine
Suitable Engine: gas engine 13HP and gas engine 22HP
Suitable tree diameter: less than 150 / 200 mm
Drive system: from gas engine drive the hydraulic motor
Walking system gearbox: 3+1*2 high and low
Suitable for fruit trees: nut trees such as green root fruit, walnut, date palm, olive fruit, chestnut, pistachio or ginkgo.
Model 4YGZ-21
Engine power Gas engine 13HP / 2 cylinder gas engine 22HP
Structural style Crawler type self propelled
Overall size 3450*1000/800*2100mm
Net weight 1050 KG
Fruit tree max diameter ≤ 150/200 mm
Clamp amplitude ≤ 2 cm
Pliers vibration frequency 8-12 Hz
Main hydraulic motor China famous brand
Work time ≤ 10s/time
Vibrating motor From USA brand
Gearbox 3+1*2
Operation way Hydraulic control lever + Solenoid valve
Terrain adaptation Mountains, hills, plains, etc
Suitable fruit trees Nuts such as dried red dates, ginkgo, green fruits and walnuts
Self-propelled olive vibrating picker main picture
Self propelled hydraulic vibrating jujube harvester main picture
Crawler pecan vibrating picker main picture

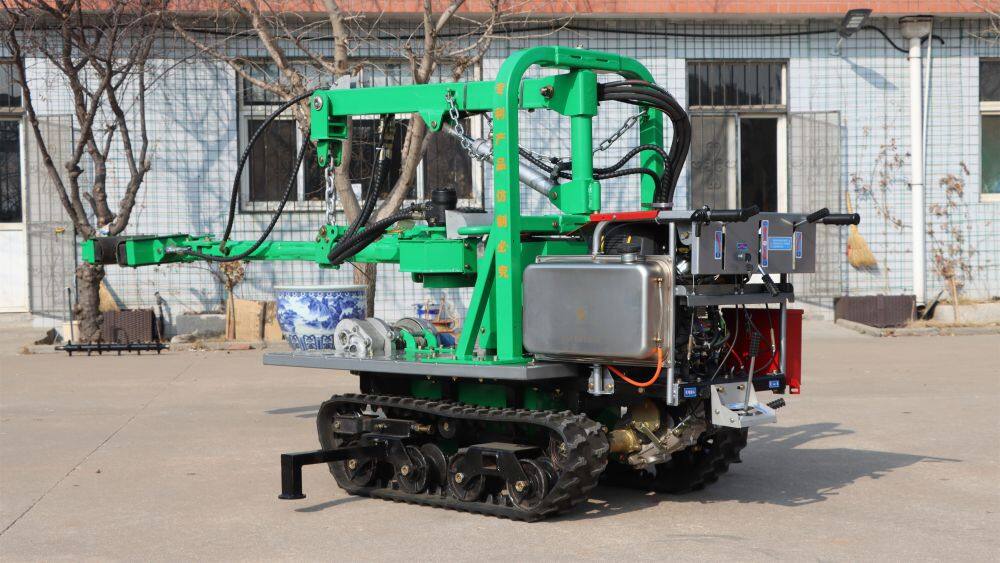

Crawler self propelled walnut tree harvester main picture
Crawler Type Self Propelled Walnut Shaker Picking Machine main picture
Mini Crawler Type Gas Engine Olive Tree Shaker main picture
Rubber Tracks Gas Engine Pecan Tree Picking Machine main picture
Crawler Type Shaker Harvesting Machine main picture
