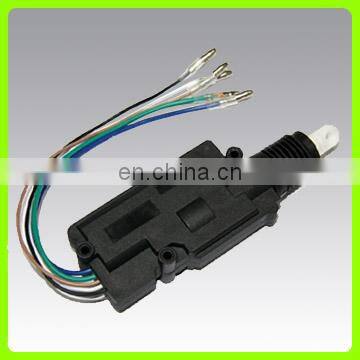

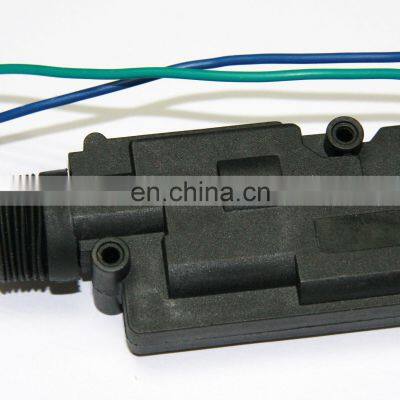

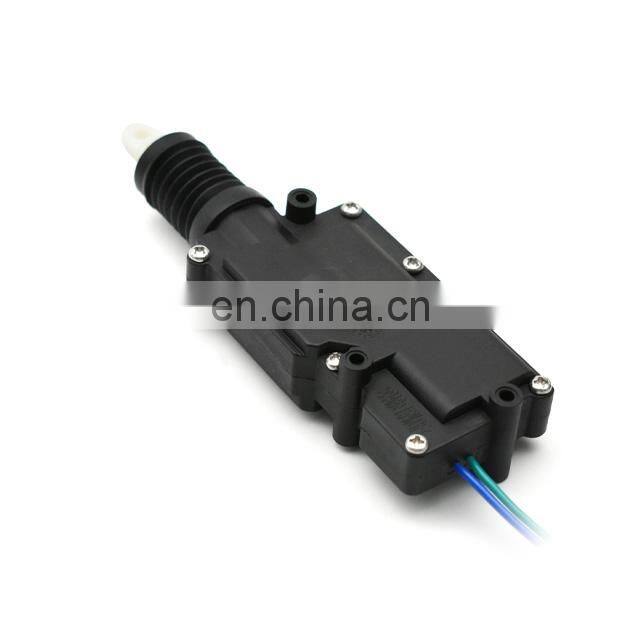

Clutch type automotive door lock actuator
Operating voltage: 9~15VDC
Output force: >60N 12VDC
Operating cerrent <2.5A, stall current < 5A
Strock: 20mm
Voltage retention time (12V): 250ms<Tp<350ms
Stall current < 5A
Durability: >30,000 cycyles
IPX3
Key features:
| 1.Square locking actuator |
| 2.Vehicle: Square Actuator |
|
3.Location: right side |
| 4.Application: Power |
| 5.Type: OE replacement |
| 6. Warranty: 1 year |
| 7.Sample available |
| 8. Can make your logo on the product |
Technical Data:
1. PUSH/PULL FORCE ≥4.5kg
2. Voltage DC12V
3. Operate life ≥50,000times
4. Current without load 150mA
5. Short current <4.5A
6. Operating distance/stroke 20.00±1mm
7. Active time(ON/OFF) 0.2S-0.3S
8. Continuous action Power-on 200ms, stop 7.5s per cycle
9. Operate temperature -40 to +80 degrees Celsius
10. Operating humidity 45%≤ ; ≤75%
Packaging:
QTY: 100pcs/CTN
G.W: 15 kg
Meas: 49×33×18CM
Shipping:
Guarantee & Customized:
1.Quality Guarantee.All item enjoy 1~5 years warranty from the date of shipped on board;
2.Problem Solving.If there is any problem with our products (no-human damage) , a bran-new one can be replaced in the new order .
3.ODM & OEM service provided.We are the manufacturer of vehicle electronic products for 15 years with strongly developing ability.
Founded in 2001, Promata is an ISO 9001/TS16949 certified factory occupied 20,000 square meters.
Our cooperation partner: Schrader, Steelmate, Audiowell, Toyota (Indonesia), Great wall Motor, Changan Automobile, Dongfeng Motor, etc..We work together with our partners to create value for consumers.
