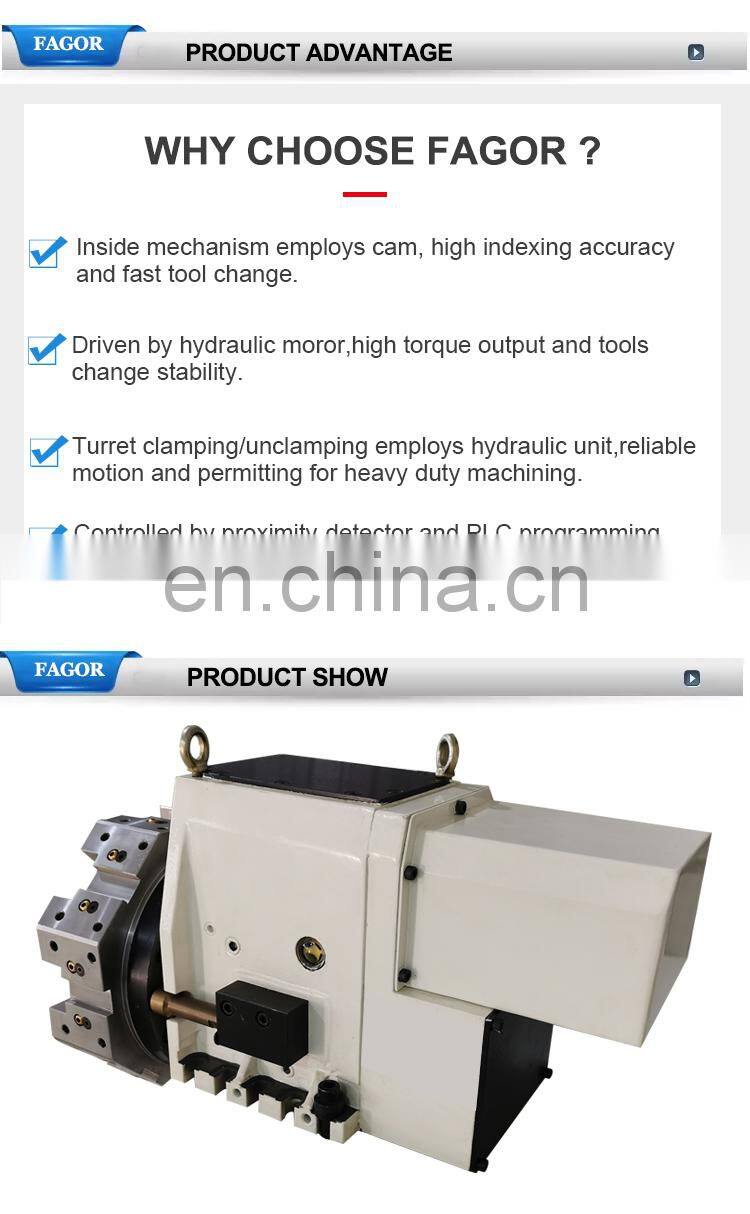

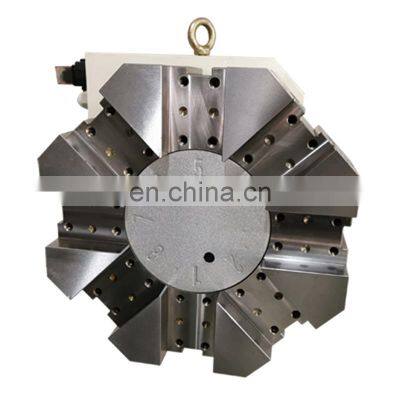

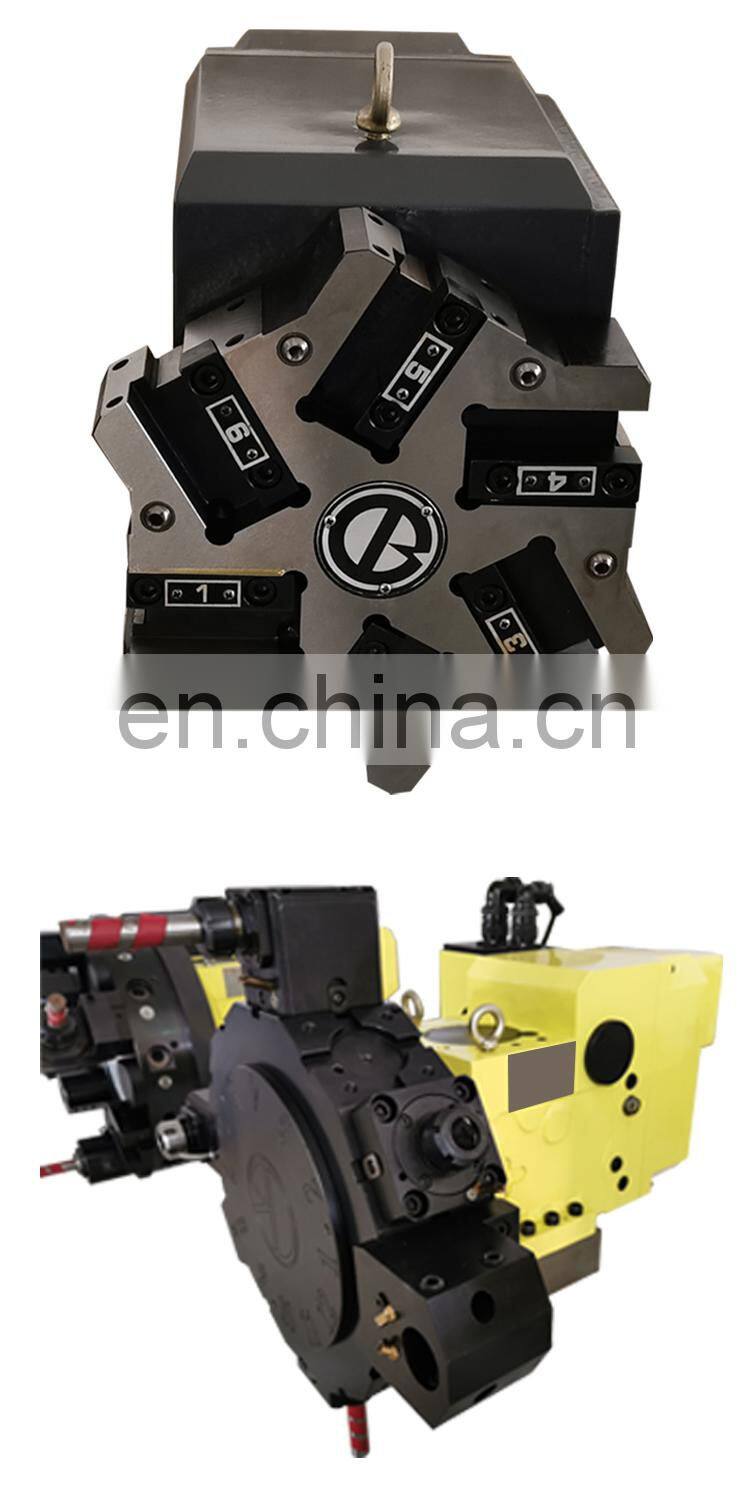

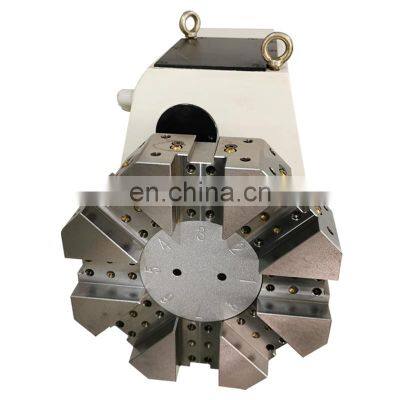

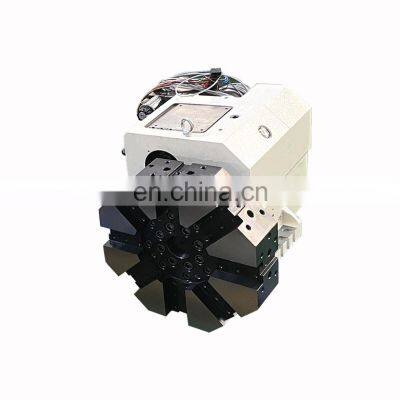

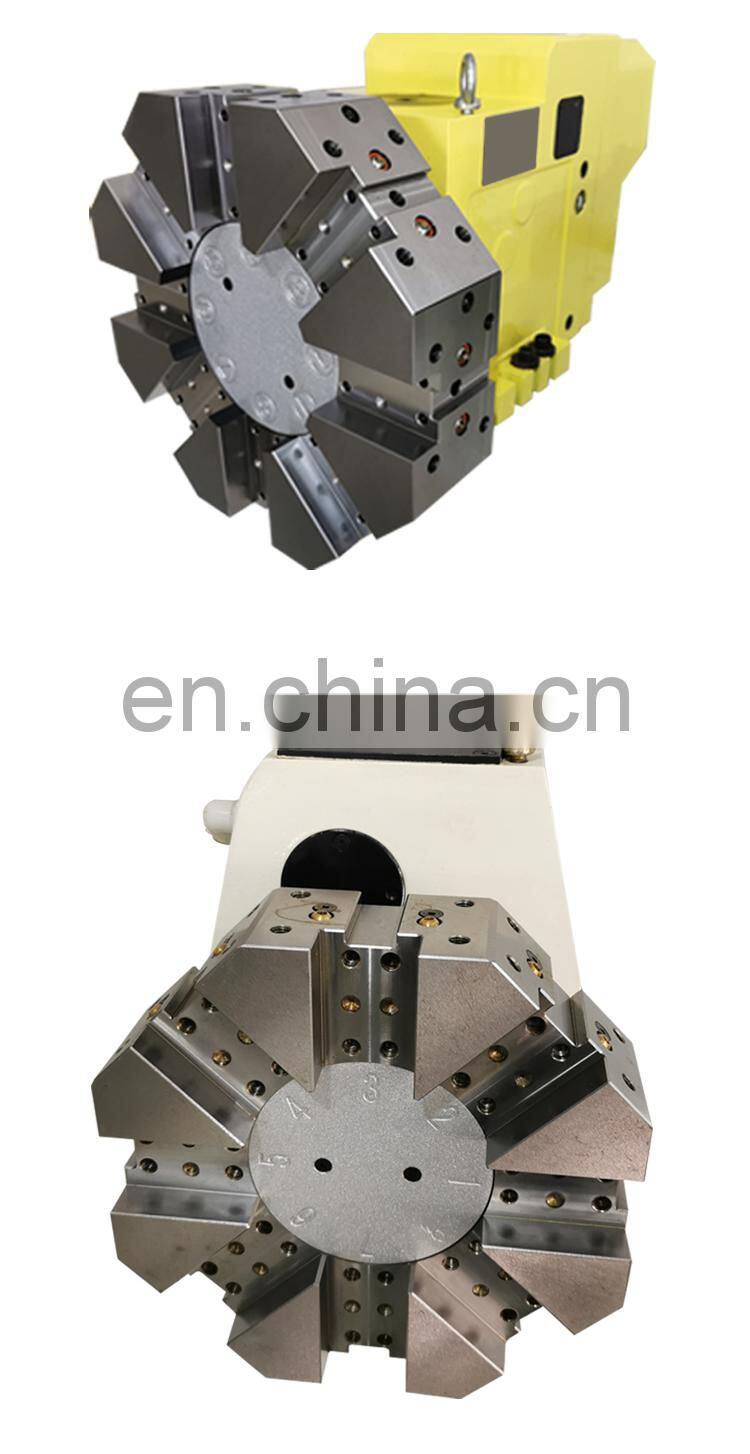

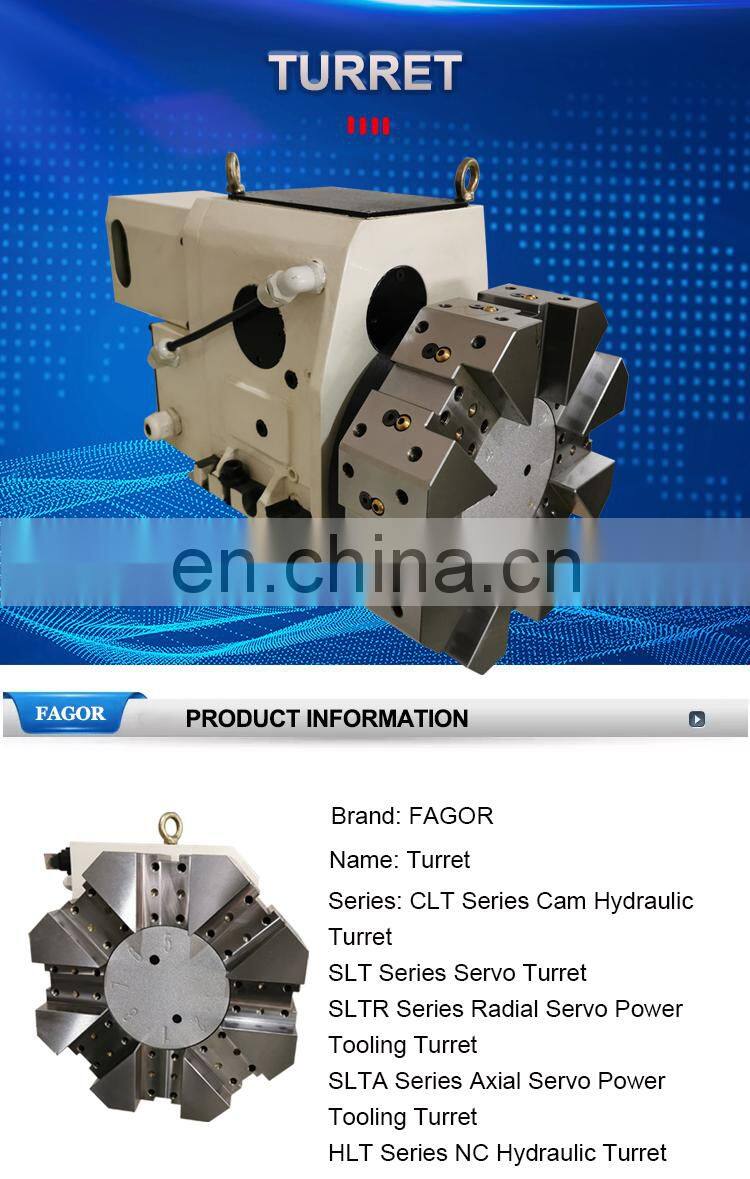

CLT Series Hydraulic Turret Dual Direction Quick Change Tool Turret 6 8 Position

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Item	Unit	Parameter
Model		CLT63/80/80A/100A
Center height	mm	63/80/80/100
Allowed number of tools	N	8;12
Time for 45° ratation	sec.	0.35/0.35/0.4/0.65
Time for 45° clamping	sec.	0.45/0.45/0.5/0.8
Time for 180° ratation	sec.	1.5/1.5/1.7/1.8
Time for 180° clamping	sec.	1.6/1.6/1.8/1.95
Repeatability accuracy	mm	±1.6"
Indexing accuracy		±4"
Working pressure	MPa	3.5
Working flow rate	L/min	18/22/25/30
Max unbalance moment of torque	Nm	15/20/25/50
Max tangential moment of torque	Nm	1500/2000/2500/3500
Max axial moment of torque	Nm	1500/2000/2500/3500
Net weight (Without tool disc)	Kg	35/43/65/100

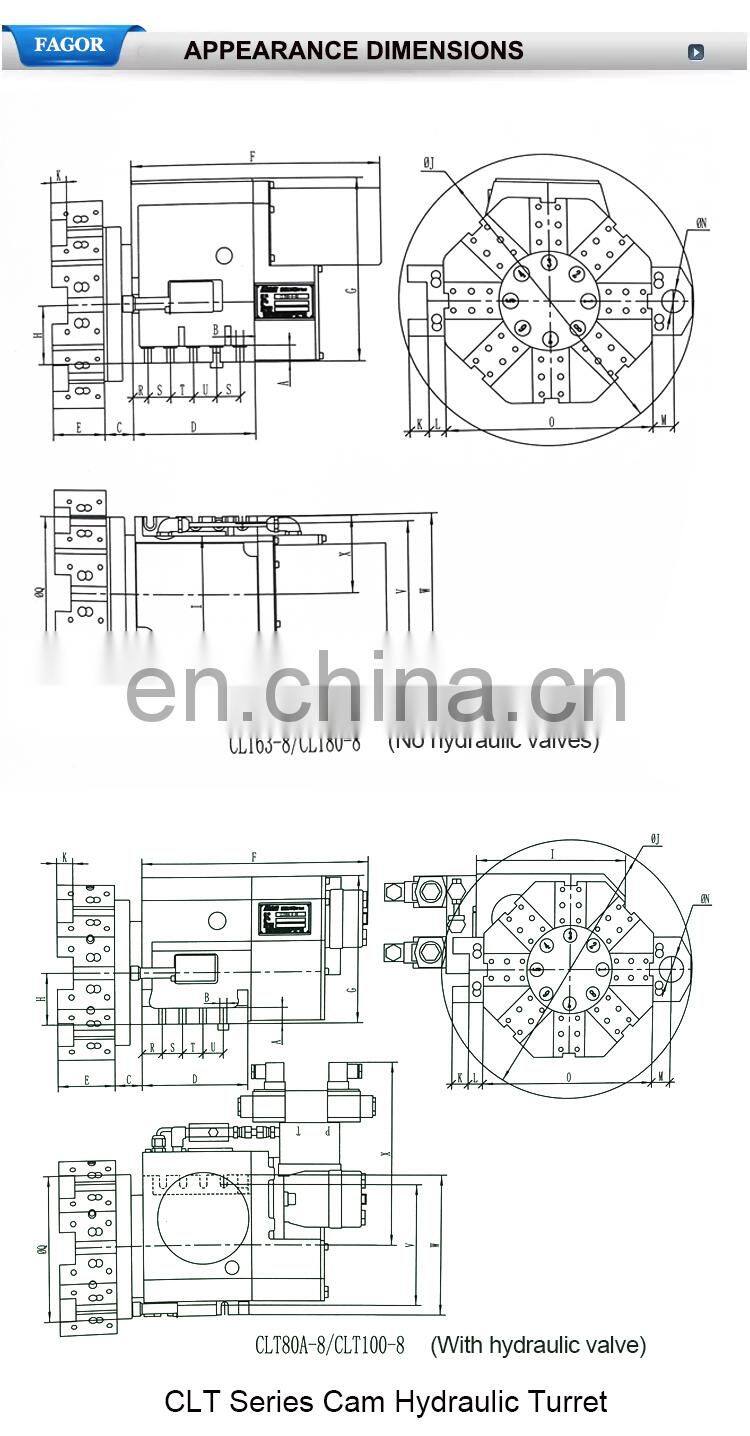

Model	Dimension
	H	A	B	C	D	E	F	G	I
CLT63-8	63	18	11	36	155	65	326	228	146
CLT80-8	80	22	11	42	170	80	339	245	158
CLT80A-8	80	25	11	43	166	90	349	227	235
CLT100-8	100	30	13	43	175	90	370	293	272
	J	K	L	M	N	O	Q	R	S
CLT63-8	324	20	20	30	25	228	196	19.5	30
CLT80-8	398	25	22	30	32	280	208	22	32
CLT80A-8	398	25	22	30	40	270	225	32	32
CLT100-8	456	25	22	30	40	330	250	34	40
	T	U	V	W	X
CLT63-8	30	30	165	185	99
CLT80-8	32	32	190	210	106
CLT80A-8	32	32	190	220	286
CLT100-8	30	30	220	250	307

Company Profile

Wuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation

FAQ

Q: How long is the quality guarantee?
A: One year guarantee.

Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.

Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.

Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.

Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
