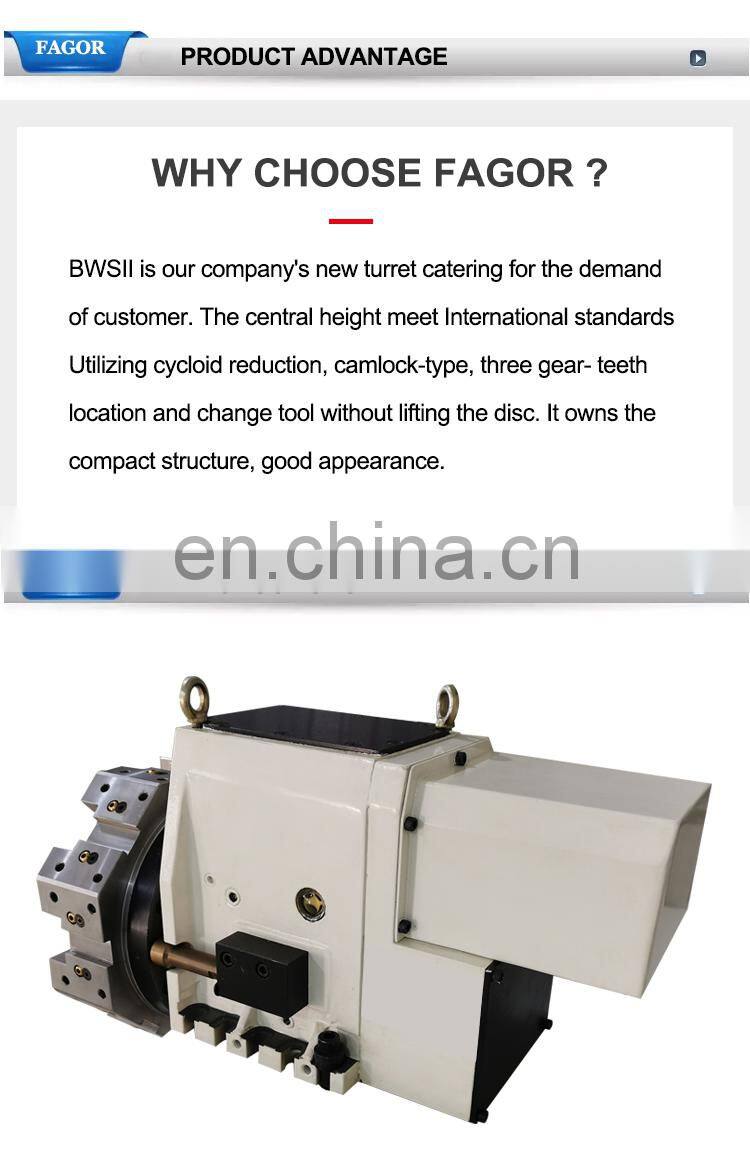

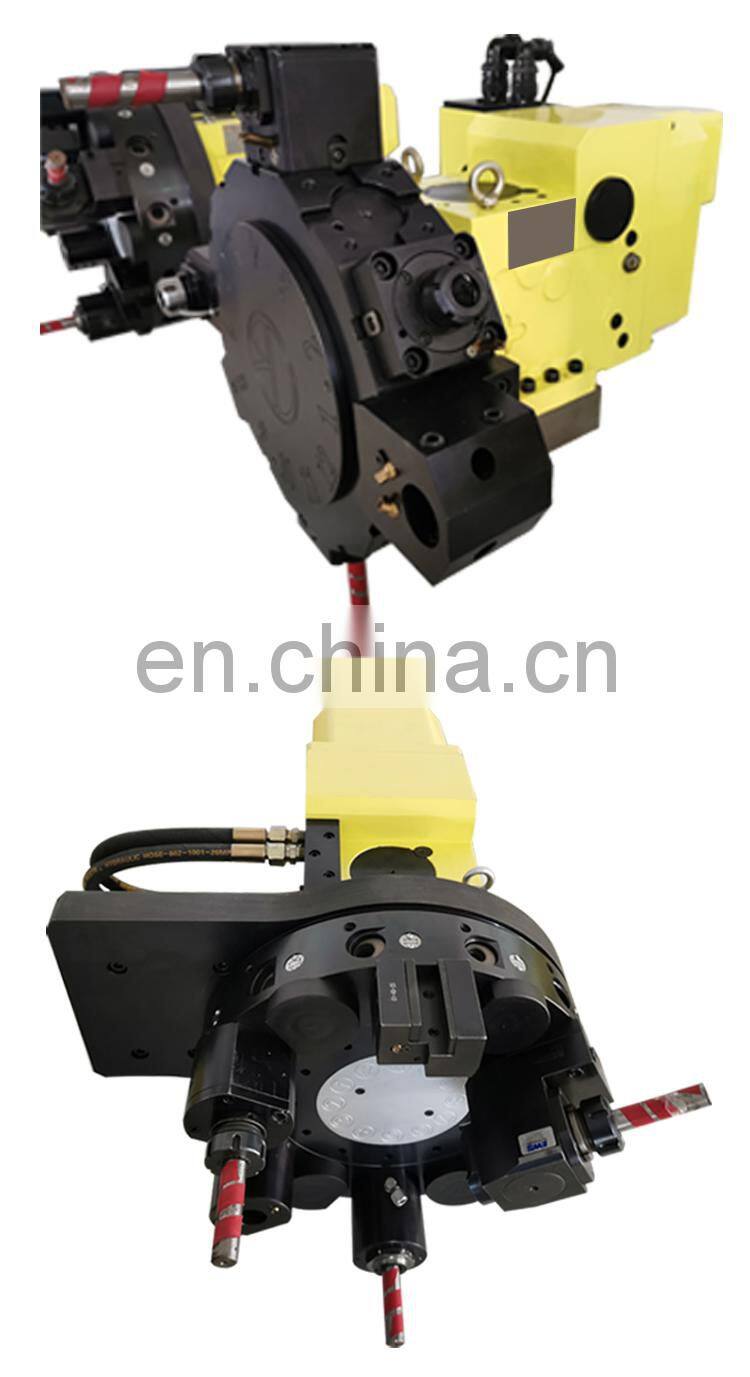

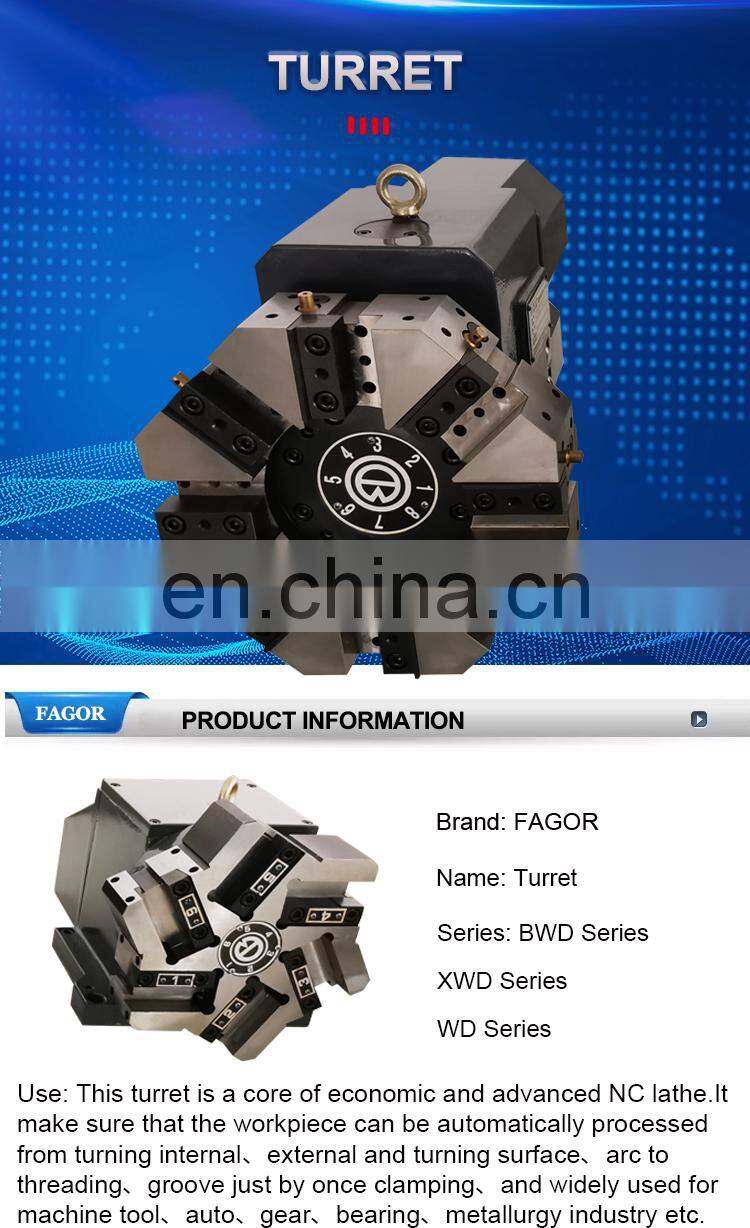

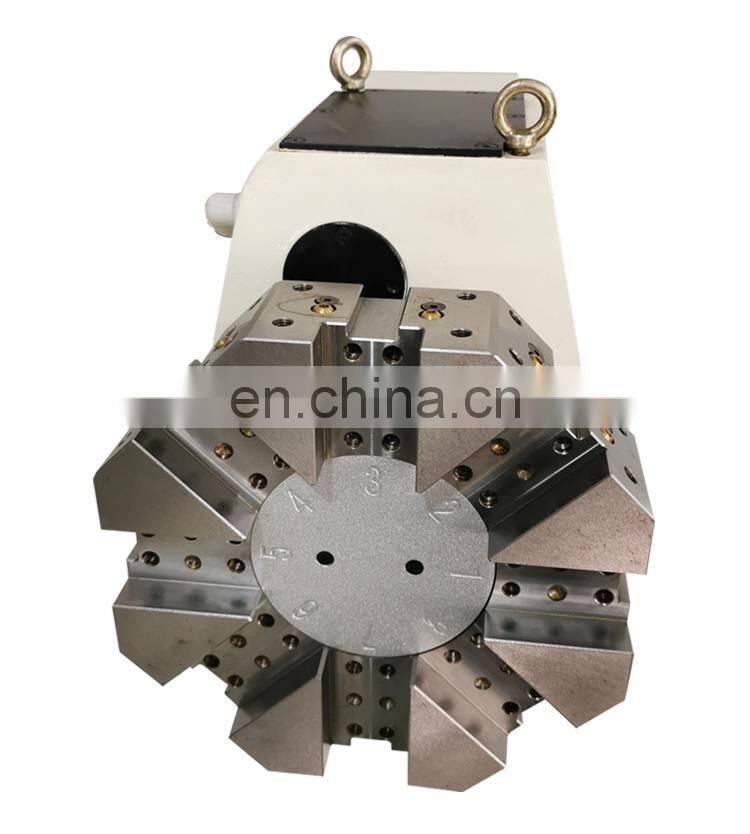

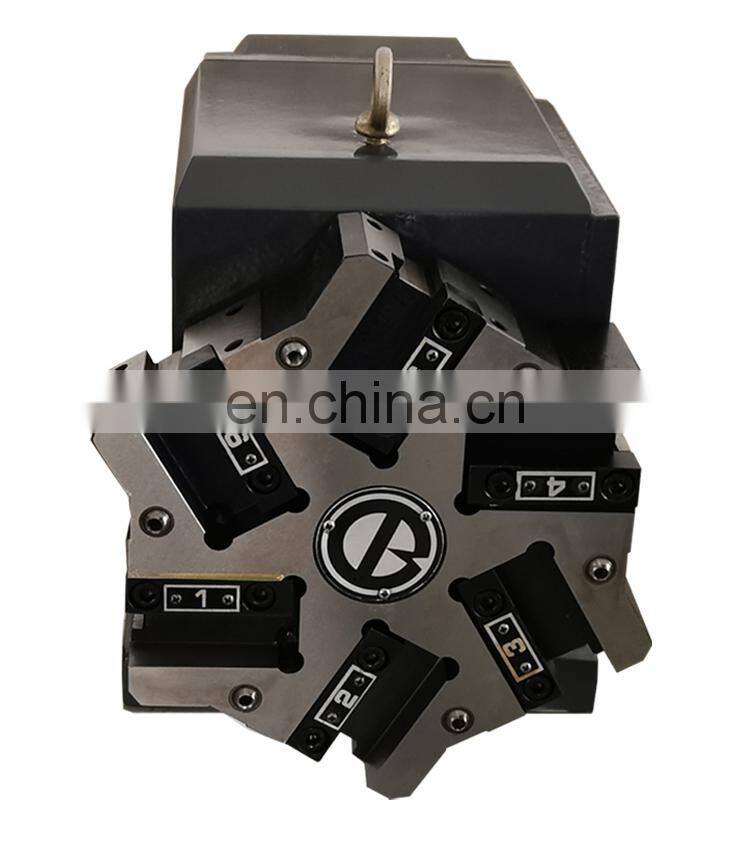

BWD Series Quick Change 6 8 Stations Tool Holder Turret for Cnc Lathe BWD63-6 Electric Turret

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Item			PARAMETER
Center height	mm	63/80/100
Allowed number of tools	N	6;8
Time for 45°ratation and clamping	sec.	1.8/1.8/2.1
Time for 180°ratation and clamping	sec.	2.9/2.9/3.2
Max tangential torque	KNm	0.7/1.5/3.0
Max axial torque	KNm	0.8/1.6/3.5
The max bias torque	Nm	10/12/25
Repeatability accuracy	mm	≤0.005
Indexing accuracy		±7"
Motor power	W	90/140/140
Motor speed	r/min	900/1400/1400
Net weight (Without tool disc)	Kg	35/50/80

FAQ

Q: How long is the quality guarantee?

A: One year guarantee.

Q: How long is the delivery time?

A: Generally it is 3-7 days. If the goods are in stock. If the goods are not in stock, it will take 8-20 days.

Q: Do your products have a factory inspection before shipment?

A: 100% self-inspection before shipment.

Q: Can you provide some free samples?

A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q: What kind of packing do you send?

A: We use high quality cartons, internal environmental protection buffer material.

Q: What is our loading port?

A: Usually in Shanghai port, or apply for other ports.
