433MHZ Digital electric roller door motor remote control Rolling shutter controller Garage door remote control receiver

Wireless remote control shutter controller

Product model: FBD-JLM-888

Product Name: Wireless remote control shutter controller

 First, the scope of application
   Mainly in various electric shutter door / window motor remote control, garage door, remote door lock, rolling door motor, industrial control and wireless burglar alarm

 Second, the functional characteristics

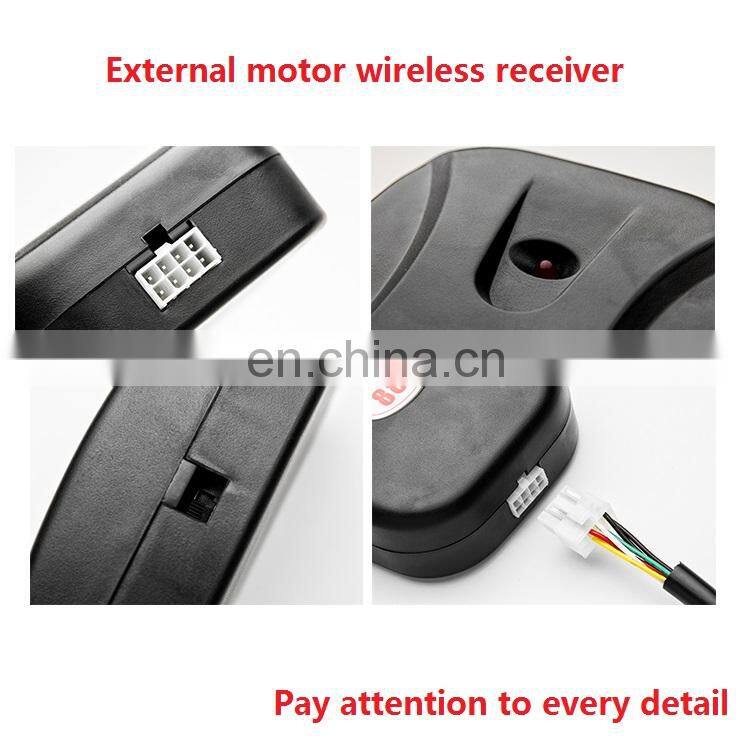

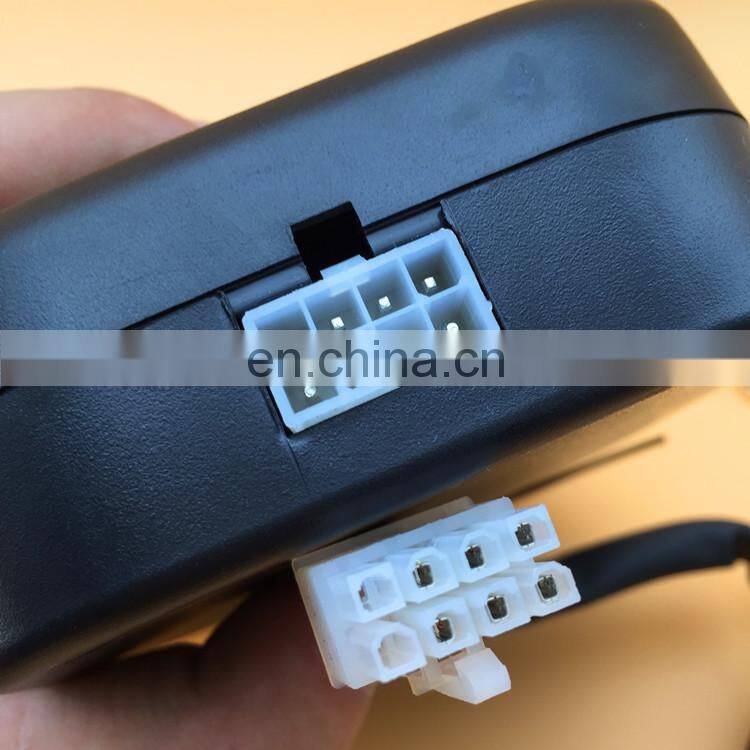

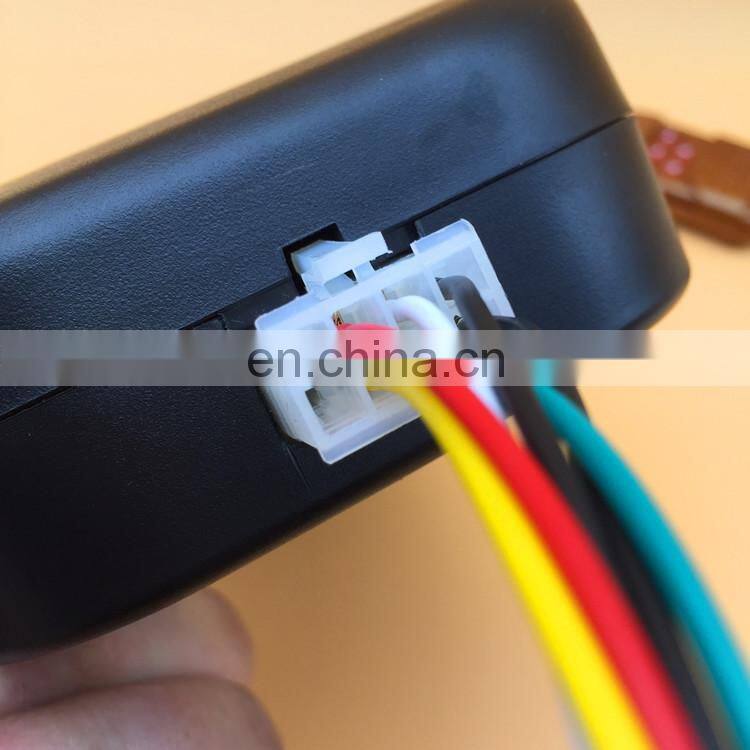

    There is a direct docking interface with the rolling door motor, which can be manually controlled and remotely controlled; fixed code remote control; the remote control is very convenient, self-supporting various common welding code remote control, dialing remote control and copying remote control (Leave the trouble of coding support).

Third, ancillary products

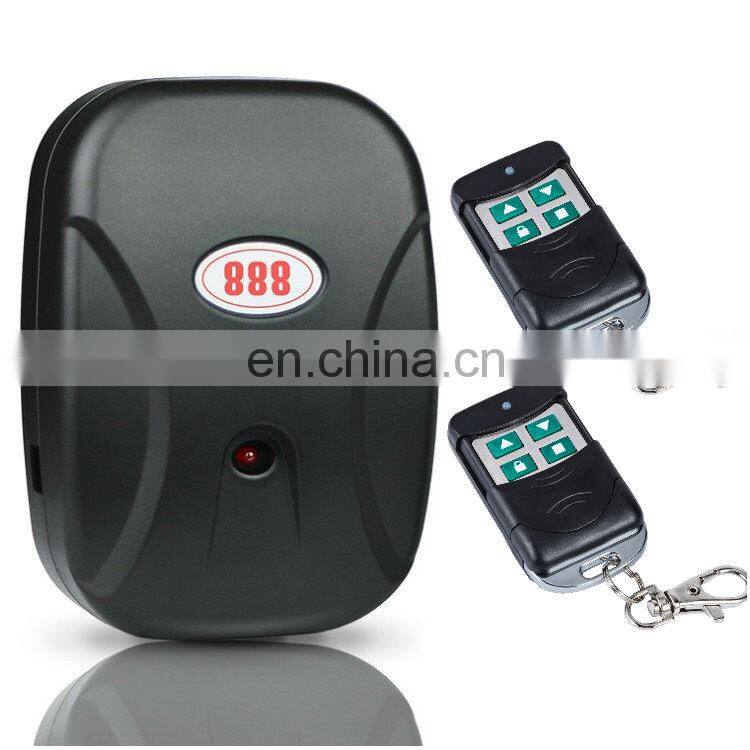

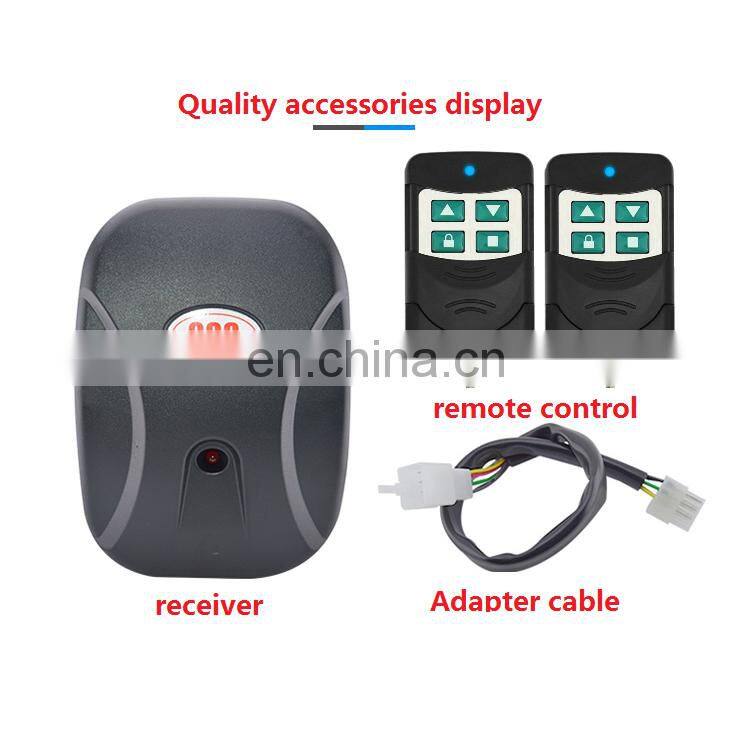

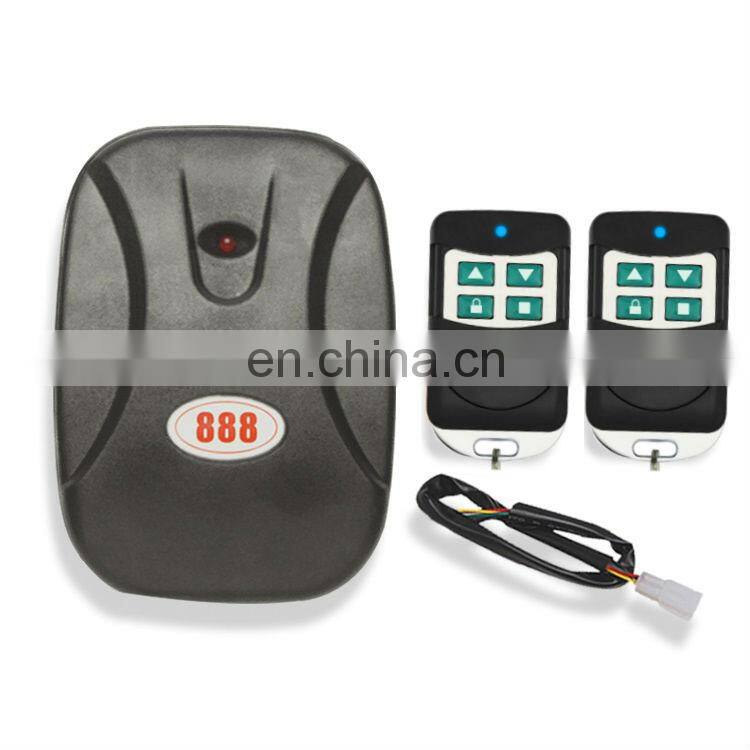

A white packaging carton, a rolling door controller, and a four-button remote control with a gold-plated wooden push-up cover.

Fourth, the operating instructions:

    The control motor is an AC single-phase motor; after the controller is powered on, the motor does not move; press the manual control up arrow connected to the motor (or the up arrow of the remote control), the motor rotates forward (goes to close the door); press and the motor Connected manual stop arrow (or remote control stop button), motor stops (stop operation); press the manual down arrow connected to the motor (or remote control down button), motor reverse (open door operation) Press the remote control lock button to lock the motor, the other function keys of the remote control will be invalid, the motor will not be able to control the operation, press the stop button to unlock; when opening or closing the door, if you want to change the direction (ie open the door Closing the door and closing the door into a switch) can be switched by a toggle switch on the controller.

Remote control set description:

  The remote control adopts fixed code 2264 chip coding, the signal is stable, never lost code, there are more than 5,000 sets of different address codes, and the coded signal sent by the code chip PT2262 consists of: address code, data code and synchronization code to form a complete code word. The control receiver decoder chip 2272 receives the perfect match of the signal.

 V. Technical parameters
Receiving control box
1, Volume: 102 X 80 X 35mm
2, Weight: 217g
3, the use of temperature: -10-70 degrees
4, working voltage: AC220
5, working frequency: 315MHz, 433.92 MHz (other frequencies are optional)
6, receiving mode: super regeneration (or super heterodyne)
7, contact current: 220V 10A
launcher
1. Volume: 58*38*13mm
2. Weight: 31g
3, the use of temperature: -10-70 degrees
4, working voltage: 12V
5, working frequency: 315MHz, 433.92 MHz (other frequencies are optional)
6, remote control distance: 50 meters or more
