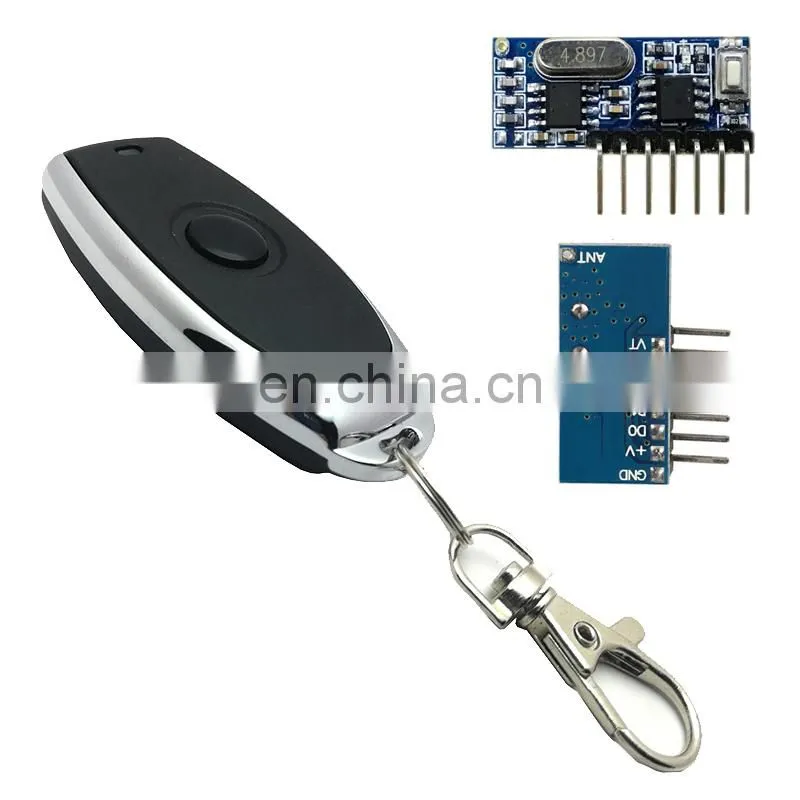

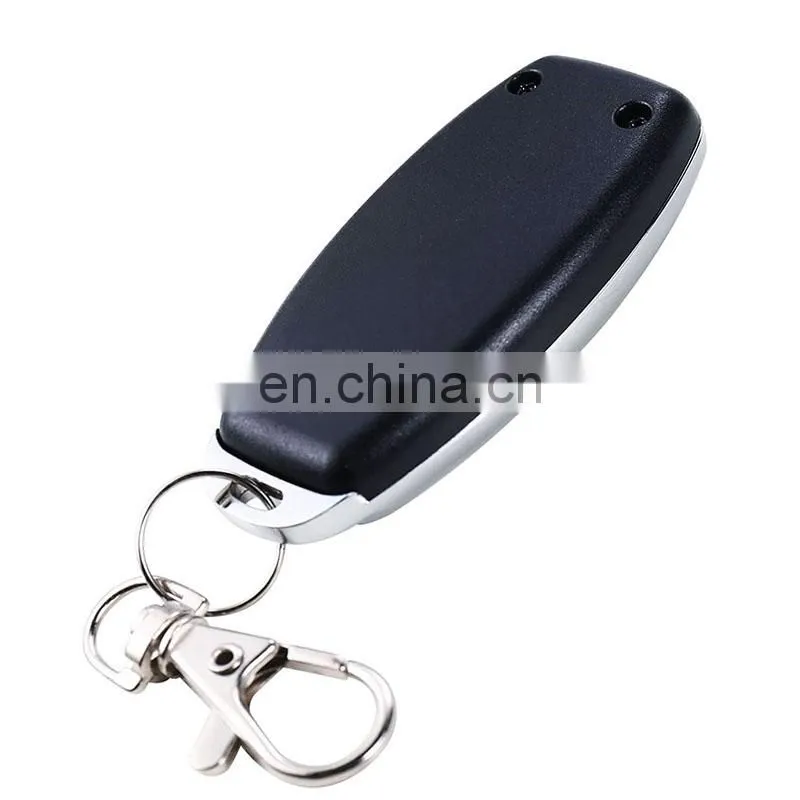

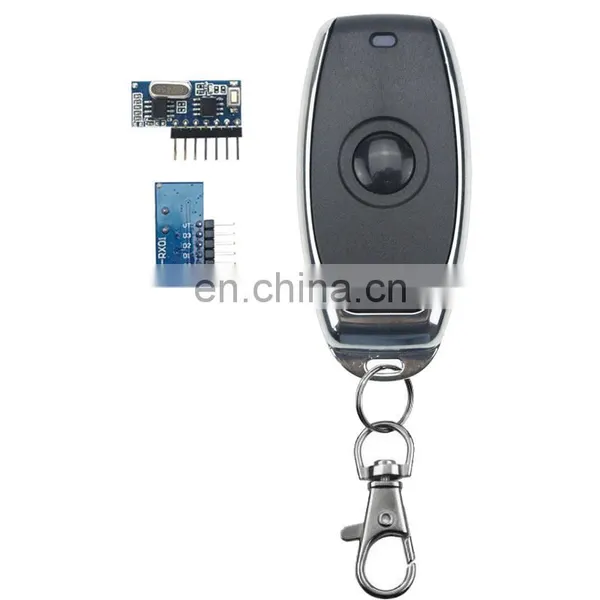

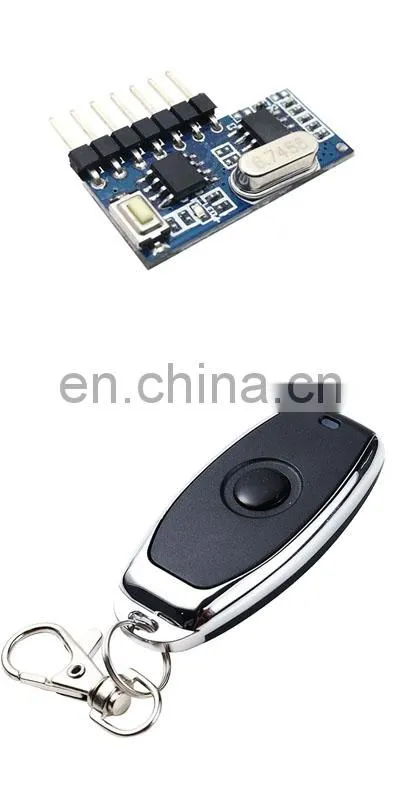

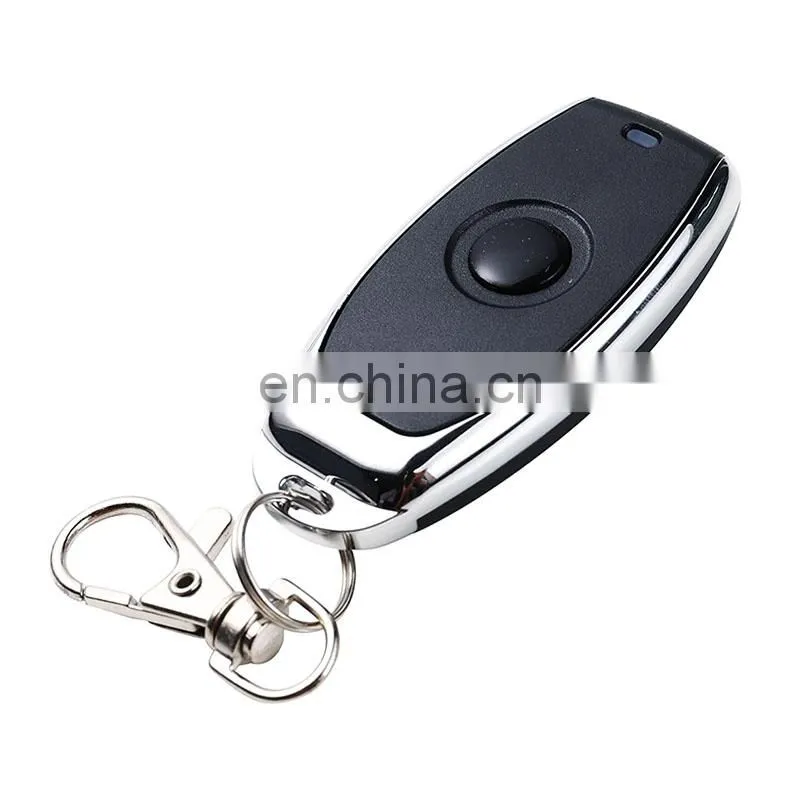

1 button only remote controller for gates Rf transceiver module Receiver rf module
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fixed code wireless remote control 4 buttons 433MHZ plus 4 channel control module
-
Rf receiver module Rf 3 channel remote control module 433 mhz remote control with receiver
-
HCS301 rolling code3 button remote control + rf receiver 433mhz rf module Remote control with receiver
-
3 channel remote control receiver Rf module 433mhz Car remote control Control remote
-
RF 433mhz Rf modulator 4 channel Rf module with remote Remote control module
-
433mhz Remote + receiver Module transmitter and module receiver Rf remote control module kit
Product Description
Related Products
Product Description
Product Description
Product Name | FBD-JX04KB-433IK |
Transmission distance： | 100 meters(Open space) |
Chip and Operating mode： | Fixed code (2260,2262 2264 etc) |
size： | 61*29*13mm |
Product performance description
产品性能介绍说明
There are a variety of chip models to choose from:
1. Fixed code: PT2262/2264; SC2260;
2. Learning code: ev1527; pt2240; HS2240; HS527;
3. Rolling code: HCS301
Product Brand: FBD
Product model: FBD-XX01 series
Working frequency: 315MHz/433MHz and other frequencies are optional
Frequency deviation: ±150KHz
Working voltage: DC6V (3V button battery *2) Transmitting power: ≥10mW
Launch distance: ≥50m
Transmission rate: 300hz---60khz
Description of product use effect

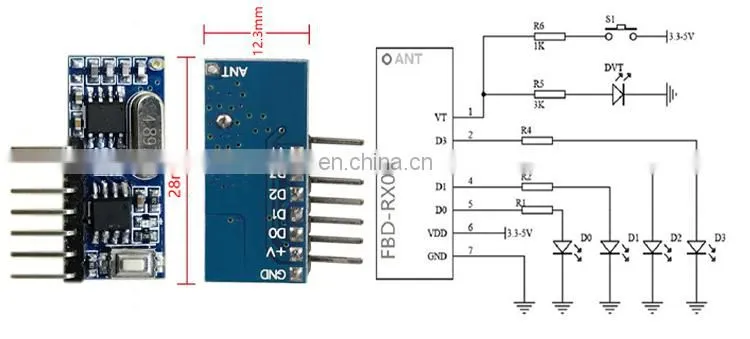

Product parameters
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
1. Working voltage: DC2.5V-5V
2. Working current: 3.7mA
3. Sensitivity: -108DBM
4. Rate: MAX 10 KB/S
5. Working mode: jog, self-locking, interlocking (freely convertible)
6. Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
7. Receiver module can store remote control: 16
8. Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
Product Usage
Product usage introduction
1, clear function - press the learning button (not let go) "KEY" 5 seconds, after the LED indicator goes out, let go, wait until
the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The
clear function is complete.
2, the code function - press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor
enters the learning pair code state, press the matching wireless remote control button, the LED indicator flashes 3 After the
second time, the code is successful. (The learning button is clicked once for the jog mode; press 2 times for the self-locking
mode; press 3 times for the interlock mode; press 4 times: 1, 2 for jog, 3, 4 for self-locking; for 5 times: 1 2, jog, 3, 4
interlock; press 6 times: 1, 2 self-locking, 3, 4 interlock; press 7; 1, 2 interlock, 3, 4 interlock.) The wireless remote control
switch can store 16 different remote controls and can set different working modes. (This is a one-key pair code, the program will
automatically assign the data bits)
3. Pair code test - After the code is successful, when the remote control button is pressed, the corresponding D0, D1, D2, D3
output is high level.
the LED indicator flashes 3 times and then go out, start to clear all the remote control code data in the memory, it means The
clear function is complete.
2, the code function - press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor
enters the learning pair code state, press the matching wireless remote control button, the LED indicator flashes 3 After the
second time, the code is successful. (The learning button is clicked once for the jog mode; press 2 times for the self-locking
mode; press 3 times for the interlock mode; press 4 times: 1, 2 for jog, 3, 4 for self-locking; for 5 times: 1 2, jog, 3, 4
interlock; press 6 times: 1, 2 self-locking, 3, 4 interlock; press 7; 1, 2 interlock, 3, 4 interlock.) The wireless remote control
switch can store 16 different remote controls and can set different working modes. (This is a one-key pair code, the program will
automatically assign the data bits)
3. Pair code test - After the code is successful, when the remote control button is pressed, the corresponding D0, D1, D2, D3
output is high level.
Details Images
The company undertakes customized development, quality assurance, and low price

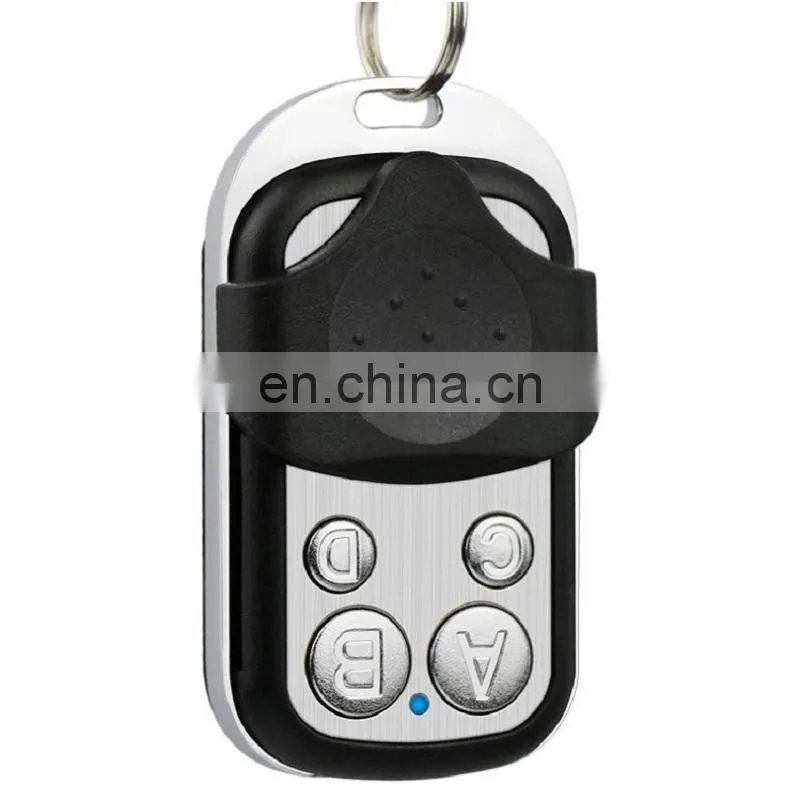

A B C D 4-button remote

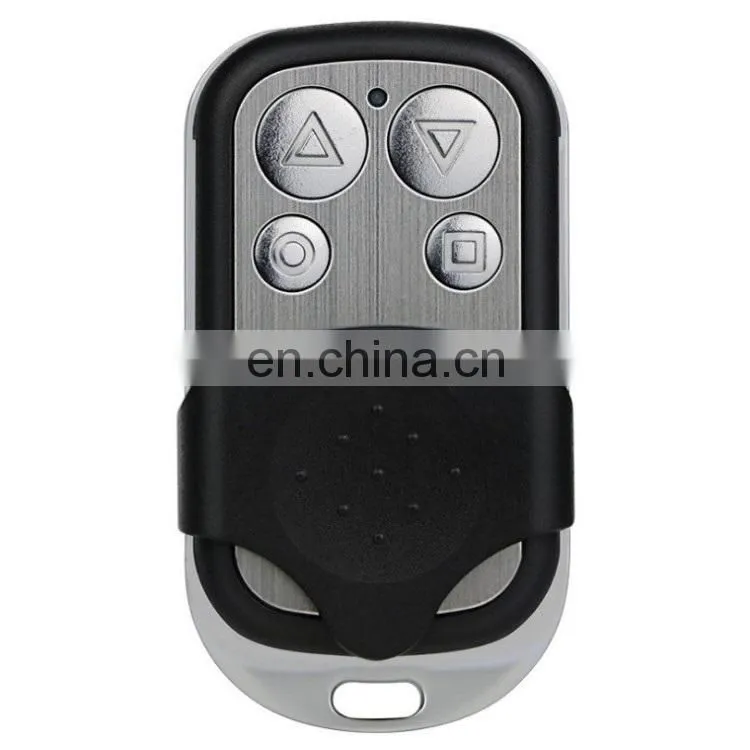

Up Down Stop Lock 4-button remote

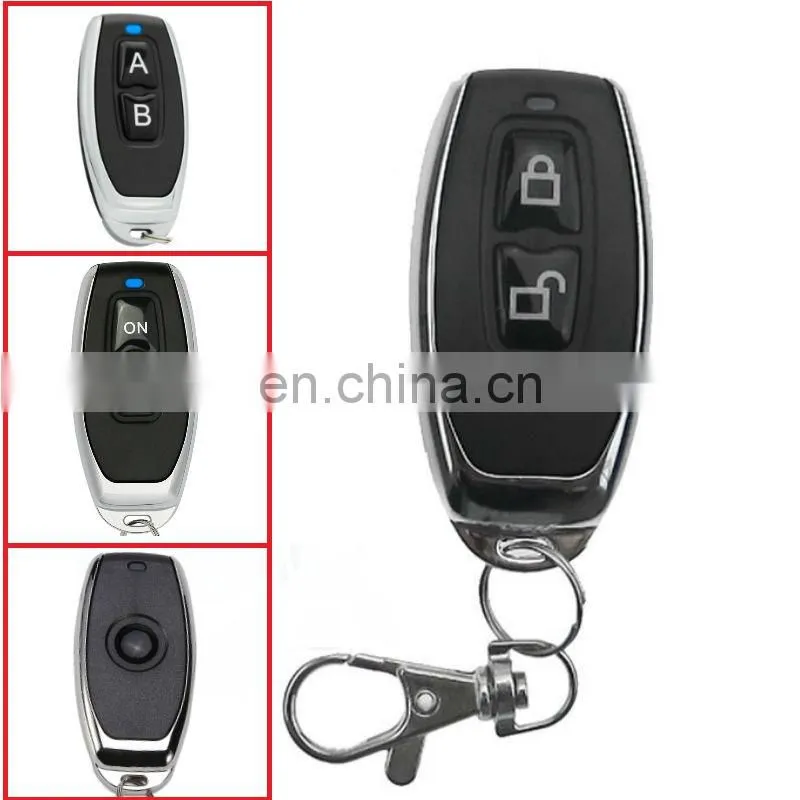

Lock unlock symbol 4-button remote
Packing&Shipping
Single PE bag or white box packaging is optional, default bag, please contact customer service if you have any requirements!
Company Introduction
Founded in 2013, Shenzhen Fengbaode Electronic Technology Development Co., Ltd. is located in Shenzhen, Guangdong Province, the largest raw material processing and production center for digital electronic products. It is a professional wireless remote control, intelligent remote control project, wireless RF remote control transmitter receiving wireless The control solution solves the development of electronic software and hardware and production and processing enterprises. Main intelligent remote control project, 315 433MHZ anti-theft alarm remote control, battery car motorcycle anti-theft remote control transmitter, electric door garage door retractable door remote control LED lamp kilometer high power remote control, wireless transceiver module 2.4G Bluetooth remote control, car control Circuit board controller remote control switch VR remote control VR helmet glasses, etc.,the variety is complete, the price is fair, the company's complete scientific quality management system, product quality has been recognized by the industry. The company has a strong focus on keeping promises, complying with contracts to ensure product quality, and featuring diversified product management. Variety of models, complete models, and the principle of small profits but quick turnover to win the support of the new and old customers.
Our Services & Strength
1: We have our own factory, production line, SMT and plug-in, automatic screwdriver machine, etc. and R&D department
2: We have customized many items for customers
3: Silk screen LOGO can be customized according to customer requirements
FAQ
Q: What is your MOQ?
A :Our MOQ is 100pcs.The more quantity you order ,our material cost will be less, the price we offer to you will better.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation.
Q: Can you supply sample for customer?
A:We can supply sample for customer's quality checking before placing new order to us, the delivery cost will be charged on customer's account.
Q:Can you customize for customers?
A: Yes,we can customize according to customers'requirements.
Q: How about your delivery date?
A:Normally our delivery date is about 7-20days after the payment received.
Q:How about the quality of your products?
A:We use best quality (original) components to ensure our product in high level. All products we sold out are strictly tested by our QC department.
Q:Can I visit your factory? A:Yes,welcome to our company.
Q:How long do your products does?
A:120-200M
Q:Can I have your free sample?
A :Yes,but the CIF will be on you
