Remote for electric door switch Rf long distance transmitter module Rf modulator converter Module rf rx tx
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Remote control + receiver for projection screens or curtains Receiver rf module Rrf remote controller with receiver
-
Remote for automatic doors Wireless rf remote control Remote control Ceiling fans with led lights remote control
-
4 button 2260 fixed code remote control car batter Rf remote control Av modulator rf Modul rf booster Remote vibrator
-
433MHZ learning code4key remote control + RF receiving module
-
Rf transmitter and receiver module Rf 433mhz remote control micro transmitter module
-
433 MHz Peach Color Single Button Wireless Button RF Receiver Module Kit Remote Control with Receiver
Product Description
Product Description
Specification
Working voltage | DC12V(27A) |
Transmission distance | 100 meters(Open space) |
working frenquency | 433MHz and other for optional |
Chip and Operating mode | Fixed code, compatible with 2260/2262/2264 chips |
technical parameter:
*Size: 55*28*16mm
Voltage: DC12V (1 pc of 27A battery)
Working temperature: -30 degrees to 85 degrees
Working current: 10mA@12V
Transmitting frequency: 433MHZ (sound meter stable frequency, other frequencies are optional)
Transmission distance: 60-100m (open area, the sensitivity of the receiving device is minus 100dbm)
Encoder type: fixed code learning code optional (fixed code 2260 learning code 1527)Uses: motorcycles, car anti-theft products, home anti-theft products, LED controllers, short-distance wireless remote control products
Title goes here.

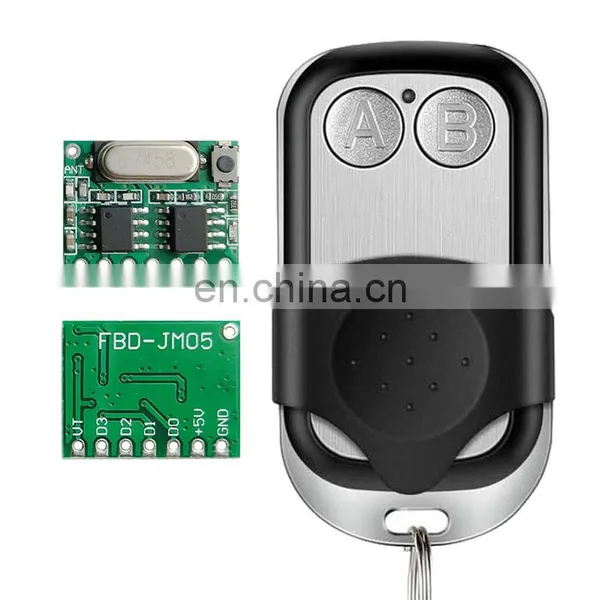

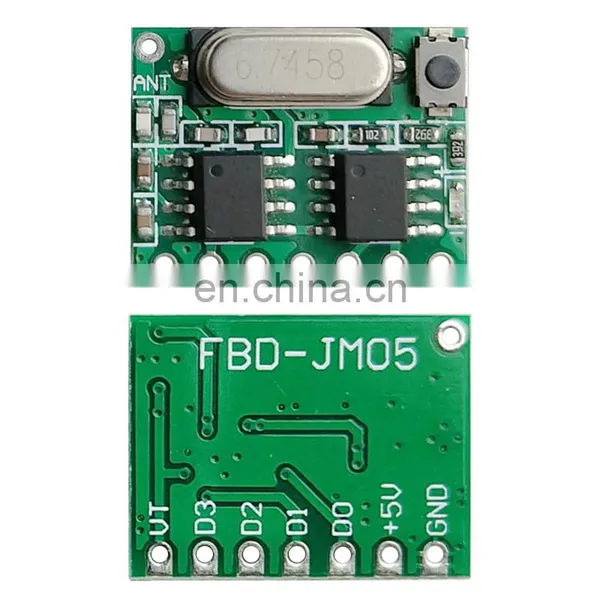

【Receiving Module】 On the right, it is a receiving module with decoding, eliminating the trouble of programming and decoding, output D0, D1, D2, D3, four high and low level signals, you can add a drive circuit to control the device. Can be connected to MCU
Working voltage: DC3.3~5V
Quiescent current: ≤5mA
Output current: 10 mA
Working frequency: 433MHz (others can be customized)
Receiving sensitivity: -112dB
Receiving distance: more than 50 meters
Frequency band: ±0.2MHz
Working temperature: -20~70℃

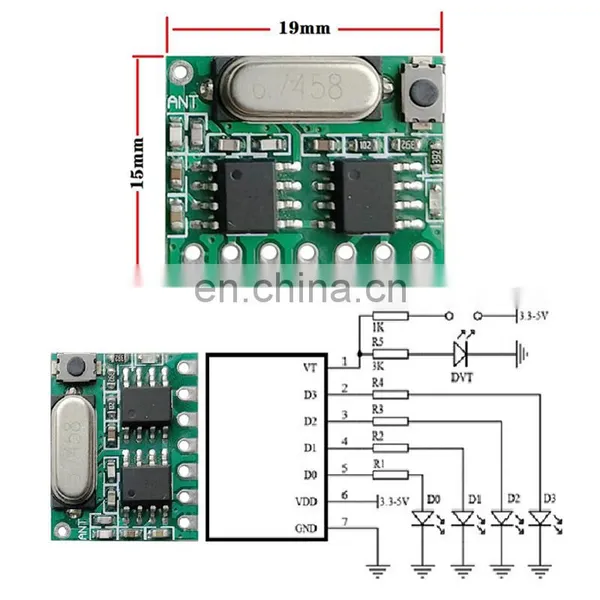

Output: D0/D1D/2D/D3, the 4-channel CMOS level signal corresponds to the ABCD 4 button of the remote control.
Clear and code matching: (Clear the code before switching modes)
1. Clear function-After pressing the learning button "KEY" 7 times, let go after the LED indicator turns off, wait until the LED indicator flashes 3 times and then turn off, and begin to clear all the remote control code data in the memory, it means that the clear function is completed.
2. Code matching function-press the learning button (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning and code matching state, press the matching wireless remote control button, the LED indicator flashes 3 If it turns off after the second time, it means that the code is successfully matched. (The learning button is pressed once to learn to pair the remote control as jog mode; twice to learn to pair the remote control is self-locking mode; press 3 times to learn to pair the remote control as interlock mode;) The wireless remote control switch can store 21 different remote controls , You need to clear the code again before changing the working mode. (This paragraph is one-key code matching, and the program will automatically allocate data bits)
3. Code matching test——After the code matching is successful, when you press the remote control button, the corresponding D0, D1, D2, and D3 output are high level.
Explanation of jog mode:
Press and hold the remote control button, the corresponding data pin will output high level, release the remote control button, the corresponding data pin will become low level
Self-locking mode explanation:
Press and hold the remote control button, the corresponding data pin outputs high level, release the remote control button, the corresponding data pin is still high level, press the same button on the remote control again, the corresponding data pin becomes low level (loop)
Explanation of interlock mode:
Press and hold the remote control button, the corresponding data pin outputs high level, release the remote control button, the corresponding data pin remains high, and then press the same button on the remote control, the corresponding data pin is still high, press another button on the remote control, Last time the corresponding data pin of the remote control changed to a low frequency, the data pin corresponding to the button this time outputs a high frequency (and so on)
Packing & Delivery
There are a variety of different styles of remote to choose from, suitable for garage door rolling shutter remote control / Zhitong home / light switch / electric motorcycle anti-theft device and other wireless remote control fields
Company Profile
FAQ
1. Could I order one piece for sample to test the quality?
A: Yes, You could order the sample before your order. We recommend to check the sample before order, to make sure you will get the
indeed product that you need.
2. What time can you deliver my order?
Samples in 5-7 working days, bulk order in 7-15 working days after payment.
3. What's your best price?
We make different models and different chip, please advise detailed parameters for goods that you need.
4. Do you have gurantee for my order?
Remote control and receiver gurantee for 1 year
A: Yes, You could order the sample before your order. We recommend to check the sample before order, to make sure you will get the
indeed product that you need.
2. What time can you deliver my order?
Samples in 5-7 working days, bulk order in 7-15 working days after payment.
3. What's your best price?
We make different models and different chip, please advise detailed parameters for goods that you need.
4. Do you have gurantee for my order?
Remote control and receiver gurantee for 1 year
