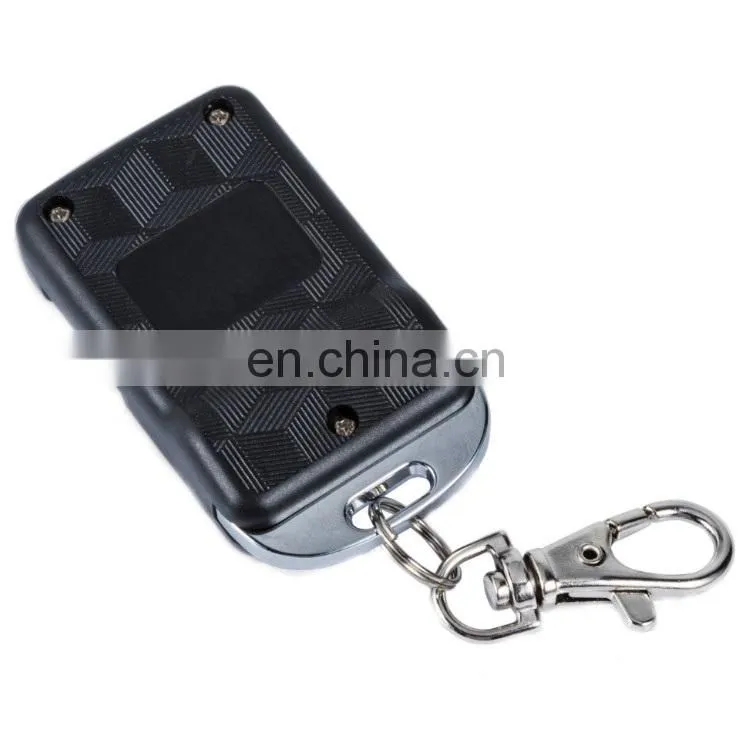

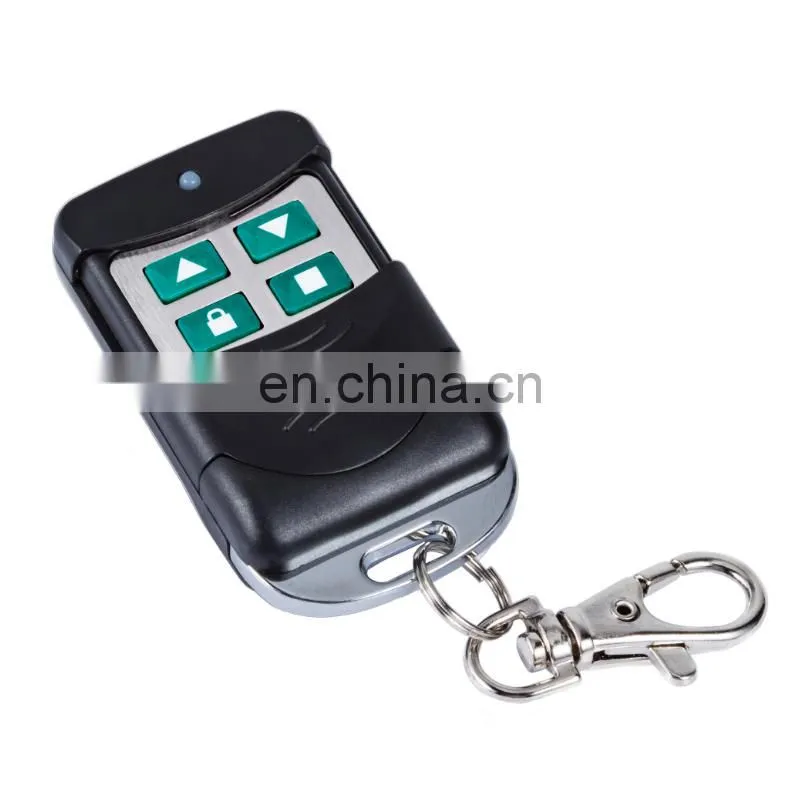

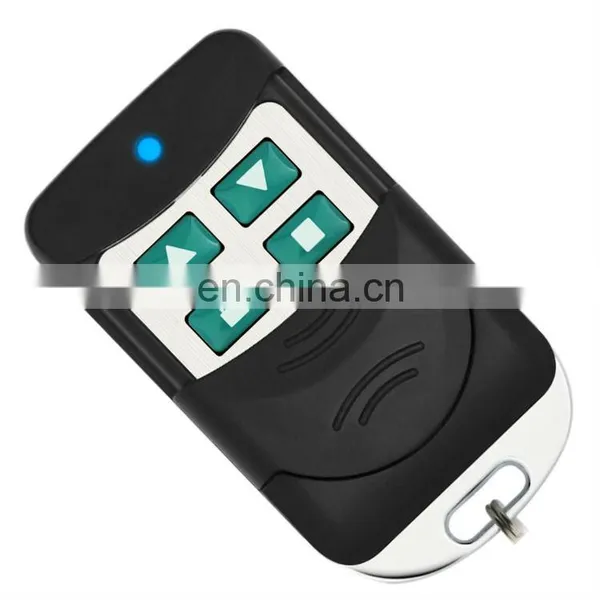

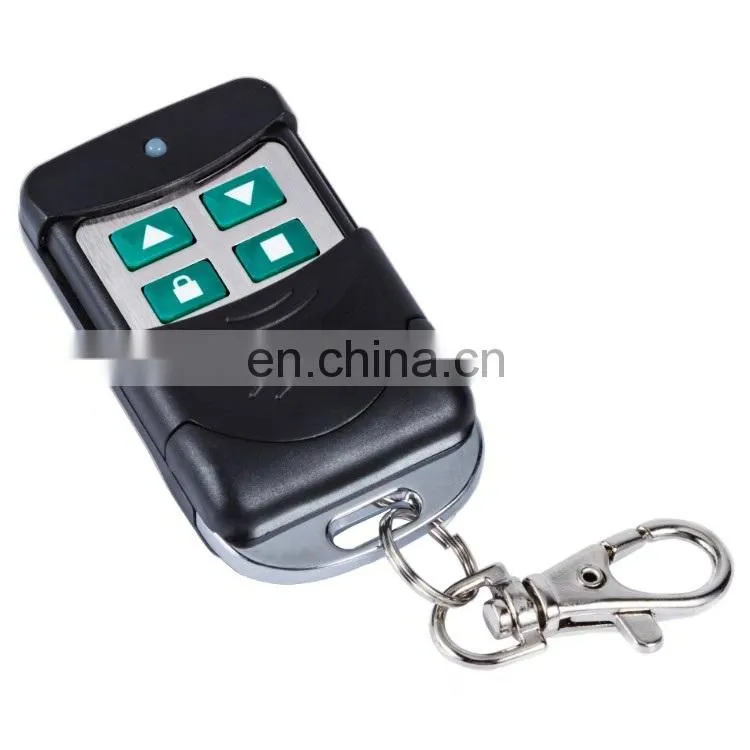

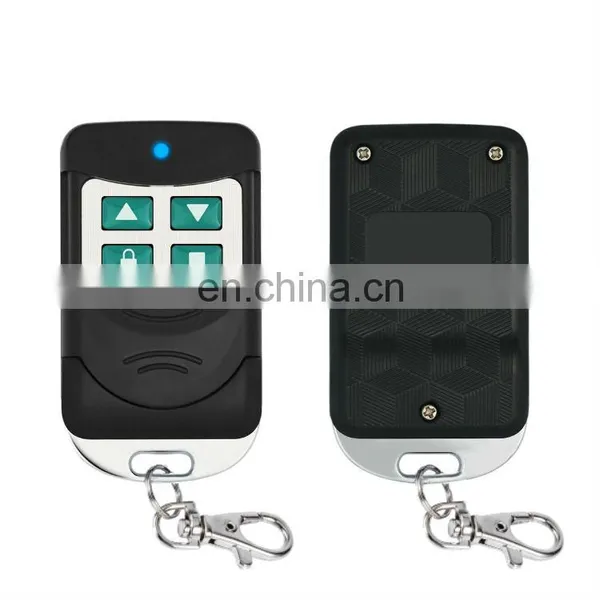

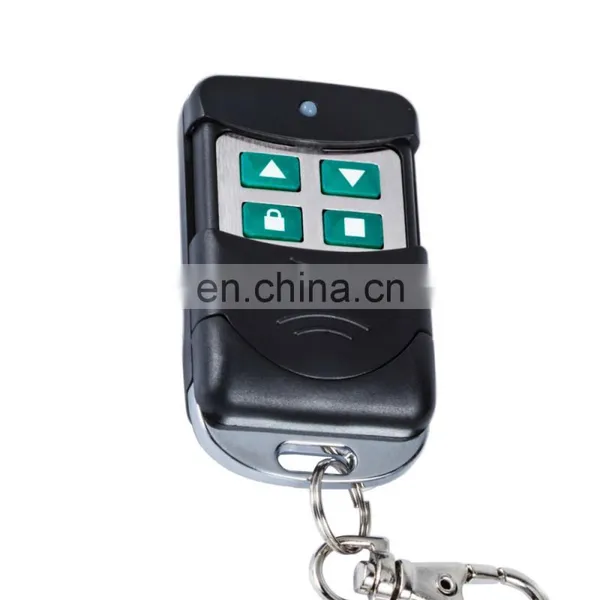

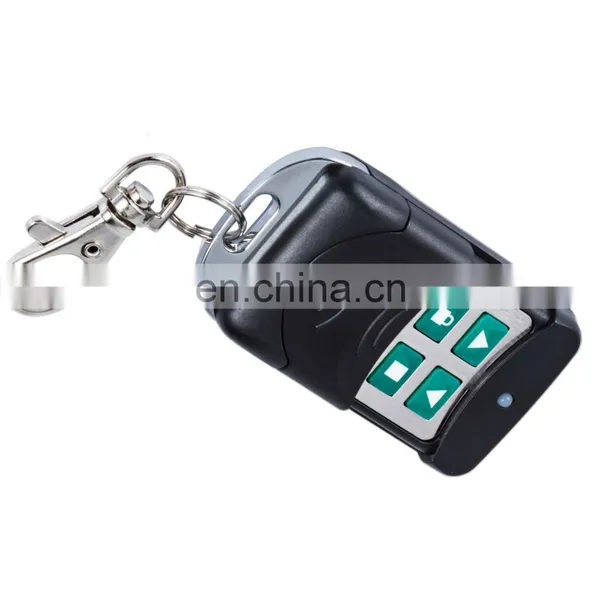

433MHZ Metal 4 Key Ordinary Face-to-face Clone Wireless RF Remote Control for Automatic Door
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
433.92MHz Copy Code Garage Door Remote Control Facing Copy Programming Wireless Remote ControlNegotiableMOQ: 1 -
433MHZ Metal 4 Button Universal Super Copy Clone Face to Face Copy Remote ControlNegotiableMOQ: 1
-
Universal Garage Door Remote Control Door Opener Electric Door Remote Control Key Remote Programmable Learning Code 433MHZNegotiableMOQ: 1
-
433.92M Learning Code New Garage Door Remote Control for Automatic Door Rolling Door and Window Remote Wireless Program ControlNegotiableMOQ: 1
-
433MHZ Metal 4 Button Wireless Copy Code Remote Control Universal Remote Control Compatible With Fixed Code ClonesNegotiableMOQ: 1
Product Description
Product Description：
Model: FBD-AK04KB-433MHZ
Working voltage： |
12V23A dry battery |
working frenquency： |
433MHZ (other 315/310/330/350/390/430/418 frequencies can be customized) |
Transmission distance： |
100 meters(Open space) |
Chip and Operating mode： |
Copy code(Face to face)General chip; learning code 1527, 2240, HT6P20B, HT6P20D, fixed code 2260, 226, 22264, etc. |
Chips could be copied
2260 (all manufacturers); 2262 (all manufacturers); PT2264, 5326 (all manufacturers); SC5262, HT600, HT680, HT6207, HT6010,
HT6012, HT6014, SMC918series, 527 (all manufacturers); 1527 (all manufacturing) Business); 2240 (all manufacturers);
HCS encryption chips and other encryption chips cannot be copied.
Note: If you press the remote control but there is no indicator light, don't worry, it is not damaged. Each remote will be checked
before sending. To resolve this issue, you need to follow the steps below.
1. Code cleaning method:
Pressing the unlock button and the lock button at the same time does not release the hand (some cases are up button and down
button), and the LED indicator will flash continuously. At this point, all stored data will be cleared, no matter which button you
press, the LED of the clean remote control will flash and then go out.
2. Copying method
Keep the original remote control with one hand and the copy remote control with the other hand. Place the two remotes as close as
possible (ideally by placing the two remotes side by side on the table at zero distance) Press the Copy button. When the LED
indicator flashes continuously, it indicates that the copy is successful, and other key operations are the same. Some remotes have
a low transmit power, so the original remote should be placed back in the copy remote for operation. In the case of noise, avoid
interference with the operation; if the copy is unsuccessful, copy it again after clearing the code.
3. New copy remote control function
These four buttons can be used to copy four different types of chips, which means that the remote can operate four different types
of devices. Copying data is faster, it's not easy to lose code, and it's far away.

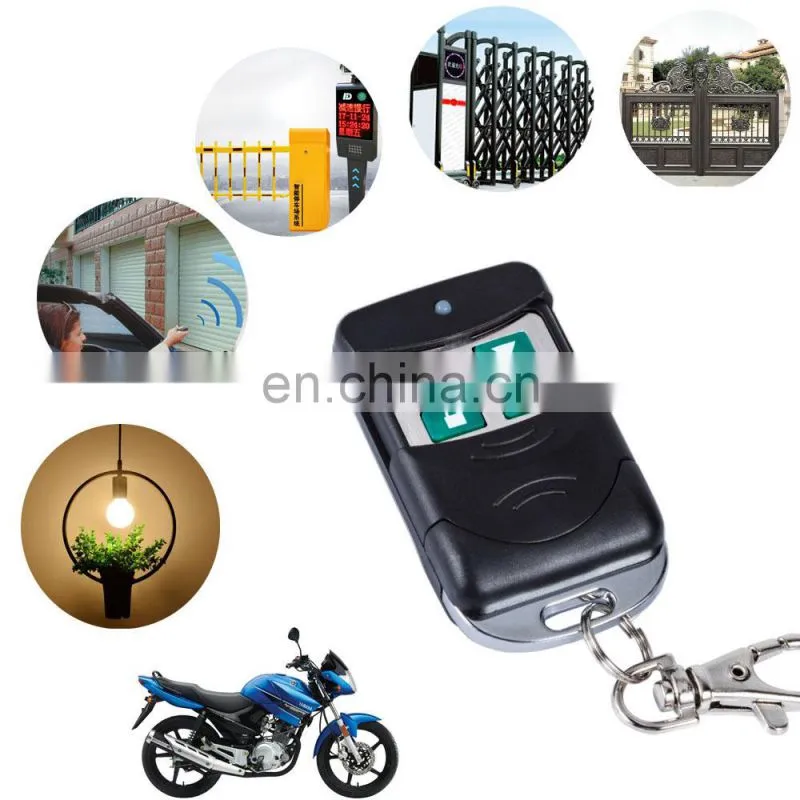

4, reproducible garage doors, retractable doors, road gates, parking locks, burglar alarms are common brands:
note:
1; If the copy fails with the correct operation, you may have to check if there is a chip above the device.
HCS encryption chip and other microcontroller chips cannot be copied.
2;If done correctly, can use directly. If not, or individual button not useful, please turn to clean and copy again, notice the change of light during operation. If problems still exist after attempting several times, check the chip and frequency of original remote control again, and contact us.2260 (all manufacturers); 2262 (all manufacturers); PT2264, 5326 (all manufacturers); SC5262, HT600, HT680, HT6207, HT6010,
HT6012, HT6014, SMC918series, 527 (all manufacturers); 1527 (all manufacturing) Business); 2240 (all manufacturers);
HCS encryption chips and other encryption chips cannot be copied.
Note: If you press the remote control but there is no indicator light, don't worry, it is not damaged. Each remote will be checked
before sending. To resolve this issue, you need to follow the steps below.
1. Code cleaning method:
Pressing the unlock button and the lock button at the same time does not release the hand (some cases are up button and down
button), and the LED indicator will flash continuously. At this point, all stored data will be cleared, no matter which button you
press, the LED of the clean remote control will flash and then go out.
2. Copying method
Keep the original remote control with one hand and the copy remote control with the other hand. Place the two remotes as close as
possible (ideally by placing the two remotes side by side on the table at zero distance) Press the Copy button. When the LED
indicator flashes continuously, it indicates that the copy is successful, and other key operations are the same. Some remotes have
a low transmit power, so the original remote should be placed back in the copy remote for operation. In the case of noise, avoid
interference with the operation; if the copy is unsuccessful, copy it again after clearing the code.
3. New copy remote control function
These four buttons can be used to copy four different types of chips, which means that the remote can operate four different types
of devices. Copying data is faster, it's not easy to lose code, and it's far away.
4, reproducible garage doors, retractable doors, road gates, parking locks, burglar alarms are common brands:

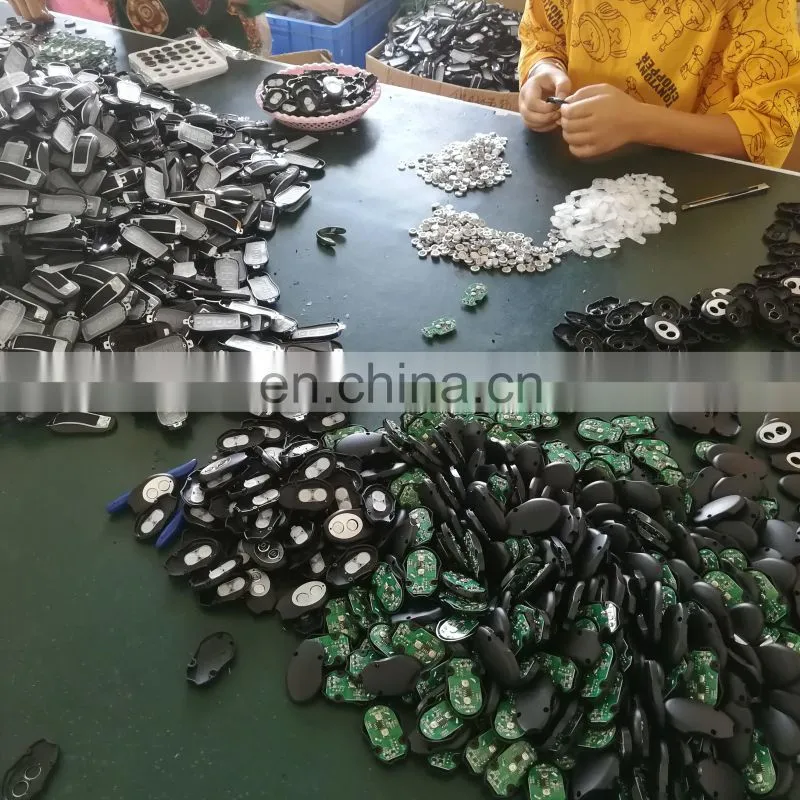

Company Profile
FAQ
Q: What is your MOQ?
A :Our MOQ is 100pcs.The more quantity you order ,our material cost will be less, the price we offer to you will better.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation.
Q: Can you supply sample for customer?
A:We can supply sample for customer's quality checking before
placing new order to us, the delivery cost will be charged on customer's account.
Q:Can you customize for customers?
A: Yes,we can customize according to customers'requirements.
Q: How about your delivery date?
A:Normally our delivery date is about 7-20days after the payment received.
Q:How about the quality of your products?
A:We use best quality (original) components to ensure our product in high level.
All products we sold out are strictly tested by our QC department.
Q:Can I visit your factory?
A:Yes,welcome to our company.
Q:How long do your products does?
A:120-200M
Q:Can I have your free sample?
A :Yes,but the CIF will be on you
