China Cheap Camp Tiny Homes Prefab Flat Pack Container Houses for Sale

Name: China Cheap Camp Tiny Homes Prefab Flat Pack Container Houses for Sale
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Container house

China Camp Casas prefabricadas cheap flat pack prefab container house homes

20 FT Flat pack container house, Prefab conainer homes for sale

Container houses are a kind of building system that has hit the fashion trend again and again, and can be moved anywhere anytime to make more convenient and comfortable life for people. Through solar photo voltaic panels for indoor use, solar water heaters can be used for heating, water supply, indoor showers, and domestic water emissions from sewage treatment systems for reuse.

The house is the overall structure, with the frame, the wall is the steel plate, can be the wood veneer, but the whole migration, the service life can be more than 25 years.

Features:

Safty and reliable light steel flexible structural system
Easy to transport, assemble and disassemble, repetitive to use
Good and attractive apperance
Waterproof, soud-insulated, heat preservation, seal, easy to clean and maintenant
Any dimension and customized design are available
Widely modal application, the office, conference room, dormitory, store, factory etc.

Advantages :

a Strength and durability
b. Modular
c. Labor
The welding and cutting of steel is considered to be specialized labor and can increase construction expenses, yet overall it is still lower than conventional construction.
d.Transport
Pre-fabricated modules can also be easily transported by ship, truck or rail, because they already conform to standard shipping sizes.
e. Availability
Used shipping containers are available across the globe.
f. Foundations
Containers are designed to be supported by their four corners making a very simple foundation possible. As well the top four corners are very strong as they are intended to support a stack of other containers.

Application introduction :

They have been retro-fitted with functional container house accessories. These container home units are transportable and comfortable to live in temporarily or permanently.

They are fitted with power and lighting and can be accessorised to suit your requirements.

Container houses are becoming increasing popular in this new age of sustainable living, as our container houses are constructed from recycled shipping containers. We can design a portable container home to your specific needs.

Technical data :
d proof : 90 km/h
Max.earthquack : 8 grade
Roof load : 1.0 KN/m2
Floor load : 2.0 kg/m2
House layout : Custom made
Life-time : 25-30 years

Detail Specifications and Introduction of the container houses :

Name	20ft flat pack container house , container homes
External Size	6055mm2435mm2896mm
Color	White , Blue , Grey or other RAL color
Steel frame	Roof : Galvanized roof beam:3mm thickness, Galvanized sub-beam:C90, 2mm thickness Floor : Galvanized floor beam:3.5mm thickness, Galvanized sub-beam:steel square tube, 1.8mm thickness Corner : Corner post:3mm thickness
Floor	Glass Magnesium Board PE water proof film
Roof	Galvanized color steel plate Glass wool, single faced aluminum foil+ Moisture sealer Profiled color steel plate ceiling
Wall	50/75 EPS sandwich panel , Glass fiber sadnwich panel and PU sandwich panel
Door	Steel door
Window	Upvc window frame and sliding widow
Electrical	Socket , Switches , Lights , electrical wire , industrial socket ,Sunken distributer etc.
Others	Drainage channel / Decoration Line

Floor plans

There is the different variours house layout

The below one is just for your reference only . If you have the new project , welcome to show us ,we can custom made as your request .

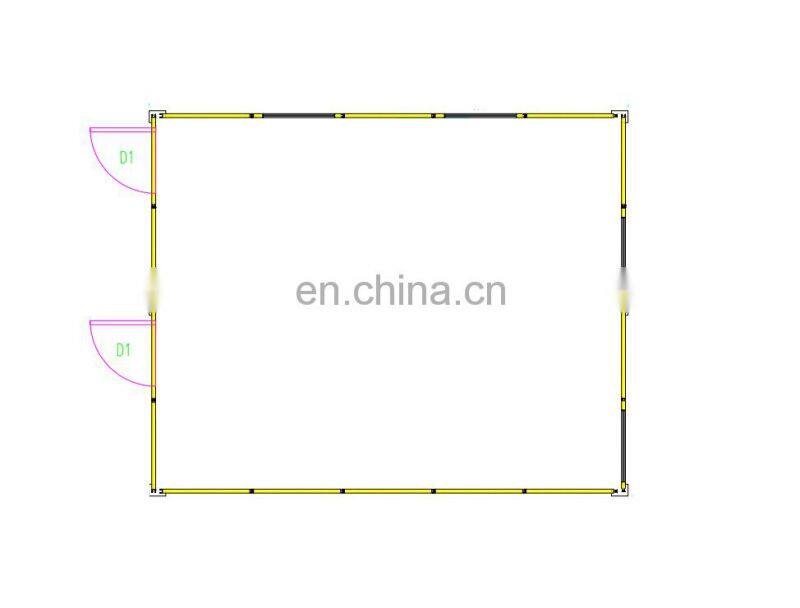

Standard House plans

It is for the office , with 1 door, 2 windows for office , living room , warehouse etc

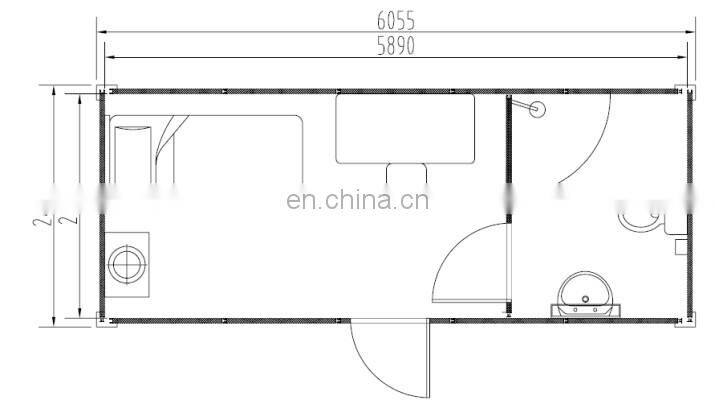

1 bedroom with 1 bathroom

Popular design among our customers

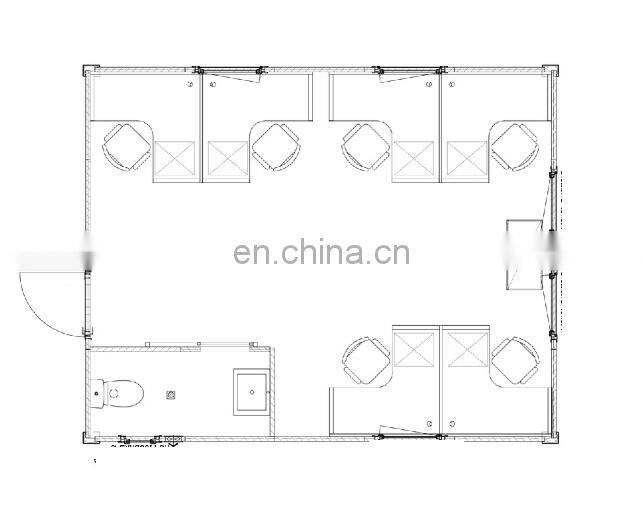

Use 2*20ft container house combined together to be the large area and to finish the house layout

Use 3*20ft container house combined together to be the large area and to finish the house layout

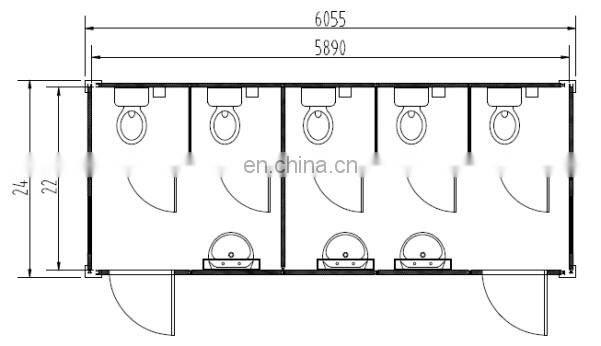

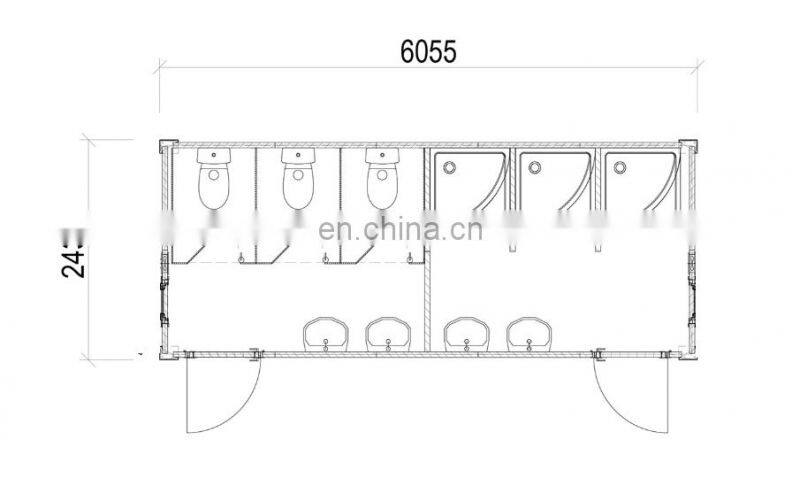

20ft container bathroom and toilet

Portable container toilet

Container toilet

Campsite Portable container toilet for the building site

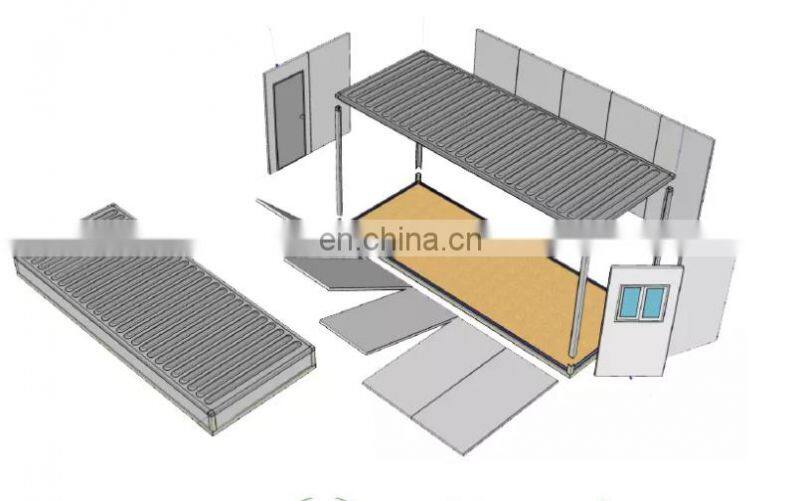

Assemble

Packing & Delivery

Flat pack packages

each set in 1 packages , 4 sets bundled together to be the similar size of the 20ft container , loading on the top of the ship .

Loading in the 40 HQ

Materials packed well and loading in the 40 HQ , usually 7-8 set /40 HQ

Project

Aruba prefab Container Classroom

Prefab Container offices

Campe container house at the building site

Use several container house combined together to meet the large area needed

2 Floor design campe container house

Container house for shop

To use the glass as the wall , make the sun shines goes inside and from outside to see the inside clearaly

1. The house design is custom-made as the drawing or photo

2 . The house is design according to the local climate , make the house suits for local and live in for a comfortable life

3. The design lifetime is 25-30 years

4. Usually the delivery time is 21-30 days .

5. Payment term , T,T and irrevocable L/C at sight .

6. The material is loading in 20' GP , 40' container and 40' HQ . We will suggest the suitable best way according to the the final qty .

Any questions or problem , welcome to contact us !
