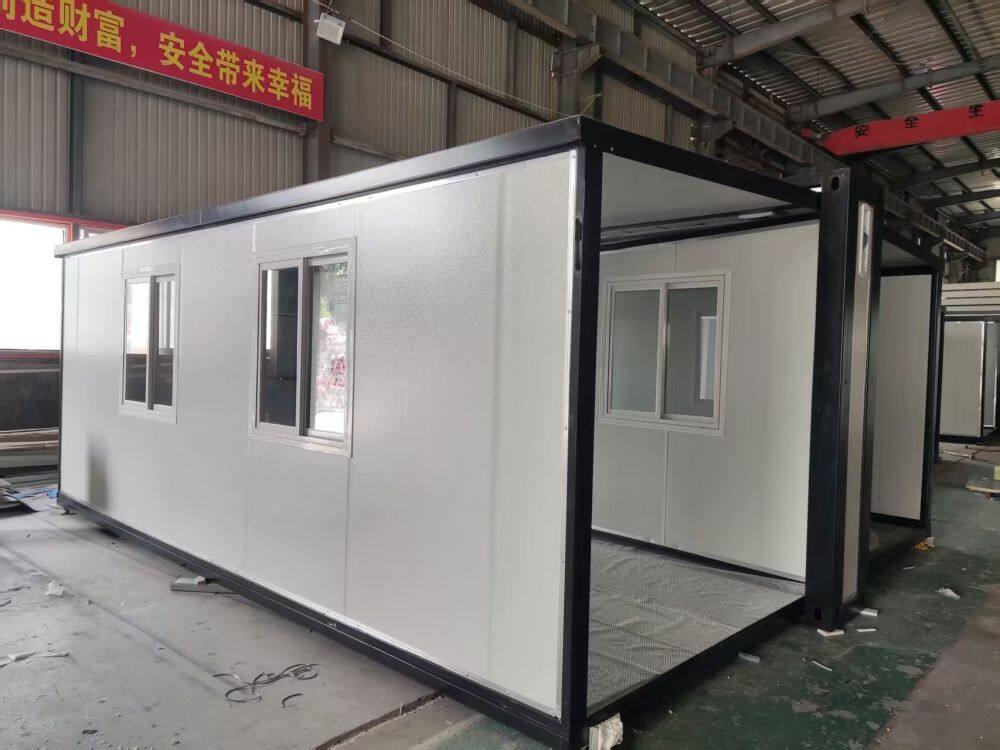

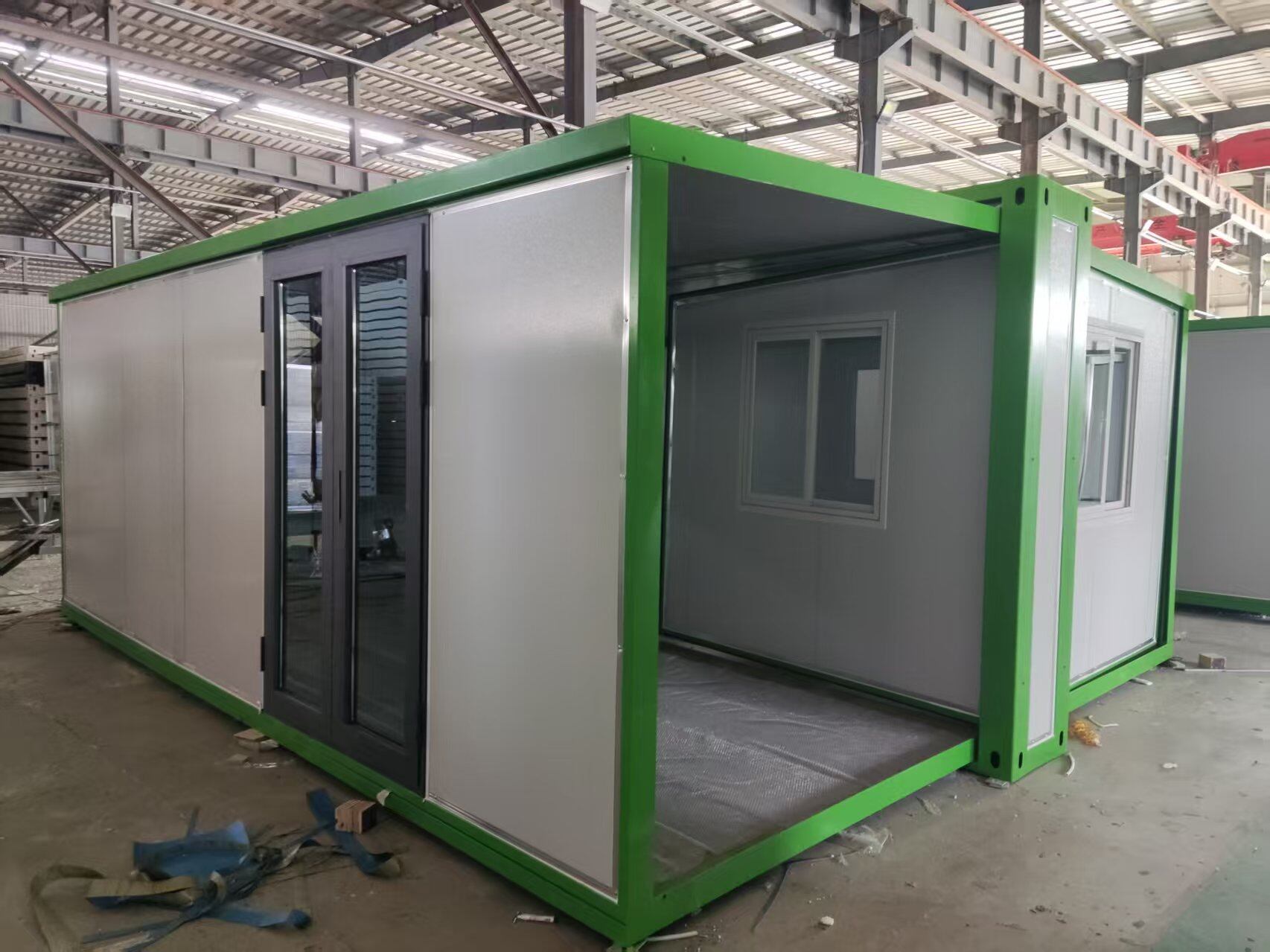

15 Foot Double Wing Expansion Box 570 Expansion Box for Foreign Trade Export Folding Box
Negotiable
MOQ: 8 Combos (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Steel Structure
Certificate:
CE, ISO
Customized Or Not:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
20 days
Related Products
-
20 Foot Flat Top Expansion Box, 20 Foot Double Wing Expansion Box, Two-layer Double Wing Expansion Box, 20 Foot Folding Expansion BoxNegotiableMOQ: 2 Combos -
20/30/40 Foot Twin Wing Expansion Box Villa With 1/2/3 Bedrooms, 1 Living Room, 1 Kitchen, and 1 BathroomNegotiableMOQ: 1 Combo
-
20 Foot Apple Warehouse Apple Warehouse Homestay Source Factory Foreign Trade Export Apple Warehouse Hotel Shop CustomizationNegotiableMOQ: 2 Combos
-
Temporary Construction Site Packaging Box Toilet, Scenic Area Public Mobile Toilet, Men's and Women's Restroom, Customized Shower RoomNegotiableMOQ: 8 Combos
-
20 Foot Apple Warehouse Shop Apple Warehouse Sales Pavilion Apple Warehouse Coffee ShopNegotiableMOQ: 2 Combos
Material
Steel Structure
Certificate
CE, ISO
Customized Or Not
Other
Design Style
Other

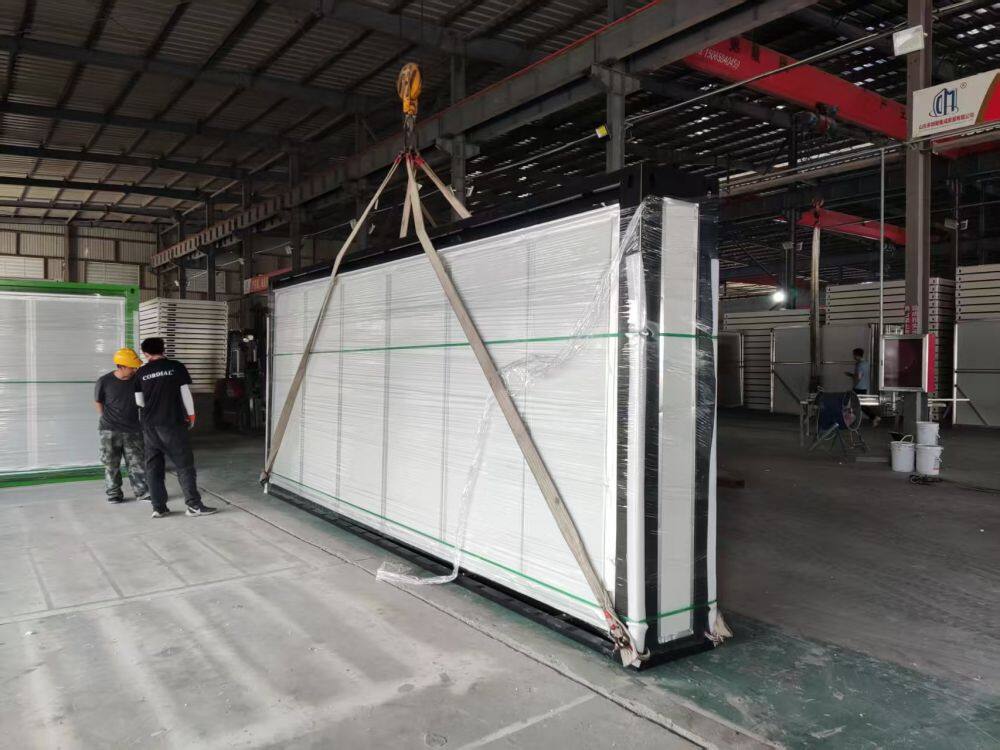

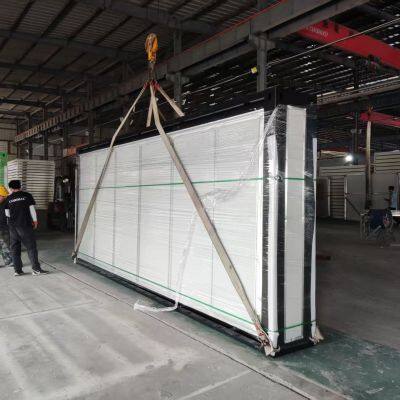

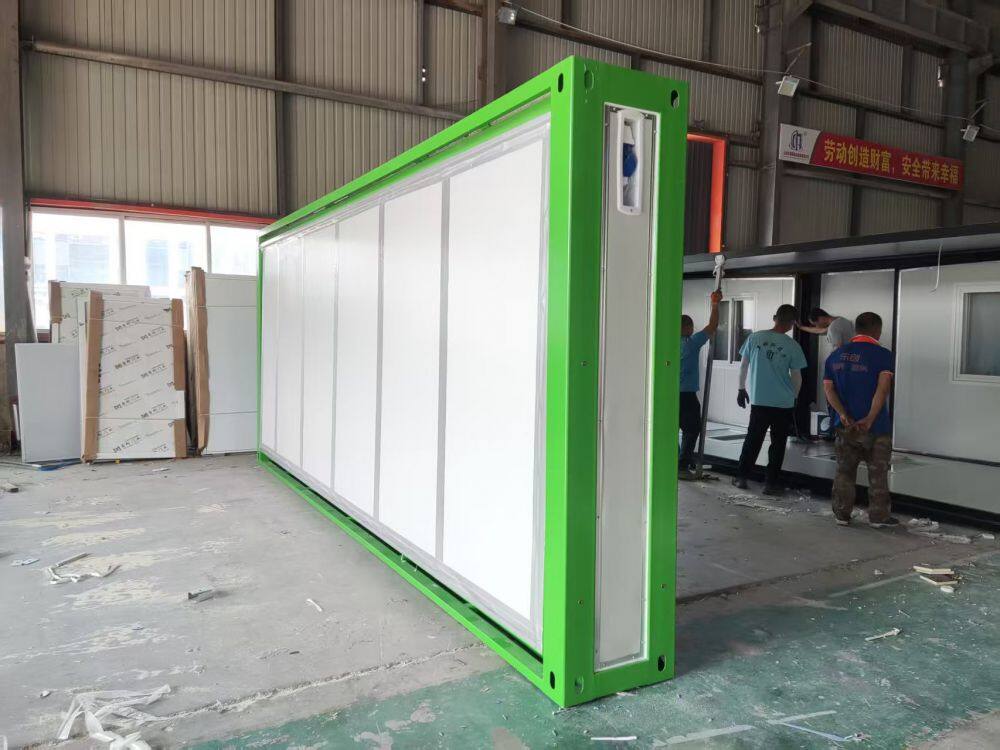

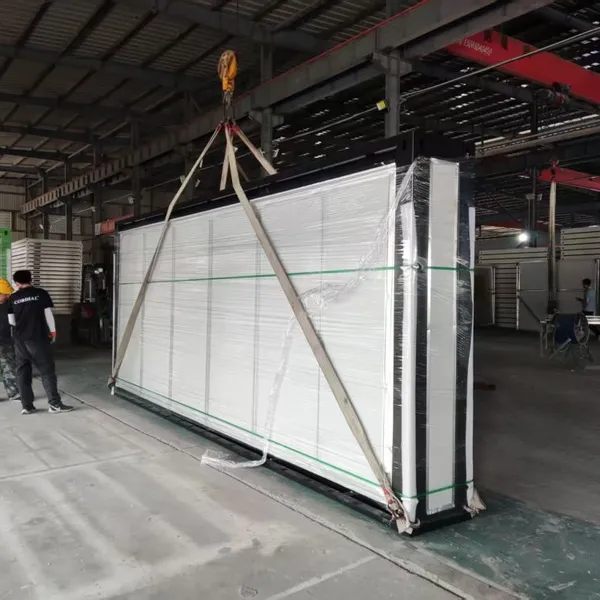

folded dimensions
5900*570*2450

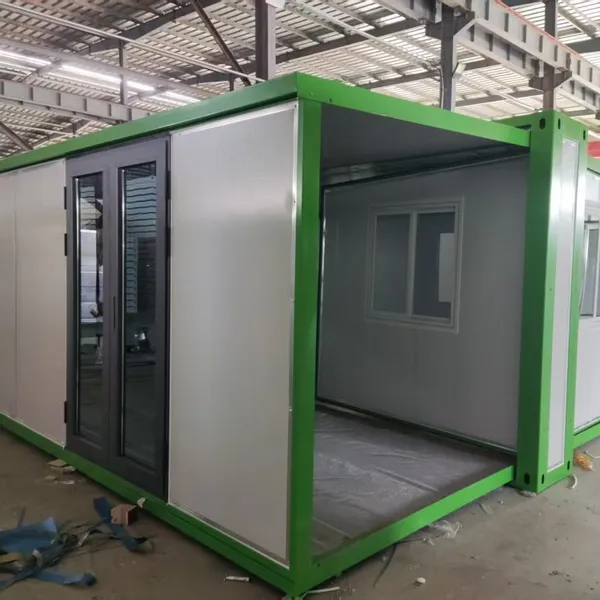

Expand size
5900*4670*2450
floor area
28 square meters
weight
1.5 tons
Windproof grade
Level 10

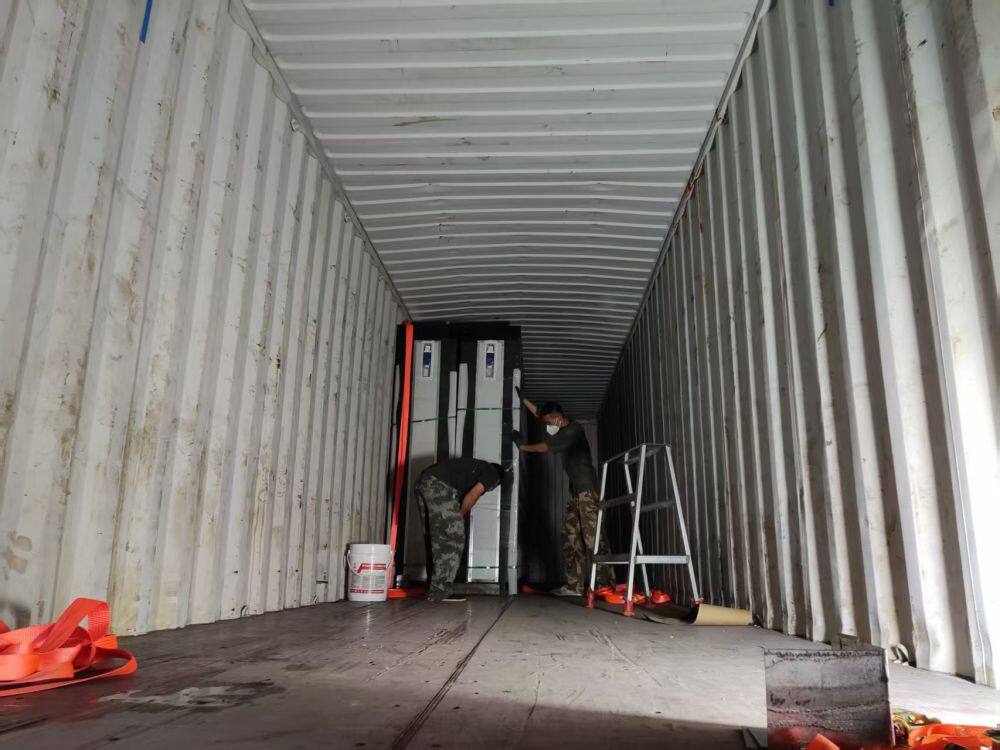

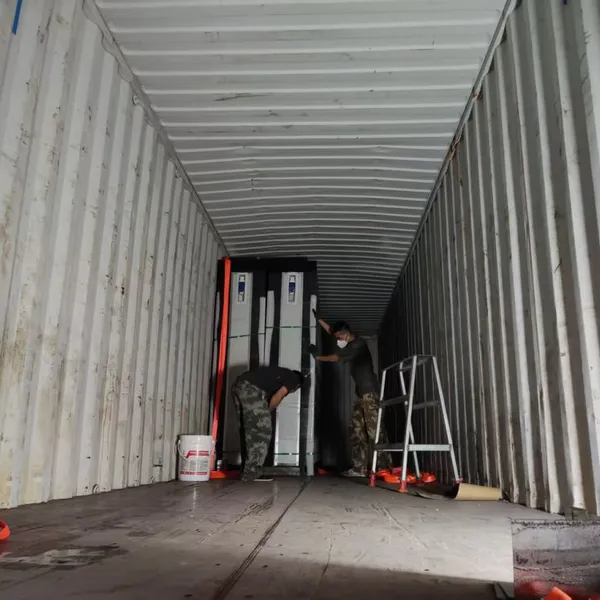

Transport Package
Packing strap fixation
Specification
4567*5900*2450
Origin
Made in China
|
Product type |
Narrow expandable container house |
Square |
27.9㎡ |
|
Expanded Size |
L5900*W570*H2450mm |
Layout |
one livingroom |
|
Folding Size |
L5900*W4670*H2450mm |
Weight |
1.5Tons |
| NO. |
Product name |
Content |
Specification |
| 1 |
Main frame (galvanized) |
Top and side beams |
Pipe 80*100*2.0mm |
| 2 |
top beam |
Bending parts 2.0mm | |
| 3 |
Bottom side beam |
Pipe 80*100*2.0mm | |
| 4 |
Bottom beam |
Bending parts 2.0mm | |
| 6 |
Steel column |
Pipe 150*150*3.5mm | |
| 7 |
Side frame (galvanized) |
Top frame |
Pipe 40*60*1.2mm+Bending parts2.0mm |
| 9 |
Bottom frame |
Pipe40*60*2.0+40*60*1.2+Bending parts2.0mm | |
| 10 |
Folding hinge |
Galvanized hinge 130mm | |
| 11 |
Overall frame protective coating |
Spray paint |
Electrostatic spraying |
| 12 |
Top |
External top plate |
950 type - 50mm thick double-sided 0.3mm, EPS color steel composite board + butyl tape |
| 13 |
Main box internal ceiling |
Ceiling 0.25mm*831 | |
| 14 |
External roof panels on both wings |
type - 50mm thick double-sided 0.3mm, EPS color steel composite board | |
| 15 |
Wall panels |
Exterior siding |
type - 50mm thick double-sided 0.4mm, EPS color steel composite board |
| 16 |
Ground |
main floor |
Glass magnesium board thickness 18mm |
| 17 |
Wing floors |
18mm | |
| 18 |
Floor decoration |
1.6 Floor leather |
|
| 19 |
Doors and windows |

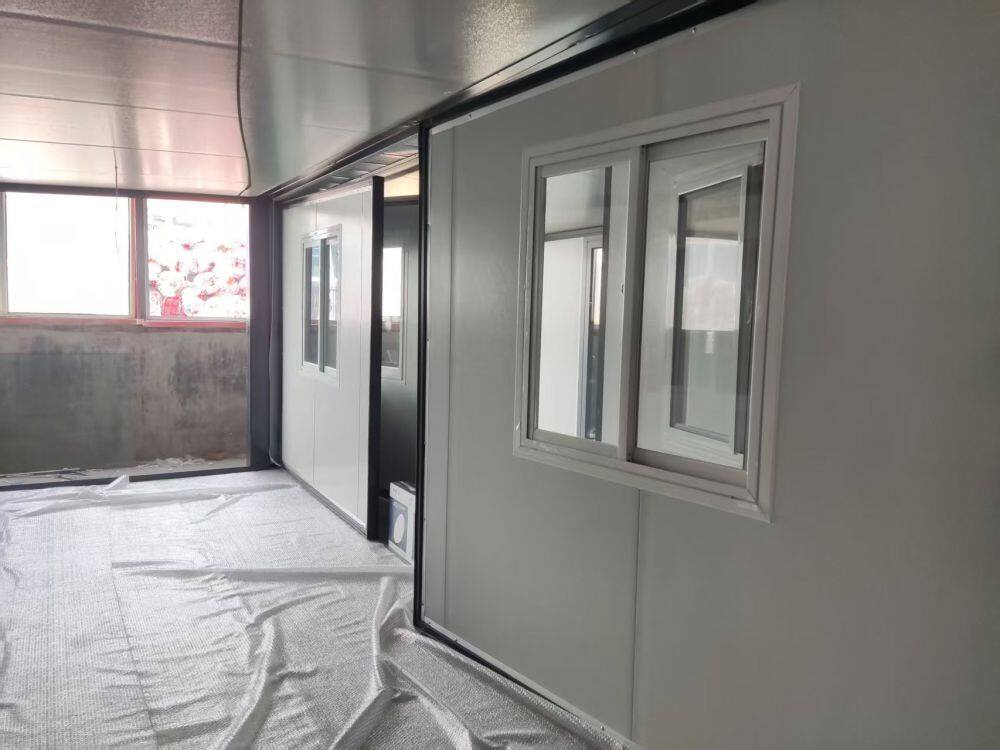

Plastic steel double glass sliding window |
930mm*1000mm*6 sets, with screen fan but without anti-theft function |
| 20 |

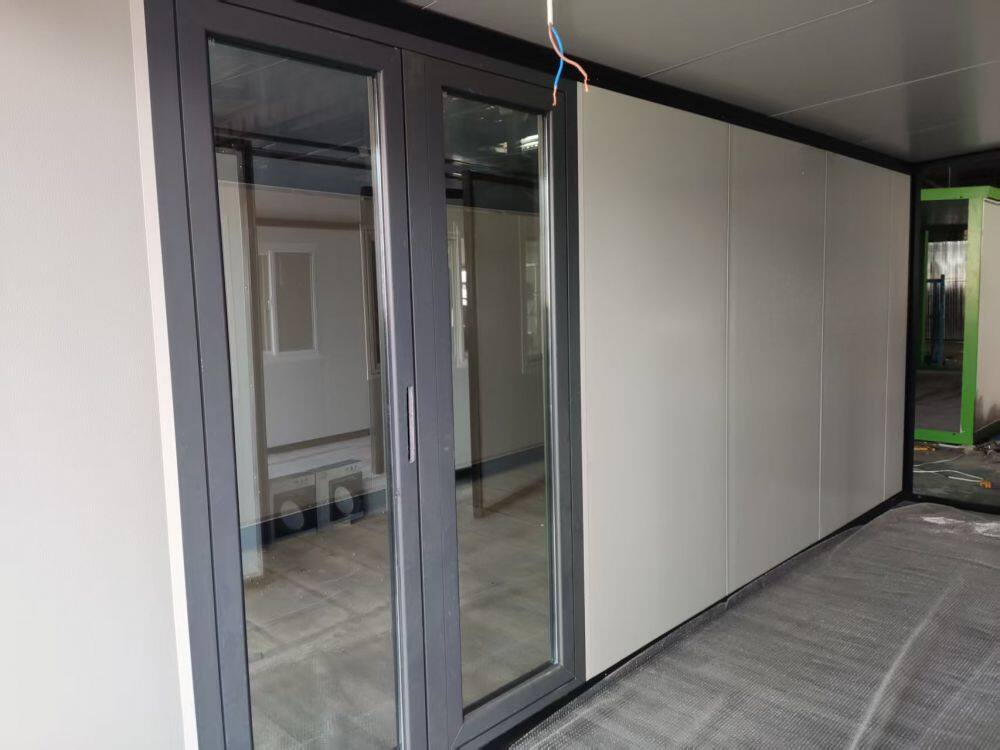

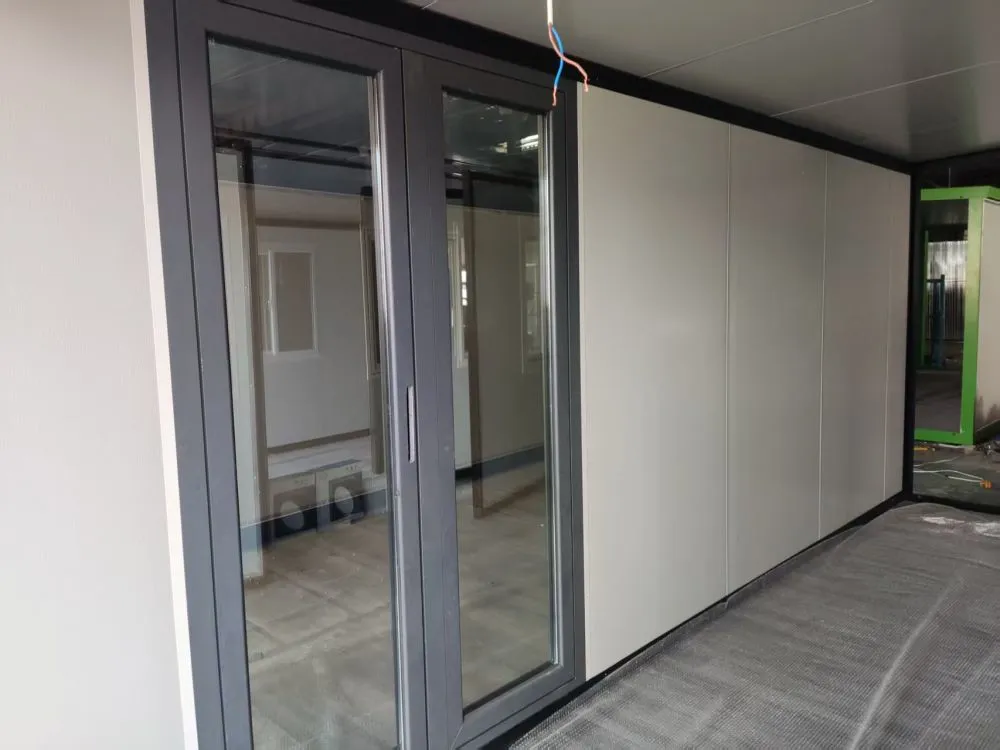

Entrance door |
Aluminum alloy double door |
|
| 21 |
Electrical system |
Circuit system |
Voltage 220V, 50HZ with industrial plug, special customized distribution box; |
| 22 |
Illumination |
Round light*4 sets |
|
| 23 |
socket |
Socket 2 holes * 5 |
|
| 24 |
light switch |
Double button switch 1 |
|
| 25 |
National standard wire |
Incoming line 3*6mm², air conditioning socket 3*4mm², ordinary socket 3*2.5mm², lighting 2*1.5mm². |
|
| 26 |
Accessories |
Including skirting, corner wrapping, waterproof tape, structural adhesive |
|
